StylePuncher: Encoding a Hidden QR Code into Images

Farhad Shadmand

1 a

, Luiz Schirmer

2 b

and Nuno Gonc¸alves

1 c

Institute of Systems and Robotics, University of Coimbra, Portugal

University of the Sinos River Valley Rio de Janeiro, Brazil

Keywords:

StegaStamp, Watermark, Deep Learning, Generative Adversarial Networks, Style Transfer.

Abstract:

Recent advancements in steganography and deep learning have enabled the creation of security methods for

imperceptible embedding of data within images. However, many of these methods require substantial time

and memory during the training and testing phases. This paper introduces a lighter steganography (also ap-

plicable to watermarking purposes) approach, StylePuncher, designed for encoding and decoding 2D binary

secret messages within images. The proposed network combines an encoder utilizing neural style transfer

techniques with a decoder based on an image-to-image transfer network, offering an efﬁcient and robust so-

lution. The encoder takes a (512 × 512 × 3) image along with a high-capacity 2D binary message containing

4096 bits (e.g., a QR code or a simple grayscale logo) and ”punches” the message into the cover image. The

decoder, trained using multiple weighted loss functions and noise perturbations, then recovers the embedded

message. In addition to demonstrating the success of StylePuncher, this paper provides a detailed analysis of

the model’s robustness when exposed to various noise perturbations. Despite its lightweight and fast architec-

ture, StylePuncher achieved a notably high decoding accuracy under noisy conditions, outperforming several

state-of-the-art steganography models.

1 INTRODUCTION

The primary goal of image steganography is to encode

secret messages into a cover image so that the en-

coded and original images appear visually identical.

While focused on steganography, StylePuncher can

also be applied to watermarking for copyright protec-

tion. Inspired by prior works (Shadmand et al., 2024),

(Shadmand et al., 2021), and (Tancik et al., 2020), our

model advances the ﬁeld as an effective steganogra-

phy technique.

The overall performance of a steganography

method is typically evaluated based on four key char-

acteristics: invisibility, information capacity, secu-

rity, and robustness to transmission through printing

media (printer-proof ability). These criteria collec-

tively determine the method’s effectiveness in con-

cealing data while ensuring resilience and maintain-

ing the integrity of the encoded message under vari-

ous conditions. Invisibility is measured by the sim-

ilarity between original and encoded images, ideally

imperceptible to the human eye. We argue that hu-

https://orcid.org/0000-0003-4399-4845

https://orcid.org/0000-0003-4102-1986

https://orcid.org/0000-0002-1854-049X

man visual judgment is the most effective evaluation

method. Additionally, the capacity is quantiﬁed in

bits-per-pixel (bpp), which refers to the average num-

ber of bits embedded into each pixel of the cover im-

age (Zhang et al., 2019). The security of encoded im-

ages involves (1) resilience to noise, preserving en-

coded information, and (2) robustness against adver-

saries attempting to decode or manipulate the data

using similar models. The printer-proof characteris-

tic is assessed by the success rate of decoding physi-

cally printed encoded images, posing a challenge for

steganography models to preserve embedded infor-

mation through the print-scan process.

Current state-of-the-art steganography techniques

face several key challenges: (1) limited capacity for

secret messages, restricting practical security applica-

tions; (2) low robustness against various noise types;

(3) the need for higher image quality and improved

invisibility; and (4) reliance on large architectures re-

quiring extensive datasets, making them inefﬁcient

and impractical for real-time or resource-constrained

applications.

This paper introduces StylePuncher, a novel deep

learning steganography method designed to address

current limitations by embedding high-capacity mes-

Shadmand, F., Schirmer, L. and Gonçalves, N.

StylePuncher: Encoding a Hidden QR Code into Images.

DOI: 10.5220/0013190800003905

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 14th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2025), pages 299-308

ISBN: 978-989-758-730-6; ISSN: 2184-4313

299

sages into RGB images. Inspired by image-to-image

transfer models (Goodfellow et al., 2014), (Isola et al.,

2017), (Wang et al., 2018), (Abdal et al., 2019),

StylePuncher is robust against digital and physical

noise. Its separate training of the encoder and decoder

reduces GPU requirements, while the lightweight en-

coder network enhances efﬁciency compared to mod-

els like CodeFace (Shadmand et al., 2021) and Stam-

pOne (Shadmand et al., 2024), improving speed and

resource utilization.

The encoder design is two folded: neural style

transfer and linear interpolation (improving the ap-

pearance of the encoded images), as visualised in Fig-

ure 1.

The decoder network in StylePuncher is based on

the U-Net architecture, as employed in the pix2pix

network, and is designed to recover the secret mes-

sage from encoded (”punched”) images. Trained in-

dependently from the encoder, the decoder uses en-

coded images as input and the secret message as the

ground truth label, as shown in Figure 2. We eval-

uated four decoder conﬁgurations: standard U-Net,

U-Net with a discriminator, U-Net with an attention

mechanism (Oktay et al., 2018), and U-Net with a

Spatial Transformer Network (STN) (Jaderberg et al.,

2015). The decoder training incorporates four loss

functions: perceptual loss (Zhang et al., 2018), object

loss (Isola et al., 2017), total variation (TV) loss (Ar-

jovsky et al., 2017a), and a StegaStamp discriminator

(Tancik et al., 2020) to enhance performance.

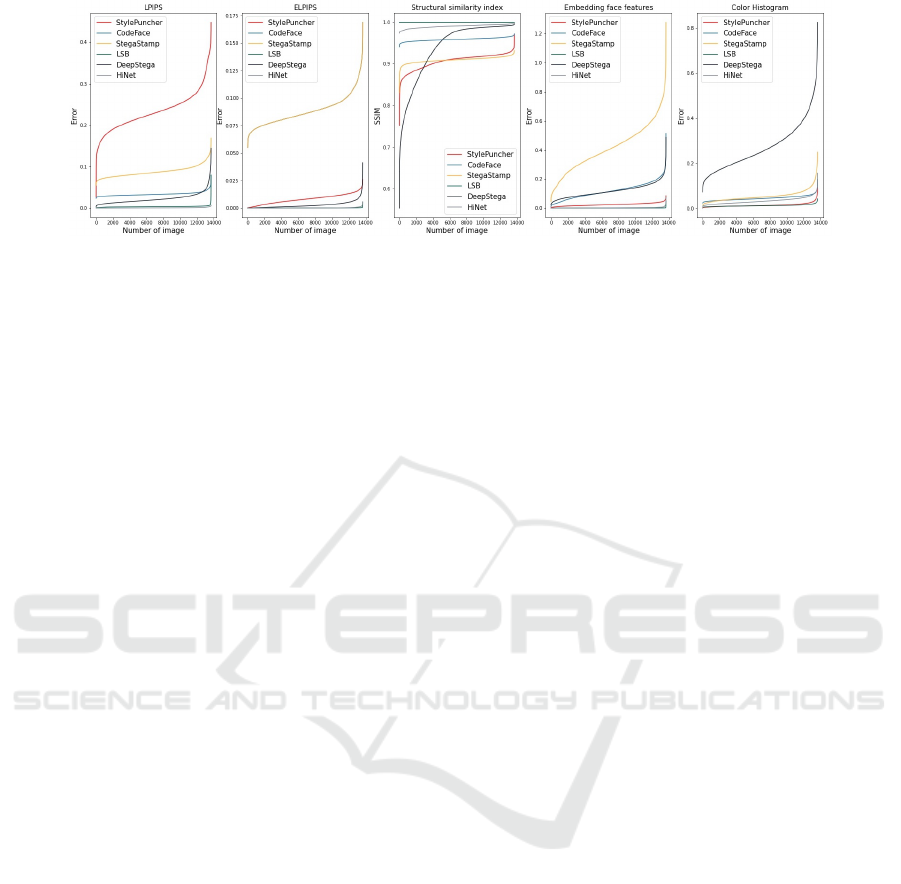

As for invisibility and quality of StylePuncher en-

coded images, they are measured by three perceptual

loss functions (Chen and Bovik, 2011) (Zhang et al.,

2018)(Kettunen et al., 2019), a face features distance

(Deng et al., 2019) and a color histogram loss func-

tion (Aﬁﬁ et al., 2021). The results from the tests

with the three loss functions showed than our model

is a robust steganography model with capacity as high

as 0.52 × 10

−2

bpp.

We also present the sensitivity performance of our

decoder networks in the presence of various simu-

lated noise sources. The average decoder perfor-

mance reaches approximately 85% successful rate

in the presence of several distortion perturbations

while having the best performance between the robust

steganography models (Shadmand et al., 2021), (Tan-

cik et al., 2020).

2 RELATED WORK

Image Steganography was initially performed with

the use of traditional computer vision tools, such

as Discrete Wavelet Transform (DWT) (Barni

Encoded


iterations

optimiser

block 1

block 2

1) Virtual QR Code

reader loss function.

2) Perceptual loss

function.

Optimiser

Style transfer

Blender

(linear interpolation)

primary

Encoded


Original


primary

Encoded


Message

Original


Figure 1: StylePuncher encoder architecture. In block 1, the

StylePuncher encoder is designed with loss functions and an

optimiser that ”punches” a 2D binary message into images

while optimizing variables of the primary encoded images

in two epochs. In block 2, the primary encoded image is

blended with the original image to produce encoded images.

Decoder

Encoded


Recovered

2D message

1) Perceptual loss function,

2) Western loss function,

3) Virtual QR Code reader loss

function.

Discriminator

Yes

Message

Figure 2: The decoder follows a structure similar to the

pix2pix network and is trained using perceptual loss, West-

ern loss, and a modiﬁed virtual QR Code mechanism to en-

hance performance and robustness.

et al., 2001), Discrete Fourier Transform (DFT)

(O’Ruanaidh et al., 1996), Discrete Cosine Transform

(DCT) (Hsu and Wu, 1999) or LSB (Tamimi et al.,

2013). LSB uses the least signiﬁcant bits (LSB) to

hide a secret message into a cover image (Tamimi

et al., 2013). The hiding capacity of LSB is approx-

imately 0.20 bits per pixel (bpp) (Zhu et al., 2018).

While these methods allow high-capacity message en-

coding, they often struggle with maintaining the per-

ceptual quality of encoded images and suffer from

data loss under noise-induced distortions.

Recent advances in deep learning, particularly

Generative Adversarial Networks (GANs) (Goodfel-

low et al., 2014), (Mirza and Osindero, 2014), have

signiﬁcantly improved image steganography perfor-

mance.

The ﬁrst deep learning-based steganography

method, DeepStega (Baluja, 2017), utilized auto-

encoding networks to encode a 64 × 64× 3 secret im-

age into a cover image of identical resolution. During

training, small noise was added to the encoder’s out-

put to prevent encoding the secret image directly into

the binary space of the cover image, such as LSB.

The StegaStamp method (Tancik et al., 2020) in-

troduced a robust steganography technique capable of

validating encoded messages from physically printed

ICPRAM 2025 - 14th International Conference on Pattern Recognition Applications and Methods

300

Encoded image

Message

Avg-

pooling

RGB to Gray

SS-layer

if 0. >

if 1. <

Avg-

pooling

RGB to Gray

SS-layer

if 0. >

if 1. <

m×m

⊕

m×m

′

m×m

code

= κ

m×m

−F

′

m×m

)

Figure 3: Virtual QR code reader is inspired in ArtCode

(Su et al., 2021), where we replace average-pooling to ﬁnd

the center pixel faster than the original model. The kernel

of the SS-layer for the encoder is a Gaussian function like

ArtCode, but we use a matrix with ones for the decoder.

images. This was achieved through noise simulation

techniques to mimic printer and digitization perturba-

tions. By employing LPIPS perceptual loss (Zhang

et al., 2018) during training, the method minimized

perceptual quality differences between encoded and

cover images, signiﬁcantly enhancing the appearance

of encoded samples.

The CodeFace model (Shadmand et al., 2021) is

the ﬁrst practical full model for encoding and decod-

ing secret messages from small face images in ID doc-

uments. It enhances image quality by minimizing dif-

ferences in facial features between encoded and orig-

inal images and improves decoder performance by

training with low-resolution encoded images. Both

CodeFace and StegaStamp encoders can hide up to

100 bits in 400× 400× 3 pixel images but decode reli-

ably only from large printed images with high texture

levels, such as 6 × 6 cm images.

The HiNet model (Jing et al., 2021), built on

deep learning normalizing ﬂows, employs an invert-

ible neural network (INN) to embed one image within

another of the same size. Utilizing wavelet domain

transformation and inverse learning, HiNet enables

high-capacity, secure, and imperceptible message em-

bedding with strong recovery accuracy. It supports a

payload capacity of 24 − 120 bpp but is highly sensi-

tive to noise and perturbations.

Recently, the StampOne (Shadmand et al., 2024)

model proposed a generalized approach to enhancing

steganography using deep learning, speciﬁcally based

on Generative Adversarial Networks (GANs). This

method aims to increase both the message capacity

and robustness of the model when subject to various

printer and camera augmentations.

3 METHODOLOGY

StylePuncher consists of a style transfer encoder net-

work, inspired by ArtCode (Su et al., 2021), and an

image-to-image transfer decoder. The encoder incor-

porates a virtual QR Code simulator loss function in-

troduced in ArtCode, optimized using the Adam op-

timizer. The style transfer optimization process is ex-

ecuted twice to embed the message points into the

original image, resulting in encoded images. Follow-

ing this embedding phase, the quality of the encoded

images is further reﬁned through linear interpolation

with the original images, enhancing their visual ﬁ-

delity. Further details are given in section 3.1.

The decoder network then takes the encoded im-

ages as input and reconstructs the QR Code message

as output. It is trained over 28,000 steps for noise-free

conditions, or 100,000 steps when simulating noise,

to minimize the corresponding loss functions.

We implemented two separate applications for the

encoder and decoder. Additionally, for detecting the

region of interest in the encoded images, we utilized

two models: YOLOv4 (Wang et al., 2021) and PRnet

face detection (Wang and Solomon, 2019).

3.1 Encoder

StylePuncher’s encoder network consists of two main

components: a modiﬁed ArtCode Neural Style Trans-

fer (NST) network (Su et al., 2021) and a linear in-

terpolation operator that blends the primary encoded

and original images (see Figure 1).

In modifying ArtCode, we replaced its original

loss functions with a perceptual loss function (Zhang

et al., 2018), instead of the VGG16 NST, to better pre-

serve the appearance of the encoded images during

training. To redesign the virtual QR code simulator

mechanism, we retrained the Sampling-Simulation

(SS) layer (I

), which employs a convolution layer

with a non-trainable Gaussian kernel and an s × s ma-

trix to detect the center of black and white blocks, as

follows:

(i, j)

2πσ

−

+ j

2σ

(1)

where (i, j) is a pixel of a kernel matrix and the origin

at the module center. The factor σ adjusts the size in

bits of the message punched in the cover image.

The loss function is illustrated in Figure 3. Both

the encoded image and the secret message are con-

verted from RGB to grayscale. The secret message

is passed through the frozen SS-layer, where a binary

feature vector (F

m×m

) is extracted. It is also processed

through a 2D average pooling layer and mapped using

to compute the binary matrix (Q

m×m

) of the mes-

sage, where τ is the binary threshold applied to the

secret message pixels (QR Code).

The encoded image follows a similar process.

Initially, the primary encoded image’s pixel values

StylePuncher: Encoding a Hidden QR Code into Images

301

Message

Encoded

part

Encoded


Recovered

Message

Original


Figure 4: Samples of encoded images - StylePuncher can hide and read a message in an image’s region of interest.

LSB

HiNet

StylePuncher

CodeFace

StegaStamp

DeepStega

Figure 5: Examples of steganography models that encode a

hidden message into image’s ROI. The size of DeepStega’s

input and output is 64 × 64 × 3, smaller than other models.

Therefore, for a fair comparison, we use a smaller encoding

ROI in DeepStega.

match those of the original image. During training,

the network converts the encoded image from RGB

to grayscale, and the SS-layer extracts its binary fea-

ture vector (F

′

m×m

). It then passes through a 2D aver-

age pooling layer and is mapped using ε

′

,τ

, which

computes the matrix of maximum pixels (C

m×m

) with

thresholds τ

and τ

for white and black pixels, re-

spectively.

The error weight (κ

m×m

) is deﬁned as zero when

m×m

and Q

m×m

are identical (both 0 or 1), and as one

otherwise. The virtual QR Code loss function is then

calculated using the following expression:

code

= κ

m×m

− F

′

m×m

) (2)

where m is the size of the message and s is the size of

the kernel. The details of L

code

are shown in Figure 3.

By using the average pooling layer and the Ten-

sorﬂow toolkit, to extract C

m×m

and Q

m×m

, increases

the speed by 100 times over the traditional approach

of ArtCode (Su et al., 2021). The encoder produces

images such that the perception of the encoded and

original images is similar, with indistinguishable dif-

ferences, as can be seen in Figure 4.

In the second block, to improve the encoder’s per-

formance, the pixel values between a primary en-

coded image and an original image are linearly in-

terpolated to generate an invisible encoded image, as

follows:

enc

(i jc) = α × p

pri

(i jc) + (1.0 − α) × p

(i jc) (3)

where p

enc

, p

pri

and p

(i jc) are normalized pixels

(between 0 and 1) of the encoded, primary encoded

and original images, respectively, for the channel c of

ICPRAM 2025 - 14th International Conference on Pattern Recognition Applications and Methods

302

Figure 6: The quality of encoded images as a parameter of the encoder network is measured. The smaller the value, the

better LPIPS and ELPIPS which measure the perceptual distance between encoded and original images. We also compute

Euclidean distances between original and encoded face images as in ArcFace (Deng et al., 2019). The colour errors are

computed between encoded and original photos by comparing colour histograms.

the pixel (i j). The value α is an interpolation factor

that lies in the range [0, 0.4].

3.2 Decoder

The decoder is an image-to-image transfer network

that takes a 512 × 512 × 3 encoded image as input and

outputs a 512×512× 1 recovered message, which can

be read by standard QR Code scanning applications,

as illustrated in Figure 2

We have implemented several variations of the de-

coder network, all based on the pix2pix framework

(Isola et al., 2017). The ﬁrst version is a U-Net archi-

tecture, as used in the original pix2pix model, with-

out incorporating a discriminator. The second version

includes a Conditional Generative Adversarial Net-

work (CGAN) discriminator, which classiﬁes whether

each image patch is real or fake. Upon compari-

son, we found that the inclusion of the discriminator

negatively impacts the decoder’s performance, as de-

tailed in section 6. In the third model, we integrated

an attention mechanism (Oktay et al., 2018) into the

pix2pix framework. We chose the attention U-Net to

enable the model to focus on relevant features during

training, inspired by its application in medical image

analysis (Oktay et al., 2018). Finally, we explored

the use of a Spatial Transformer Network (STN) com-

bined with pix2pix (Jaderberg et al., 2015). The STN

helps to crop and normalize the appropriate region

within the image, simplifying subsequent classiﬁca-

tion tasks and improving the decoder’s overall perfor-

mance.

For training the decoder, our approach utilizes a

combination of loss functions, including the virtual

QR Code reader loss (L

), the perceptual loss (L

Per

)

(Zhang et al., 2018), the object loss (L

ob j

) (Isola et al.,

2017), and the total variation (TV) loss (L

) (Ar-

jovsky et al., 2017a). The virtual QR Code reader

used in the decoder is similar to the one employed in

the encoder, but it uses a matrix with values equal to

1 instead of a Gaussian kernel in the SS-layer.

We incorporate a discriminator within the decoder

to minimize the discrepancy between the extracted

message and the original message. A Wasserstein ad-

versarial loss (l

disc

) (Arjovsky et al., 2017b) is com-

puted by evaluating the difference between the dis-

criminator’s feature outputs for the extracted and orig-

inal messages, ensuring a closer alignment between

them.

The complete loss function is deﬁned as:

Loss = W

× l

Per

× l

Per

ob j

× l

ob j

× l

disc

× l

disc

(4)

where W

, W

Per

, W

ob j

and W

are the respective

weights assigned to each loss component. W

disc

and

disc

are the weight and loss function of the discrimi-

nator.

4 DATASETS

The dataset used for training the StylePuncher model

is the CelebFaces Attributes dataset (CelebA) (Liu

et al., 2018), which contains 202, 599 large-scale im-

ages of celebrities. For object images, we utilized the

ImageNet dataset (Deng et al., 2009), which includes

thousands of diverse images. From these two datasets,

we randomly selected 50, 000 images for training. For

testing, we employed the PICS face dataset (Hancock,

2008) and the Color FERET face dataset (Phillips

et al., 2000), comprising a total of 13, 659 images. All

facial images presented in this study belong to celebri-

ties.

StylePuncher: Encoding a Hidden QR Code into Images

303

5 PERTURBATION SIMULATION

Applying perturbation or noise self-attack simulations

enhances decoder robustness in real-world scenarios.

The three primary noise types impacting images are

digital, printer, and sensor perturbations (Cunha et al.,

2024).

Digital Perturbations. Digital noise refers to dis-

tortions during transfer, storage, or application-level

manipulation of images. Here, we focus solely on

noise from JPEG compression.

Printer and Designed Perturbations. Printers

introduce various noises, such as Gaussian noise,

afﬁne transforms, sharpening, and random gray trans-

forms, which can compromise hidden information.

Sensor Perturbations. Cameras capture images

differently based on lighting and environmental con-

ditions. Sensor perturbations, simulated in our solu-

tion, include random brightness, contrast, hue shifts,

medium blur, perspective warps, and added padding.

6 EXPERIMENTS

6.1 Training Conﬁguration and

Hardware Setup

The StylePuncher networks were trained using the

Adam optimizer (Kingma and Ba, 2014) with a learn-

ing rate of 10e

−5

and β = 0.95. The training process

involved 11 × 10

epochs with a batch size of 5, over

a total duration of 48 hours. The input and output im-

age sizes were 512 × 512 × 3. We used two Nvidia

Geforce GTX 1060 GPUs for training the networks.

6.2 Capacity Evaluation of

Steganography Models

The capacity, or the amount of information a model

can hide in an image, is a critical metric for evaluating

the network performance. This capacity is inﬂuenced

by the network architecture, vulnerability to noise dis-

tortion, and the design of loss functions. Normalizing

models like HiNet achieve the highest capacity at 120

bpp, setting the baseline for a benchmark comparison.

LSB (0.2 bpp) and DeepStega (0.1 bpp) follow, with

lower capacities than the normalizing ﬂow models.

CodeFace (Shadmand et al., 2021) and the Ste-

gaStamp (Tancik et al., 2020) model demonstrate a

much smaller capacity, retrieving 0.21 × 10

−3

bpp

and 0.13 × 10

−3

bpp, respectively, when recover-

ing hyperlinks after applying error-correcting algo-

rithms. Although their capacities (regarding the max-

Table 1: Qualitative Results: Model Ranking Based on

Scores (0-10).

Model Score (0-10)

LSB 8.89

HiNet 8.69

StylePuncher (Ours) 8.68

CodeFace 6.89

DeepStega 6.05

StegaStamp 4.08

imum amount of hidden information) are lower, these

models are speciﬁcally designed to withstand distor-

tions caused by image transfer through physical me-

dia, such as printing and re-digitization, making their

printer-proof characteristic particularly valuable.

Finally, the StylePuncher model, while maintain-

ing robustness against various noise distortions, sig-

niﬁcantly improves upon these robust models with

a capacity of 0.52 × 10

−2

bpp, making a substantial

enhancement in the ﬁeld of resilient steganography

methods.

6.3 Encoder Performance

Fidelity, the quality of the encoded image and its sim-

ilarity to the original, is a key measure of encoder

performance. Human judgment remains the most reli-

able method for evaluating encoder effectiveness, par-

ticularly across different steganography models. As

shown in Figure 5, we conducted a survey based on

the ITU-R BT.500.11 recommendation (BT, 2002)

and (Zhai and Min, 2020), commonly used for im-

age quality assessments, such as by the JPEG working

group (ISO/IEC JTC 1/SC 29/WG 1).

In a survey of 76 participants, eight pairs of origi-

nal and encoded images from six steganography mod-

els were evaluated for similarity. Based on qualitative

scores (0–10) and the Mean Opinion Score (MOS), as

presented in Table 1. StylePuncher ranked slightly be-

low HiNet and LSB, which are highly noise-sensitive.

Among robust models, however, StylePuncher was

the top performer in encoded image quality.

Additionally, Certain loss functions, such as SSIM

(Chen and Bovik, 2011), LPIPS (Zhang et al., 2018),

and eLPIPS (Kettunen et al., 2019), quantify percep-

tual image similarity, aligning with human judgment.

These metrics are particularly useful for evaluating

steganography models’ ﬁdelity.

However, the perceptual loss functions used in our

evaluation are not fully rigorous in accurately measur-

ing human visual perception (Avanaki et al., 2024).

In fact, these functions suggest that DeepStega-

encoded images offer better perceptual quality than

StylePuncher, CodeFace, and StegaStamp. However,

in reality, DeepStega-encoded images undergo sig-

niﬁcant color transformations, which are not effec-

ICPRAM 2025 - 14th International Conference on Pattern Recognition Applications and Methods

304

Table 2: Global Encoder Performance Based on Average

Error Scores.

Model Average Error Score

LSB 0.004

HiNet 0.009

StylePuncher (Ours) 0.065

CodeFace 0.071

DeepStega 0.103

StegaStamp 0.161

tively captured by these loss functions. To address

this limitation, we introduced a more comprehensive

approach by measuring the color histogram distance

(Aﬁﬁ et al., 2021) between the encoded and original

images, as shown in the ﬁnal (right) plot of Figure 6.

This method provides a more accurate reﬂection of

color ﬁdelity in the encoded images.

To further improve the quality of the encoded im-

ages in the context of face images, we also measure

the distance of face features between encoded and

original images, by using the ArcFace model (Deng

et al., 2019), which is based on the cosine distance.

The results of the comparison of all loss func-

tions for all models are presented in Figure 6. We

computed the average from the ﬁve mentioned error

functions for every model as the global encoder per-

formance, which is shown in Table 2. LSB (0.004)

and HiNet (0.009) have the best results. After them,

for the robust models, come StylePuncher (0.065) and

CodeFace (0.071) that then have the best encoded im-

ages. The worst results were achieved for DeepStega

(0.103) and StegaStamp (0.161). As can be seen, the

scores obtained by the human judgement survey are

in line with these metrics.

6.4 Decoder Performance

The decoder’s performance is evaluated based on its

ability to accurately recover hidden messages under

various distortions and noise simulations. Its robust-

ness for real-world printed images is enhanced by ap-

plying perturbation, noise, or self-attack simulations,

as outlined in Section 5. This subsection examines

the model’s sensitivity to several distortions, includ-

ing hue adjustment, JPEG compression, random con-

trast, random brightness, resolution changes, linear

interpolation, Gaussian noise, and arbitrary rotations.

This analysis assesses the decoder’s effectiveness in

preserving message integrity under challenging con-

ditions.

The noise resistance ratio (d

noise

) is used to evalu-

ate the decoder’s performance, measuring its ability to

recover encoded messages under noise perturbations.

The metric is deﬁned as:

noise

△w

△W

(5)

where △w represents the range of noise intensity lev-

els within which the decoder successfully recovers the

message, and △W is the total possible range of noise

intensities. This ratio directly quantiﬁes the decoder’s

robustness against various noise distortions, facilitat-

ing a clear comparison of its resistance capabilities

across different noise levels.

For example, in the case of JPEG compression, the

quality factor varies from 0 to 100 (△W = 100 − 0).

The contrast factor varies from 0 to 1.0. The bright-

ness value varies between −1 for complete darkness

and 1 for maximum brightness. The Linear inter-

polation of pixels between encoded and background

images varies from 0 to 1.0 (see Eq. 3). As the

maximum resolution that the decoder network can

get is 512 × 512 × 3, the resolution value varies be-

tween 1 × 1 × 3 and 512 × 512 × 3 (the resolution

value is variable for each model according to the in-

put size). The standard deviation of Gaussian noise

varies between 0 and 0.90. We also consider ran-

dom rotation which we consider that varies between

0.0001 and 0.5 radians. Finally, the full decoder per-

formance (D

decoder

) of every model is computed by

averaging the results of every model in the presence

of every type of noise (d

noise

). The performances

of the four selected network structures are summa-

rized in Table 4. A standard QR code reader, due

to built-in redundancy, can correctly interpret QR

code messages with up to 40% distortion. Accord-

ingly, we accept recovered messages with a maximum

of 30% binary cross-entropy error (BCEE), remain-

ing safely below the maximum acceptable distortion

threshold. When all four models were trained with

various noise types, the U-Net network with Spatial

Transformer Network (STN) demonstrated the best

performance, while the U-Net with a discriminator

(pix2pix) showed the weakest results among the four.

However, none of the models were capable of decod-

ing the message from encoded images with slight ro-

tations exceeding 0.001 radians.

Following the identiﬁcation of U-Net+STN as the

best-performing decoder network through ablation

studies, the network was further trained with random

noise simulations. Initially, training was conducted

over 10

epochs, introducing JPEG compression, con-

trast, and brightness noise incrementally. The noise

levels were applied to the encoded images within the

following intervals: JPEG compression ranged from

25 to 60, brightness noise varied between −0.95 and

−0.95, and contrast noise was adjusted within the

range of 0.050.05 to (0.05, 0.20).

Additional noise types, including random resolu-

tion, linear interpolation, Gaussian noise, and ran-

dom rotation, were sequentially added to the pre-

StylePuncher: Encoding a Hidden QR Code into Images

305

Table 3: StylePuncher decoder performance (four different decoder models are considered).

Noise U-Net

U-Net

+discriminator

U-Net

+attention

U-Net+STN

JPEG Compression 0.42 0.22 0.14 0.65

Contrast 0.6 0.5 0.65 0.85

Brightness 0.55 0.45 0.47 0.87

Linear interpolation 0.3 0.25 0.29 0.4

Different resolution 0.19 0.01 0.01 0.52

Gaussian noise 0.13 0.13 0.15 0.13

Decoder performance 0.36 0.26 0.28 0.57

Table 4: The best-elected decoder of StylePuncher is compared with two robust steganography models: CodeFace and Ste-

gaStamp.

Noise StegaStamp CodeFace StylePuncher (Ours)

StylePuncher (Ours)

with noise simulation

JPEG Compression 0.93 0.96 0.65 0.87

Contrast 0.90 0.90 0.85 0.95

Brightness 0.87 0.70 0.87 0.99

Linear interpolation 0.01 0.01 0.4 0.96

Different resolution 0.86 0.86 0.52 0.70

Gaussian noise 0.62 0.28 0.13 0.80

Rotation 0.5 0.5 0.01 0.67

Decoder performance 0.67 0.60 0.49 0.85

trained network, with each type trained for 70 × 10

epochs. This incremental training with increasingly

complex noise simulations improved the decoder’s

performance from 0.49 to 0.83, as shown in Table 3.

Table 3 compares our best model (U-Net+STN,

with and without noise simulation) to state-of-the-art

methods. While HiNet and LSB excel in capacity and

encoder performance, their decoders are highly noise-

sensitive, with a performance of zero under noisy con-

ditions. DeepStega achieves a robustness rate of 0.05

under rotation but shows zero performance against

other noise types.

CodeFace and StegaStamp, designed with noise

simulation for printer-proof robustness, perform well

under JPEG compression and varying resolution.

However, our StylePuncher model, also trained with

noise simulation, outperforms all others when ex-

posed to multiple noise types. StylePuncher achieves

the highest decoder performance, with an 85% suc-

cess rate under noise conditions, setting a new bench-

mark among steganography models.

6.5 Discussion

The StylePuncher model surpasses existing steganog-

raphy methods with key advantages. It demonstrates

exceptional robustness against noise and distortions,

including JPEG compression, brightness and contrast

variations, Gaussian noise, and arbitrary rotations.

This resilience is achieved through noise simulations

during training, enabling the model to handle real-

world perturbations, such as printer-proof scenarios.

Furthermore, StylePuncher is computationally efﬁ-

cient, allowing separate training of the encoder and

decoder, which reduces GPU usage and accelerates

training. Its lightweight encoder architecture, with

fewer layers than models like CodeFace and Stam-

pOne, further enhances efﬁciency.

StylePuncher excels in ﬁdelity by maintaining

high visual quality in encoded images, preserving

their similarity to the originals even with embedded

data—an essential feature for steganography applica-

tions. The model employs perceptual loss functions

and an accurate color histogram distance metric, en-

suring that encoded images remain visually indistin-

guishable from the originals to the human eye.

7 CONCLUSION

In this work, we present StylePuncher, a robust

steganography model uniquely resistant to various

physical noises. It outperforms other printer-proof

methods, such as CodeFace and StegaStamp, in hid-

den message capacity. The encoder produces signif-

icantly higher-quality encoded images compared to

other robust models. Among the four decoder struc-

tures explored, experiments identiﬁed the U-Net com-

bined with a Spatial Transformer Network (STN) as

the most effective conﬁguration.

Future work on StylePuncher will focus on im-

proving its robustness in decoding messages from

printed images affected by stronger perturbations,

such as scratches or signiﬁcant color changes. This

can be achieved by integrating a frequency balance

method into the style transfer process, enhancing the

model’s resilience to distortions introduced during

printing.

ICPRAM 2025 - 14th International Conference on Pattern Recognition Applications and Methods

306

REFERENCES

Abdal, R., Qin, Y., and Wonka, P. (2019). Image2stylegan:

How to embed images into the stylegan latent space?

In Proceedings of the IEEE/CVF International Con-

ference on Computer Vision, pages 4432–4441.

Aﬁﬁ, M., Brubaker, M. A., and Brown, M. S. (2021). His-

togan: Controlling colors of gan-generated and real

images via color histograms. In Proceedings of the

IEEE/CVF Conference on Computer Vision and Pat-

tern Recognition, pages 7941–7950.

Arjovsky, M., Chintala, S., and Bottou, L. (2017a). Wasser-

stein generative adversarial networks. In International

Conference on Machine Learning, pages 214–223.

PMLR.

Arjovsky, M., Chintala, S., and Bottou, L. (2017b). Wasser-

stein generative adversarial networks. In Interna-

tional conference on machine learning, pages 214–

223. PMLR.

Avanaki, N. J., Ghildiyal, A., Barman, N., and Zad-

tootaghaj, S. (2024). Lar-iqa: A lightweight, accu-

rate, and robust no-reference image quality assess-

ment model. arXiv preprint arXiv:2408.17057.

Baluja, S. (2017). Hiding images in plain sight: Deep

steganography. Advances in Neural Information Pro-

cessing Systems, 30:2069–2079.

Barni, M., Bartolini, F., and Piva, A. (2001). Im-

proved wavelet-based watermarking through pixel-

wise masking. IEEE Transactions on Image Process-

ing, 10(5):783—791.

BT, R. I.-R. (2002). Methodology for the subjective as-

sessment of the quality of television pictures. Interna-

tional Telecommunication Union.

Chen, M.-J. and Bovik, A. C. (2011). Fast structural sim-

ilarity index algorithm. Journal of Real-Time Image

Processing, 6(4):281–287.

Cunha, T., Schirmer, L., Marcos, J., and Gonc¸alves,

N. (2024). Noise simulation for the improvement

of training deep neural network for printer-proof

steganography. In Proceedings of the 13th Interna-

tional Conference on Pattern Recognition Applica-

tions and Methods, pages 179–186.

Deng, J., Dong, W., Socher, R., Li, L.-J., Li, K., and Fei-

Fei, L. (2009). Imagenet: A large-scale hierarchical

image database. In 2009 IEEE Conference on Com-

puter Vision and Pattern Recognition, pages 248–255.

IEEE.

Deng, J., Guo, J., Xue, N., and Zafeiriou, S. (2019). Ar-

cface: Additive angular margin loss for deep face

recognition. In Proceedings of the IEEE/CVF Con-

ference on Computer Vision and Pattern Recognition,

pages 4690–4699.

Deng, J., Guo, J., Xue, N., and Zafeiriou, S. (2019). Ar-

cFace: Additive Angular Margin Loss for Deep Face

Recognition. In 2019 IEEE/CVF Conference on Com-

puter Vision and Pattern Recognition (CVPR), pages

4685–4694.

Goodfellow, I. J., Pouget-Abadie, J., Mirza, M., Xu, B.,

Warde-Farley, D., Ozair, S., Courville, A. C., and Ben-

gio, Y. (2014). Generative adversarial nets. In NIPS.

Hancock, P. (2008). Psychological image collection at stir-

ling (pics). Web address: http://pics. psych. stir. ac.

uk.

Hsu, C.-T. and Wu, J.-L. (1999). Hidden digital watermarks

in images. IEEE Transactions on Image Processing,

8(1):58–68.

Isola, P., Zhu, J.-Y., Zhou, T., and Efros, A. A. (2017).

Image-to-image translation with conditional adversar-

ial networks. In Proceedings of the IEEE Conference

on Computer Vision and Pattern Recognition, pages

1125–1134.

Jaderberg, M., Simonyan, K., Zisserman, A., et al. (2015).

Spatial transformer networks. In Advances in Nneural

Information Processing Systems, pages 2017–2025.

Jing, J., Deng, X., Xu, M., Wang, J., and Guan, Z. (2021).

Hinet: Deep image hiding by invertible network. In

Proceedings of the IEEE/CVF International Confer-

ence on Computer Vision, pages 4733–4742.

Kettunen, M., H

ark

onen, E., and Lehtinen, J. (2019). E-

lpips: robust perceptual image similarity via ran-

dom transformation ensembles. arXiv preprint

arXiv:1906.03973.

Kingma, D. P. and Ba, J. (2014). Adam: A

method for stochastic optimization. arXiv preprint

arXiv:1412.6980.

Liu, Z., Luo, P., Wang, X., and Tang, X. (2018). Large-

scale celebfaces attributes (celeba) dataset. Retrieved

August, 15(2018):11.

Mirza, M. and Osindero, S. (2014). Conditional generative

adversarial nets. arXiv preprint arXiv:1411.1784.

Oktay, O., Schlemper, J., Folgoc, L. L., Lee, M., Heinrich,

M., Misawa, K., Mori, K., McDonagh, S., Hammerla,

N. Y., Kainz, B., et al. (2018). Attention u-net: Learn-

ing where to look for the pancreas. arXiv preprint

arXiv:1804.03999.

O’Ruanaidh, J., Dowling, W., and Boland, F. (1996). Wa-

termarking digital images for copyright protection.

IEE Proceedings-Vision, Image and Signal Process-

ing, 143(4):250–256.

Phillips, P. J., Moon, H., Rizvi, S. A., and Rauss, P. J.

(2000). The feret evaluation methodology for face-

recognition algorithms. IEEE Transactions on pat-

tern analysis and machine intelligence, 22(10):1090–

1104.

Shadmand, F., Medvedev, I., and Gonc¸alves, N. (2021).

Codeface: A deep learning printer-proof steganog-

raphy for face portraits. IEEE Access, 9:167282–

167291.

Shadmand, F., Medvedev, I., Schirmer, L., Marcos, J., and

Gonc¸alves, N. (2024). Stampone: Addressing fre-

quency balance in printer-proof steganography. In

Proceedings of the IEEE/CVF Conference on Com-

puter Vision and Pattern Recognition, pages 4367–

4376.

Su, H., Niu, J., Liu, X., Li, Q., Wan, J., Xu, M., and Ren, T.

(2021). Artcoder: An end-to-end method for generat-

ing scanning-robust stylized qr codes. In Proceedings

of the IEEE/CVF Conference on Computer Vision and

Pattern Recognition (CVPR), pages 2277–2286.

StylePuncher: Encoding a Hidden QR Code into Images

307

Tamimi, A. A., Abdalla, A. M., and Al-Allaf, O. (2013).

Hiding an image inside another image using variable-

rate steganography. International Journal of Ad-

vanced Computer Science and Applications (IJACSA),

4(10).

Tancik, M., Mildenhall, B., and Ng, R. (2020). Stegastamp:

Invisible hyperlinks in physical photographs. In Pro-

ceedings of the IEEE/CVF Conference on Computer

Vision and Pattern Recognition, pages 2117–2126.

Wang, C.-Y., Bochkovskiy, A., and Liao, H.-Y. M. (2021).

Scaled-yolov4: Scaling cross stage partial network. In

Proceedings of the IEEE/CVF Conference on Com-

puter Vision and Pattern Recognition (CVPR), pages

13029–13038.

Wang, T.-C., Liu, M.-Y., Zhu, J.-Y., Tao, A., Kautz, J., and

Catanzaro, B. (2018). High-resolution image synthe-

sis and semantic manipulation with conditional gans.

In Proceedings of the IEEE conference on computer

vision and pattern recognition, pages 8798–8807.

Wang, Y. and Solomon, J. M. (2019). Prnet: Self-

supervised learning for partial-to-partial registration.

In 33rd Conference on Neural Information Processing

Systems (NeurIPS 2019), Vancouver, Canada, pages

8814–8826.

Zhai, G. and Min, X. (2020). Perceptual image quality as-

sessment: a survey. Science China Information Sci-

ences, 63(11):211301.

Zhang, R., Dong, S., and Liu, J. (2019). Invisible steganog-

raphy via generative adversarial networks. Multime-

dia Tools and Applications, 78(7):8559–8575.

Zhang, R., Isola, P., Efros, A. A., Shechtman, E., and Wang,

O. (2018). The unreasonable effectiveness of deep

features as a perceptual metric. In Proceedings of

the IEEE Conference on Computer Vision and Pattern

Recognition, pages 586–595.

Zhu, J., Kaplan, R., Johnson, J., and Fei-Fei, L. (2018).

Hidden: Hiding data with deep networks. In Proceed-

ings of the European conference on computer vision

(ECCV), pages 657–672.

ICPRAM 2025 - 14th International Conference on Pattern Recognition Applications and Methods

308
