Learning Weakly Supervised Semantic Segmentation Through

Cross-Supervision and Contrasting of Pixel-Level Pseudo-Labels

Lucas David

, Helio Pedrini

and Zanoni Dias

Institute of Computing, University of Campinas, Campinas, Brazil

{lucas.david, helio, zanoni}@ic.unicamp.br

Keywords:

Machine Learning, Computer Vision, Semantic Segmentation, Weak Supervision, Mutual Promotion,

Contrastive Learning, Noise Mitigation.

Abstract:

The quality of the pseudo-labels employed in training is paramount for many Weakly Supervised Semantic

Segmentation techniques, which are often limited by their associated uncertainty. A common strategy found in

the literature is to employ conﬁdence thresholds to ﬁlter unreliable pixel labels, improving the overall quality of

label information, but discarding a considerable amount of data. In this paper, we investigate the effectiveness

of cross-supervision and contrastive learning of pixel-level pseudo-annotations in weakly supervised tasks,

where only image-level annotations are available. We propose CSRM: a multi-branch deep convolutional

network that leverages reliable pseudo-labels to learn to classify and segment a task in a mutual promotion

scheme, while employing both reliable and unreliable pixel-level pseudo-labels to learn representations in a

contrastive learning scheme. Our solution achieves 75.0% mIoU in Pascal VOC 2012 testing and 50.4% MS

COCO 2014 validation datasets, respectively. Code available at github.com/lucasdavid/wsss-csrm.

1 INTRODUCTION

Semantic segmentation is a prominent task in Com-

puter Vision, considering its multiple real-world ap-

plications (Mo et al., 2022). Nowadays, Deep Convo-

lutional Networks have become the standard approach

to semantic segmentation, yielding great effectiveness

across different problems and domains (Chen et al.,

2020). However, this success comes at the expense of

large amounts of annotated data, resulting in labori-

ous and extensive annotation work from human spe-

cialists to produce Fully Supervised Semantic Seg-

mentation (FSSS) datasets.

In recent years, researchers have development

strategies to mitigate this prominent annotation de-

pendency, such as Semi-Supervised Semantic Seg-

mentation (SSSS) (Zhang et al., 2020b) and Weakly

Supervised Semantic Segmentation (WSSS) (Shen

et al., 2023). In the former, a small subset of samples

is (fully) annotated at a pixel-level, while the remain-

ing samples are kept unlabeled. In the latter, all sam-

ples are (weakly) annotated with a degenerated form

of the supervised information, such as image-level la-

https://orcid.org/0000-0002-8793-7300

https://orcid.org/0000-0003-0125-630X

https://orcid.org/0000-0003-3333-6822

bels, bounding boxes, scribes, or points.

Approaches to SSSS problems often leverage the

(otherwise wasted) unlabeled sample set in the train-

ing process by adopting pixel-level pseudo-labels, de-

vised from visual patterns and similarity with the ex-

isting supervised set. Approaches to WSSS prob-

lems, on the other hand, create pixel-level pseudo-

labels from any supervised information available,

such as localization cues extracted with explaining

methods (Samek et al., 2021).

The lack of quality in the pixel-level pseudo-labels

is detrimental to the effectiveness in SSSS and WSSS

tasks, and it is often mitigated by ﬁltering pixels in

the pseudo-label masks according to a conﬁdence hy-

perparameter δ

∈ [0, 1]. Pixels whose conﬁdence is

high (according to δ

) are used in training, while the

remaining unreliable pixels are discarded.

While promising strategies for utilizing unreli-

able pixel-level pseudo-labels, through the contrastive

learning of pixel representations, have been devised

to improve the effectiveness of fully-supervised (Liu

et al., 2022b) and semi-supervised (Wang et al., 2022)

solutions, they still require (at least) a few fully

human-annotated samples, implying in laborious hu-

man intervention. To the best of our knowledge, no

work proposed thus far has studied the employment

of unreliable pixel-level labels in WSSS tasks.

154

David, L., Pedrini, H. and Dias, Z.

Learning Weakly Supervised Semantic Segmentation Through Cross-Supervision and Contrasting of Pixel-Level Pseudo-Labels.

DOI: 10.5220/0013238400003912

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 20th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2025) - Volume 3: VISAPP, pages

154-165

ISBN: 978-989-758-728-3; ISSN: 2184-4321

In this work, we investigate the effect of using un-

reliable pixel-level pseudo-labels for the learning of

weakly supervised semantic segmentation problems.

Our solution, namely Cross-Supervision and Rela-

tional Model (CSRM), comprises three branches: (i)

the classiﬁcation branch, responsible for learning the

associated classiﬁcation task, and produce CAMs that

can be reﬁned into coarse segmentation priors; (ii)

the segmentation branch, responsible for learning the

segmentation task from reliable pixel-level pseudo-

labels, while regularizing the classiﬁcation branch to

produce better CAMs; and (iii) the representation

branch, responsible for contrasting pixel-level feature

representations of both reliable and unreliable regions

in a metric space. We deﬁne reliability of regions

based on their prediction conﬁdence, entropy, and the

image-level label information available, and extract

hard queries that are compared with positive and neg-

ative anchors in a contrastive learning scheme, where

unreliable regions (associated with high entropy) are

pushed close together from their likely class proto-

type and farther away from negative (visually similar)

anchors.

Our approach is inspired by recent advances in

both FSSS and SSSS, but differs in key aspects from

the works previously proposed (He et al., 2020; Liu

et al., 2022b; Wang et al., 2022): (i) it does not rely

on (however small) human-made annotation sets for

building reliable class-speciﬁc representations, and

(ii) it relies solely on image-level annotation informa-

tion to extract pixel-level, class-speciﬁc anchors used

in the contrastive learning task.

The remaining of this work is organized as fol-

lows. Section 2 introduces important concepts used

in this work, as well as pertinent literature. Section 3

describes our approach in detail, while Section 4 de-

tails the training procedure, and hyperparameters em-

ployed. We present the main results in Section 5, and

conclude the paper in Section 6.

2 RELATED WORK

In this section, we introduce concepts and strategies

in the literature that important for the understanding

of our work.

2.1 Weakly Supervised Semantic

Segmentation (WSSS)

Various approaches to semantic segmentation using

only image-level labels were proposed in the last

decade. These are subdivided into two categories:

single-stage, in which an end-to-end model capable

of segmenting samples by itself is trained (Bircanoglu

and Arica, 2022; Zhu et al., 2023), and multi-stage

strategies (Kweon et al., 2021; Jo and Yu, 2021;

David et al., 2024), involving multiple steps to train

the segmentation model, often by deriving pseudo se-

mantic segmentation labels from localization cues ad-

vent from AI explaining methods (such as CAM (Si-

monyan et al., 2013) and Grad-CAM (Selvaraju et al.,

2017)) applied over models trained with complex reg-

ularization strategies that promote the emergence of

useful properties for the segmentation task.

Mutual promotion is an example of such regular-

ization method, and it has become an important aspect

for single-stage WSSS approaches (Bircanoglu and

Arica, 2022; Zhu et al., 2023). It consists of a WSSS

model that has multiple branches responsible for per-

forming concomitant tasks, leveraging the mutual in-

formation between tasks to improve the effectiveness

of the associated processes. For example, a classiﬁca-

tion and a segmentation branches, in which the former

provides localization cues to the latter, which, in turn,

is used to regularize the ﬁrst.

Though such strategies are successful, to some ex-

tent, most are strongly affected by the quality of local-

ization cues. To alleviate this problem, WSSS strate-

gies commonly adopt conﬁdence thresholds δ

, re-

taining regions associated with “high” conﬁdence and

“low” noise, at the cost of discarding the remaining

(potentially useful) data.

2.2 Self-Supervised Learning

Self-supervised learning techniques have shown great

promise in modern machine learning. By learning to

contrast the visual patterns of unsupervised samples,

they explore consistency regularization and entropy

minimization to mitigate prediction noise, thus im-

proving model effectiveness. In semantic segmenta-

tion, various techniques have been proposed to lever-

age the unsupervised set in a contrastive learning

setup, such as Pixel-Level Contrastive Learning (Liu

et al., 2022b), Adaptive-Equalization Learning (Hu

et al., 2021) and Contrastive Learning of Unreliable

Pseudo Labels (Wang et al., 2022).

While our approach is similar to the aforemen-

tioned solutions, it differs by relying solely on the

weakly supervised information available (image-level

labels) to create pixel-level feature representations

from image regions associated with both reliable and

unreliable pseudo-labels, allowing for the application

of self-supervised learning over WSSS tasks, in which

no human-made pixel-level annotations are available.

Learning Weakly Supervised Semantic Segmentation Through Cross-Supervision and Contrasting of Pixel-Level Pseudo-Labels

155

Reliable CAMs

Backbone

GAP

Class-Speciﬁc

Memory bank

forward

backward

s2c

Classiﬁcation

branch

Segmentation

branch

Representation

branch

Unreliable labels

Reliable labels

Figure 1: Overview of our CSRM approach: a single model that employs cross-supervision of the classiﬁcation and semantic

segmentation tasks to mutually promote their effectiveness, while learning pixel-level representations for both reliable and

unreliable pixels in an unsupervised contrastive learning setup.

3 CROSS-SUPERVISION AND

RELATIONAL MODEL

We propose Cross-Supervision and Relational Model

(CSRM): the employment of Cross-Supervision be-

tween classiﬁcation, segmentation and Contrastive

Representation tasks to approach WSSS problems.

Our strategy, illustrated in Figure 1, is inspired by

recent success of contrastive learning approaches

applied to learning better concept representations

for Fully-Supervised and Semi-Supervised Semantic

Segmentation problems (He et al., 2020; Liu et al.,

2022b; Wang et al., 2022).

3.1 Architecture

Let D = {(x

)}

i=1

be a training dataset, where x

is the i-th sample image in the set, y

= [y

,...,y

|C|

] is

the one-hot class label vector indicating which classes

are present in image x

, and C is the set of all classes.

Our approach consists of a single-stage network,

comprising a feature extractor F : R

HW ×3

→ R

hwk

where (h,w) ≪ (H,W); a classiﬁcation branch C :

hwk

→ R

hw×|C|

; a segmentation branch S : R

hwk

→

HW ×|C|

; and a representation branch R : R

hwk

→

HW ×256

The classiﬁcation branch consists of a 1× 1 con-

volution layer with |C| output channels, followed by

a Global Average Pooling layer (GAP), and the sig-

moid activation function. That is, the classiﬁcation

prediction for an image x

is deﬁned as:

∈ R

hw×|C|

| A

= C

(F (x

))

∈ [0,1]

|C|

| p

= σ(GAP(A

))

(1)

The Class-speciﬁc Activation Map (CAM) (Sel-

varaju et al., 2017) of a class c ∈ C, represented by

, can be obtained by simply forwarding sample x

onto the classiﬁcation branch, and collecting the po-

sitional signal before the GAP layer.

The signal is upscaled to match the original sizes

of the input, and a normalization function ψ : R →

[0,1] is further adopted to transform the CAM into a

probability map:

ψ(A

) =

ReLU(upscale(A

))

max

ab∈HW

ReLU(upscale(A

iabc

))

(2)

We employ the DeepLabV3+ (Chen et al., 2018)

decoder as the segmentation branch, considering

its well-established organization and extensively as-

serted effectiveness over multiple fully-supervised se-

mantic segmentation tasks. This branch predicts seg-

mentation maps for |C| + 1 classes (the original C

classes and the background), which is missing in the

classiﬁcation task.

We deﬁne the segmentation prediction for a sam-

ples x

as:

∈ R

HW ×|C|+1

| S

= S(F(x

))

∈ [0,1]

HW ×|C|+1

| s

= softmax

)

(3)

VISAPP 2025 - 20th International Conference on Computer Vision Theory and Applications

156

Finally, the representation branch is similar to

the segmentation one, except for the last convolution

layer, which maps each pixel to a vector representa-

tion in a 256-dimensional feature space:

∈ R

HW ×256

| R

= R(F(x

)) (4)

3.2 Training and Objective Functions

The objective functions employed when training each

component of CSRM are detailed as follows.

3.2.1 Classiﬁcation Loss

The classiﬁcation branch is reﬁned (at a lower learn-

ing rate) to perform a multi-label classiﬁcation task

with the multi-label soft-margin loss:

) = −

∑

log((1 + e

−p

)

−1

)

+ (1 − y

)log(e

−p

/(1 + e

−p

))

(5)

3.2.2 Segmentation Loss

Pseudo semantic segmentation labels l

are de-

vised from CAMs (extracted from the classiﬁca-

tion branch of the teacher model), and reﬁned with

dCRF (Kr

ahenb

uhl and Koltun, 2011). Conﬁdent

foreground and background regions are extracted con-

sidering thresholds δ

and δ

, respectively. The re-

maining pixels, whose intensity fall between δ

and

, are marked as “uncertain” and ignored:

= dCRF(ψ(A

))

) = 1



max

c∈C

̸∈ (δ

,δ

]



(6)

where (δ

,δ

] is the interval of “uncertainty”, and

) is the binary mask matrix with dimensions

(H,W ), indicating the reliability of every pixel in the

pseudo-labels map l

The categorical cross-entropy loss function is

used to train the student network to match its segmen-

tation output signal to the pseudo-masks:

) = −

∑

)

∑

ihwc

logs

ihwc

(7)

3.2.3 Activation Consistency Loss

To complete the mutual promotion scheme, we reg-

ularize predictions from the classiﬁcation branch of

the student with supervision from the segmentation

branch S

of the teacher, which guides the model to

produce more organized activation signals, ultimately

culminating in better CAMs.

Firstly, we deﬁne a threshold hyperparameter σ

s2c

to create a binary mask M

), indicating which pix-

els in the teacher’s segmentation map were predicted

with high conﬁdence (and low entropy):

) = 1



max

c∈C

> σ

s2c



(8)

We align the activation signal A

with s

by re-

sizing it to the original input size, and concatenating

it to the segmentation prediction for the background

class (S

i,bg

), as this class is not regarded in the clas-

siﬁcation task, nor is it represented within A

. S

i,bg

is treated as a constant in this step, not affecting the

gradient propagation process.

The classiﬁcation branch is then regularized to

predict better organized activation maps, associated

with lower entropy, through the employment of the

sparse categorical cross-entropy loss function.

= softmax



i,bg

| upscale(A

)]



s2c

) = −

∑

)logQ

ihwc

⋆

(9)

where c

⋆

= argmax

ihwc

3.2.4 Segmentation Consistency Loss

To reinforce prediction consistency in the segmen-

tation branch, we employ an unsupervised weak-

to-strong consistency (Yang et al., 2023) optimiza-

tion objective L

, which reinforces the student

model to output segmentation proposals similar to

the teacher’s, when the former is presented with a

strongly augmented version of sample x

, and an un-

augmented version is shown to the latter.

Firstly, a batch B

= {x

i+1

,...,x

i+b−1

} is ran-

domly drawn from the training set, and it is aug-

mented with a strong augmentation technique (e.g.,

ClassMix (Olsson et al., 2021)), resulting in the aug-

mented samples

= {

i+1

,...,

i+b−1

The augmented and un-augmented samples are

forward onto the student and teacher models, and

the pseudo-labels produced by the teacher model are

mixed with the same combinations used to build

Similarly to previous works (Liu et al., 2022a;

Wang et al., 2022; Yang et al., 2023), we also account

for unreliable predictions from the teacher (specially

in early stages) by ﬁrst deﬁning the expected propor-

tion of reliable predictions α

∈ [0,1] at a train step t,

and by computing the entropy associated to the pos-

terior probability predicted by the teacher given the

Learning Weakly Supervised Semantic Segmentation Through Cross-Supervision and Contrasting of Pixel-Level Pseudo-Labels

157

augmented samples:

(

) = −

|C|

∑

˜s

ihwc

log ˜s

ihwc

(10)

Pixels are sorted by their entropy, and those whose

associated entropy are lower than the α

-quantile are

considered “reliable”, while the highest (100% − α

)

portion of the labels, associated with the highest en-

tropy, is deemed “unreliable” and discarded:

= quantile





i+1

| ... |

i+b−1



,1 − α



˜s

(

) = 1

) ≤ γ

(11)

Finally, the sparse categorical cross-entropy loss

function is used to match the segmentation proposals

of the student model to the reliable labels:

) = −

˜s

(

∑

˜s

(

)logs

ihwc

⋆

(12)

where c

⋆

= argmax

ihwc

3.2.5 Contrastive Learning of Unreliable Pixel

Labels

Similar to previous fully-supervised and semi-

supervised semantic segmentation works (Liu et al.,

2022b; Wang et al., 2022), we employ the In-

foNCE (Oord et al., 2018) loss function to learn pixel-

level representations:

= −

|C| × P

|C|

∑

log





⟨r

⟩

/τ

⟨r

⟩

/τ +

∑

⟨r

p jc

−

p jc

⟩

/τ





(13)

where r

contains the p-th representation vector (an-

chor) for class c, r

a positive anchor for c, and r

−

p jc

the j-th negative anchor for pixel p and class c. Pairs

are compared with the cosine similarity function ⟨·,·⟩.

Representations are split based on their associated

segmentation prediction entropy: the ﬁrst low entropy

group contains “reliable” representations, associated

with entropy lower than the α

-quantile, while the

second high entropy group contains “unreliable” rep-

resentations, associated with entropy higher than the

(100% − α

)-quantile.

We create the group of query candidates: for every

class c in the set, we sample pixel representations in

| x

∈ B

} such that its label information is conﬁ-

dently known. That is, it belongs to the low entropy

group, and it was inferred from the pseudo-labels de-

vised from CAMs with conﬁdence higher than δ

and

segmented with conﬁdence higher than 30%.

Positive class-speciﬁc anchors are formed from

averaging representation vectors (from the teacher)

with low entropy, conﬁdent predictions.

Finally, negative anchors are formed from repre-

sentations associated to pixels segmented into class c

with conﬁdence lower than 1%, and belonging to the

high entropy group. These are pushed into a FIFO

memory bank of negative anchors for class c if: (a)

the segmentation prediction rank of class c is less or

equal than γ

and class c does not occur in the label

set y

(the class does not appear in the image-level an-

notation); or (b) the segmentation prediction rank of

class c is greater than γ

and lower than γ

The hyperparameters γ

and γ

are deﬁned as small

values (e.g., 3 and 6, respectively), indicating our

preference for hard examples, associated to pixels

easily mistaken for class c.

During forward, P queries are randomly drawn

(with replacement) from the query candidates, for

each class c, and N negative anchors are drawn (with

replacement) for each query from the memory bank.

InfoNCE is employed to project queries and positive

anchors close together, while pushing negative an-

chors apart in the contrastive space. The model is

hence reinforced to reﬁne its shared feature space to

account for these differences, hence providing addi-

tional regularization.

3.2.6 Pre-Training and Self-Supervision

We start with pretrained weights for the feature

extractor and classiﬁcation branch, recovered from

pre-existing classiﬁcation or WSSS solution strate-

gies, such as Puzzle-CAM (Jo and Yu, 2021) or P-

NOC (David et al., 2024), allowing us to bootstrap

and accelerate training with “reasonable” segmenta-

tion pseudo-labels from the start. The parameters in

the segmentation and representation branches are ran-

domly drawn from a Kaiming normal distribution.

Following the typical self-supervised setup, we

employ the student-teacher training framework to ob-

tain more stable (and higher quality) pseudo-labels.

In this setup, the “teacher” model θ

= {F

}

shares the architecture and initial parameters of the

student S = {F

}, while having its parame-

ters θ

updated with the exponential moving average

(EMA) of the student’s weights θ

Finally, the training of the student model is con-

ducted with the following optimization objectives:

L = L

+ L

+ λ

s2c

+ λ

(14)

where λ

s2c

, λ

, and λ

are importance coefﬁcients

useful for balancing the different tasks, when they

have noticeably different loss values. For simplicity,

VISAPP 2025 - 20th International Conference on Computer Vision Theory and Applications

158

we set λ

and λ

to 1 in our studies over the Pascal

VOC 2012 and the MS COCO 2014 sets.

4 EXPERIMENTAL SETUP

In this section, we detail the training and evaluation

procedures employed in this work.

Following previous work (Ahn and Kwak, 2018;

Kweon et al., 2021; Jo and Yu, 2021), we train CSRM

over the Pascal VOC 2012 dataset (Everingham et al.,

2015) using Stochastic Gradient Descent (SGD) for

15 epochs with linearly decaying learning rates of

0.07 and 0.007 (for randomly initialized weights and

pretrained weights, respectively), 1e-4 weight decay,

and a batch size of 32. For the MS COCO 2014

dataset (Lin et al., 2014), we employ the learning rates

0.04 and 0.004 for randomly initialized weights and

pretrained weights, respectively.

For Pascal VOC 2012, image samples are resized

to a common resolution of 512 per 512 pixels² and

augmented with random ﬂip. For the MS COCO

2014 dataset, models are trained with images of 640

per 640 pixels². We employ ClassMix (Olsson et al.,

2021) as strong augmentation technique, having 50%

probability of being applied to images before they are

fed to the student model.

We set δ

and δ

to the constants 0.05 and 0.35

throughout training, respectively. σ

s2c

is initially set

to 10%, and increases linearly up to 100%. For sim-

plicity, we set the remaining coefﬁcients in the L (λ

and λ

) to 1. We also consider a warm-up period in

which the objectives L

s2c

, L

and L

are ignored

(λ

s2c

, λ

, and λ

are set to 0), in order to prevent

noisy predictions (from the randomly initialized seg-

mentation branch) to degenerate the activation signal

of the classiﬁcation and representation branches dur-

ing early stages. We ﬁnd these values to be reasonable

assumptions, commonly adopted by many studies in

the literature, and leave the quantitative analysis of

their effect as future work.

Following (Wang et al., 2022), we use the fol-

lowing hyperparameters for the contrastive objective:

P = 50, N = 256 and τ = 0.5. Moreover, α

is set to

20%, and linearly decreases to 0% as training pro-

gresses. The memory bank consists of |C| class-

speciﬁc lists, each of which containing N negative

“hard” anchors for its respective class. New anchors

are inserted into the bank in a FIFO order.

We employ Test-Time Augmentation (TTA) dur-

ing inference to improve prediction stability, forward-

ing the images in multiple scales and combining the

segmentation proposals. The results are then reﬁned

with Densely Connected Conditional Random Fields

(dCRF) (Kr

ahenb

uhl and Koltun, 2011) and/or SAM

Enhanced Pseudo-Labels (SEPL) (Chen et al., 2023).

Pseudo-labels are evaluated with respect to their

ﬁdelity to human-annotated semantic segmentation

masks, measured through the mean Intersection over

Union (mIoU) metric. We report scores over both

training and validation sets — a common practice in

WSSS, as all ground-truth segmentation maps from

both sets were unused during training.

To provide a fair comparison with literature, we

execute a veriﬁcation step, in which the pseudo-labels

are used to train a fully-supervised semantic segmen-

tation model. DeepLabV2 (Chen et al., 2017) and

DeepLabV3+ (Chen et al., 2018) architectures are

employed as semantic segmentation networks, and

keep their original training procedures unchanged.

For DeepLabV2, we employ the RN-101 archi-

tecture as backbone, with weights pretrained over the

ImageNet dataset. We set a batch size of 10 and crop

each training image to the size of 321 per 321 pix-

els². We train the model for 10,000 iterations over

the Pascal VOC 2012 dataset, using an initial learn-

ing rate of 2.5e-4. When training the segmentation

model over the MS COCO 2014 dataset, we employ

20,000 training iterations over patches of 481 per 481

pixels², using an initial learning rate of 2e-4.

For DeepLabV3+, we employ the RS-269 as back-

bone, and train the model for 50 epochs. The batch

size is set to 32, and the initial learning rates of 0.007

and 0.004 are used for Pascal VOC 2012 and MS

COCO 2014, respectively.

5 RESULTS

We provide an ablation study over the impact (mea-

sured in mIoU) of each objective function used by

CSRM in Table 1. The regularization of the classiﬁ-

cation signal with segmentation predictions (L

s2c

) in-

advertently deteriorates the efﬁcacy, indicating that an

unregularized segmentation signal can be detrimental

to mutual promotion. On the other hand, we observe

a noticeable improvement in scores when considering

Table 1: Ablation study for each objective function in

CSRM, measured in mIoU (%) over Pascal VOC 2012 train

and val sets.

# L

s2c

VOC12

Train Val

1 ✓ 69.9 (baseline) 67.7 (baseline)

2 ✓ ✓ 68.3 (↓ 02.3%) 66.6 (↓ 01.6%)

3 ✓ ✓ ✓ 70.8 (↑ 03.7%) 68.7 (↑ 03.2%)

4 ✓ ✓ ✓ ✓ 71.8 (↑ 01.4%) 69.8 (↑ 01.6%)

Learning Weakly Supervised Semantic Segmentation Through Cross-Supervision and Contrasting of Pixel-Level Pseudo-Labels

159

Figure 2: Score (mIoU) measured over Pascal VOC 2012

training set, for different choices of δ

prediction conformity (L

), suggesting that a strongly

regularized segmentation branch is essential for mu-

tual promotion. Lastly, learning contrasting represen-

tations (L

) produces the best results.

Segmentation proposals by CSRM can be further

improved by its combination with other reﬁnement

methods (a strategy commonly employed by multi-

stage WSSS solutions to reﬁne its segmentation pri-

ors). Table 2 describes the effect of each reﬁnement

step on the quality of the pseudo-labels produced. The

ﬁrst row contains the score of the pretrained baseline

model, ResNeSt-101 Puzzle-CAM. Training CSRM

improves mIoU measured over the training and vali-

dation sets by 19.9% and 16.7%, respectively, while

reﬁning priors with dCRF results in a more mod-

est improvement (9.0%). In turn, SEPL also pro-

duces a considerable improvement in mIoU (19.5%

and 20.1% over training and validation sets, respec-

tively). Finally, combining the three methods results

in the highest mIoU scores observed, demonstrating

that these techniques are complementary.

Figure 2 displays the segmentation score (mea-

sured in mIoU) of the semantic segmentation pseudo-

labels devised by CSRM, considering different

choices of δ

. While other WSSS techniques produce

semantic segmentation pseudo-labels that are strongly

Table 2: Impact of each reﬁnement procedure on mIoU (%),

measured over Pascal VOC 2012 train and val sets.

# CSRM dCRF SEPL VOC12

(ours) Train Val

1 59.9 (baseline) 59.8 (baseline)

2 ✓ 71.8 (↑ 19.9%) 69.8 (↑ 16.7%)

3 ✓ 65.3 (↑ 09.0%) 65.2 (↑ 09.0%)

4 ✓ 71.6 (↑ 19.5%) 71.8 (↑ 20.1%)

4 ✓ ✓ 72.6 (↑ 21.2%) 70.2 (↑ 17.4%)

5 ✓ ✓ ✓ 77.6 (↑ 29.5%) 76.2 (↑ 27.4%)

Table 3: Comparison with SOTA methods on Pascal VOC

2012, measured in mIoU (%)

. F: fully-supervised; I:

image-level; S: saliency. †Imagenet-21k pretrained; ‡MS

COCO pretrained.

Method Sup. B.bone Seg. Val Test

DeepLabV1 (Chen et al., 2017) F RN-38 V1 78.1 78.2

AfﬁnityNet (Ahn and Kwak, 2018) I RN-38 V1 61.7 63.7

SEAM (Wang et al., 2020) I RN-38 V1 64.5 65.7

CONTA (Zhang et al., 2020a) I RN-38 V1 66.1 66.7

OC-CSE (Kweon et al., 2021) I RN-38 V1 68.4 68.2

ADELE (Liu et al., 2022a) I RN-38 V1 69.3 68.8

MCT-Former (Xu et al., 2022) I RN-38 V1 71.9 71.6

ACR (Kweon et al., 2023) I RN-38 V1 72.4 72.4

ICD (Fan et al., 2020) I RN-101 V1 64.1 64.3

ICD (Fan et al., 2020) I + S RN-101 V1 67.8 68.0

EPS (Lee et al., 2021c) I + S RN-101 V1 71.0 71.8

ToCo (Ru et al., 2023) I ViT-B - 69.8 70.5

ToCo

†

(Ru et al., 2023) I ViT-B - 71.1 72.2

BECO (Rong et al., 2023) I MiT-B2 - 73.7 73.5

SeCo (Yang et al., 2024) I ViT-B - 74.0 73.8

DeepLabV2 (Chen et al., 2017) F RN-101 V2 76.8 76.2

IRNet (Ahn et al., 2019) I RN-50 V2 63.5 64.8

AdvCAM (Lee et al., 2021b) I RN-101 V2 68.1 68.0

RIB (Lee et al., 2021a) I RN-101 V2 68.3 68.6

AMR (Qin et al., 2022) I RN-101 V2 68.8 69.1

AMN (Lee et al., 2022) I RN-101 V2 69.5 69.6

SIPE (Chen et al., 2022) I RN-101 V2 68.8 69.7

URN (Li et al., 2022) I RN-101 V2 69.5 69.7

RIB (Lee et al., 2021a) I + S RN-101 V2 70.2 70.0

SGWS (Yi et al., 2022) I RN-101 V2 70.5 70.5

AMN

‡

(Lee et al., 2022) I RN-101 V2 70.7 70.6

EPS (Lee et al., 2021c) I + S RN-101 V2 70.9 70.8

ViT-PCM (Rossetti et al., 2022) I RN-101 V2 70.3 70.9

P-NOC (David et al., 2024) I RN-101 V2 70.3 70.9

CSRM (ours)

I RN-101 V2 69.8 70.4

DeepLabV3+ F RS-269 V3+ 80.6 81.0

Puzzle-CAM (Jo and Yu, 2021) I RS-269 V3+ 71.9 72.2

P-NOC (David et al., 2024) I RS-269 V3+ 73.8 73.6

CSRM (ours)

I RS-269 V3+ 74.5 75.0

Ofﬁcial evaluations:

BKRNCI and

TANYYC.

affected by the choice of the threshold, the segmenta-

tion proposals obtained from CSRM are more robust

against it, achieving a higher and less varying score

for almost all choices of the threshold.

Table 3 shows the effectiveness of fully-

supervised semantic segmentation models trained

with pseudo-labels generated by CSRM, while com-

paring it with current state-of-the-art over the Pascal

VOC 2012 dataset. A DeepLabV2 model trained with

CSRM pseudo-labels achieves the competitive result

of 70.4% test mIoU; while a DeepLabV3+ model

trained over the same set of pseudo-labels achieve a

mIoU score of 75.0%.

Table 4 illustrates the effectiveness of our ap-

proach over the MS COCO 2014 dataset. Once again,

DeepLabV2 and DeepLabV3+ achieve competitive

VISAPP 2025 - 20th International Conference on Computer Vision Theory and Applications

160

Figure 3: Qualitative comparison of pseudo-labels obtained from images in Pascal VOC 2012 val dataset. From left to right:

(a) input image, (b) ground-truth; (c) P-NOC (David et al., 2024), and (d) CSRM (ours).

Table 4: Comparison with SOTA methods on MS COCO

2014 dataset, measured in mIoU (%). F: fully-supervised;

I: image-level; S: saliency. †Imagenet-21k pretrained.

Method Sup. B.bone Seg. Val

OC-CSE (Kweon et al., 2021) I RN-38 V1 36.4

MCT-Former (Xu et al., 2022) I RN-38 V1 42.0

ACR (Kweon et al., 2023) I RN-38 V1 45.3

ToCo (Ru et al., 2023) I ViT-B - 41.3

ToCo

†

(Ru et al., 2023) I ViT-B - 42.3

SeCo (Yang et al., 2024) I ViT-B - 46.7

IRNet (Ahn et al., 2019) I RN-50 V2 32.6

IRN+CONTA (Zhang et al., 2020a) I RN-50 V2 33.4

EPS (Lee et al., 2021c) I + S VGG16 V2 35.7

PPM (Li et al., 2021) I ScaleNet V2 40.2

SIPE (Chen et al., 2022) I RN-101 V2 40.6

URN (Li et al., 2022) I RN-101 V2 40.7

P-NOC (David et al., 2024) I RN-101 V2 42.9

RIB (Lee et al., 2021a) I RN-101 V2 43.8

AMN (Lee et al., 2022) I RN-101 V2 44.7

CSRM (ours) I RN-101 V2 46.2

P-NOC (David et al., 2024) I RS-269 V3+ 44.6

CSRM (ours) I RS-269 V3+ 50.5

scores, compared to the current state-of-the-art, when

trained over pseudo-labels devised by CSRM.

Table 5 displays the effectiveness (measured in

IoU) of our approach for each individual class. CSRM

achieves the best IoU scores for most classes.

A qualitative comparison between pseudo-labels

devised by CSRM and similar WSSS techniques is

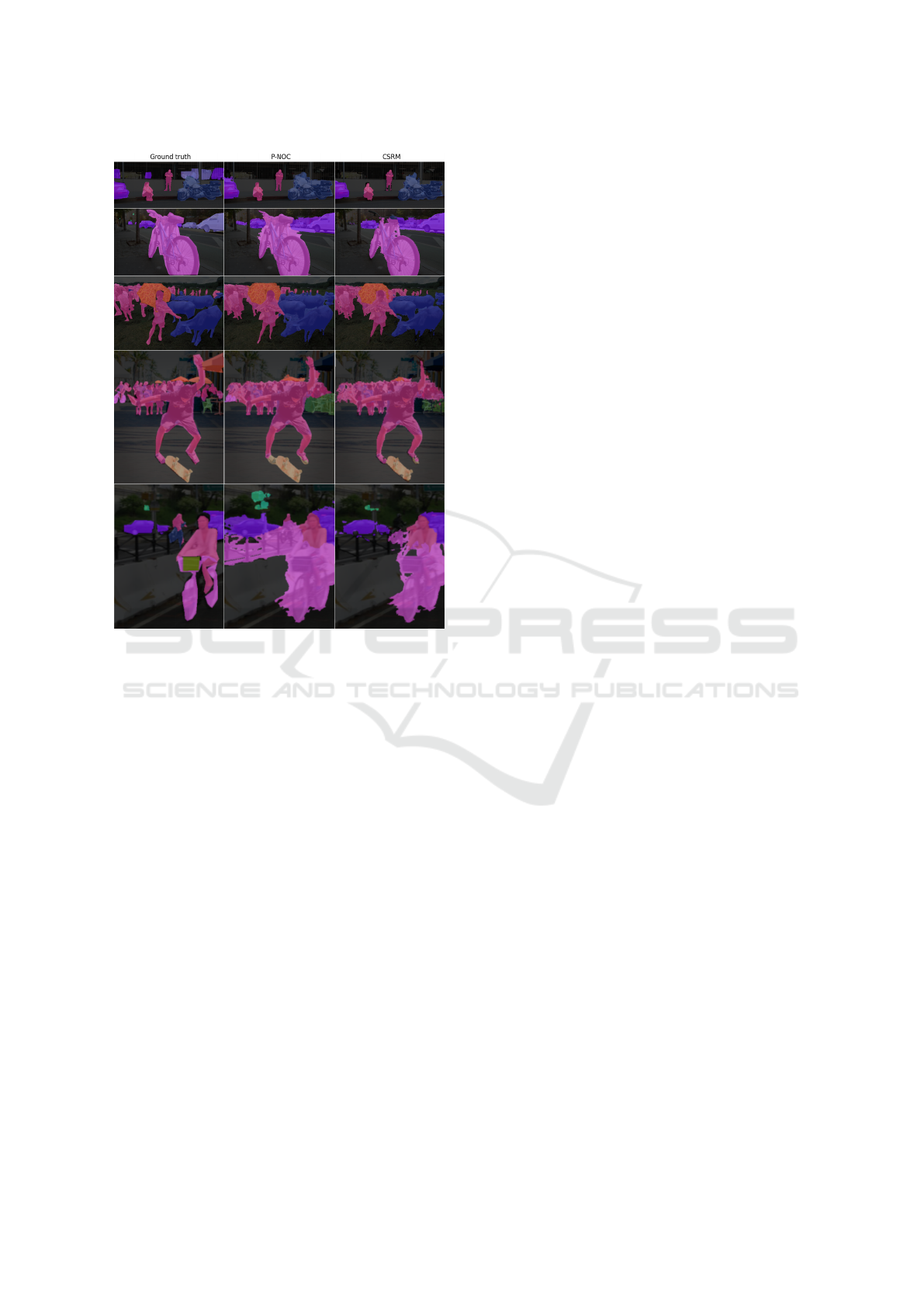

provided in Figure 3, while Figures 4 and 5 show

examples of proposals made by semantic segmenta-

tion models (from the veriﬁcation step) trained with

pseudo-labels devised by CSRM over Pascal VOC

2012 and MS COCO 2014 datasets, respectively.

We further remark that many strategies in litera-

ture achieve SOTA by relying on other forms of fully

supervised information (such as pretrained saliency

detectors (Fan et al., 2020; Lee et al., 2021a; Lee

et al., 2021c)), or multiple training stages (such as

semantic segmentation pseudo-label reﬁnement with

pixel-level afﬁnity (Ahn and Kwak, 2018; Ahn et al.,

2019; Jo and Yu, 2021; David et al., 2024)). Con-

versely, CSRM comprises a single training stage, en-

tailing lower training time and a simpler inference.

Training CSRM over VOC12 with 4 NVIDIA

P100 GPUs took approximately 15.7 minutes per

epoch and 3.9 hours in total, achieving 99% of the

best mIoU score observed in the ﬁst 1.6 hours. Sim-

ilarly, training over COCO14 took approximately 4.4

hours/epoch, achieving 99% of the best mIoU score

observed after only the ﬁrst epoch, which can be ex-

Learning Weakly Supervised Semantic Segmentation Through Cross-Supervision and Contrasting of Pixel-Level Pseudo-Labels

161

Table 5: Comparison of Intersection over Union (IoU %) scored by various WSSS techniques, measured over Pascal VOC

2012 test set. Evaluated classes are, from left to right: background, airplane, bicycle, bird, boat, bottle, bus, car, cat, chair,

cow, dining table, dog, horse, motorbike, person, potted plant, sheep, sofa, train, and tv monitor.

Method bg air bik bir boa bot bus car cat cha cow din dog hor mot per pot she sof tra tvm mIoU

AfﬁnityNet 89.1 70.6 31.6 77.2 42.2 68.9 79.1 66.5 74.9 29.6 68.7 56.1 82.1 64.8 78.6 73.5 50.8 70.7 47.7 63.9 51.1 63.7

OC-CSE 90.2 82.9 35.1 86.8 59.4 70.6 82.5 78.1 87.4 30.1 79.4 45.9 83.1 83.4 75.7 73.4 48.1 89.3 42.7 60.4 52.3 68.4

MCT-Former 92.3 84.4 37.2 82.8 60.0 72.8 78.0 79.0 89.4 31.7 84.5 59.1 85.3 83.8 79.2 81.0 53.9 85.3 60.5 65.7 57.7 71.6

EPS 91.9 89.0 39.3 88.2 58.9 69.6 86.3 83.1 85.8 35.0 83.6 44.1 82.4 86.5 81.2 80.8 56.8 85.2 50.5 81.2 48.4 71.8

AMN 90.7 82.8 32.4 84.8 59.4 70.0 86.7 83.0 86.9 30.1 79.2 56.6 83.0 81.9 78.3 72.7 52.9 81.4 59.8 53.1 56.4 69.6

ViT-PCM 91.1 88.9 39.0 87.0 58.8 69.4 89.4 85.4 89.9 30.7 82.6 62.2 85.7 83.6 79.7 81.6 52.1 82.0 26.5 80.3 42.4 70.9

Puzzle-CAM 91.1 87.2 37.4 86.8 61.5 71.3 92.2 86.3 91.8 28.6 85.1 64.2 91.9 82.1 82.6 70.7 69.4 87.7 45.5 67.0 37.8 72.3

P-NOC 91.7 89.1 38.3 80.9 65.4 70.1 93.8 85.5 93.4 37.3 83.6 61.3 92.8 84.1 83.8 80.7 63.6 82.0 53.3 76.7 36.8 73.6

CSRM (ours) 92.3 92.0 43.9 90.1 66.4 75.0 93.3 87.1 86.8 41.4 89.7 49.6 88.7 87.9 85.1 77.9 72.2 91.5 46.5 70.1 47.8 75.0

Figure 4: Segmentation proposals made by models trained over pseudo-labels devised from WSSS strategies, when fed from

images in Pascal VOC 2012 val dataset. From left to right: (a) ground-truth; (b) Fully-Supervised; (c) P-NOC (David et al.,

2024), and (d) CSRM (ours).

plained by the large number of iterations required to

perform one pass over each sample in its training set.

6 CONCLUSIONS

In this work, we proposed an approach to determine

and utilize (the otherwise wasted) “unreliable” re-

gions in the pseudo-labels devised from CAMs in

a weakly supervised semantic segmentation scheme,

where only image-level annotations are available.

Empirical results suggest our approach can pro-

vide substantial improvement in segmentation ef-

fectiveness of weakly supervised models, achieving

competitive mIoU in both Pascal VOC 2012 and MS

COCO 2014 datasets, while requiring fewer train-

ing stages and lower computation footprint than other

(multi-stage) techniques in the literature.

For future work, we will investigate the ef-

fect of our approach in functional segmentation and

biological-related tasks, in which visual patterns are

convoluted or unclear, and well as attempt to further

reduce computational footprint.

ACKNOWLEDGEMENTS

The authors would like to thank CNPq (grants

140929/2021-5, 309330/2018-1, 302530/2022-3 and

304836/2022-2) and LNCC/MCTI for providing HPC

resources of the SDumont supercomputer.

VISAPP 2025 - 20th International Conference on Computer Vision Theory and Applications

162

Figure 5: Segmentation proposals made by models trained

over pseudo-labels of MS COCO 2014 val dataset. From

left to right: (a) ground-truth; (b) P-NOC (David et al.,

2024), and (c) CSRM (ours).

REFERENCES

Ahn, J., Cho, S., and Kwak, S. (2019). Weakly supervised

learning of instance segmentation with inter-pixel re-

lations. In IEEE/CVF Conference on Computer Vision

and Pattern Recognition (CVPR), pages 2209–2218.

Ahn, J. and Kwak, S. (2018). Learning pixel-level semantic

afﬁnity with image-level supervision for weakly su-

pervised semantic segmentation. In IEEE/CVF Con-

ference on Computer Vision and Pattern Recognition

(CVPR), pages 4981–4990.

Bircanoglu, C. and Arica, N. (2022). ISIM: Iterative self-

improved model for weakly supervised segmentation.

arXiv preprint arXiv:2211.12455.

Chen, L.-C., Papandreou, G., Kokkinos, I., Murphy, K., and

Yuille, A. L. (2017). Deeplab: Semantic image seg-

mentation with deep convolutional nets, atrous convo-

lution, and fully connected crfs. IEEE Transactions on

Pattern Analysis and Machine Intelligence (TPAMI),

40(4):834–848.

Chen, L.-C., Zhu, Y., Papandreou, G., Schroff, F., and

Adam, H. (2018). Encoder-decoder with atrous sep-

arable convolution for semantic image segmentation.

In European Conference on Computer Vision (ECCV),

pages 801–818.

Chen, Q., Yang, L., Lai, J.-H., and Xie, X. (2022).

Self-supervised image-speciﬁc prototype exploration

for weakly supervised semantic segmentation. In

IEEE/CVF Conference on Computer Vision and Pat-

tern Recognition (CVPR), pages 4288–4298.

Chen, T., Mai, Z., Li, R., and Chao, W.-l. (2023). Seg-

ment Anything Model (SAM) Enhanced Pseudo La-

bels for Weakly Supervised Semantic Segmentation.

arXiv preprint arXiv:2305.05803.

Chen, Y., Tao, J., Liu, L., Xiong, J., Xia, R., Xie, J., Zhang,

Q., and Yang, K. (2020). Research of improving se-

mantic image segmentation based on a feature fusion

model. Journal of Ambient Intelligence and Human-

ized Computing, pages 1–13.

David, L., Pedrini, H., and Dias, Z. (2024). P-NOC: Ad-

versarial training of cam generating networks for ro-

bust weakly supervised semantic segmentation priors.

Journal of Visual Communication and Image Repre-

sentation, 102:104187.

Everingham, M., Eslami, S. A., Van Gool, L., Williams,

C. K., Winn, J., and Zisserman, A. (2015). The

PASCAL Visual Object Classes Challenge: A retro-

spective. International Journal of Computer Vision,

111(1):98–136.

Fan, J., Zhang, Z., Song, C., and Tan, T. (2020). Learn-

ing integral objects with intra-class discriminator

for weakly-supervised semantic segmentation. In

IEEE/CVF Conference on Computer Vision and Pat-

tern Recognition (CVPR), pages 4283–4292.

He, K., Fan, H., Wu, Y., Xie, S., and Girshick, R. (2020).

Momentum contrast for unsupervised visual represen-

tation learning. In IEEE/CVF Conference on Com-

puter Vision and Pattern Recognition, pages 9729–

9738.

Hu, H., Wei, F., Hu, H., Ye, Q., Cui, J., and Wang, L. (2021).

Semi-supervised semantic segmentation via adaptive

equalization learning. Advances in Neural Informa-

tion Processing Systems, 34:22106–22118.

Jo, S. and Yu, I.-J. (2021). Puzzle-cam: Improved localiza-

tion via matching partial and full features. In IEEE In-

ternational Conference on Image Processing (ICIP),

pages 639–643.

ahenb

uhl, P. and Koltun, V. (2011). Efﬁcient inference in

fully connected CRFs with Gaussian edge potentials.

Advances in Neural Information Processing Systems

(NeurIPS), 24:109–117.

Kweon, H., Yoon, S.-H., Kim, H., Park, D., and Yoon,

K.-J. (2021). Unlocking the potential of ordinary

classiﬁer: Class-speciﬁc adversarial erasing frame-

work for weakly supervised semantic segmentation.

In IEEE/CVF International Conference on Computer

Vision (ICCV), pages 6974–6983.

Kweon, H., Yoon, S.-H., and Yoon, K.-J. (2023). Weakly

supervised semantic segmentation via adversarial

learning of classiﬁer and reconstructor. In IEEE/CVF

Conference on Computer Vision and Pattern Recogni-

tion (CVPR), pages 11329–11339.

Learning Weakly Supervised Semantic Segmentation Through Cross-Supervision and Contrasting of Pixel-Level Pseudo-Labels

163

Lee, J., Choi, J., Mok, J., and Yoon, S. (2021a). Reduc-

ing information bottleneck for weakly supervised se-

mantic segmentation. Advances in Neural Information

Processing Systems (NeurIPS), 34:27408–27421.

Lee, J., Kim, E., and Yoon, S. (2021b). Anti-

adversarially manipulated attributions for weakly

and semi-supervised semantic segmentation. In

IEEE/CVF Conference on Computer Vision and Pat-

tern Recognition (CVPR), pages 4071–4080.

Lee, M., Kim, D., and Shim, H. (2022). Threshold matters

in wsss: Manipulating the activation for the robust and

accurate segmentation model against thresholds. In

IEEE/CVF Conference on Computer Vision and Pat-

tern Recognition (CVPR), pages 4330–4339.

Lee, S., Lee, M., Lee, J., and Shim, H. (2021c). Rail-

road is not a train: Saliency as pseudo-pixel supervi-

sion for weakly supervised semantic segmentation. In

IEEE/CVF Conference on Computer Vision and Pat-

tern Recognition (CVPR), pages 5495–5505.

Li, Y., Duan, Y., Kuang, Z., Chen, Y., Zhang, W., and

Li, X. (2022). Uncertainty estimation via response

scaling for pseudo-mask noise mitigation in weakly-

supervised semantic segmentation. In AAAI Con-

ference on Artiﬁcial Intelligence, volume 36, pages

1447–1455.

Li, Y., Kuang, Z., Liu, L., Chen, Y., and Zhang, W. (2021).

Pseudo-mask matters in weakly-supervised semantic

segmentation. In IEEE/CVF International Conference

on Computer Vision (CVPR), pages 6964–6973.

Lin, T.-Y., Maire, M., Belongie, S., Hays, J., Perona, P., Ra-

manan, D., Doll

ar, P., and Zitnick, C. L. (2014). Mi-

crosoft COCO: Common objects in context. In Euro-

pean Conference on Computer Vision (ECVV), pages

740–755. Springer.

Liu, S., Liu, K., Zhu, W., Shen, Y., and Fernandez-Granda,

C. (2022a). Adaptive early-learning correction for

segmentation from noisy annotations. In IEEE/CVF

Conference on Computer Vision and Pattern Recogni-

tion (CVPR), pages 2606–2616.

Liu, S., Zhi, S., Johns, E., and Davison, A. J. (2022b). Boot-

strapping semantic segmentation with regional con-

trast. In International Conference on Learning Rep-

resentations (ICLR).

Mo, Y., Wu, Y., Yang, X., Liu, F., and Liao, Y. (2022). Re-

view the state-of-the-art technologies of semantic seg-

mentation based on deep learning. Neurocomputing,

493:626–646.

Olsson, V., Tranheden, W., Pinto, J., and Svensson, L.

(2021). Classmix: Segmentation-based data augmen-

tation for semi-supervised learning. In IEEE/CVF In-

ternational Conference on Computer Vision (ICCV),

pages 1369–1378.

Oord, A. v. d., Li, Y., and Vinyals, O. (2018). Representa-

tion learning with contrastive predictive coding. arXiv

preprint arXiv:1807.03748.

Qin, J., Wu, J., Xiao, X., Li, L., and Wang, X. (2022).

Activation modulation and recalibration scheme for

weakly supervised semantic segmentation. In AAAI

Conference on Artiﬁcial Intelligence, volume 36,

pages 2117–2125.

Rong, S., Tu, B., Wang, Z., and Li, J. (2023). Boundary-

enhanced co-training for weakly supervised seman-

tic segmentation. In IEEE/CVF Conference on Com-

puter Vision and Pattern Recognition (CVPR), pages

19574–19584.

Rossetti, S., Zappia, D., Sanzari, M., Schaerf, M., and Pirri,

F. (2022). Max pooling with vision transformers rec-

onciles class and shape in weakly supervised semantic

segmentation. In European Conference on Computer

Vision (ECCV), pages 446–463. Springer.

Ru, L., Zheng, H., Zhan, Y., and Du, B. (2023). Token con-

trast for weakly-supervised semantic segmentation. In

IEEE/CVF Conference on Computer Vision and Pat-

tern Recognition (CVPR), pages 3093–3102.

Samek, W., Montavon, G., Lapuschkin, S., Anders, C. J.,

and M

uller, K.-R. (2021). Explaining deep neural net-

works and beyond: A review of methods and applica-

tions. Proceedings of the IEEE, 109(3):247–278.

Selvaraju, R. R., Cogswell, M., Das, A., Vedantam, R.,

Parikh, D., and Batra, D. (2017). Grad-CAM: Visual

explanations from deep networks via gradient-based

localization. In IEEE/CVF International Conference

on Computer Vision (ICCV), pages 618–626.

Shen, W., Peng, Z., Wang, X., Wang, H., Cen, J., Jiang, D.,

Xie, L., Yang, X., and Tian, Q. (2023). A survey on

label-efﬁcient deep image segmentation: Bridging the

gap between weak supervision and dense prediction.

IEEE Transactions on Pattern Analysis and Machine

Intelligence, 45(8):9284–9305.

Simonyan, K., Vedaldi, A., and Zisserman, A. (2013).

Deep inside convolutional networks: Visualising im-

age classiﬁcation models and saliency maps. arXiv

preprint arXiv:1312.6034.

Wang, Y., Wang, H., Shen, Y., Fei, J., Li, W., Jin, G., Wu, L.,

Zhao, R., and Le, X. (2022). Semi-supervised seman-

tic segmentation using unreliable pseudo-labels. In

IEEE/CVF Conference on Computer Vision and Pat-

tern Recognition (CVPR), pages 4248–4257.

Wang, Y., Zhang, J., Kan, M., Shan, S., and Chen, X.

(2020). Self-supervised equivariant attention mecha-

nism for weakly supervised semantic segmentation. In

IEEE/CVF Conference on Computer Vision and Pat-

tern Recognition (CVPR), pages 12275–12284.

Xu, L., Ouyang, W., Bennamoun, M., Boussaid, F., and Xu,

D. (2022). Multi-class token transformer for weakly

supervised semantic segmentation. In IEEE/CVF

Conference on Computer Vision and Pattern Recog-

nition (CVPR), pages 4300–4309.

Yang, L., Qi, L., Feng, L., Zhang, W., and Shi,

Y. (2023). Revisiting weak-to-strong consistency

in semi-supervised semantic segmentation. In

IEEE/CVF Conference on Computer Vision and Pat-

tern Recognition (CVPR), pages 7236–7246.

Yang, Z., Fu, K., Duan, M., Qu, L., Wang, S., and

Song, Z. (2024). Separate and conquer: Decoupling

co-occurrence via decomposition and representation

for weakly supervised semantic segmentation. In

IEEE/CVF Conference on Computer Vision and Pat-

tern Recognition (CVPR), pages 3606–3615.

Yi, S., Ma, H., Wang, X., Hu, T., Li, X., and Wang, Y.

(2022). Weakly-supervised semantic segmentation

VISAPP 2025 - 20th International Conference on Computer Vision Theory and Applications

164

with superpixel guided local and global consistency.

Pattern Recognition, 124:108504.

Zhang, D., Zhang, H., Tang, J., Hua, X.-S., and Sun, Q.

(2020a). Causal intervention for weakly-supervised

semantic segmentation. Advances in Neural Informa-

tion Processing Systems, 33:655–666.

Zhang, M., Zhou, Y., Zhao, J., Man, Y., Liu, B., and Yao, R.

(2020b). A survey of semi-and weakly supervised se-

mantic segmentation of images. Artiﬁcial Intelligence

Review, 53:4259–4288.

Zhu, L., He, H., Zhang, X., Chen, Q., Zeng, S., Ren, Q., and

Lu, Y. (2023). Branches mutual promotion for end-to-

end weakly supervised semantic segmentation. arXiv

preprint arXiv:2308.04949.

Learning Weakly Supervised Semantic Segmentation Through Cross-Supervision and Contrasting of Pixel-Level Pseudo-Labels

165
