Enforcing Graph Structures to Enhance Key Information Extraction in

Document Analysis

Rajashree Majumder

, Zhewei Wang

, Ye Yue

, Mukut Kalita

and Jundong Liu

1,∗

School of Electrical Engineering and Computer Science, Ohio University, U.S.A.

Flexday Solutions LLC, U.S.A.

Keywords:

Document Analysis, Key Information Extraction (KIE), Graph Neural Network (GNN), BERT.

Abstract:

Key Information Extraction (KIE) is a critical and often ﬁnal step in the comprehensive process of document

analysis. Various graph-based solutions, including SDMG-R, have been proposed to address the challenges

posed by the relationships between document components. In this paper, we propose a spatial structure-guided

framework to integrate known structures of the data and tasks, which are represented as ground-truth graphs.

This integration is enforce by minimizing a (dis-)similarity loss deﬁned on graph edges. To optimize graph

similarity, different loss functions are explored for the edge loss. In addition, we enhance the text feature

extraction component in SDMG-R from character-level Bi-LSTM to word-level embeddings using a ﬁne-

tuned BERT, thereby integrating deeper language knowledge into the text labeling procedure. Experiments on

the FUNSD and WildReceipt datasets demonstrate the effectiveness of our proposed model in extracting key

information from document images with unseen templates, signiﬁcantly outperforming baseline models.

1 INTRODUCTION

Extracting and understanding meaningful information

from structured or unstructured documents plays a

crucial role in various applications, including legal

document review, archiving and digitization, senti-

ment and content analysis, and document classiﬁca-

tion. Key Information Extraction (KIE) from Visually

Rich Documents (VRD) is a critical, and often the ﬁ-

nal, step in document understanding.

While signiﬁcant strides have been made over the

past decade, largely due to the application of deep

learning techniques, challenges remain in document

analysis and KIE. The necessary features for under-

standing documents, which include textual, visual,

and spatial elements, often exhibit great variation

even within the same document type. In addition, the

relationships between document components, which

can span different visual, semantic, and spatial dimen-

sions, are often difﬁcult to fully comprehend.

To address these two challenges, various graph-

based solutions have been proposed (Yu et al., 2021;

Liu et al., 2019; Wang et al., 2023; Hong et al., 2022;

Qian et al., 2018; Sun et al., 2021; Hwang et al.,

∗

Corresponding Author. This project is in part sup-

ported by Flexday AI.

2020; Chen et al., 2023; Shi et al., 2023; Gbada et al.,

2024b; Lee et al., 2021), achieving state-of-the-art

performance. PICK (Yu et al., 2021) incorporates all

features from the document—textual, visual, and spa-

tial—where an encoder generates visual embeddings

using Convolutional Neural Networks (CNN) and text

embeddings using Transformers. These features are

fed into a graph module to capture the latent relation-

ships between nodes. For KIE, sequence tagging is

performed at the character level using a Bidirectional

LSTM-Conditional Random Field layer. Inspired by

SPADE (Hwang et al., 2020), Hong et al. (Hong et al.,

2022) introduced a graph-based method called BROS,

which encodes the relative positions of text blocks in

a document’s 2D space to capture their relationships.

BROS has a similar structure to LayoutLM (Xu et al.,

2020) but includes two major improvements.

Spatial Dual-Modality Graph Reasoning (SDMG-

R) (Sun et al., 2021) attempts to address both chal-

lenges. It models document images as dual-modality

graphs, with nodes encoding both the visual and tex-

tual features of detected text regions, and edges rep-

resenting the spatial relations between neighboring

text regions. However, for data with well-deﬁned

structures, such as driver’s licenses, passports, and

transcripts, their structures have not been fully uti-

lized in the key classiﬁcation procedure. In addition,

618

Majumder, R., Wang, Z., Yue, Y., Kalita, M. and Liu, J.

Enforcing Graph Structures to Enhance Key Information Extraction in Document Analysis.

DOI: 10.5220/0013240600003912

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 20th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2025) - Volume 3: VISAPP, pages

618-625

ISBN: 978-989-758-728-3; ISSN: 2184-4321

features extracted from visual and textual modalities

have been processed through U-Net and Bi-LSTM,

respectively, before being fused and fed into the graph

network. The textual feature extraction, however, is

conducted at the character level, lacking an under-

standing of the word content.

In this paper, we propose two novel components

to improve the graph-based feature extraction and

structure learning procedure. Built on SDMG-R, our

framework replaces the character-level network with

word-embedding networks, allowing the system to

recognize words for text labeling. For structure learn-

ing, we integrate the available ground-truth text lay-

out and connections into the graph learning process.

Our contributions can be summarized as follows:

• First, we enhance the text feature extraction com-

ponent in SDMG-R by replacing the character-

level Bi-LSTM with a word-level embedding so-

lution based on a ﬁne-tuned BERT model. This

improvement incorporates language knowledge

directly into the text labeling process.

• Second, we propose the use of a ground-truth

graph as both an input and a guiding mechanism.

This novel approach sets our method apart and en-

hances the performance of the baseline SDMG-R.

The guidance is enforced through a loss function

designed to minimize graph dissimilarity.

• For the graph dissimilarity setup, we experi-

mented with various loss functions, including

Mean Squared Error (MSE), Cross-Entropy (CE),

and Focal Loss, to evaluate their effectiveness in

graph-based learning tasks.

2 TECHNICAL BACKGROUND

Optical Character Recognition (OCR) based docu-

ment analysis is a powerful approach to extracting

and processing textual information from images and

documents. This technology combines computer vi-

sion and machine learning techniques to transform

physical or digital documents into machine-readable

text, enabling automated information retrieval and

analysis (Subramani et al., 2020). The process typ-

ically involves three main stages: text detection, text

recognition, and key information extraction, each em-

ploying networks to handle various challenges such

as diverse document layouts, different fonts and text

styles, and complex backgrounds.

The ﬁrst stage, text detection, identiﬁes and local-

izes text regions within an image or document and the

major solutions include (Liao et al., 2020; Wang et al.,

2019b; Wang et al., 2019a; Zhang et al., 2020; Zhu

et al., 2021; Long et al., 2018). Text recognition then

converts these detected regions into actual text, in-

terpreting the visual patterns of characters and words

(Fang et al., 2021; Shi et al., 2018; Li et al., 2019; Shi

et al., 2016; Sheng et al., 2019; Du et al., 2022). Fi-

nally, key information extraction aims to identify and

extract speciﬁc, relevant data from the recognized text

(Yu et al., 2021; Sun et al., 2021). This three-stage

pipeline to end-to-end document analysis has wide-

ranging applications across industries, from digitizing

historical archives to automating data entry in busi-

ness processes.

KIE faces many challenges due to the variations

in document types, feature diversity, and the com-

plex relationships between different document com-

ponents (Gbada et al., 2024a). To address these chal-

lenges, two primary strategies have been employed:

graph-based and end-to-end approaches. Graph-

based solutions (Yu et al., 2021; Liu et al., 2019;

Krieger et al., 2021; Wang et al., 2023) model the

relationships between document components, using

nodes and edges to represent different features or re-

lationships. End-to-end approaches (Xu et al., 2020;

Katti et al., 2018; Shehzadi et al., 2024), on the other

hand, integrate the entire extraction process into a sin-

gle, cohesive framework. Graph-based methods, in

particular, have proven to be effective in capturing

dependencies among document entities (Qian et al.,

2018; Sun et al., 2021; Hwang et al., 2020; Xu et al.,

2020; Hong et al., 2022).

3 METHOD

The baseline model in this work is SDMG-R, as

shown in Fig. 1. SDMG-R begins with the identiﬁ-

cation of bounding boxes within the document, which

serve as the primary units for classiﬁcation. A multi-

modal framework is employed, leveraging both visual

and textual information from these bounding boxes

to capture essential features. After fusing this mul-

timodal data, a graph is constructed where each node

represents a fused feature. The edges, representing in-

trinsic relationships such as item-price pairs, encapsu-

late critical information for classiﬁcation. Both node

and edge information are integrated to achieve accu-

rate results.

A two-pronged strategy is employed for feature

extraction, leveraging advanced techniques in both

visual and textual domains. Visual features are ex-

tracted using a pretrained U-Net (Ronneberger et al.,

2015), known for its strong performance in im-

age segmentation. Bounding boxes are processed,

followed by Region of Interest (ROI) pooling to

Enforcing Graph Structures to Enhance Key Information Extraction in Document Analysis

619

Figure 1: Baseline SDMG-R model and our proposed components. The proposed components are highlighted with red color,

which include 1) relacing Bi-LSTM with BERT; and 2) a new loss to enforce the similarity between the learned graph and

ground-truth graph.

standardize varying sizes. For textual features, a

character-based Bi-LSTM network is trained in con-

junction with the entire model to effectively capture

textual context.

Despite the careful design and performance im-

provements in KIE achieved through feature extrac-

tion and graph reasoning steps, both approaches have

signiﬁcant limitations. The feature extraction net-

work, trained on local data at the character level,

fails to leverage pre-trained word embeddings from

large text datasets, potentially missing out on deeper

semantic understanding of words. Additionally, the

key classiﬁcation procedure does not fully exploit

the well-deﬁned structures inherent in documents like

driver’s licenses, passports, and transcripts. These

standardized formats could provide valuable cues for

more accurate information extraction, yet remain un-

derutilized in current methodologies.

To address these limitations, we propose two key

components, highlighted in red in Fig. 1: (1) replac-

ing Bi-LSTM with a ﬁne-tuned BERT to enhance

text feature extraction, and (2) introducing a new loss

function to enforce similarity between the learned

graph and the ground-truth graph. In addition, we

explore different choices for the loss function to en-

force graph similarity. Detailed explanations of these

components will be presented in the following sub-

sections.

3.1 Textual Feature Extraction

The textual feature extraction component in SDMG-

R processes text using a Bi-LSTM at the character

level. This component is trained with local data to

predict next characters, without grasping the semantic

meaning of the words. This approach is akin to rec-

ognizing patterns in a foreign language based solely

on their occurrence in training data, without compre-

hending their meaning. As shown in Fig. 2, the BI-

LSTM might be able to identify “grill” in a document

as a ﬁve-character sequence, “g”, “r”, “i”, “l”, and “l”,

but fail to associate it with a restaurant name. This

character-level processing limits the system’s ability

to leverage contextual clues that could enhance infor-

mation extraction.

Figure 2: Illustration of how character-level Bi-LSTM and

a ﬁne-tuned BERT would process words on a receipts dif-

ferently.

To overcome the limitations of the baseline model,

we propose integrating pre-trained word embeddings

like word2vec (Mikolov, 2013), GloVe (Pennington

et al., 2014), and BERT (Devlin, 2018). These ad-

vanced language models capture word meanings and

relationships, offering a powerful tool to improve se-

mantic comprehension. By incorporating these pre-

trained embeddings, we can signiﬁcantly boost the

system’s ability to accurately classify documents and

VISAPP 2025 - 20th International Conference on Computer Vision Theory and Applications

620

extract key information, especially when dealing with

domain-speciﬁc terminology or contextual subtleties.

This is illustrated in Fig. 2, where a word embedding

model recognizes the meanings of “Grill” and “Av-

enue” increasing the likelihood of correct classiﬁca-

tion into their labels as restaurant name and address.

In this paper, we ﬁne-tune a pre-trained BERT

model on a token classiﬁcation task with a dataset la-

beled with Begin-Inside-Outside tagged (BIO-tagged)

tokens. The ﬁne-tuning process employs tokenized

inputs generated by BERT’s tokenizer and utilizes its

pre-trained contextual embeddings to capture the con-

text of each token. Through this task-speciﬁc training,

BERT learns to accurately assign BIO labels, making

it highly effective for token classiﬁcation tasks. The

resulting ﬁne-tuned model is then used in this work to

generate reﬁned word embeddings.

Another beneﬁt of using BERT is its robustness

against errors from the previous text recognition step.

For instance, if the OCR step incorrectly recognizes

“Grill” in Fig. 2 as “Griil”, BERT can potentially cor-

rect this error, still achieving accurate recognition.

This provides a signiﬁcant advantage over the base-

line Bi-LSTM for inputs with poor image quality.

3.2 Enforcing Structure with

Ground-Truth Graphs

In the baseline SDMG-R’s graph reasoning module,

as shown in Fig. 1, the model uses a graph net-

work to implicitly learn the connectivity among docu-

ment items (graph nodes). The graphs are formulated

as fully connected graphs, and the weights between

nodes, which reﬂect relationships, are learned to help

label the nodes correctly. However, ground-truth con-

nectivities are not explicitly enforced. In other words,

the model neither rewards correct or relevant connec-

tions nor penalizes incorrect or irrelevant connections

learned within its graph network.

This poses a signiﬁcant limitation, as many well-

structured documents have clearly deﬁned connec-

tions among their items. For instance, Fig. 3 illus-

trates an example using a section of a U.S. passport.

The spatial relationships and connectivity between the

“Nationality” ﬁeld and the text blocks “UNITED”,

“STATES”, “OF”, and “AMERICA” are consistent

across all U.S. passports. Such ground-truth connec-

tivity is often available in the training data. Failing

to take use of these connections would be a waste of

valuable information.

To address this limitation, we propose a graph

(dis)similarity loss that enforces the similarity be-

tween the learned graphs and the ground-truth struc-

tures. These ground-truth graphs are constructed

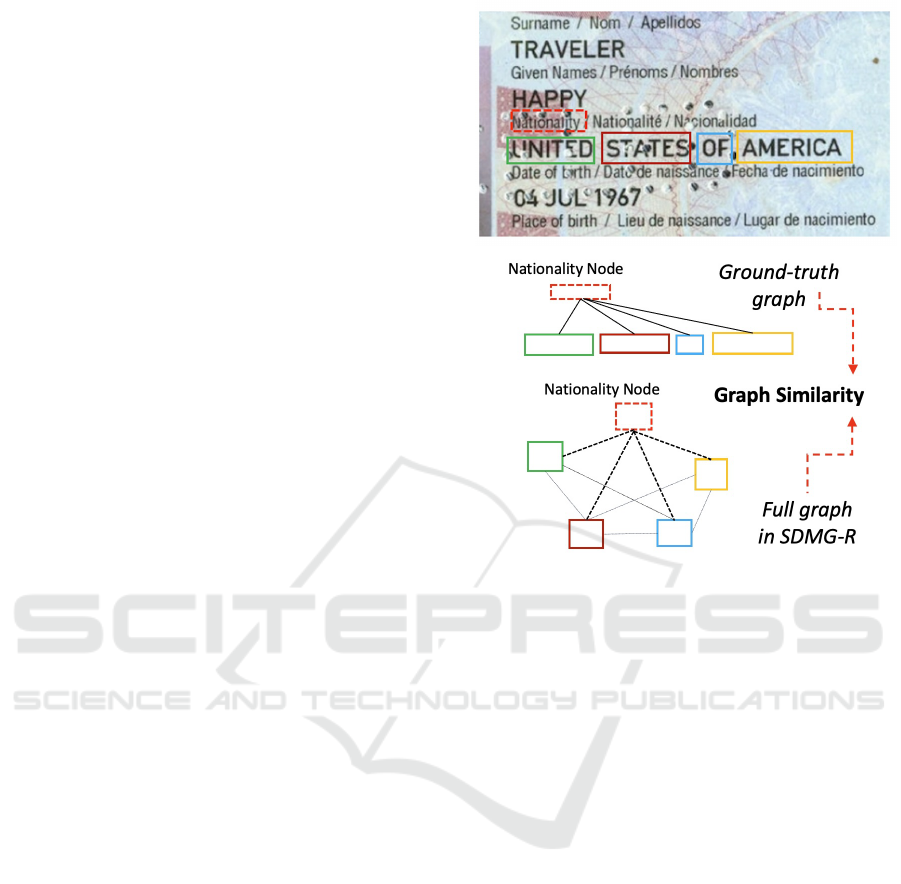

Figure 3: Illustration of our proposed graph similarity com-

ponent. Top: An example from U.S. passports, where the

“Nationality” node is connected to the four items below.

Bottom: This ground-truth structure can be enforced in

SDMG-R by incorporating a graph (dis-)similarity loss.

based on key-value pairs within the documents, with

each edge indicating whether two nodes are truly con-

nected (true) or not (false). The graph similarity task

is framed as an edge classiﬁcation problem, where

the predicted edge weights are driven to align closely

with the ground-truth values. Minimizing this loss en-

courages the graph reasoning module in SDMG-R to

generate connections that accurately reﬂect the docu-

ment structure, thereby improving node classiﬁcation

accuracy and aligning it with the actual relationships

present in the document layout.

In Fig. 3, this means that we encourage SDMG-

R to predict that the “Nationality” node is connected

to the other four nodes while ensuring that there are

no connections between the four nodes themselves.

Achieving this would be beneﬁcial for accurately la-

beling all ﬁve nodes.

3.2.1 Different Setups for Graph (dis-)Similarity

Loss

As our graph similarity component is formulated as

a binary edge classiﬁcation task, the choice of loss

function is crucial and can be set up in various ways.

The following options have been explored in this

Enforcing Graph Structures to Enhance Key Information Extraction in Document Analysis

621

work.

Cross entropy (CE) loss or log loss is commonly

used to measure the performance of a model. It quan-

tiﬁes the difference between the predicted probabili-

ties and the actual binary labels (0 or 1). The cross-

entropy loss function is deﬁned as:

Loss = −(y log(p) + (1 − y) log(1 − p))

Here, y is the actual label (0 or 1), and p is the pre-

dicted probability that the label is 1.

Focal loss adds a modulating term (1 − p

)

cross-entropy loss to account for class imbalance dur-

ing training tasks like object detection. The formula

is given in (Lin, 2017) as:

FL(p

) = −(1 − p

)

log(p

)

Setting γ > 0 can reduce focus on well-classiﬁed ex-

amples and put more emphasis on misclassiﬁed ex-

amples.

MSE loss measures the average squared differ-

ence between the predicted values and actual values.

The formula is given as:

MSE =

∑

i=1

(i)

− ˆy

(i)

)

Here, m is the number of samples, y

(i)

denotes the

ground truth label for the i-th sample, and ˆy

(i)

denotes

the predicted label for the i-th sample.

4 EXPERIMENTS AND RESULTS

In this section, we present and evaluate the ex-

perimental results of the proposed models. The

competing model were tested on two different

datasets: 1) the public Form Understanding in

Noisy Scanned Documents (FUNSD) dataset (Jaume

et al., 2019), and 2) the WildReceipt dataset, in-

troduced in (Sun et al., 2021). To enhance tex-

tual feature extraction, a uncased BERT based

model downloaded from https://huggingface.

co/google-bert/bert-base-uncased was ﬁne-

tuned on both the FUNSD and WildReceipt datasets

for the token classiﬁcation task using BIO tagging.

4.1 Results from FUNSD Dataset

The FUNSD dataset consists of 199 fully annotated

scanned form images, speciﬁcally designed for text

detection, OCR, and document understanding tasks

(Jaume et al., 2019). However, the forms are noisy

and vary signiﬁcantly in appearance, making it a difﬁ-

cult dataset for document understanding (Jaume et al.,

2019). The dataset includes 149 training images and

50 testing images, with each form image accompa-

nied by a JSON ﬁle containing its annotations. Each

form includes a list of interlinked semantic entities,

where a semantic entity represents a group of words,

each assigned a unique ID, label, bounding box co-

ordinates, and relationships with other words. These

relationships deﬁne the key-value pairs using ID num-

bers. The nodes in FUNSD have four labels: header,

question, answer, and other. For our performance

comparison, we exclude the other class. The ground-

truth graphs for FUNSD samples are generated using

the relationships deﬁned in the dataset.

Table 1 presents the results of the baseline model

and our proposed models on the FUNSD dataset, us-

ing various edge losses and textual feature extrac-

tors. All our models outperform the baseline SDGM-

R, which does not have the edge-loss component.

Among our models, those using ﬁne-tuned BERT out-

perform their counterparts using Bi-LSTM, highlight-

ing BERT’s superiority as a feature extractor. Fo-

cal loss also consistently outperforms MSE and CE

across both BERT and Bi-LSTM feature extractors.

The ﬁnal combination, ﬁne-tuned BERT with focal

loss, achieves the highest macro F1-score of 83.41%.

Table 1: Results from the segmentation models with differ-

ent edge losses and textual feature extractors on the FUNSD

dataset. “FT BERT” stands for ﬁne-tuned BERT.

Textual Feature Edge Loss Macro F-1 Score

Baseline (SDMG-R) 75.66

Bi-LSTM

MSE 77.45

Cross Entropy 77.82

Focal Loss 78.43

Fine-tuned BERT

MSE 81.22

Cross Entropy 81.55

Focal Loss 83.41

Fig. 4 illustrates an example of a FUNSD form

where the baseline model misclassiﬁes certain text,

while our approach delivers accurate classiﬁcation.

In this ﬁgure, header classes are represented by blue

rectangles, questions by red rectangles, answers by

green rectangles, and other classes by orange rect-

angles. From Fig. 4(a) and 4(b), we observe that

two other classes are incorrectly classiﬁed as header

classes by the original SDMG-R model. In addition,

one header class is misclassiﬁed as a question class.

However, in Fig. 4, all these misclassiﬁcations are

corrected.

In the end, we compared our proposed model with

recent studies (Lee et al., 2021; Hwang et al., 2020;

Gbada et al., 2024b; Chen et al., 2023; Shi et al.,

2023; Hong et al., 2022) that reported results on

the FUNSD dataset for the KIE task, summarized in

VISAPP 2025 - 20th International Conference on Computer Vision Theory and Applications

622

Figure 4: Classiﬁcation results on FUNSD forms. Colors indicate different classes: blue for header, red for questions, green

for answers, and orange for other classes. Left: Ground-truth classes of the text blocks. Middle: Predicted classes using

original SDMG-R. Right: Predicted classes using our proposed model.

(Gbada et al., 2024a). It is important to note that we

do not intend to make a direct quantitative compar-

ison among these methods, as the studies employed

different training setups and evaluation metrics. Nev-

ertheless, the classiﬁcation accuracy achieved by our

model (ﬁne-tuned BERT with focal loss) is compara-

ble to that of the best-performing reported model.

Table 2: Results from different models on FUNSD dataset

for the KIE task. The metric used in results is the F1-Score.

Related Work Results

ROPE (Lee et al., 2021) 57.22

SPADE (Hwang et al., 2020) 72

Gbada et al. (Gbada et al., 2024b) 80.4

DAMGCN (Chen et al., 2023) 80.63

LayoutGCN (Shi et al., 2023) 82.06

BROS (Hong et al., 2022) 84.52

Our Proposed Model 83.41

4.2 Results from WildReceipt Dataset

The WildReceipt dataset, introduced in (Sun et al.,

2021), is designed for OCR and KIE tasks. It in-

cludes a collection of 1,765 receipt images, divided

into 1,267 training images and 472 testing images.

Each image contains a list of OCR entries, with each

entry comprising a bounding box, text, and a class

label. The dataset deﬁnes 26 classes, which include

various key-value pairs such as Store name key vs

Store name value, Date key vs Date value, and To-

tal key vs Total value.

The original WildReceipt dataset does not contain

relationships between nodes. In this work, we in-

troduced relationships between key-value pairs, i.e.,

connecting name keys with name values, and take the

graphs as the ground-truth in our models. Following

the same practice in the baseline model (Sun et al.,

2021), we excluded the scores for the Ignore and Oth-

ers classes from the performance evaluation.

Table 3 shows the KIE results from the baseline

SDMG-R model and our models. All of our models

outperform the baseline, which utilizes a Bi-LSTM

and lacks edge loss. Among our six models, a simi-

lar trend to the FUNSD experiments can be observed.

Regarding the text feature extractor, the three mod-

els with ﬁne-tuned BERT consistently outperform the

corresponding models using Bi-LSTM. For edge loss,

focal loss enhances accuracy more effectively than

MSE or cross-entropy. This can be attributed to the

fact that the ground-truth graphs are typically quite

sparse in edges, making focal loss more suitable for

such label-imbalanced scenarios.

Table 3: Results from the segmentation models with differ-

ent edge losses and textual feature extractors on the Wil-

dReceipt dataset.

Textual Feature Edge Loss Macro F-1 Score

Baseline (SDMG-R) 88.35

Bi-LSTM

MSE 88.91

Cross Entropy 88.40

Focal Loss 89.20

Fine-tuned BERT

MSE 89.85

Cross Entropy 89.72

Focal Loss 90.26

To summarize, our two design compo-

nents—replacing Bi-LSTM with ﬁne-tuned BERT

and enforcing graph structure using an edge

loss—successfully achieved the intended design

goals, as clearly demonstrated in both the FUNSD

Enforcing Graph Structures to Enhance Key Information Extraction in Document Analysis

623

and WildReceipt experiments. Among the three

loss functions explored (MSE, cross-entropy, and

focal loss), focal loss consistently delivered the

best performance across datasets and experiments.

This can be largely attributed to the sparsity of the

ground-truth graphs, where focal loss is better suited

to handle label imbalance.

5 CONCLUSIONS

In this paper, we present a spatial structure-guided

framework to address the challenges of KIE by lever-

aging ground-truth graphs and optimizing graph sim-

ilarity through various loss functions. Moreover, by

enhancing the text feature extraction process with

word-level embeddings using a ﬁne-tuned BERT, our

models demonstrate superior performance compared

to the baseline SDMG-R model. Experimental results

on the FUNSD and WildReceipt datasets conﬁrm the

robustness of our approach.

REFERENCES

Chen, Y.-M., Hou, X.-T., Lou, D.-F., Liao, Z.-L., and Liu,

C.-L. (2023). Damgcn: Entity linking in visually rich

documents with dependency-aware multimodal graph

convolutional network. In International Conference

on Document Analysis and Recognition, pages 33–47.

Springer.

Devlin, J. (2018). Bert: Pre-training of deep bidirec-

tional transformers for language understanding. arXiv

preprint arXiv:1810.04805.

Du, Y., Chen, Z., Jia, C., Yin, X., Zheng, T., Li, C., Du,

Y., and Jiang, Y.-G. (2022). Svtr: Scene text recog-

nition with a single visual model. arXiv preprint

arXiv:2205.00159.

Fang, S., Xie, H., Wang, Y., Mao, Z., and Zhang, Y. (2021).

Read like humans: Autonomous, bidirectional and

iterative language modeling for scene text recogni-

tion. In Proceedings of the IEEE/CVF conference on

computer vision and pattern recognition, pages 7098–

7107.

Gbada, H., Kalti, K., and Mahjoub, M. A. (2024a). Deep

learning approaches for information extraction from

visually rich documents: datasets, challenges and

methods. International Journal on Document Anal-

ysis and Recognition (IJDAR), pages 1–22.

Gbada, H., Kalti, K., and Mahjoub, M. A. (2024b). Multi-

modal weighted graph representation for information

extraction from visually rich documents. Neurocom-

puting, 573:127223.

Hong, T., Kim, D., Ji, M., Hwang, W., Nam, D., and

Park, S. (2022). Bros: A pre-trained language model

focusing on text and layout for better key informa-

tion extraction from documents. In Proceedings of

the AAAI Conference on Artiﬁcial Intelligence, vol-

ume 36, pages 10767–10775.

Hwang, W., Yim, J., Park, S., Yang, S., and Seo,

M. (2020). Spatial dependency parsing for semi-

structured document information extraction. arXiv

preprint arXiv:2005.00642.

Jaume, G., Ekenel, H. K., and Thiran, J.-P. (2019). Funsd:

A dataset for form understanding in noisy scanned

documents. In 2019 International Conference on

Document Analysis and Recognition Workshops (IC-

DARW), volume 2, pages 1–6. IEEE.

Katti, A. R., Reisswig, C., Guder, C., Brarda, S., Bickel,

S., H

ohne, J., and Faddoul, J. B. (2018). Chargrid:

Towards understanding 2d documents. arXiv preprint

arXiv:1809.08799.

Krieger, F., Drews, P., Funk, B., and Wobbe, T. (2021).

Information extraction from invoices: a graph neural

network approach for datasets with high layout vari-

ety. In Innovation Through Information Systems: Vol-

ume II: A Collection of Latest Research on Technology

Issues, pages 5–20. Springer.

Lee, C.-Y., Li, C.-L., Wang, C., Wang, R., Fujii, Y., Qin,

S., Popat, A., and Pﬁster, T. (2021). Rope: reading

order equivariant positional encoding for graph-based

document information extraction. arXiv preprint

arXiv:2106.10786.

Li, H., Wang, P., Shen, C., and Zhang, G. (2019). Show,

attend and read: A simple and strong baseline for ir-

regular text recognition. In Proceedings of the AAAI

conference on artiﬁcial intelligence, volume 33, pages

8610–8617.

Liao, M., Wan, Z., Yao, C., Chen, K., and Bai, X. (2020).

Real-time scene text detection with differentiable bi-

narization. In Proceedings of the AAAI conference

on artiﬁcial intelligence, volume 34, pages 11474–

11481.

Lin, T. (2017). Focal loss for dense object detection. arXiv

preprint arXiv:1708.02002.

Liu, X., Gao, F., Zhang, Q., and Zhao, H. (2019).

Graph convolution for multimodal information extrac-

tion from visually rich documents. arXiv preprint

arXiv:1903.11279.

Long, S., Ruan, J., Zhang, W., He, X., Wu, W., and Yao,

C. (2018). Textsnake: A ﬂexible representation for

detecting text of arbitrary shapes. In Proceedings of

the European conference on computer vision (ECCV),

pages 20–36.

Mikolov, T. (2013). Efﬁcient estimation of word representa-

tions in vector space. arXiv preprint arXiv:1301.3781,

3781.

Pennington, J., Socher, R., and Manning, C. D. (2014).

Glove: Global vectors for word representation. In

Proceedings of the 2014 conference on empirical

methods in natural language processing (EMNLP),

pages 1532–1543.

VISAPP 2025 - 20th International Conference on Computer Vision Theory and Applications

624

Qian, Y., Santus, E., Jin, Z., Guo, J., and Barzilay, R.

(2018). Graphie: A graph-based framework for infor-

mation extraction. arXiv preprint arXiv:1810.13083.

Ronneberger, O., Fischer, P., and Brox, T. (2015). U-

net: Convolutional networks for biomedical image

segmentation. In Medical image computing and

computer-assisted intervention–MICCAI 2015: 18th

international conference, Munich, Germany, October

5-9, 2015, proceedings, part III 18, pages 234–241.

Springer.

Shehzadi, T., Stricker, D., and Afzal, M. Z. (2024). A hybrid

approach for document layout analysis in document

images. In International Conference on Document

Analysis and Recognition, pages 21–39. Springer.

Sheng, F., Chen, Z., and Xu, B. (2019). Nrtr: A no-

recurrence sequence-to-sequence model for scene text

recognition. In 2019 International conference on doc-

ument analysis and recognition (ICDAR), pages 781–

786. IEEE.

Shi, B., Bai, X., and Yao, C. (2016). An end-to-end train-

able neural network for image-based sequence recog-

nition and its application to scene text recognition.

IEEE transactions on pattern analysis and machine

intelligence, 39(11):2298–2304.

Shi, B., Yang, M., Wang, X., Lyu, P., Yao, C., and Bai, X.

(2018). Aster: An attentional scene text recognizer

with ﬂexible rectiﬁcation. IEEE transactions on pat-

tern analysis and machine intelligence, 41(9):2035–

2048.

Shi, D., Liu, S., Du, J., and Zhu, H. (2023). Layout-

gcn: A lightweight architecture for visually rich doc-

ument understanding. In International Conference on

Document Analysis and Recognition, pages 149–165.

Springer.

Subramani, N., Matton, A., Greaves, M., and Lam, A.

(2020). A survey of deep learning approaches for

ocr and document understanding. arXiv preprint

arXiv:2011.13534.

Sun, H., Kuang, Z., Yue, X., Lin, C., and Zhang, W. (2021).

Spatial dual-modality graph reasoning for key infor-

mation extraction. arXiv preprint arXiv:2103.14470.

Wang, J., Krumdick, M., Tong, B., Halim, H., Sokolov, M.,

Barda, V., Vendryes, D., and Tanner, C. (2023). A

graphical approach to document layout analysis. In

International Conference on Document Analysis and

Recognition, pages 53–69. Springer.

Wang, W., Xie, E., Li, X., Hou, W., Lu, T., Yu, G., and

Shao, S. (2019a). Shape robust text detection with

progressive scale expansion network. In Proceedings

of the IEEE/CVF conference on computer vision and

pattern recognition, pages 9336–9345.

Wang, W., Xie, E., Song, X., Zang, Y., Wang, W., Lu, T.,

Yu, G., and Shen, C. (2019b). Efﬁcient and accurate

arbitrary-shaped text detection with pixel aggregation

network. In Proceedings of the IEEE/CVF interna-

tional conference on computer vision, pages 8440–

8449.

Xu, Y., Li, M., Cui, L., Huang, S., Wei, F., and Zhou, M.

(2020). Layoutlm: Pre-training of text and layout

for document image understanding. In Proceedings

of the 26th ACM SIGKDD international conference

on knowledge discovery & data mining, pages 1192–

1200.

Yu, W., Lu, N., Qi, X., Gong, P., and Xiao, R. (2021).

Pick: processing key information extraction from doc-

uments using improved graph learning-convolutional

networks. In 2020 25th International Conference on

Pattern Recognition (ICPR), pages 4363–4370. IEEE.

Zhang, S.-X., Zhu, X., Hou, J.-B., Liu, C., Yang, C., Wang,

H., and Yin, X.-C. (2020). Deep relational reasoning

graph network for arbitrary shape text detection. In

Proceedings of the IEEE/CVF Conference on Com-

puter Vision and Pattern Recognition, pages 9699–

9708.

Zhu, Y., Chen, J., Liang, L., Kuang, Z., Jin, L., and

Zhang, W. (2021). Fourier contour embedding for

arbitrary-shaped text detection. In Proceedings of the

IEEE/CVF conference on computer vision and pattern

recognition, pages 3123–3131.

Enforcing Graph Structures to Enhance Key Information Extraction in Document Analysis

625
