Natural Language Interface for Goal-Oriented Knowledge Graphs

Using Retrieval-Augmented Generation

Kosuke Yano

, Yoshinobu Kitamura

and Kazuhiro Kuwabara

Graduate School of Information Science and Engineering, Ritsumeikan University, Ibaraki, Osaka, 567-8570, Japan

College of Information Science and Engineering, Ritsumeikan University, Ibaraki, Osaka, 567-8570, Japan

Keywords:

Function Decomposition Tree, Retrieval-Augmented Generation, Large Language Model.

Abstract:

A search method leveraging Retrieval-Augmented Generation (RAG) for goal-oriented knowledge graphs is

proposed, with a speciﬁc focus on function decomposition trees. A function decomposition tree represents

hierarchically functions of artifacts or actions of human with explicit descriptions of purposes and goals. We

developed a schema to convert the trees into RDF, enabling structured and efﬁcient searches. Through RAG

technology, a natural language interface converts user’s inputs into SPARQL queries, retrieving relevant data

and subsequently presenting them in an accessible and chat-based format. Such a ﬂexible, and purpose-

driven searches enhance usability in complex knowledge graphs. We demonstrate the tool effectively retrieves

actions, intentions, and dependencies using an illustrative and a real-world example of function decomposition

trees.

1 INTRODUCTION

This paper proposes a natural language search sys-

tem for goal-oriented knowledge graphs called func-

tion decomposition trees (Kitamura and Mizoguchi,

2003), (Kitamura et al., 2004). The proposed search

system utilizes a chat-based search interface powered

by Retrieval-Augmented Generation (RAG) technol-

ogy, incorporating a Large Language Model (LLM)

to operate on function decomposition trees converted

to RDF.

A function decomposition tree is a descriptive

method, originally proposed for functional knowl-

edge of artifacts in the engineering design ﬁeld (Ki-

tamura et al., 2004). It has been extended to proce-

dural knowledge of human actions called CHARM

(Convincing Human Action Rationalized Model) in

the health care ﬁeld (Nishimura et al., 2013). Its fea-

ture is explicit descriptions of purposes or goals of

actions. For example, the purposes or goals of “wear-

ing a face-mask” is “preventing from catching a cold”

or “preventing secondary infections to other people.”

The traditional methodologies like ﬂowcharts, BPML

and IDEF3 are fundamentally procedure-oriented. In

such procedure-oriented notations, the sequence of

steps of actions is emphasized, which often leads to

the implicit nature of the action’s purpose and ratio-

nale. The application of CHARM suggests that it

enhances the efﬁciency of learning support and pro-

motes ﬂexible nursing practices through a better un-

derstanding of goals. Moreover, function decomposi-

tion trees and CHARM have been applied in various

ﬁelds including auditing of accounting (Taki et al.,

2023).

Many studies have explored systems that allow

searching knowledge graphs using natural language.

For example, FREyA (Damljanovic et al., 2012) is

a natural language interface that generates SPARQL

queries from user’s input. This research aims to de-

velop a search tool that processes natural language

inputs and generates responses in natural language

based on the search results, speciﬁcally focusing on

function decomposition trees. The research com-

prises two main components: developing a tool for

universally converting function decomposition trees

to Resource Description Framework (RDF) data, and

the development of a chat-based search tool for query-

ing the RDF-converted function decomposition tree

data.

First, to convert function decomposition trees into

RDF format, it is essential to deﬁne a framework that

outlines the vocabulary used in RDF, known as Re-

source Description Framework Schema (RDFS). This

involves identifying the key concepts that make up the

function decomposition tree and describing a RDFS

schema based on these deﬁnitions. Subsequently, we

Yano, K., Kitamura, Y. and Kuwabara, K.

Natural Language Interface for Goal-Oriented Knowledge Graphs Using Retrieval-Augmented Generation.

DOI: 10.5220/0013245700003890

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 17th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2025) - Volume 3, pages 975-982

ISBN: 978-989-758-737-5; ISSN: 2184-433X

975

will utilize the schema to develop a tool that converts

function decomposition tree data into RDF format.

Second, to develop the search tool for func-

tion decomposition tree data, we will focus on

Retrieval-Augmented Generation (RAG) technology

within Large Language Model (LLM). RAG gener-

ates database search queries from natural language

statements and uses the search results to formulate

natural language responses. We will ﬁrst generate

SPARQL queries to search function decomposition

tree data based on user’s inputs in natural language.

Next, the tool will execute the SPARQL query and

retrieve the results. Finally, it will utilize the results

to generate responses using LLM. This process aims

to achieve the search for function decomposition tree

data through natural language. We demonstrate the

proposed tool through an illustrative example in the

healthcare ﬁeld, followed by a real-world applica-

tion in the auditing domain of accounting (Taki et al.,

2023).

2 RELATED WORK

2.1 Function Decomposition Tree

A function decomposition tree is a framework used to

hierarchically decompose functuions or actions into

ways of sub-functions or sub-actions, representing

them in a tree structure as a form of knowledge graph.

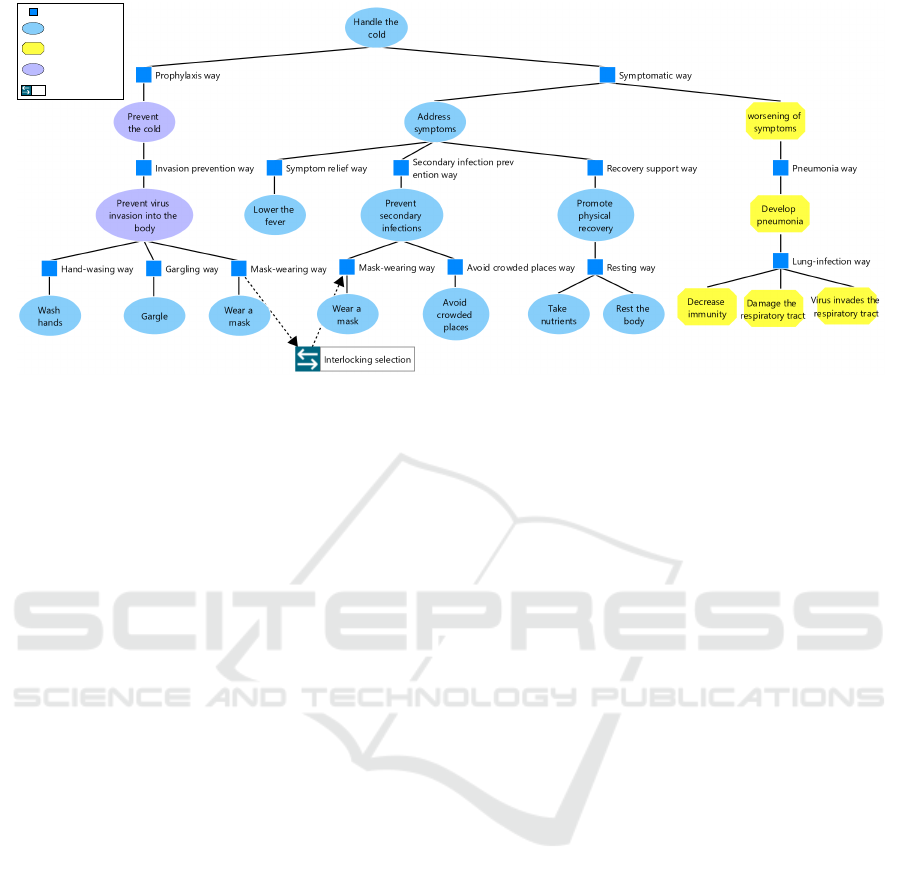

Figure 1 illustrates an example of function decompo-

sition tree aimed at handling a cold.

The function decomposition tree is composed of

function nodes, way nodes, and relation nodes, which

are depicted by ellipses, squares, and rectangles with

arrows, respectively. The function node represents

a function, to be realized by artifacts or actions to

be performed by humans. The way node represents

a way of function/action achievement, indicating the

approach used to achieve a function or an action.

In a tree, a function node is decomposed into way

nodes, which are further decomposed into function

nodes, thereby recursively detailing the action. Fig-

ure 1 illustrates that handling a cold can be achieved

through either “Prophylaxis way” or “symptomatic

way”. This hierarchical structure effectively demon-

strates the different pathways available for achieving

the desired outcome. In short, it represents goal-

method relationship between actions.

In addition, function nodes can also specify the

functional category. Functional category indicates

the nature of a function or an action. For instance, in

Figure 1, the action “Prevent virus invasion into the

body” is categorized as a prevention function, which

is shown in purple. On the other hand, the counter

functions are shown in yellow.

Relation nodes describe the dependencies be-

tween way nodes. Some ways, when selected, can

impact other ways. For example, in Figure 1, choos-

ing the “Mask-wearing way” as a way node for “Pre-

vent virus invasion into the body” also fulﬁlls the ac-

tion “Prevent secondary infections”, as indicated by

the relation node “Interlocking Selection.”

2.2 Retrieval-Augmented Generation

Retrieval-Augmented Generation (RAG) combines

Large Language model (LLM) with external database

search systems (Gao et al., 2023). Traditional LLMs

face challenges when processing queries that fall out-

side their training data, often resulting in hallucina-

tions and difﬁculties in tracking reasoning processes.

RAG addresses these issues by incorporating knowl-

edge from external databases, thereby enhancing ac-

curacy and reliability. In RAG, user queries trigger

searches in an external database, and responses are

generated based on the search results. In RAG, vector

databases are typically utilized as a reference. In con-

trast, this study enables indirect searches of function

decomposition trees by referencing RDF-converted

function decomposition tree data. This approach re-

quires the generation of SPARQL queries from natu-

ral language inputs.

The technology for converting text to SPARQL

has been extensively researched (Damljanovic et al.,

2012), (Kovriguina et al., 2023), (Avila et al., 2024).

These studies have primarily focused on general RDF

datasets; however, this research speciﬁcally targets

RDF representations tailored to function decomposi-

tion trees for SPARQL generation.

3 METHODS

In this research, we implemented a natural language

search tool for function decomposition tree data. Ini-

tially, we identiﬁed the key concepts underlying the

function decomposition tree and developed a schema

tailored speciﬁcally for it. Using this schema, we

then developed a tool to convert function decompo-

sition trees into an RDF dataset. Finally, leveraging

the converted function decomposition tree data, we

implemented a chat-based search interface utilizing a

Retrieval-Augmented Generation (RAG) for efﬁcient

querying of the function decomposition tree.

ICAART 2025 - 17th International Conference on Agents and Artiﬁcial Intelligence

976

Function node

(Prevention function)

Function node

(Counter function)

Way node

Relationship node

Figure 1: Example of function decomposition tree about handling a cold.

3.1 Components in a Function

Decomposition Tree

As the elements of the function decomposition tree,

we deﬁned two key components: functional cat-

egories and relation. Functional categories indi-

cate the types of functions or action nodes possess,

while relation represents the relationships between

way nodes.

Nodes representing functions within a function

decomposition tree are deﬁned as Systemic processes,

which are characterized by an initial state and an end

state, with the end state serving as the goal state. Such

processes can be categorized into two sub-classes

based on their goals: intended goal processes and un-

intended goal processes. The proposed method lever-

ages these two types of processes to deﬁne function

decomposition trees.

3.1.1 Functional Category

Functional categories refer to the various types of

function or action nodes within the function decom-

position tree. Each functional category is treated as

a specialization of function nodes. The counter func-

tion and the prevention function as described below

are deﬁnded as subclasses of the Systemic Process.

3.1.2 Functional Category: Counter Function

A function decomposition trees may contain not only

the actions that should be taken described, but also

the failure events and side-effects associated with the

execution of these actions. These elements are classi-

ﬁed into counter functions. For instance, in Figure 1,

the subtree rooted at the node labeled “worsening of

symptoms” shown in yellow exempliﬁes this type of

action. By documenting failure events and side ef-

fects, the intent behind actions becomes clearer, po-

tentially leading the prevention of defects (Kitamura

et al., 2004). Similarly to regular actions shown in

blue, failure events or side effects are decomposed the

results of higher-level nodes into causes at lower-level

nodes. However, unlike regular actions, failure events

or side effects are not intended to be executed. We

deﬁned counter function as a subclass of unintended

goal processes within RDFS.

3.1.3 Functional Category: Prevention Function

Some actions in a function decomposition tree are

aimed at prevention. They are categorized into pre-

vention function. For instance, in Figure 1, the sub-

tree rooted at the purple node labeled “prevent a cold”

exempliﬁes this type of action. These preventive ac-

tions are distinct from typical actions, as they focus

on averting speciﬁc outcomes rather than achieving

them.

In the context of processes aimed at prevention,

we can decompose the concept of intended goal pro-

cesses into two categories: action and function. Ac-

tion refer to processes executed by living organisms,

while function are carried out by inanimate entities.

Both categories can be oriented towards prevention.

We deﬁne prevention actions as a subclass of ac-

tion, and prevention function as a subclass of func-

tion. Since their overaching concepts of actions and

functions are not differentiated in a funtion decompo-

sition tree, prevention action and prevention function

are treated as the same type of functional category.

However, these concepts are deﬁned as separate enti-

ties in an RDF to support efﬁcient querying.

Natural Language Interface for Goal-Oriented Knowledge Graphs Using Retrieval-Augmented Generation

977

3.1.4 Dependencies Between Ways

In a function decomposition tree, certain ways are de-

pendent on others for their selection state. This de-

pendency is categorized into two primary relationship

types: interlocking selection relation and exclusive re-

lation. The interlocking selection relation relation-

ship occurs when the selection of one way necessi-

tates the selection of another. Conversely, the exclu-

sive relation relationship ensures that if one way is se-

lected, the other is precluded. The exclusive relation

is further subdivided into sibling relation and contra-

dictory relation. A sibling relation occurs when both

ways share the same parent node, whereas a contra-

dictory relation arises when the two ways are distant

from each other within the tree structure. Both In-

terlocking selection Relation and Exclusive relation

are represented in the function decomposition tree us-

ing relationship nodes. For instance, in Figure 1, the

node connecting the two Mask-wearing ways with a

dotted line represents an Interlocking selection Rela-

tion relationship node. In the proposed method, we

deﬁne the dependencies between ways by treating re-

lationship nodes as RDF properties. These nodes are

described as sub-properties of each dependency type,

allowing for a structured representation of the depen-

dencies within the function decomposition tree.

3.1.5 Schema

Based on the components of the function decom-

position tree deﬁned in Section 3.1, we described

schema in the RDFS. Figure 2 graphically represents

the schema of a function decomposition tree in RDFS.

For simpliﬁcation, the label and ID are described

with the identical content; thus, the label is omitted.

Additionally, the descriptions of rdfs:Class and

rdf:Property in some parts of Figure2 is omitted for

simpliﬁcation, because the descriptions of rdf:type

can be inferred through the use of rdfs:subClassOf

and rdfs:subPropertyOf.

3.2 Conversion to RDF Data

Based on the schema created in Section3.1.5, a pro-

gram was developed to convert function decomposi-

tion tree data into the Turtle format, one of the for-

mats used in RDF. In function decomposition trees,

procedures and methods within actions are broken

down into a tree structure, with each node described in

text form. These textual descriptions were described

using the rdfs:label property in a converted RDF

dataset. This enabled users to perform RDF searches

using text-to-SPARQL, allowing natural language in-

put to be queried. However, this approach required

exact text matches, leading to search failures when

user input differed from the descriptions in the func-

tion decomposition tree, even if the meanings were

similar or nearly identical. To address this issue, we

introduced an additional :keyword property along-

side rdfs:label. By employing LLM, keywords

were extracted from the content of rdfs:label and

recorded under the :keyword property. This en-

hancement allowed for RDF searches based on key-

words, signiﬁcantly reducing search problems caused

by variations in textual expressions.

3.3 Searching for RDF Data Using a

Chat-Based Interface with RAG

We developed a chat-based interface for querying a

function decomposition tree. User-provided natural

language input is transformed into a SPARQL query

through the application of a large language model

(LLM). We employed OpenAI’s gpt-4o-mini model

for this transformation. The results obtained from ex-

ecuting the SPARQL query are subsequently used to

formulate a response via an LLM. We identiﬁed three

unique patterns in users’ queries, detailed below, and

designed prompts speciﬁcally to address each input

pattern. In the following discussion, we use the func-

tion decomposition tree illustrated in Figure 1 as an

example.

3.3.1 Decomposition of Actions and Ways

In the ﬁrst pattern, the tool infers and responds to the

user speciﬁc actions or ways within the function de-

composition tree. The procedure begins by extract-

ing keywords from the natural language sentence pro-

vided by the user. These keywords are then utilized

to perform a ﬁltering process on the :keyword as de-

scribed in Section 3.2. This ﬁltering helps in narrow-

ing down the search to identify the node that is consid-

ered to be the closest match to the user’s input. Next,

a SPARQL query is generated to search for func-

tion nodes or way nodes that indicate the approach

to achieving the identiﬁed node. The results from

executing this query are then used to construct the

response. This SPARQL query functions to identify

sub-nodes that exist beneath a speciﬁc node within a

function decomposition tree.

Let us consider the input: What are the ways

to prevent virus invasion? as illustrated in

Figure 3. The tool extracts keywords from the input,

speciﬁcally “prevent,” “virus,” and “invasion,” and

uses these to ﬁlter and search for relevant nodes. Sub-

sequently, it identiﬁes the subordinate nodes under

the matched node and returns results such as “Mask-

ICAART 2025 - 17th International Conference on Agents and Artiﬁcial Intelligence

978

:has_Process

:has_Relation

:Interlocking_selection_

Relation

:Systemic_Process

:Sibling_Relation

:Contradictory_

Relation

:Exclusive_relation

:Way_of_Achievement

rdfs:subPropertyOf

rdfs:range

rdfs:domain

rdfs:range

rdfs:domain

rdf:Property

rdf:type

:Counterfunction

:Intended_

GoalProcess

:Unintended

GoalProcess

:Function :Prevention_function

rdfs:subClassOf

:Action :Prevention_action

rdfs:subClassOf

rdf:type

rdfs:subClassOf

rdfs:Class

rdf:type

:has_Way_of

Achievement

rdf:type

rdfs:domain

Figure 2: RDF Schema of function decomposition tree.

[namespace: /chat] 切断

sample_rdf_bot quiz_bot mock_gpt echo

sample_rdf_bot

送信

(control + Enter で送信)

RDF Viewer :start :reset

LLM Chat Demo

Color

:load KangoENG

Loaded KangoENG

What are the ways to prevent virus invasion?

Generated SPARQL Query:

PREFIX rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#>

PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#>

PREFIX ex: <https://example.org/>

SELECT ?obj_label

WHERE {

{

SELECT ?s (COUNT(?s) AS ?s_count)

WHERE {

?s ex:keyword ?kwd .

FILTER(contains(?kwd, "prevent") || contains(?kwd, "virus") || contains(?kwd, "invasion")) .

}

GROUP BY ?s

ORDER BY DESC(?s_count)

LIMIT 1

}

?s (ex:has_Way_of_Achievement | ex:has_Process) ?obj .

?obj rdfs:label ?obj_label .

}

Context:

obj_label: Hand-wasing way

obj_label: Gargling way

obj_label: Mask-wearing way

To prevent virus invasion, there are several ways you can employ:

the "Hand-washing way," the "Gargling way," and the "Mask-wearing

way."

[User: a] ログアウト

2025/01/09 16:56

LLM Chat Demo

localhost:8000

1/1

Figure 3: Decomposing an action.

wearing way,” “Gargling way,” and “Hand-washing

way.” Finally, using these results, the tool presents

the following response to the user: To prevent

virus invasion, there are several ways

you can employ: the "Hand-washing way,"

the "Gargling way", and the "Mask-wearing

way." This approach enables the tool to output

actions related to the identiﬁed ways if the matched

nodes are way nodes. Conversely, if the matched

nodes are action nodes, the tool can suggest ways to

achieve speciﬁc actions.

3.3.2 Identifying Purpose of Actions

In the second pattern, the tool infers and presents to

the user a purpose or a goal of a action or function

associated with a speciﬁc action or a way within the

function decomposition tree. The procedure begins

similarly to Section 3.3.1, where keywords are ex-

tracted from the natural language sentence provided

by the user. These keywords are then used to ﬁlter

nodes via the :keyword property, enabling the tool

to identify the node that best matches the user’s in-

put. Subsequently, a SPARQL query is generated to

search for function nodes that are positioned above the

speciﬁed node, which serves as the goal in either func-

tion nodes or way nodes. The results of executing this

query are then used to construct the response. This

SPARQL query is designed to locate action nodes that

exist above a given node within the function decom-

position tree.

Let us suppose a user inputs: What is the

purpose of wearing a mask? as illustrated in

Figure 4. The tool extracts “wear” and “mask” as

keywords and uses ﬁltering to locate the relevant

node. It then searches for action nodes above this

node in the tree (Figure 1), resulting in the out-

put: The purpose of wearing a mask is to

"Prevent virus invasion into the body."

The act of preventing virus invasion has

a "prevention Function." This approach allows

the tool to output function nodes located above the

node corresponding to the user’s input. Additionally,

it can present the type of function that the function

node aims to achieve.

3.3.3 Identifying Dependencies Between Ways

In the third pattern, the tool identiﬁes and presents

dependencies between ways within the function

decomposition tree to the user. The procedure begins

by extracting keywords from a natural language sen-

tence provided by the user, following the procedures

similar to those in Sections 3.3.1 and 3.3.2. These

keywords are then used to ﬁlter nodes to identify the

way node that best matches the user’s input. Next,

properties are searched for where the node in question

serves as the subject and another way node acts as

the object. Finally, the results are utilized to generate

a response. As deﬁned in Section 3.1.5, a relation

node is characterized by the has Relation property,

Natural Language Interface for Goal-Oriented Knowledge Graphs Using Retrieval-Augmented Generation

979

[namespace: /chat] 切断

sample_rdf_bot quiz_bot mock_gpt echo

sample_rdf_bot

送信

(control + Enter で送信)

RDF Viewer :start :reset

LLM Chat Demo

Color

:load kangoENG

Loaded kangoENG

What is the purpose of wearing a mask?

Generated SPARQL Query:

PREFIX rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#>

PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#>

PREFIX ex: <https://example.org/>

SELECT ?obj_label ?obj_type_label

WHERE {

{

SELECT ?s (COUNT(?s) AS ?s_count)

WHERE {

?s ex:keyword ?kwd .

FILTER(contains(?kwd, "wear") || contains(?kwd, "mask")) .

}

GROUP BY ?s

ORDER BY DESC(?s_count)

LIMIT 1

}

{

?obj ex:has_Way_of_Achievement ?s .

} UNION

{

?p ex:has_Process ?s .

?obj ex:has_Way_of_Achievement ?p .

}

?obj rdfs:label ?obj_label .

?obj rdf:type ?obj_type .

?obj_type rdfs:label ?obj_type_label

}

Context:

obj_label: Prevent virus invasion into the body,obj_type_label: Prevention Function

The purpose of wearing a mask is to "prevent virus invasion into the

body." The act of preventing virus invasion has a "Prevention

Function."

[User: a] ログアウト

2025/01/09 17:05

LLM Chat Demo

localhost:8000

1/1

Figure 4: Searching for purpose of actions.

which includes way nodes as both the subject and

predicate. Consequently, this SPARQL query is

designed to search for relation nodes associated with

a particular way within a function decomposition

tree. Let us consider the input: Which ways are

impacted when applying the mask-wearing

way? as illustrated in Figure 5. The tool then checks

if the identiﬁed way nodes have any associated

relational nodes. In this example, an “Interlock-

ing selection” relation node exists, linking to the

“Mask-wearing way.” Using this connection, the tool

generates the response: The mask-wearing way

has an "Interlocking selection relation"

with the "Mask-wearing way" for "Prevent

secondary infections." Therefore, when

applying the mask-wearing way, it not

only achieves the goal of "preventing

virus invasion into the body" but also

significantly impacts the prevention of

secondary infections. This response clariﬁes

that using the mask-wearing way for infection

prevention also helps prevent secondary infections

in others. In this pattern, the tool provides the user

with insights into additional outcomes that can be

achieved when selecting a speciﬁc way to accomplish

a particular action.

4 REAL-WORLD EXAMPLE

To demonstrate our approach, we present a real-

world example involving the function decomposi-

tion tree about audit procedures in accounting (Taki

et al., 2023). The function decomposition tree about

auditing procedures in accounting is based on the

document about asset accounting procedures (Finan-

[namespace: /chat] 切断

sample_rdf_bot quiz_bot mock_gpt echo

sample_rdf_bot

送信

(control + Enter で送信)

RDF Viewer :start :reset

LLM Chat Demo

Color

Which ways are impacted when applying the mask-wearing way?

Generated SPARQL Query:

PREFIX rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#>

PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#>

PREFIX ex: <https://example.org/>

SELECT ?sp_label ?prop_type_label ?o_label ?op_label

WHERE {

{

SELECT ?s (COUNT(?s) AS ?s_count)

WHERE {

?s ex:keyword ?kwd .

FILTER(contains(?kwd, "mask") || contains(?kwd, "wear")) .

?s rdf:type ex:Way_of_Achievement .

}

GROUP BY ?s

ORDER BY DESC(?s_count)

LIMIT 1

}

?sp ex:has_Way_of_Achievement ?s .

?sp rdfs:label ?sp_label .

?s ?prop ?o .

?o rdf:type ex:Way_of_Achievement .

?prop rdf:type ?prop_type .

?prop_type rdfs:label ?prop_type_label .

?o rdfs:label ?o_label .

?oParent ex:has_Way_of_Achievement ?o .

?oParent rdfs:label ?op_label

}

Context:

sp_label: Prevent virus invasion into the body,prop_type_label:

Interlocking_selection_Relation,o_label: Mask-wearing way,op_label: Prevent

secondary infections

The mask-wearing way has an "Interlocking selection relation" with

the "Mask-wearing way" for "Prevent secondary infections."

Therefore, when applying the mask-wearing way, it not only

achieves the goal of "preventing virus invasion into the body" but

also signiﬁcantly impacts the prevention of secondary infections.

[User: a] ログアウト

2025/01/09 17:05

LLM Chat Demo

localhost:8000

1/1

Figure 5: Searching for the implication of selecting the way.

cial Services Agency, 2002) published by the Fi-

nancial Services Agency in Japan. The number of

nodes in the tree is 247 and the complex connections

among these nodes make manual searches exceed-

ingly difﬁcult. Since function decomposition tree is

documented in Japanese, we conducted searches in

Japanese. Below, we provide examples of operations

for the three patterns discussed in Section 3.3.

4.1 Decomposition of Actions and Ways

As an example of the ﬁrst pattern (“Decomposition

of Actions and Ways”) described in Section 3.3.1, we

show how to search for the ways of performing group-

ing in accounting audits (Figure 6). Here, grouping

refers to the process of dividing assets into indepen-

dent units.

Let us suppose that a user inputs the query:

What are the ways for grouping assets? The

tool identiﬁes keywords within the input sentence

and utilizes them to ﬁlter nodes that align with the

user’s query. It then examines the sub-nodes linked

to these relevant nodes and generates a response

grounded in the search ﬁndings. In this example, the

generated response is: The ways to group assets

include "when there is goodwill," "when

there is no goodwill with shared assets,"

and "when there are shared assets."

In the reference document, this information is

dispersed across the sections titled “Handling of

Goodwill,” “Grouping of Assets”, and “Treatment of

Shared Assets”, making it difﬁcult to manually locate.

By utilizing this tool, users can efﬁciently access and

view multiple ways of achieving the grouping at once.

ICAART 2025 - 17th International Conference on Agents and Artiﬁcial Intelligence

980

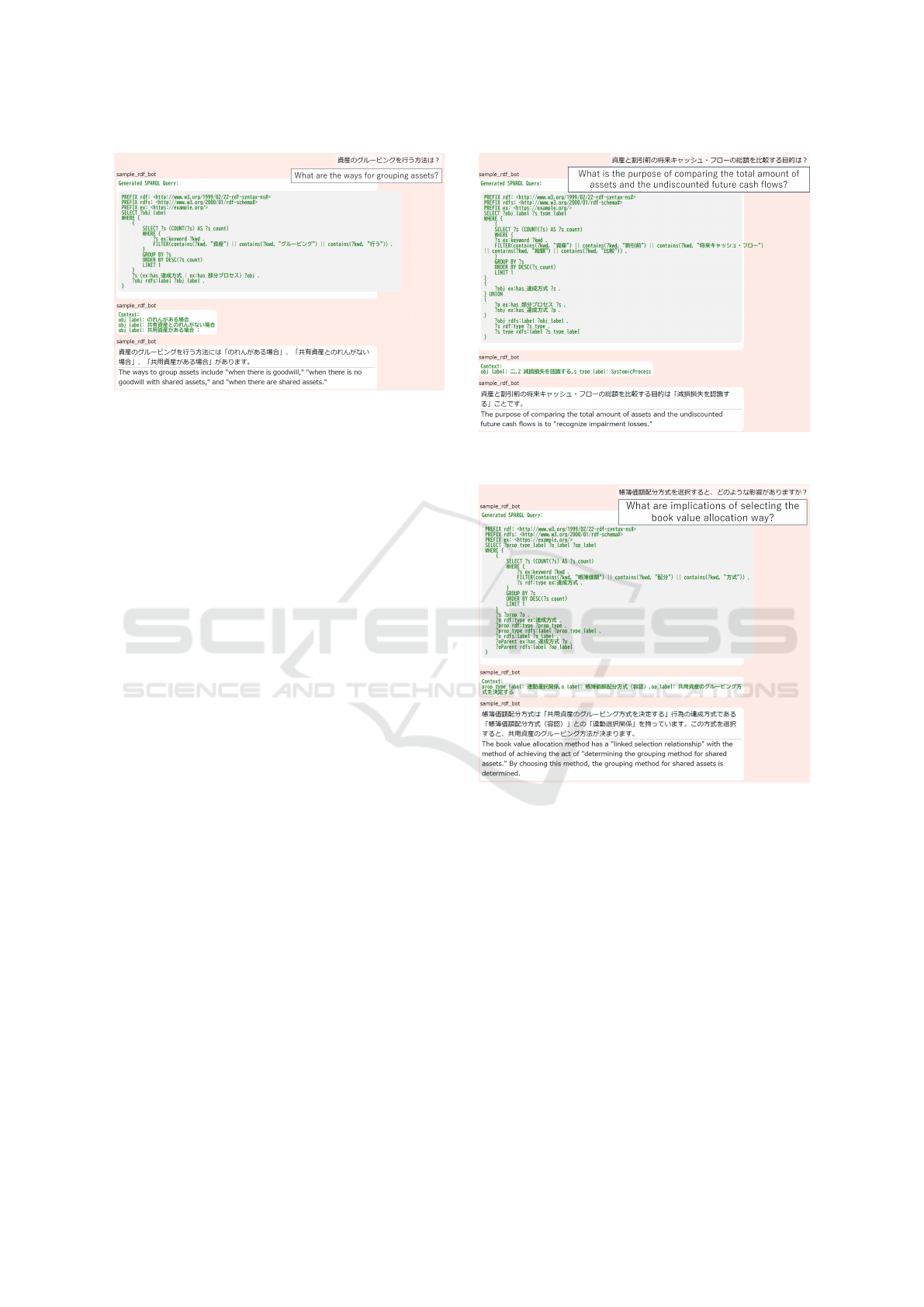

Figure 6: Searching for the ways of grouping assets.

4.2 Identifying Purpose of Actions

To show an example of the second pattern (“Identify-

ing Purpose of Actions“) described in Section 3.3.2,

we search for the purpose of comparing current

and projected future cash ﬂows (Figure 7). Let us

suppose that a user inputs a query: What is the

purpose of comparing the total amount of

assets and the undiscounted future cash

flows? The tool extracts keywords from the input

sentence and uses them to ﬁlter nodes that match the

user’s query. Then, the tool searches the super-nodes

associated with the relevant nodes and formulates

a response based on the search results. In this

example, the generated response is: The purpose

of comparing the total amount of assets

and the undiscounted future cash flows is

"to recognize impairment losses."

These details, as outlined in the reference doc-

ument (Financial Services Agency, 2002), are de-

scribed as procedural steps, making it challenging for

users to understand the underlying purpose. By using

this tool, users can efﬁciently search for the purpose

behind their actions.

4.3 Identifying Dependencies Between

Ways

In this section, as the example of the pattern

described in Section 3.3.3, we search for im-

plications of selecting the way in the function

decomposition tree (Figure 8). For a user’s

query: What are implications of selecting

the book value allocation way?, the tool ex-

tracts keywords from the input sentence and uses

them to ﬁlter nodes that match the user’s query. If

the node that matches the user’s query has relation-

node, the tool searches the node that is connected to

Figure 7: Searching for the purpose of comparing cash

ﬂows.

Figure 8: Identifying dependencies of the “book value allo-

cation way”.

relation-node.

In this example, the generated response is: The

book value allocation way has a "linked

selection relationship" with the way of

archiving the act of "determining the

grouping way for shared assets". By

choosing this way, the grouping way for

assets is determined.

In the reference document (Financial Services

Agency, 2002), the relationships between different

ways for each action are not described. By using this

tool, the relationships between the ways involved in

each action can be clearly presented to the user.

Natural Language Interface for Goal-Oriented Knowledge Graphs Using Retrieval-Augmented Generation

981

5 DISCUSSION

As demonstrated in Section 4, the proposed tool is

capable of efﬁciently retrieving speciﬁc information,

even when applied to a large-scale function decom-

position tree. For each of the three identiﬁed patterns,

we successfully extracted and presented both actions

and ways in response to users’ queries, using an RDF-

converted function decomposition tree. In particular,

as shown in Section 4.3, implicit knowledge from the

function decomposition tree can be extrated and pre-

sented to the user, offering insights not readily appar-

ent in the reference document.

However, in some instances, the search function-

ality is not performed effectively. When user queries

are brief, the limited number of available keywords

may lead to the retrieval of incorrect nodes. In the

demonstration in Section 4.2, the presence of addi-

tional keywords facilitated accurate retrieval. How-

ever, with six nodes containing both “assets” and “fu-

ture cash ﬂow,” limited input keywords make it chal-

lenging to narrow down the nodes. This limitation can

lead to the extraction of incorrect information. With

the current tool, users need to formulate more precise

or detailed queries to obtain the desired information

in some cases.

6 CONCLUSION AND FUTURE

WORK

In this paper, we proposed a tool that provides users

with goal-oriented knowledge through a natural lan-

guage interface. Users can retrieve (1) ﬁner-grained

functions/actions, (2) goals/purposes, or (3) depen-

dencies, of speciﬁed functions/actions. Such knowl-

edge facilitates users’ understanding and performance

of functions of artifacts or human actions. The func-

tional categories of the function decomposition tree,

such as prevention and counter functions, particularly

clarify teleological roles of functions.

It should be mentioned that the functional cate-

gories deﬁned in Section 3.1 are currently only used

for presentation to users, and not fully used in the

search process. Furthermore, as discussed in Sec-

tion 5, insufﬁcient user’s input can lead to incorrect

results. Since the tool relies on extracting keywords

from sentences, a limited number of keywords makes

it challenging to narrow down potential answers. In

future, we aim to integrate these functional categories

more robustly into the search mechanism, comple-

menting the existing keyword extraction approach.

ACKNOWLEDGEMENTS

This work was partially supported by JSPS KAK-

ENHI Grant Number 24K15078.

REFERENCES

Avila, C. V. S., Vidal, V. M., Franco, W., and Casanova,

M. A. (2024). Experiments with text-to-sparql based

on chatgpt. In 2024 IEEE 18th International Confer-

ence on Semantic Computing (ICSC), pages 277–284.

IEEE.

Damljanovic, D., Agatonovic, M., and Cunningham, H.

(2012). Freya: An interactive way of querying linked

data using natural language. In The Semantic Web:

ESWC 2011 Workshops: ESWC 2011 Workshops,

Heraklion, Greece, May 29-30, 2011, Revised Se-

lected Papers 8, pages 125–138. Springer.

Financial Services Agency (2002). Opinion on set-

ting accounting standards for impairment of ﬁxed

assets. https://www.fsa.go.jp/news/newsj/14/singi/

f-20020809-1/f-20020809c.pdf. Last accessed: 2024-

11-07.

Gao, Y., Xiong, Y., Gao, X., Jia, K., Pan, J., Bi, Y., Dai, Y.,

Sun, J., and Wang, H. (2023). Retrieval-augmented

generation for large language models: A survey. arXiv

preprint arXiv:2312.10997.

Kitamura, Y., Kashiwase, M., Huse, M., and Mizoguchi, R.

(2004). Deployment of an ontological framework of

functional design knowledge. Advanced Engineering

Informatics, 18(2):115–127.

Kitamura, Y. and Mizoguchi, R. (2003). Organizing knowl-

edge about functional decomposition. In The 14th In-

ternational Conference on Engineering Design.

Kovriguina, L., Teucher, R., Radyush, D., Mouromtsev, D.,

Keshan, N., Neumaier, S., Gentile, A., and Vahdati, S.

(2023). Sparqlgen: One-shot prompt-based approach

for sparql query generation. In SEMANTiCS (Posters

& Demos).

Nishimura, S., Kitamura, Y., Sasajima, M., Williamson, A.,

Kinoshita, C., Hrao, A., Hattori, K., and Mizoguchi,

R. (2013). Charm as activity model to share knowl-

edge and transmit procedural knowledge and its ap-

plication to nursing guidelines integration. Journal of

Advanced Computational Intelligence Vol, 17(2):208–

220.

Taki, H., Sogawa, S., Mura, K., and KItamura, Y. (2023).

Ontological approach for modeling of a ﬁnancial

statement audit -a model of actions of an audit of im-

pairment of ﬁxed assets-. In The 37th Annual Confer-

ence of the Japanese Society for Artiﬁcial Intelligence,

pages 2L6GS305–2L6GS305. The Japanese Society

for Artiﬁcial Intelligence.

ICAART 2025 - 17th International Conference on Agents and Artiﬁcial Intelligence

982
