Visualizing Medical Coding Practices Using Transformer Models

Tanner Hobson

and Jian Huang

Department of Electrical Engineering and Computer Science,

University of Tennessee, Knoxville, TN, U.S.A.

Keywords:

Transformer, Medical Codes, Visualization.

Abstract:

In the United States, diagnostic codes are a key component of medical records that document the process of

patient care. It has long been a common belief that there are inherent orders to the sequences of diagnosis

codes in medical records. However, because of the complexities in medical records, there have been few

tools that can automatically distill and make sense of the implicit ordering characteristics of the diagnostic

codes within medical records. With the advent and fast advancement of the Transformer architecture, in this

work we develop and demonstrate a transformer based model named DgPg. DgPg can automatically learn

the patterns in the ordering of diagnostic codes in any given corpus of medical records, for example, those

obtained from the same hospital or those from different hospitals but collected and organized around particular

clinical scenarios. Using DgPg, we can ﬂexibly visualize the coding patterns and context around any particular

diagnostic code. Our results from DgPg further demonstrate that the model learned from one dataset can be

unique to that dataset and, from this respect, conﬁrm that medical coding practices have unique dependencies

on the provider or the clinical scenarios. Our work uses three well known datasets: MIT’s MIMIC-IV dataset,

and CDC’s NHDS and NHCS datasets. Our DgPg transformer models are only 2.5 MB in size. Such compact

footprint enable ﬂexibility in how the models can be deployed for real world use.

1 INTRODUCTION

The Transformer architecture, since ﬁrst appearing in

2017 (Vaswani, 2017), has had a transformative effect

on language models. A plethora of subsequent works

have led to rapid further development. In 2018, bidi-

rectional encoder representations from transformers

(BERT) (Devlin, 2018) enabled models to understand

context from both the left-to-right and right-to-left di-

rections. In 2020, T5 (Raffel et al., 2020) proposed

that ﬂexible transfer learning can be achieved by treat-

ing all natural language based tasks in a uniﬁed text-

to-text format. All of these culminated in the creation

and widespread adoption of LLM models (Brown,

2020), which have fundamentally changed the land-

scape of how AI models are conceived, designed,

used, and perceived.

Our research revolves around medical records,

which are complex, specialized, and messy. In the

United States, a key component in medical records

are the diagnostic codes, which essentially is a “trans-

lation” from unstructured descriptions into structured

labels that characterize the essence of the descrip-

tions. In theory, the sequence of diagnostic codes doc-

https://orcid.org/0000-0002-6269-7881

https://orcid.org/0000-0002-9288-0505

umented per each patient should provide an accurate,

accountable, and actionable summary that drives the

coordination of that patient’s care.

However, while the step of coding distills infor-

mation, it is a step performed manually, very of-

ten based on experience and intuition. Standardiza-

tion and quality-control are hard. Furthermore, even

though there are often coding manuals to follow, those

manuals have not been designed for ease of use and

hence introduce signiﬁcant cognitive barriers for the

users, who are already overly task-burdened and at

risk of workplace burnout. Worse yet, different hos-

pital, or different units within the same hospital, may

have differing coding practices due to nuances in their

unique work processes, as well as clinicians’ personal

preferences in how they work.

Due to these reasons of variation, even though

most medical professionals can agree that there must

be inherent patterns among the coding sequences, few

can articulate those patterns with conﬁdence. In addi-

tion, even though coding manuals exist, those cannot

reﬂect the reality of nuanced patient care and prac-

tical constraints faced by each clinician. From this

respect, no one person truly knows the common cod-

ing practices. In result, it’s hard for a hospital’s lead

physicians and administrators to have a shared under-

Hobson, T. and Huang, J.

Visualizing Medical Coding Practices Using Transformer Models.

DOI: 10.5220/0013257800003905

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 14th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2025), pages 725-732

ISBN: 978-989-758-730-6; ISSN: 2184-4313

725

standing of how patient care is carried out at their hos-

pital. This further hampers quality control, process

improvement, or burnout prevention.

In this work, we hypothesize that the Transformer

architecture can be used to build an AI model to learn

the most representative patterns in coding sequences,

automatically and purely from a corpus of medi-

cal records. Our prototype called DgPg (“Diagnosis

Progression”) is successful. We show that the learned

patterns can be visualized ﬂexibly as AI-generated

visual summaries of the representative coding prac-

tices. The trained transformer models within DgPg

are about 2.5 MB in size. DgPg have been trained on

three publicly accessible datasets: MIMIC-IV (John-

son et al., 2023), NHDS (US CDC NCHS, 2010), and

NHCS (US CDC NCHS, 2020).

Our contributions in this paper are as follows.

To the best of our knowledge, (1) DgPg is the ﬁrst

to demonstrate that the Transformer architecture can

learn representative patterns in the code sequences

in real-world medical records. (2) This paper is

also the ﬁrst work that uses AI generated visual-

izations to serve as visual summaries of representa-

tive patterns within a dataset, without the otherwise

lengthy process of requiring a human user to explic-

itly go through the raw data to select features or create

human-provided labels.

We summarize background in Section 2 and

present our research in Section 3. Results from our

experiments and examples of our visualization are in

Section 4. We conclude in Section 5.

2 BACKGROUND

DgPg’s scope is to create organization-level analytics

using an AI model that can learn representative cod-

ing practices within medical records and help hospital

administrators gain operational insights. While that

organizational analytics scope of research is new, we

have drawn inspirations from a plethora of prior re-

search that have analyzed medical records using AI

methods for various clinical use cases.

Some of the best clinical use cases include: to

predict patient readmission and in-hospital mortal-

ity (Hsu et al., 2020), to predict occurrences of sep-

sis hours before human clinicians are able to (Henry

et al., 2015), early detection of diabetic retinopa-

thy (Abr

amoff et al., 2018), and cardiovascular dis-

ease diagnosis and prediction (Krittanawong et al.,

2017). Besides clinical outcomes, clinical cost has

been studied too. For example, to correlate a patient’s

medical records across multiple visits in order to re-

veal patterns of patients developing conditions that re-

quire costly procedures (Malhotra et al., 2015).

Speciﬁc to sequences pattern mining from medi-

cal records, past work have centered around inter visit

patterns, i.e. across multiple visits by the same pa-

tient. In a large part because there is then a natural

time variable. The most typical data structure used

for modeling is graph (Malhotra et al., 2015). To the

best of our knowledge, our work is the ﬁrst to examine

representative sequence patterns within the records of

a single visit by a patient.

The medical coder’s job is to understand the im-

plicit reasons behind diagnoses and procedures (Hu

et al., 2021). This job is time consuming. Kim et

al. report that inpatient coders achieve a rate of 2.5

medical charts per hour (Kim and Ganapathi, 2021).

The job is also cognitively intensive, because medi-

cal records involve large sets of synonymous words;

there is rarely a single word that is used to describe

one particular concept (Koleck et al., 2021).

Past researchers have incorporated external

knowledge banks, such as Wikipedia (Bai and

Vucetic, 2019) and UMLS (Chanda et al., 2022)

in an effort to improve AI’s coding capabilities.

In a related manner, not all parts of patient visit

summaries are equally important; using a restricted,

high-quality set of text is more effective than using

all available text (Hsu et al., 2020). Incorporating

attention, a means of assigning importance to dif-

ferent parts of the text, has also become a common

method (Mullenbach et al., 2018).

Lastly, it is worth noting that the direct use case of

DgPg is not to improve medical coding or clinical pre-

dictions. Instead, our use case is to let AI curate how

a complex process is actually implemented in reality

based on data. The ensuing insights can be used for

a variety of purposes. A relevant example of this use

scenario is our prior work, eCamp (Raji et al., 2018),

which is a system that learns and visualizes how uni-

versity students navigate through 100s of potential de-

gree programs at a typical major research university

in the US. All purely based on anonymized electonic

student records. The insights revealed by eCamp can

be used generally by university administrators, aca-

demic advisors, faculty, students, and parents for their

different purposes. We intend DgPg’s insights about

each hospital’s coding practices to have a similar level

of generality and can help disparate stakeholders in

the hospital ecosystem as well. The work of eCamp

predated transformers. To this end, DgPg is the ﬁrst

attempt of using transformers for such organization-

level analytics.

Next, we describe the design process and technical

details of DgPg in Section 3.

ICPRAM 2025 - 14th International Conference on Pattern Recognition Applications and Methods

726

3 THE DgPg TRANSFORMER

MODEL

3.1 Overview

Scope of Use. Every year the United States Center

of Medicare & Medicaid Services (CMS) publishes

the ofﬁcial ICD-10-CM (International Classiﬁcation

of Disease) coding guidelines (CMS, 2024), which

details speciﬁc conventions and rules that guide cod-

ing and sequencing of codes. The sequence of codes

can be due to temporal ordering, etiological ordering,

or situation-speciﬁc guidelines.

The codes and sequencing of codes are both sig-

niﬁcant. It’s fraudulent to change coding for the pur-

pose of increasing medical claim payment. Any re-

vision of coding must be done with proper support

of documentation, including documentation of causal

relationship between codes and medical events.

While it is possible, and common practice, for a

human expert to read through the complete medical

records of a patient’s visit to audit each instance of

the coding practice, a computational tool is needed to

systematically understand the coding practice shared

among a unit of healthcare providers. DgPg’s scope

of use is in this context. While DgPg’s overall scope

can include all medical codes, we have chosen to start

with diagnostic (DX) codes in this work to reduce the

complexities.

Design Goals. First, functionally, DgPg needs to

create summaries. We draw inspiration from trans-

formers, especially because of its ability to produce

patterns that can be used as summaries. Mechanisti-

cally, our goal is to identify and present patterns that

can represent the shared practices. Our aim is not to

report all deviations from the shared practice nor to

evaluate or label a coding practice as good or bad.

Second, we aim for the DgPg model to be small

in size and fast to train. The compactness affects de-

ployment ﬂexibility, but more importantly, affects the

time to train the model. We prefer the model to be

able to train quickly because, from what we have ob-

served, different healthcare providers do have highly

specialized and unique practices because of the kind

of care they provide to patients. We believe a smaller

and more specialized AI agent is easier to optimize,

control and audit. In principle, this has been proven in

the context of predicting an order sequence of charac-

ters in information theory (Grassberger, 2012), where

a distinction is made between algorithmic complexity

and statistical complexity. A sequence can be statis-

tically complicated but if it’s generated by a simple

algorithm, then its information can be quantiﬁed by

Table 1: An example of the ICD-10-CM code scheme being

inherently hierarchical.

code desc

S Injury, poisoning and certain other

consequences of external causes

Injuries to the elbow and forearm

S52 Fracture of forearm

S52.5 Fracture of lower end of radius

S52.52 Torus fracture of ...

S52.521 ... of right radius

S52.521A Initial encounter for closed fracture

the complexity of the algorithm (Grassberger, 2012).

Even though the transformer architecture is new, we

believe the same principle still applies.

We aim to use the DgPg model in the following

way: given a starting point, e.g. a particular DX code,

we aim for DgPg to generate a graph of the most re-

lated DX codes that can be visualized as visual in-

sights to users. The formulation of our research prob-

lem is next.

3.2 Problem Formulation

A Uniﬁed Format. ICD-10-CM codes are inher-

ently hierarchical. Table 1 shows an example hierar-

chy, where one can trace an exact arm injury through

seven levels of details. The ﬁrst level of the hierarchy

is encoded within the ﬁrst character of the code, sec-

ond level in the second character, etc. DgPg needs an

architecture that can learn such coding schemes.

Typically, to use a transformer (Vaswani, 2017)

model requires one to restructure their problem at

hand as a sequence-to-sequence problem. Hence,

given our need for a model that learns the hierarchi-

cal coding schemes, the transformer architecture is a

natural choice. It allows our model to learn a code

piece-by-piece instead of all-at-once. In essence, we

will train our model to learn the ﬁrst character, then

learn the next character based on the ﬁrst character,

and iterate further recursively.

Baseline Memory Model. In contrast, let’s exam-

ine the problem of learning the relationship between

pairs of codes in a traditional way, where one has to

represent these codes as numeric indices. For exam-

ple, if the code A41.9 is the 123rd code out of 12,039

codes, then it would be encoded as the integer 123.

With this traditional formulation, a memory model

can be created as a matrix of 12,309× 12, 309. There

are two consequences: (1) the model is large (around

290 MB of float16 values), and (2) the model is not

generalizable.

Visualizing Medical Coding Practices Using Transformer Models

727

Table 2: Our data come from three datasets. In MIMIC-

IV, each record represents a single patient. For NHCS and

NHDS, a record can represent multiple patients. Hence, we

show the number of records and the number of patients rep-

resented by the datasets as two separate columns.

From Name # Records # Patients

MIT MIMIC-IV 430,812 430,812

CDC NHCS 123,565 33,595,765

CDC NHDS 756,953 111,514,788

Combined 1,277,400 145,507,435

As a speciﬁc example, consider a dataset where

60 % of the time the code A41.9 is followed by

I10.0; and 40 % of the time it is followed by I59.1.

Ideally, we want the model to learn that 100 % of the

time, it should predict I as the ﬁrst character.

For this example, a memory model, will lose the

hierarchy information of the codes. Hence we choose

to build a uniﬁed text-to-text model on the character-

level, so that the model can learn the hierarchical cod-

ing schemes naturally as shown in Table 1.

Datasets. Our requirement for input data is mini-

mal. As we are only interested in the sequence of DX

codes, any dataset that has ordered sequences of DX

codes is sufﬁcient. In this work, we use three datasets:

MIMIC-IV, NHDS, and NHCS. Table 2 details these

datasets.

The MIMIC-IV (Johnson et al., 2023) dataset is

an anonymized collection of medical records from

the Beth Israel Deaconess Medical Center. The data

spans multiple years. Within MIMIC-IV, we use the

hosp/diagnoses_icd data which has four columns:

admission number, sequence number, ICD version,

and ICD code.

The National Hospital Discharge (and Care) Sur-

veys (US CDC NCHS, 2010; US CDC NCHS, 2020)

cover different years: NHDS from 1996 to 2010, and

NHCS for only 2020.

These two CDC datasets follow a similar struc-

ture with 1 + N columns: a weight column w, and N

columns of DX codes. NHDS has N = 7 DX codes;

NHCS has N = 30 DX codes. We treat the column

ordering as the representative order of the codes, i.e.

DX1 is the ﬁrst code, DX2 is the second, etc.

The weight column w serves as a frequency mul-

tiplier, to indicate one record in the dataset can repre-

sent multiple patients. For each input record, we emit

w copies as actual records for DgPg to learn.

Different datasets have different levels of speci-

ﬁcity of the codes they use. In addition, to test the

generality of our data and our models, we choose a

common encoding scheme for all codes. Even though

MIMIC-IV has up to seven characters in the DX

codes and abides by ICD-10-CM standard, NHDS has

DX codes limited to four characters and are under

the ICD-9-CM standard. Hence we have converted

ICD-9-CM codes to ICD-10-CM codes, using the Na-

tional Bureau of Economic Research (NBER) ICD-

9/10 crosswalk. We’ve also truncated the length of

the DX codes in MIMIC-IV to four characters as well.

Every ICD-10-CM code is normalized to four charac-

ters, truncating and/or padding with hyphens as nec-

essary.

These data processing is to compare DgPg’s

model results across the MIMIC-IV dataset and the

two CDC datasets. DgPg’s capability is not limited to

four characters.

The DgPg Model: T (D). Notationally, we con-

sider T (D), where T is a DgPg transformer model

trained on some dataset D.

For a given model and dataset pair, we measure

the performance PERF using the standard approach

for transformer models: ﬁxed-length sequence per-

plexity (Radford et al., 2019). To get an average

model performance, the PERF function gets applied

to 10 K samples from the validation split and are ag-

gregated via an arithmetic mean.

Speciﬁcally, we evaluate on sequences of codes.

For example, for a sequence of two codes,

(M542,G441), the DgPg model would see the se-

quence •M542G441. For each character in this se-

quence, the transformer model returns a probability

of that character occurring, p = (p

, ··· , p

). We

are only interested in the model’s predictive power,

so that PERF (x | T (D)) is calculated only on the 2nd

code.

log(PERF) = −

∑

i=5

logP (x

| x

, ··· , x

i−1

) (1)

We show experimentation results in Section 4.

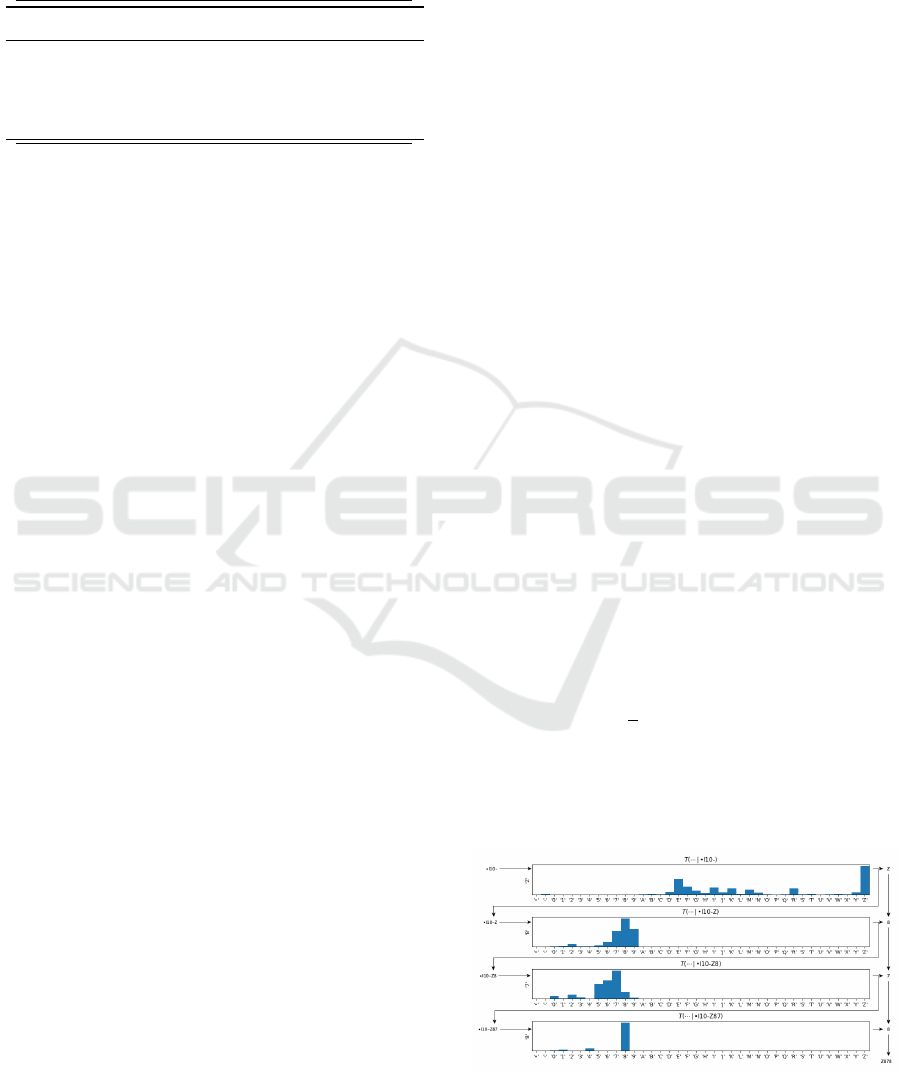

T : A

× A → R

Figure 1: Starting from I10-, we predict the most likely

code to follow: Z878.

ICPRAM 2025 - 14th International Conference on Pattern Recognition Applications and Methods

728

Table 3: An example of the data used to train our models.

Original Codes Training Sequence

DX1,DX2,DX3

N12,Q610,N179

A419,E119,""

•----N12-

•N12-Q610

•Q610N179

•N179----

T reports the probability that a character in an al-

phabet A follows a sequence of characters. T is in-

tended to be used iteratively: starting with a 4 charac-

ter code, predict the 1st character of the second code.

Then, starting with 4 + 1 characters, predict the 2nd

character of the second code. A complete example is

shown in Figure 1.

Table 3 is an example of the kind of input the

model is trained on.

4 RESULTS AND DISCUSSIONS

4.1 Conﬁgurations and Training

Base Model Conﬁguration. We trained our mod-

els using a modiﬁed version of the nanoGPT project

We based our model conﬁguration on nanoGPT’s in-

cluded conﬁguration for character-level training on a

dataset of Shakespeare’s plays. This conﬁguration for

our base model is in Listing 1. We also experimented

with different model sizes (Section 4.3).

Training Data. In Section 4.4, we trained on four

datasets: MIMIC, NHCS, NHDS datasets, and a 4th

dataset, which we refer to as “Combine”, which com-

bines all three of the MIMIC, NHCS and NHDS

datasets.

Compute Conﬁguration and Training Time. All

of our models were trained on Google Colab using

a NVIDIA T4 GPU instance. On average, it took

1,092 S to train a model, at a cost of 0.16 USD/HR,

which amounts to to about 0.05 USD per model. As is

typical in transformer model training, DgPg uses half

precision f16 ﬂoating point numbers (Warner et al.,

2024).

Summary. When training the base model and the

variation models, the only technical difference is with

how the training data is arranged. In terms of train-

ing time, we notice very minor differences among the

DgPg base model and the variation models. Thus we

https://github.com/karpathy/nanoGPT

lea r n i n g _ r a t e = 1e -3 ; dr o p out = 0. 2

lr_decay_iters = 30 000 ; m in_ l r = 1e -4

be ta2 = 0. 99 ; ma x _ i t e rs = 30 000

ba t c h _ s i z e = 256 ; n_ l a yer = 3

n_ h ead = 3 ; n_ e mbd = 192





Listing 1: A summary of the base model conﬁguration.

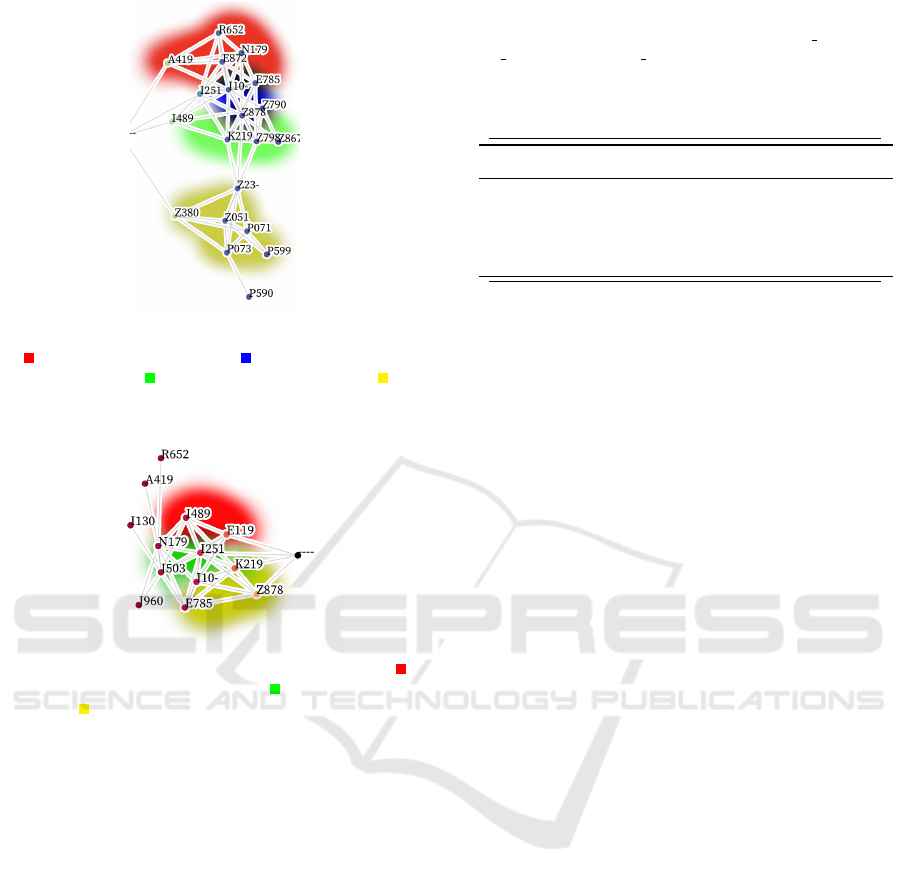

(a) Q79.6: Ehlers-Danlos Syndrome. Red is preg-

nancy and childbirth; Blue is other diverse diseases;

Green is circulatory, endocrine, and metabolic dis-

eases; Yellow is health status and personal history.

(b) A41.9: Sepsis. Red is acute conditions; Blue

is symptoms and chronic conditions; Green is

metabolic and circulatory conditions.

Figure 2: Visualization of diagnosis-speciﬁc coding pat-

terns (Section 4.2).

conclude that the cost to train for all DgPg models can

be regarded as the same. The reason to choose a par-

ticular DgPg model will solely depend on the use case

at hand.

4.2 Visualizing Coding Practices

We aim to visualize medical coding patterns using our

DgPg model. We designed a generative algorithm to

extract the most likely codes that follow or precede

a “seed code.” The generative approach to coding is

critical as it allows our models to learn and reproduce

the DX coding hierarchy. We then recursively conduct

Visualizing Medical Coding Practices Using Transformer Models

729

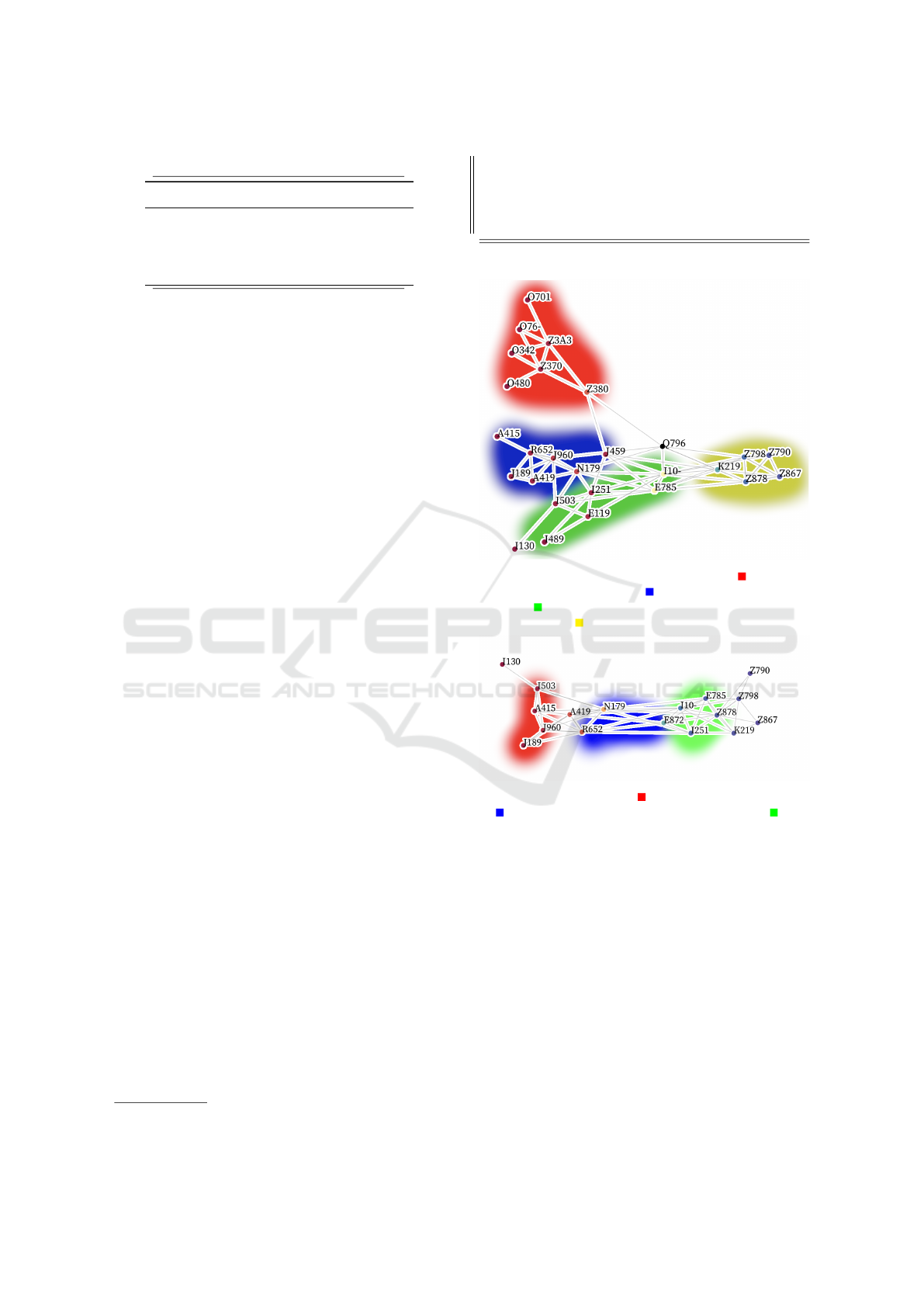

(a) The diagnoses most likely to be coded ﬁrst. Red

is infectious diseases; Blue is circulatory system

diseases; Green is digestive diseases; Yellow is

health status and perinatal.

(b) The diagnoses most likely to be coded last. Red

is cardiovascular diseases; Green is comorbidities;

Yellow is factors inﬂuencing health status.

Figure 3: Visualization of which codes are most likely to be

coded (a) ﬁrst and (b) last (Section 4.2).

a breadth-ﬁrst search. For each code, we exhaustively

check the PERF of all following codes. The top k = 3

performers get added to the working set. This contin-

ues until we reach a depth of n = 3.

The resulting graphs (Figure 2 and 3) can be used

to understand the most common following and pre-

ceding codes for a given diagnosis.

One of those examples is in Figure 2a, which

details the codes most likely to surround a Ehlers-

Danlos diagnosis. Based on the graph, we can see

that the diagnosis is often preceded by records of the

patients birth, or the existence of other diseases. Our

graph also highlights a few codes that are used in sim-

ilar positions within the coding sequence, speciﬁcally

the codes that represent systemic conditions.

Figure 2b shows that sepsis is often preceded by

acute medical conditions that could have contributed

to a patient becoming septic. Similarly, it is often fol-

lowed by chronic, metabolic, and circulatory condi-

tions that sepsis could adversely affect.

Table 4: We evaluated the performance of the model at four

different levels of model complexities. NL is n layer, NH

is n head, and NE is n embd. The parameters in this table

override the base conﬁguration in Listing 1. We found that

11 M

and T

1.3 M

perform similarly, despite a 10× difference

in model size.

Name NL NH NE Model Size Loss

11 M

6 6 384 20. MB 1.16

1.3 M

3 3 192 2.5 MB 1.17

230 K

2 2 96 440 KB 1.19

30 K

1 1 48 58 KB 1.25

Figure 3a (and 3b) visualize the most likely diag-

noses to be coded ﬁrst (and last) in the diagnosis se-

quence. These graphs provide insight into what kinds

of codes are the most signiﬁcant when starting or end-

ing the coding process.

The graphs we create can be of arbitrary size and

constraints. For Figure 2 and 3, each graph took

around 2 minutes to generate. Each graph is orga-

nized from left (earlier codes) to right (later codes).

4.3 Model Complexity

Here we report our ablation study to evaluate the ef-

fect of model conﬁguration on the performance of

DgPg. Speciﬁcally, we experiment with the size of

the model. Because the tests are about model size, in

this section we refer to models in the test by the size of

the models, such as T

11 M

and T

1.3 M

, which represents

models with 11 M and 1.3 M parameters, respectively.

In the ablation study, we start with model conﬁg-

urations where we have no risk of overﬁtting the data.

We note that there are 12.3 K suitable (4-character

or less) diagnosis codes. Constructing a matrix of

transition probabilities would require 12.3 K ×12.3 K

float16 values, or around 290 MB. We limit our

model sizes to a maximum of 10 % of this size. This

limitation ensures that our models are learning gener-

alizable patterns.

Table 4 shows the results of our ablation tests. In

total, we tested four different model conﬁgurations.

From these results, we observe that T

11 M

and T

1.3 M

perform similarly even though their sizes differ by a

factor of 10×. With this result, we feel conﬁdent that

the T

1.3 M

conﬁguration represents the optimal trade-

off between model size and performance. Results in

Section 4.2 uses T

1.3 M

We also note that even the T

230 K

conﬁguration

could be suitable because its performance is compa-

rable to the other two best-performing models. T

30 K

however, is unsuitable as it is the worst performing

model.

ICPRAM 2025 - 14th International Conference on Pattern Recognition Applications and Methods

730

4.4 Discussion

Transformer Model Variations. We have also ex-

perimented with several variations on the base DgPg

model. Our base model can predict which DX codes

directly follow other DX codes within a medical

record. Related to but beyond this functionality, one

might also want the capability to predict codes that

precede other codes, and to expand the meaning of

“follows” to include “broadly follows a code” instead

of “immediately follows a code.” To this end, it’s use-

ful to build models that can predict broadly-following

codes can be used for normalizing the ordering of

codes within a medical record.

Furthermore, although a single model could be

used for all of these variations simultaneously via a

unique prompt preﬁx, our experiments show that spe-

cialized models can be built very efﬁciently. That is

because the DgPg framework is general, where the

main difference between each model variation lies

solely in the training data used. The format of the

training data stays the same while the meaning behind

each training sample varies. Due to this architectural

advantage, every model variation trains in the same

amount of time and using exactly the same DgPg

training pipeline. Results from the variation models

are not included in this publication due to the limit of

space, however.

Applicability of Transformers. The ﬁrst reason we

chose the transformer architecture was because of the

need to learn the coding hierarchies. There is a sec-

ond reason as well. That is, generative models are

also a natural ﬁt for generating summaries and, in this

paper, visual summaries, to explain large, messy real-

world datasets. As shown in Figure 2 and Figure 3,

the DgPg transformer model can perform well in such

a generative setting. We believe there is a strong po-

tential to extend DgPg’s organization-level analytics

use case into more clinically-oriented settings. From

this respect, DgPg is simply a starting point.

Limited Transferability. With the evidence that

patterns exist in all of our tested datasets, we also

want to know if they have the same patterns or if there

are unique patterns within each dataset. To evalu-

ate this, we leverage our PERF metric to measure a

model trained on one dataset when evaluated on an-

other dataset.

Using our DgPg model with 1.3 M parameters as

the example, Figure 4 shows how generalizable the

patterns are between datasets. There are two take-

aways from these results:

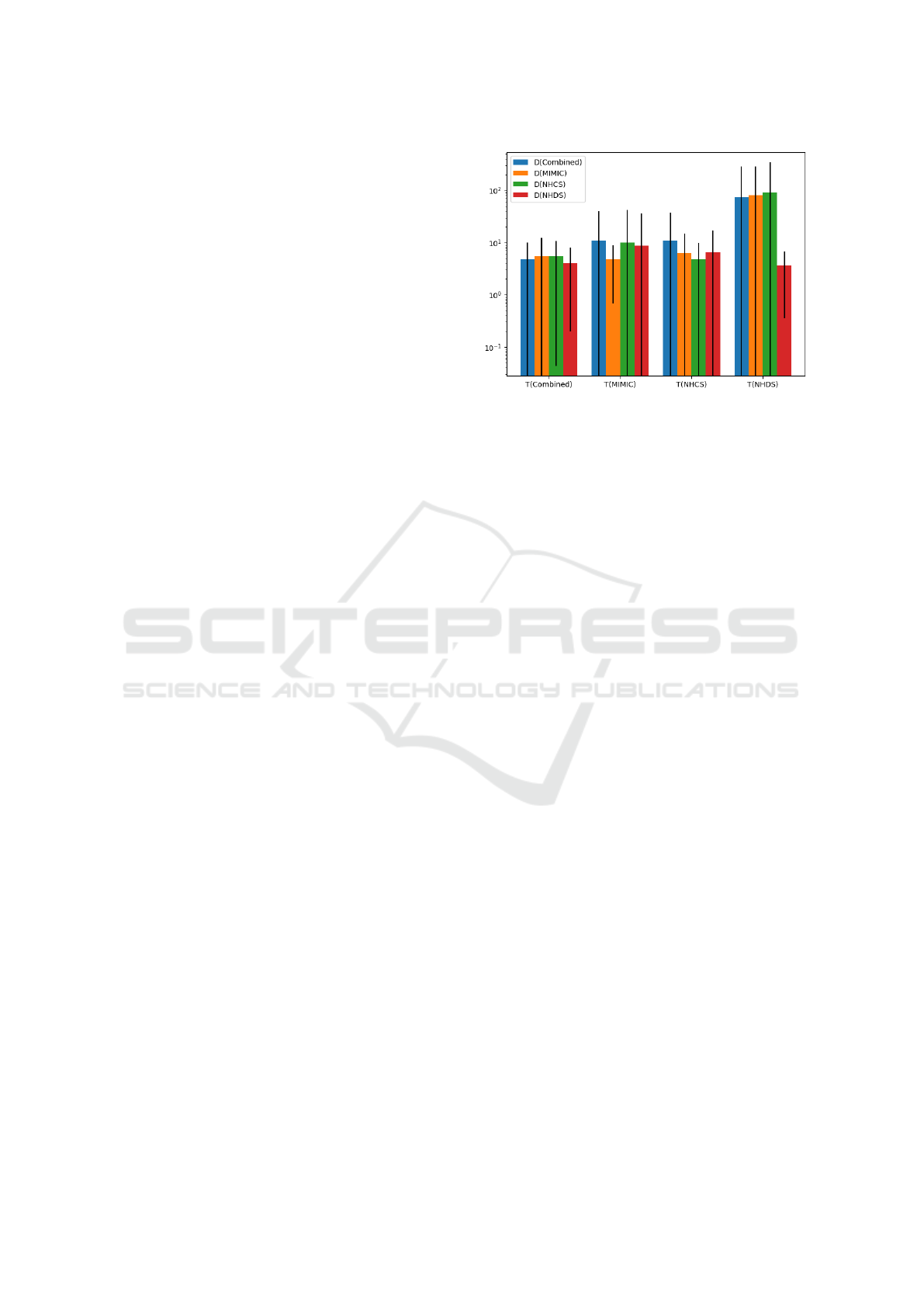

Figure 4: Evidence that the models have learned patterns

within their respective datasets that aren’t present in the

other datasets. T (·) represents that the model was trained

on a dataset, D(·) represents the dataset that was tested. For

each dataset, 10 K samples were collected. For each sample,

the model’s performance PERF was calculated. The mean

and standard deviation of the 10 K samples is shown in this

chart. As expected, testing with the same dataset that was

trained on yields a better PERF than testing on a different

dataset than the model was trained on. MIMIC and NHCS

are the most generalizable models, while NHDS is the least

generalizable.

First, as expected, the model trained on the Com-

bined data performs equally well on all of the other

datasets that make it up. This reafﬁrms the gener-

ally held belief that training on an increased variety

of datasets yields improved performance.

Second, the model trained only on NHDS data

performs the worst when tested on all the other

datasets. This is evidence that the patterns within

NHDS are unique to that dataset and are less general-

izable to other medical records datasets.

5 CONCLUSION

In this paper, we developed a transformer model,

DgPg, that can learn organization-level analytics and

summarize representative coding patterns based on

any corpus of medical records. Training a DgPg

model for a medical records dataset is both time- and

cost-efﬁcient. After training, the DgPg models are

compact in size. We also demonstrate the use of DgPg

models in a generative use case to visualize the rep-

resentative coding patterns, as well as in a classiﬁca-

tion use case to evaluate how representative a code

sequence is, given the context of any given dataset.

This work is only an initial step showing that

transformer models can learn the representation of

coding patterns. As future work, we aim to investigate

possibilities to continuously improve the capabilities

Visualizing Medical Coding Practices Using Transformer Models

731

of DgPg and to use transformer models in a bigger

variety of clinical use cases. In addition, as halluci-

nation is a research priority for language models, we

want to also study the issue of hallucination as it’s ap-

plicable to DgPg transformer models too.

REFERENCES

Abr

amoff, M. D., Lavin, P. T., Birch, M., Shah, N., and

Folk, J. C. (2018). Pivotal trial of an autonomous

ai-based diagnostic system for detection of diabetic

retinopathy in primary care ofﬁces. NPJ digital

medicine, 1(1):39.

Bai, T. and Vucetic, S. (2019). Improving medical code

prediction from clinical text via incorporating online

knowledge sources. In The World Wide Web Confer-

ence, pages 72–82.

Brown, T. B. (2020). Language models are few-shot learn-

ers. arXiv preprint arXiv:2005.14165.

Chanda, A. K., Bai, T., Yang, Z., and Vucetic, S.

(2022). Improving medical term embeddings using

umls metathesaurus. BMC Medical Informatics and

Decision Making, 22(1):114.

CMS (2024). ICD-10-CM Ofﬁcial Guidelines for Cod-

ing and Reporting FY 2025. United States CMS

https://www.cms.gov/medicare/coding-billing/icd-10-

codes.

Devlin, J. (2018). Bert: Pre-training of deep bidirec-

tional transformers for language understanding. arXiv

preprint arXiv:1810.04805.

Grassberger, P. (2012). Randomness, information, and com-

plexity. arXiv preprint arXiv:1208.3459.

Henry, K. E., Hager, D. N., Pronovost, P. J., and Saria,

S. (2015). A targeted real-time early warning score

(trewscore) for septic shock. Science translational

medicine, 7(299):299ra122–299ra122.

Hsu, C.-C., Karnwal, S., Mullainathan, S., Obermeyer,

Z., and Tan, C. (2020). Characterizing the value

of information in medical notes. arXiv preprint

arXiv:2010.03574.

Hu, S., Teng, F., Huang, L., Yan, J., and Zhang, H. (2021).

An explainable cnn approach for medical codes pre-

diction from clinical text. BMC Medical Informatics

and Decision Making, 21:1–12.

Johnson, A. E., Bulgarelli, L., Shen, L., Gayles, A., Sham-

mout, A., Horng, S., Pollard, T. J., Hao, S., Moody,

B., Gow, B., et al. (2023). Mimic-iv, a freely acces-

sible electronic health record dataset. Scientiﬁc data,

10(1):1.

Kim, B.-H. and Ganapathi, V. (2021). Read, attend, and

code: Pushing the limits of medical codes prediction

from clinical notes by machines. In Machine Learning

for Healthcare Conference, pages 196–208. PMLR.

Koleck, T. A., Tatonetti, N. P., Bakken, S., Mitha, S., Hen-

derson, M. M., George, M., Miaskowski, C., Smal-

done, A., and Topaz, M. (2021). Identifying symptom

information in clinical notes using natural language

processing. Nursing research, 70(3):173–183.

Krittanawong, C., Zhang, H., Wang, Z., Aydar, M., and Ki-

tai, T. (2017). Artiﬁcial intelligence in precision car-

diovascular medicine. Journal of the American Col-

lege of Cardiology, 69(21):2657–2664.

Malhotra, K., Hobson, T. C., Valkova, S., Pullum, L. L., and

Ramanathan, A. (2015). Sequential pattern mining of

electronic healthcare reimbursement claims: Experi-

ences and challenges in uncovering how patients are

treated by physicians. In 2015 IEEE International

Conference on Big Data (Big Data), pages 2670–

2679. IEEE.

Mullenbach, J., Wiegreffe, S., Duke, J., Sun, J., and

Eisenstein, J. (2018). Explainable prediction of

medical codes from clinical text. arXiv preprint

arXiv:1802.05695.

Radford, A., Wu, J., Child, R., Luan, D., Amodei, D.,

Sutskever, I., et al. (2019). Language models are un-

supervised multitask learners. OpenAI blog, 1(8):9.

Raffel, C., Shazeer, N., Roberts, A., Lee, K., Narang, S.,

Matena, M., Zhou, Y., Li, W., and Liu, P. J. (2020).

Exploring the limits of transfer learning with a uniﬁed

text-to-text transformer. Journal of machine learning

research, 21(140):1–67.

Raji, M., Duggan, J., DeCotes, B., Huang, J., and Van-

der Zanden, B. (2018). Modeling and visualizing stu-

dent ﬂow. IEEE Transactions on Big Data, 7(3):510–

523.

US CDC NCHS (2010). National Hospital Discharge Sur-

vey (NHDS). US Department of Health and Human

Services, Centers for Disease Control.

US CDC NCHS (2020). National hospital care survey

(NHCS). CDC Stacks.

Vaswani, A. (2017). Attention is all you need. Advances in

Neural Information Processing Systems.

Warner, B., Chafﬁn, A., Clavi

e, B., Weller, O., Hallstr

om,

O., Taghadouini, S., Gallagher, A., Biswas, R., Lad-

hak, F., Aarsen, T., et al. (2024). Smarter, better,

faster, longer: A modern bidirectional encoder for

fast, memory efﬁcient, and long context ﬁnetuning

and inference. arXiv preprint arXiv:2412.13663.

ICPRAM 2025 - 14th International Conference on Pattern Recognition Applications and Methods

732
