Behaviour and Execution Semantics of Extended Sequence Edges in

Business Processes

Thomas Bauer

Hochschule Neu-Ulm, University of Applied Sciences, Wileystr. 1, 89231 Neu-Ulm, Germany

Keywords: Business Process, Flexibility, Control Flow, Sequence, Time, Workflow Engine.

Abstract: At business processes (BP), activities are usually considered as atomic units. This results in unnecessary re-

strictions, e.g. when modelling sequences of activities. Here, flexibility can be increased by allowing that a

sequence edge refers to the start and to the end events of their source and target activity arbitrarily. This allows

additional execution orders at the runtime of the BP, i.e. the end users have more flexibility at BP execution.

Nevertheless, we respect all modelled control flow conditions, as well as time constraints defined between

activities (e.g. minimum time intervals). A process engine requires a formal execution semantics, to be able

to control such a BP automatically. Therefore, in this paper, we develop corresponding execution rules. Fur-

thermore, we present measures that enable the process engine to delay and to speed up the start and the com-

pletion of activities in order to respect the modelled time constraints.

1 INTRODUCTION

The aim of our project CoPMoF (Controlable Pre-

Modeled Flexibility) is to increase the flexibility at

the execution of business processes (BP). However,

dynamic changes (Reichert and Weber, 2012) shall

not be used for this purpose. Instead, flexibility re-

quirements, that are expectable for a BP, are pre-mod-

elled already at build time. Later, at runtime, it is only

necessary to use (apply) this flexibility. This is much

easier for the end users and causes less effort. In ad-

dition, such flexibility is only available at process

points where it is desired in fact (i.e. intended and ap-

proved by the responsible person). The CoPMoF pro-

ject investigates which types of flexibility are usually

required and how they can be pre-modelled. This con-

cerns the control flow of BP (e.g. optional and alter-

native activities) (Bauer, 2024, 2021, 2020) as well as

other process perspectives (e.g. alternative actor as-

signments) (Bauer, 2019).

A possibility to increase flexibility is to extend the

capabilities of sequence edges: Normally, the activi-

ties of a BP are considered as atomic units at BP mod-

elling (Russell and Hofstede, 2006). Therefore, at a

sequence edge, the preceding Act. A must be com-

pleted before the succeeding Act. B can be started (cf.

Fig. 1a). In more detail, however, an activity consists

of a start event and an end event. This level of detail

is typically used for logging (i.e. writing the log file)

in process management systems (PMS). Furthermore,

such events are used at process mining (Dakic et al.,

2018; Zerbino et al., 2021). However, these events

usually cannot be used arbitrarily to model control

flow edges (Russell and Hofstede, 2006). Instead, se-

quence edges must always start from an end event of

an activity and must have a start event as target (cf.

Fig. 1a). This shall be extended so that they can start

and end at any event type (Fig. 1b). With the depicted

edges, the execution order ii) becomes possible, addi-

tionally. Furthermore, the approach presented in this

paper allows to define arbitrary temporal dependen-

cies between start and end events of activities.

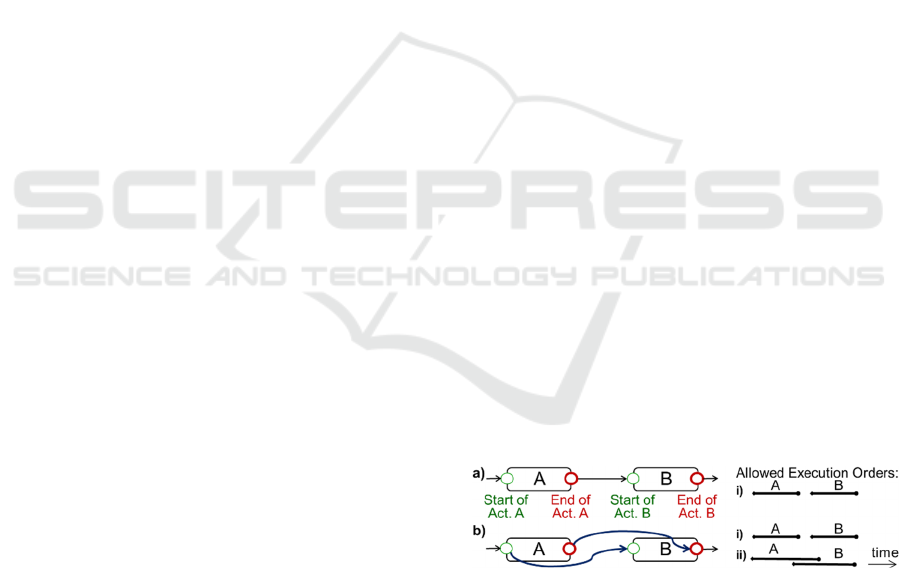

Figure 1: 1a) Classic Sequence Edge b) Sequence Edges

with Extended Behaviour.

A BP for the development of electronic components

(e.g. of a vehicle) is used to explain how the addi-

tional edge types can be used (cf. Fig. 2a). From

Act. A to Act. B the classic sequence Edge  was

modelled (edge type EndBeforeStart with the mean-

ing the end event of the preceding activity must occur

before the succeeding activity can be started.). In this

BP, after the design of the overall architecture

Bauer, T.

Behaviour and Execution Semantics of Extended Sequence Edges in Business Processes.

DOI: 10.5220/0013272200003929

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 27th Inter national Conference on Enterprise Information Systems (ICEIS 2025) - Volume 2, pages 829-836

ISBN: 978-989-758-749-8; ISSN: 2184-4992

829

(Act. B), the control units are developed (Act. C). To

save development time (concurrent engineering),

however, these activities shall be performed in an

overlapping manner. For this reason, the type “Start-

BeforeStart” was used for the Edge . This means

that the execution of Act. B must start before the start

of Act. C. Therefore, Act. C can already be started af-

ter the start of Act. B, i.e. it does not have to wait for

its completion. The same applies to Act. D in relation

to Act. C (Edge ). However, because of Edge , it

is additionally defined that the test of the developed

control units can only be completed after their devel-

opment (Act. C) was completed. Finally, the Edge 

specifies a maximum time for the execution of the

whole BP, because Act. D must be completed at least

120 days after the start of Act. A.

The additional edge types can also be used in

combination with more complex process structures as

Split- and Join-Nodes. The (condensed) BP for vehi-

cle delivery of Fig. 2b is used to explain the purpose

of such edges. Vehicle production is completed with

the final inspection (Act. A). Then, vehicle delivery

and invoicing take place in parallel: A vehicle, that

shall be delivered to a customer, is cleaned by the

truck driver in Act. B (e.g. removing any rubbish left

in the vehicle). This must be done before the transport

(Act. C) is completed since he is not able to clean the

vehicle afterwards. However, it is allowed that Act. B

and Act. C are performed in an overlapping manner,

e.g. by cleaning the vehicle during a transport break.

Therefore, the type EndBeforeEnd is used for

Edge . In addition, the vehicle transport (Act. C)

must start before Act. D (inform customer about de-

livery) starts (StartBeforeStart for Edge ). In the

case of an earlier notification, the risk of a misinfor-

mation would be too high, because before the vehicle

transport starts, there is still a high probability that the

transport will be cancelled (e.g. because the truck is

not available or is broken). Several edges with a new

edge type have an AND-Join (end of parallelism) as

target: Before the Act. F (handover to customer) can

be started, Act. C and Act. D must be completed (

and ). In addition, it is necessary that Act. E was at

least started (Edge ), i.e. an employee of the branch

was instructed to create the invoice. But, in order to

prevent that the customer has to wait unnecessarily,

then Act. F can be started already (e.g. with the ex-

planation of vehicle functions). However, this Act. F

can only be completed after the invoice has been

handed over. Since it must be created and printed be-

forehand, the completion of Act. F requires the com-

pletion of Act. E (EndBeforeEnd at Edge ).

Similar requirements are also known from project

management (Wysocki, 2019). There, sequence de-

pendencies can refer to any start and end events of

tasks, as well. This results in four possible combina-

tions: finish-to-start, finish-to-finish, start-to-start,

and start-to-finish (Wysocki, 2019). These corre-

spond to the four types of sequence edges of CoPMoF

(cf. Section 2.1). In addition, minimum and maxi-

mum time intervals between start and end events can

be defined at project management, as well. Their pur-

pose is to determine the critical path of a project, i.e.

the required execution time. In contrast, at CoPMoF,

the new edge types reduce the execution time of a BP

by enabling more parallelism at the execution of ac-

tivities. Of course, defined time constraints shall also

be respected. Similar orders, as enabled by the new

edge types we introduce with CoPMoF, are also de-

scribed in Allen's interval algebra (Allen, 1983) (e.g.

overlaps and during, cf. Fig. 3c).

(Bauer, 2023) presents examples of BP from prac-

tice, where extended sequence edges are useful. Fur-

thermore, the resulting requirements were explained.

However, until now, there exists no research that de-

velops a method that enables a PMS to control the ex-

ecution of corresponding BP (at runtime). This paper

handles this research gap: It describes how a PMS can

delay or speed up the start or end of activities. In ad-

dition, we develop an execution semantics for BP

with extended sequence edges and time conditions.

The latter is required by the PMS to determine activ-

ities, that are executable concerning the control flow,

and the associated points in time.

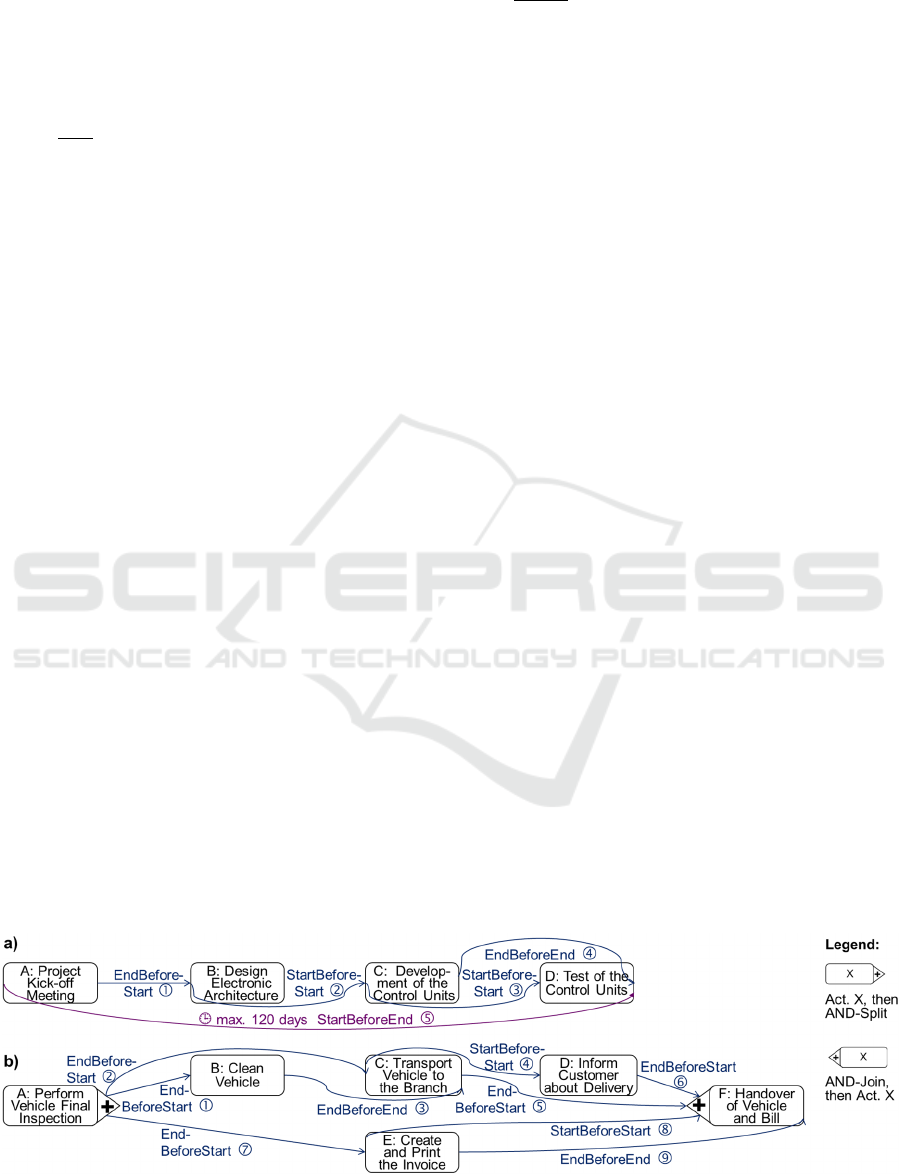

Figure 2: Example Processes with Extended Sequence Edges and a Time Edge.

ICEIS 2025 - 27th International Conference on Enterprise Information Systems

830

In Section 2, relevant preliminary work from the

project CoPMoF is presented and the general state of

the art is discussed. Section 3 explains the behaviour

of the PMS at runtime. For this purpose, in particular,

a formal execution semantics is defined. The article

concludes with a summary and an outlook.

2 BASICS AND LITERATURE

This section presents preliminary work of our project

CoPMoF and the state of research and technology.

2.1 Preliminary Work

The basic idea of extended sequence edges is that they

can arbitrarily refer to the start and end events of their

source and target activities. We have already pub-

lished this idea in (Bauer, 2023). Furthermore, this

paper presents example scenarios where extended se-

quence edges are required. They are used to demon-

strate that (the already mentioned) four types of se-

quence edges, temporal constraints with minimum

and maximum durations, and the combination of

these are required, in practice.

However, the meaning of the four edge types was

defined only informally. Similar as in Fig. 3, for each

type, the possible execution orders were listed and the

intended behaviour was explained:

1. EndBeforeStart: The end of Act. A must happen

before the start of Act. B. This corresponds to a clas-

sic sequence edge, cf. (Russell and Hofstede, 2006).

2. EndBeforeEnd: The end of Act. A must happen

before the end of Act. B

3. StartBeforeStart: The start of Act. A must happen

before the start of Act. B

4. StartBeforeEnd: The start of Act. A must happen

before the end of Act. B

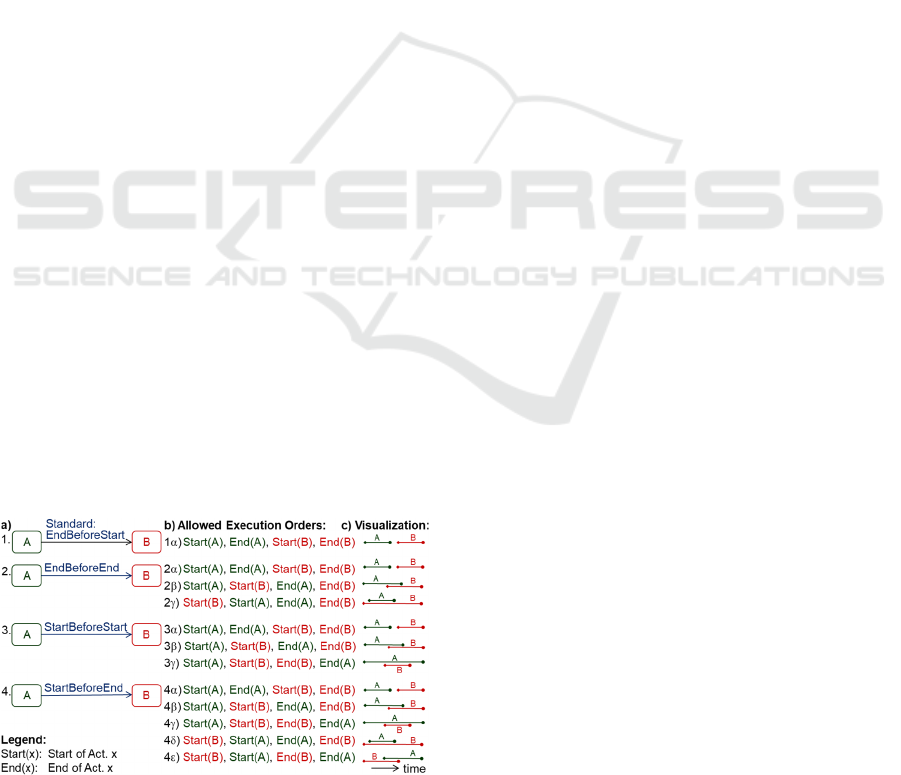

Figure 3: Types of Sequence Edges between Act. A and B.

The behaviour of the time constraints was described

only in text form, as well, since the meaning of a min-

imum or maximum time interval is obvious.

The process engine of a PMS requires an algo-

rithm to be able to control the execution of BP in-

stances. An explanation, that can only be understood

by humans, is not sufficient for this purpose. There-

fore, in this paper, we develop a formal execution se-

mantics (i.e. rules) for activity instances, that can be

used by such a process engine. These rules consider

the four types of sequence edges as well as minimum

and maximum time intervals between arbitrary start

and end events of activities.

2.2 Technology and Research

Commercial PMS are often based on standardized BP

modelling languages such as BPEL (OASIS, 2007)

and BPMN (OMG, 2011). These standards provide

sequence edges that allow only pure sequential orders

of activities (Type 1 in Section 2.1). An AND-Split

enables overlapping execution, but each execution or-

der is allowed for activities of different parallel

branches. There are no building blocks that realize the

behaviour of the Types 2 to 4 introduced in the previ-

ous section (e.g. StartBeforeStart).

In BPMN, maximum time intervals can be real-

ized by an intermediate timer event (OMG, 2011), ad-

ditional paths, and an escalation activity. This allows

to enforce maximum time intervals. However, such

an approach results in complex process graphs that

may be too confusing for “normal BP designers”.

(Russell and Hofstede, 2006) present control flow

patterns that enable many execution orders of activi-

ties. As mentioned above, activities are considered as

atomic units. Therefore, sequence edges cannot refer

to arbitrary start and end events of activities. Thus,

the Types 2 to 4 of Section 2.1 are not respected.

At case handling (Aalst et al., 2005), the state of

activity input data determines whether it can be

started. An actor can decide to start an activity as soon

as the required input data are available. (Hewelt and

Weske, 2016) extend such approaches by allowing to

model a lifecycle for data and to introduce own activ-

ity execution states. Both can be used to define when

an activity can be started, i.e. this is not defined by

control flow edges. With this approach, StartBefore-

Start dependencies (Type 3) can be realized.

Constraint-based approaches (Reichert and We-

ber, 2012) define the control flow with rules that re-

strict the allowed execution orders. Since these con-

straints refer to whole activities, dependencies of

Types 2 to 4 cannot be modelled here, as well.

Behaviour and Execution Semantics of Extended Sequence Edges in Business Processes

831

(Heinlein, 2001) enables the definition of arbi-

trary dependencies between the start and the end of

activities (including Types 2 to 4). However, this ap-

proach does not define dependencies between activi-

ties of the same process instance, but between activi-

ties of different process instances and even different

process templates. As such dependencies do not be-

long to a single process graph, they cannot be mod-

elled as (graphical) control flow edges. Instead, regu-

lar expressions are used for this purpose.

(Lanz et al., 2010) presents design patterns for de-

fining minimum and maximum time intervals be-

tween activities. They can arbitrarily refer to the start

and the end events of their predecessor and their suc-

cessor activity. Thus, all four edge types of Sec-

tion 2.1 are covered. However, the temporal con-

straints are not discussed in the context of control

flow edges and no execution semantics is presented.

3 BEHAVIOR AT RUNTIME

This section explains how a PMS can control BP in-

stances that contain the new types of edges. First, we

describe how the start or completion of activities can

be delayed or accelerated. Then, after defining some

basics, a formal execution semantics is presented.

3.1 Activity Start and end Times

If an activity shall not be started yet (e.g. due to a

minimum time interval in Case A2 of Fig. 4), it is not

inserted into the worklists of the users (as always at

PMS). If an activity can be started earlier (e.g. due to

a new type of sequence edge in Case B1), a corre-

sponding entry is created already. If the start of an ac-

tivity must happen earlier (Case B2), the PMS “en-

forces” this through escalations (Aalst et al., 2007).

Escalations were already used by many PMS today.

Thereby, messages were sent (automatically and

timely) to the potential actors, to their supervisors, or

to process administrators, in order to remind them of

the upcoming deadline. The timely completion of ac-

tivities (D2) can be “enforced” through escalations, as

well. If an activity must not be completed yet (C1 and

C2), for example, the “end button” of the correspond-

ing activity programme can be disabled (“greyed

out”). As this may confuse the user, additional infor-

mation should be displayed that explains why it is not

yet allowed to complete this activity.

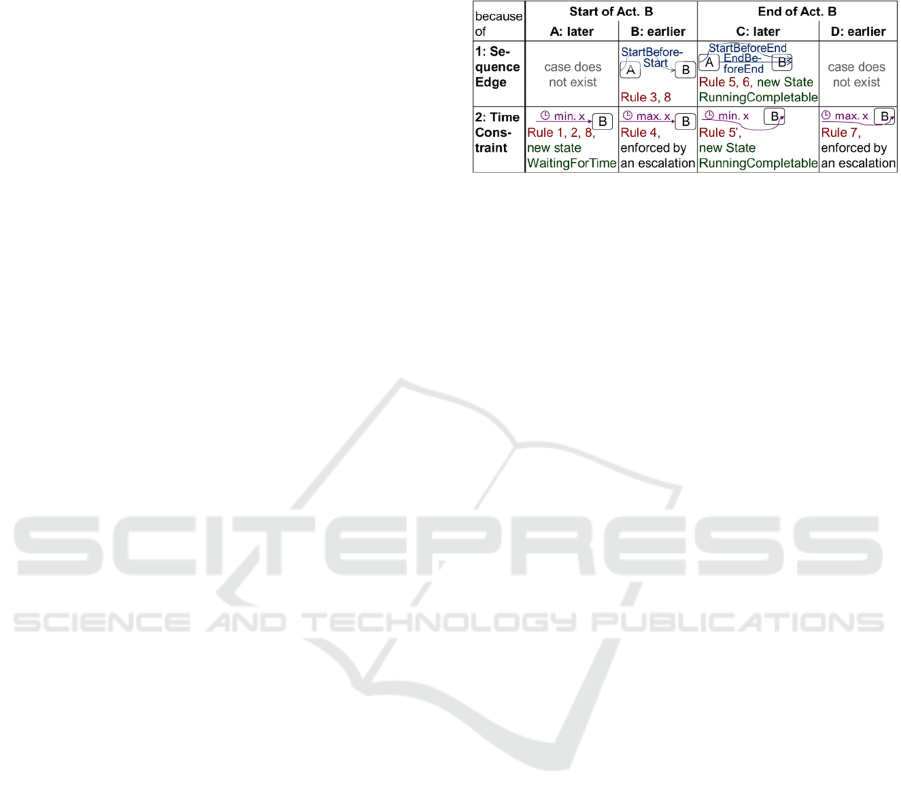

Fig. 4 contains cases where additional execution

rules are required for the process engine (e.g. Case

B1). These rules are explained in the following. To

improve readability, the numbers of these new rules

are shown in Fig. 4. For cases where an additional ex-

ecution state for activity instances becomes necessary

(A2 and C1/2), this is also depicted in Fig. 4:

Figure 4: Overview of the Cases.

3.2 Definitions

In the following, the usual definitions (OMG, 2011;

Reichert and Dadam, 1998; Weske, 2019) for BP and

execution states of activity instances are extended, so

that they can be used as a basis for developing execu-

tion rules for the new edge types.

Def. 1: Process template and instance, activity states:

A process template PT=(N, C, T) consists of a set of

nodes N, a set of control flow edges C, and a set of

time edges T.

A process instance PI=(PT, State) consists of a pro-

cess template PT and a set of activity states (State).

Each activity a∈N can have a different state State(a).

Activities can have the states shown in Fig. 6, i.e.

∀a∈N applies: State(a)∈{Inactive, WaitingForTime,

Active, Running, RunningCompletable, Completed}

The PMS knows the current state of each activity

and changes these states during the execution of the

process instance by using predefined execution rules.

This allows the PMS to control the execution order of

the activities, insert entries into worklists, start activ-

ity programs (e.g. forms), call automatically executed

services, etc.

Def. 2: A control flow edge c∈C is defined as

c = (SourceAct, TargetAct, Type) with:

SourceAct: the source activity of the edge

TargetAct: the target activity of the edge

Type: the type of edge with Type∈{StartBeforeStart,

StartBeforeEnd, EndBeforeStart, EndBeforeEnd}

In Def. 1, control flow and time edges are realized

as different types of edges. The reason for this sepa-

ration is that the existence of a time edge between two

activities does not always imply that there exists a se-

quence edge with the same type: In Fig. 5, the start of

Act. B must occur at latest (i.e. max.) 10 hours after

the end of Act. A (time edge with the classic type

EndBeforeStart). However, to speed up the BP exe-

cution, it is allowed that Act. B starts before the end

of Act. A, i.e. there is no control flow edge of this type

ICEIS 2025 - 27th International Conference on Enterprise Information Systems

832

EndBeforeStart between these activities (but a control

flow edge with type StartBeforeStart, cf. Fig. 5).

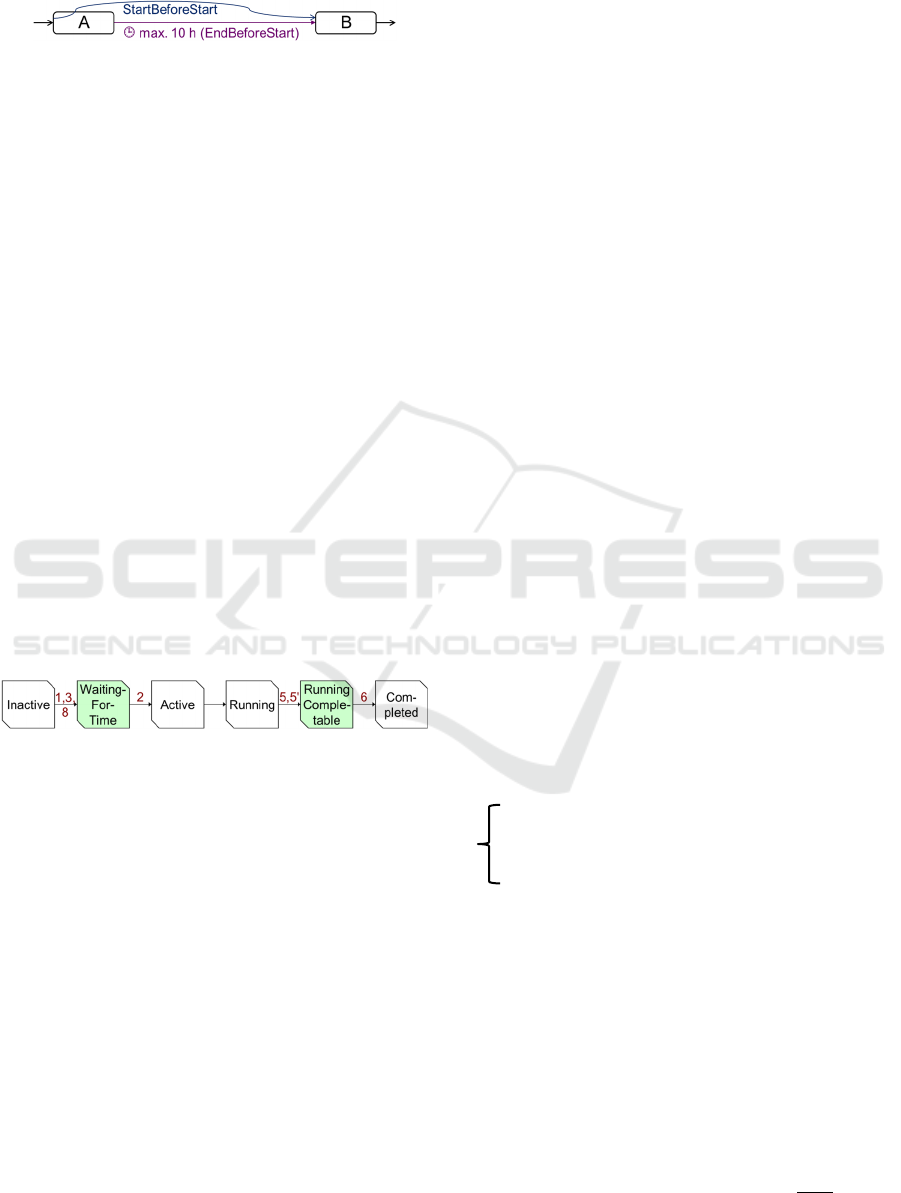

Figure 5: Example for Activities Connected with a Time

Edge but not with a Control Flow Edge of the same Type.

Def. 3: A time edge t∈T is defined as t ={SourceAct,

TargetAct, Type, MinTime, MaxTime} with:

SourceAct, TargetAct, and Type: as defined in Def. 2

MinTime: the minimum time interval defined for this

edge

MaxTime: the maximum time interval defined for this

edge

For edges without a corresponding time constraint,

MinTime or MaxTime has the value undef.

To be able to use this information in the execution

rules, it can be accessed by functions with the same

name. For example, SourceAct(c) returns the source

activity of the edge c and State(a) returns the current

execution state of Act a.

To realize the new types of sequence edges, we

extend the set of states of an activity instance. The

two additionally required states are coloured in Fig. 6.

Furthermore, edges are labelled with the numbers of

the corresponding rules (cf. Sections 3.3 to 3.7) that

are required to realize the new edge types. Rules that

are already known from classical PMS (OMG, 2011;

Reichert and Dadam, 1998; Weske, 2019), are not re-

peated in the following. Therefore, Fig. 6 also con-

tains edges without labels.

Figure 6: State Transition Diagram for Activity Instances.

3.3 Delayed Activity Start

Sequence Edge: It is not possible that an Act. B be-

comes startable later because of a new sequence edge

type, than with classic edges: The only new type that

refers to the start of its target Act. B is StartBefore-

Start. With an edge of this type, e.g. from Act. A to

Act. B (Case B1 in Fig. 4), Act. B can be started ear-

lier than with the classic edge type EndBeforeStart.

Time Edge: An Act. B can become startable later be-

cause it is the target activity of a time edge with a pre-

defined minimum time (A2 in Fig. 4). Since the delay

concerns the start of this activity, the edge can have

the type EndBeforeStart or StartBeforeStart.

To enable the PMS to handle such time edges at

runtime, the additional activity state WaitingForTime

is required (cf. Fig. 6): The process engine “remem-

bers” the fact that the preceding activity of Act. B was

already completed, by leaving the start state Inactive

for Act. B. If only control flow edges were respected,

the Act. B would be startable now, i.e. with the “clas-

sic” execution rules its state would change to Active.

However, this is not yet allowed because of the mod-

elled time constraint. This is signalled by the new

state WaitingForTime. The classic execution rule is

modified in such a way that the state Inactive is not

directly followed by Active. Instead, the state changes

to WaitingForTime first:

Rule 1: The edge c∈C is a “normal” control flow

edge with the target activity a, i.e. TargetAct(c)=a ∧

Type(c)=EndBeforeStart.

After completion of the source activity s of this edge,

Act. a changes to the state WaitingForTime:

If the Act. s=SourceAct(c) reaches State(s)=Com-

pleted, then the state of Act. a changes to State(a)=

WaitingForTime.

The transition from this state WaitingForTime to

Active is performed by Rule 2, as soon as all the min-

imum waiting times of the incoming time edges have

been reached. Then, Act. a can be actually executed.

Rule 2: Let T

be the set of time edges that are rele-

vant for the calculation of the earliest start time of an

Act. a with State(a)=WaitingForTime:

= {t

∈T | TargetAct(t

)=a ∧ Type(t

)∈{StartBefore-

Start, EndBeforeStart} ∧ MinTime(t

)≠undef}

Then, the earliest start time of Act. a results as the

largest (i.e. latest) time, that results from one of these

edges: EarliestStartTime

Max(ResultingTime

Min,Start

)) ∀t

∈ T

For this purpose, the time ResultingTime

Min,Start

(t) that

results for the edge t is calculated by adding the min-

imum time defined for this edge t to the start or the

end time (depending on the edge type) of the source

activity of edge t:

ResultingTime

Min,Start

) =

StartTime(SourceAct(t

)) + MinTime(t

)

if Type(t

) = StartBeforeStart

EndTime(SourceAct(t

)) + MinTime(t

)

if Type(t

) = EndBeforeStart

As soon as the EarliestStartTime

is reached (i.e. Cur-

rentTime ≥ EarliestStartTime

), the state of Act. a is

changed to Active: State(a) = Active.

Remark: If there do not exist such time edges (i.e.

={}), the calculation of the maximum (Max) results

in EarliestStartTime

=-∞. Since CurrentTime ≥ -∞ al-

ways holds, Act. a changes directly to State(a)=Ac-

tive, as soon as State(a)=WaitingForTime is reached.

This means that the state WaitingForTime is then not

relevant since it is left immediately.

The following variants of ResultingTime are re-

quired by Rules 4, 5' and 7: ResultingTime

Max,Start

)

is calculated as described in Rule 2, but MaxTime(t

)

Behaviour and Execution Semantics of Extended Sequence Edges in Business Processes

833

(instead of MinTime(t

)) is added. Furthermore, Re-

sultingTime

Min,End

) and ResultingTime

Max,End

) are

calculated in the same way, but T

contains the edges

with Type(t

)∈{StartBeforeEnd, EndBeforeEnd}.

3.4 Earlier Activity Start

Sequence Edge: An Act. B can become executable

because of an edge of the type StartBeforeStart (Case

B1 in Fig. 4). Similar as at a classic sequence edge

(i.e. type EndBeforeStart, cf. Rule 1), its state must

change from Inactive to WaitingForTime (not yet Ac-

tive as explained in Section 3.3). This is realized by

the following execution rule:

Rule 3: The Act. a with State(a)=Inactive is the target

of the control flow edge c∈C of type StartBeforeStart,

i.e. TargetAct(c)=a ∧ Type(c)=StartBeforeStart.

After the start of the source activity s of this edge, the

Act. a changes to the state WaitingForTime:

If the state of the activity s=SourceAct(c) changes to

State(s)=Running, then the state of Act. a is set to:

State(a)=WaitingForTime

Time Edge: If an Act. B has an incoming time edge

with a maximum time (B2 in Fig. 4), its start must be

enforced by escalations up to a certain point in time

(LatestStartTime

, see below). Thereby, only such

time edges are relevant that refer to the start of this

Act. B (i.e. types ...BeforeStart). The time Latest-

StartTime

is calculated as follows:

Rule 4: Let T

be the set of time edges relevant for

the calculation of the latest start time of Act. a:

= {t

∈T | TargetAct(t

)=a ∧ Type(t

)∈{StartBefore-

Start, EndBeforeStart} ∧ MaxTime(t

)≠undef}

Then, the latest start time of Act. a results as the

smallest (i.e. earliest) time, that results from one of

these edges: LatestStartTime

Min(ResultingTime

Max,Start

)) ∀t

∈ T

As mentioned, this latest start time shall be en-

sured by escalations. Since some time may elapse af-

ter an escalation is triggered, before it is recognized

by the user and the activity is started in fact, the esca-

lation should be triggered timely before LatestStart-

Time

is reached. In some scenarios, in addition,

multi-level escalations (Aalst et al., 2007) can be use-

ful: For example, first an email is sent to the potential

actors of the activity. If the activity was not started

after a certain time, a responsible person (supervisor,

BP administrator) is informed. This must also be done

timely before LatestStartTime

is reached.

3.5 Delayed Activity Completion

Sequence Edge: The sequence edges shown in case

C1 of Fig. 4 (types ...BeforeEnd) can result in a de-

layed completion of their target B. That means, the

user may have already executed Act. B, but is not al-

lowed to finish it yet, because of such an edge. To

enable the process engine to recognize this case, we

introduce the new state RunningCompletable. During

its execution, Act. B initially has the state Running. It

can only be completed if its preceding Act. A, that is

connected with such an edge, has been started or com-

pleted. Then, the state of Act. B is changed to Run-

ningCompletable. Rule 5 realizes this state transition:

Rule 5: Let C

be the set of control flow edges that

are relevant for the completion of an Act. a with

State(a)=Running:

= {c

∈C | TargetAct(c

)=a ∧ Type(c

)∈{StartBe-

foreEnd, EndBeforeEnd}}

A state change for a is allowed as soon as all source

activities of these edges have been started (i) or fin-

ished (ii), i.e. all following conditions are fulfilled:

i) If ∀c

∈C

with Type(c

)=StartBeforeEnd applies:

State(SourceAct(c

)) ∈ {Running, RunningComplet-

able, Completed} and

ii) if ∀c

∈C

with Type(c

)=EndBeforeEnd applies:

State(SourceAct(c

)) = Completed,

then the state of Act. a is changed to:

State(a)=RunningCompletable

Remark: If there do not exist any control flow

edges of these types, whose target activity is Act. a

(i.e. C

={}), then the conditions i) and ii) are fulfilled.

Therefore, the state of Act. a changes to Running-

Completable immediately after Running is reached.

The following Rule 6 replaces the classic rule that

handles the completion of an activity. The main dif-

ference is that Rule 6 uses the (new) state Running-

Completable instead of the state Running.

Rule 6: If an Act. a has the state State(a)=Running-

Completable, the actor can complete this activity.

This results in a state change to: State(a)=Completed

If it is currently not allowed to complete an activ-

ity (i.e. it is still in the state Running instead of Run-

ningCompletable), this can be signalled to the actor,

for example, by deactivating the Ok / Complete but-

ton of the activity program or the corresponding entry

in the menu. Additionally, a help text (defined at build

time) shall be displayed, that explains why this activ-

ity cannot be finished yet. In order to enable such a

behaviour of the activity program, the interface (API)

of the PMS must provide functions to retrieve the

mentioned help text and to determine whether a par-

ticular activity can be terminated yet. The function for

the completion of an Act. a shall return an error if it

is already called at State(a)=Running.

Time Edge: Time edges with a predefined minimum

time also can delay the completion of the Act. B (cf.

C2 in Fig. 4). Here, these edges refer to the end of

ICEIS 2025 - 27th International Conference on Enterprise Information Systems

834

Act. B, i.e. they have a type ...BeforeEnd. To respect

such edges, Rule 5 is extended by the additional con-

dition (iii), which must be fulfilled as well:

Rule 5': Let T

be the set of time edges with the target

activity a (with State(a)=Running) that are relevant

for the calculation of its earliest completion time:

= {t

∈T | TargetAct(t

)=a ∧ Type(t

)∈{StartBefore-

End, EndBeforeEnd} ∧ MinTime(t

)≠undef}

Then, the earliest completion time of Act. a results as:

EarliestCompletionTime

Max(ResultingTime

Min,End

)) ∀ t

∈ T

iii) A state change for Act. a is allowed as soon as the

following condition is fulfilled:

CurrentTime ≥ EarliestCompletionTime

All conditions must be fulfilled to enable a state

change of Act. a, i.e. i) and ii) of Rule 5 as well as iii)

of Rule 5'. However, if no such time edges exist (i.e.

={}), the calculation of the maximum results in the

value -∞, again. Therefore, the ≥ condition for Cur-

rentTime is fulfilled, and thus also the condition iii).

The same Act. a can be the source and the target

activity of a time edge t

∈T

with type StartBefore-

End. This represents the important special case that a

minimum execution duration is defined for this

Act. a, e.g. the duration for an adhesive to dry. Rule 5'

respects this special case as well.

3.6 Earlier Activity Completion

Sequence Edge: It is not possible that an Act. a can

be completed earlier because of the new types of con-

trol flow edges, than at classic process models: At the

latter, the Act. a can be completed at any time after its

start. An earlier completion (i.e. before starting) does

not make sense. Therefore, the new types of control

flow edges cannot cause this case.

Time Edge: Time edges with a maximum time can

demand that an Act. B must be completed before a

certain point in time (cf. D2 in Fig. 4). These must be

edges that refer to the completion of Act. B (i.e. types

...BeforeEnd). Again, the PMS ensures timely com-

pletion through escalations. Rule 7 calculates the lat-

est possible point in time:

OR- and XOR-Join-Nodes have multiple incoming edges,

as well. For these, only those predecessor activities of the

Join-Node are relevant (i.e. are respected) that are located

in paths that are actually executed at this process instance.

Therefore, the sets S

End

and S

Start

shall not contain activities

from paths that are not executed.

In contrast to BPMN, Fig. 2b does not contain separate

gateway nodes (e.g. as in ADEPT (Reichert and Dadam,

1998)), because the execution of a gateway does not require

Rule 7: Let T

be the set of time edges that are rele-

vant for the calculation of the latest completion time

of Act. a:

= {t

∈T | TargetAct(t

)=a ∧ Type(t

)∈{StartBefore-

End, EndBeforeEnd} ∧ MaxTime(t

)≠undef}

Then the latest completion time LatestCompletion-

Time

of Act. a results as the smallest (i.e. earliest)

maximum completion time, that results from one of

these edges t

: LatestCompletionTime

= Min(ResultingTime

Max,End

)) ∀ t

∈ T

3.7 Gateways

This section deals with process behaviour at gate-

ways, since the rules presented so far do not fully

cover this aspect. For activities that are located after

a Split-Node (e.g. Act. B, C, and E in Fig. 2b), no ex-

tensions are necessary, because such nodes have only

one preceding activity (e.g. the Split-Activity A in

Fig. 2b). Furthermore, the presented rules already

cover the cases of multiple incoming edges of the

types StartBeforeEnd and EndBeforeEnd (both by

Rule 5) as well as multiple incoming time edges

(Rules 2, 4, 5', and 7).

To improve readability, the case of multiple in-

coming sequence edges of the types EndBeforeStart

and StartBeforeStart was not respected by the Rules 1

and 3. This case occurs, for example, at an AND-Join

(cf. Act. F in Fig. 2b)

. Such an activity must wait for

several preceding activities. To enable this behaviour,

the Rules 1 and 3 are replaced by Rule 8 (shown be-

low). Here, the set S

End

contains all preceding activi-

ties that are connected with edges of the type EndBe-

foreStart and S

Start

activities connected with type

StartBeforeStart. Rule 8 respects that not only one

preceding Act. s (cf. Rules 1 and 3) must reach the

required state, but all activities of these two sets. In

the example of Fig. 2b, for Act. F the sets result as

End

={C, D} and S

Start

={E} (the latter because of

Edge ; the Edge  is irrelevant for the startability

of Act. F).

Rule 8: Let C

End

be the set of “normal” control flow

edges with Act. a as target:

End

= {c

∈C | TargetAct(c

)=a ∧ Type(c

)=EndBe-

foreStart}

significant time. That means, its start and end events occur

almost simultaneously. Therefore, in our context, the addi-

tional gateway node and the additional edge would be irrel-

evant. (In Fig. 2b, using gateway nodes would result in an

AND-Join-Node with the incoming Edges ,,  and an

additional outgoing edge to Act. F. The type (End- or Start-

BeforeStart) of this edge is irrelevant, because the start and

the end events of the gateway occur almost at the same

time.)

Behaviour and Execution Semantics of Extended Sequence Edges in Business Processes

835

Let C

Start

be the set of edges of type StartBeforeStart

and Act. a as target:

Start

= {c

∈C | TargetAct(c

)=a ∧ Type(c

)=StartBe-

foreStart}

After the completion of all source activities s∈S

End

connected to Act. a with edges of C

End

and after the

start (i.e. state is at least Running) of all activities

s∈S

Start

connected with edges of C

Start

, Act. a changes

to the state WaitingForTime:

If ∀s∈S

End

with S

End

= {s∈N | ∃ c

∈C

End

∧ s= Source-

Act(c

)} holds State(s)=Completed and

if ∀s∈S

Start

mit S

Start

= {s∈N | ∃ c

∈C

Start

∧ s= Source-

Act(c

)} holds State(s) ∈{Running, RunningCom-

pletable, Completed},

then the state of Act. a changes to:

State(a)=WaitingForTime

4 SUMMARY AND OUTLOOK

The presented approach extends sequence edges by

allowing that they use the start and the end events of

their source and target activities arbitrarily. Further-

more, minimum and maximum time intervals can be

defined, which can also refer to these events arbitrar-

ily. We explain how a PMS can influence users (e.g.

through escalations) in such a way that all these mod-

elled conditions are met. In addition, the formal exe-

cution semantics of process engines is extended by

introducing additionally required activity instance

states and by defining further execution rules. This

enables a PMS to automatically control BP that con-

tain edges of the new types.

The presented rules still have to be evaluated tech-

nically by a prototype implementation. For this pur-

pose, ideally, they will be integrated into an existing

PMS that can be used in practice. This would also al-

low an evaluation of their suitability for BP designers

and end users. However, due to the complexity of pro-

cess engines, such an integration can usually only be

realized by the vendor of the PMS. This is the long-

term goal, as it makes the described functionalities

available to many users. An integration into a BP

modelling tool for pure BP documentation and opti-

mization (e.g. as an extension of BPMN (Bauer,

2025)) would be less complex. Even this is useful be-

cause it enables BP modelling with more details (i.e.

advanced activity orders and time intervals). By ana-

lysing the resulting BP models, later on, it can be de-

termined how often the new edge types are required

in practice. High demand may motivate PMS vendors

to implement them in their process engines.

REFERENCES

Aalst, W.M.P. van der, Rosemann, M., Dumas, M., 2007.

Deadline-based Escalation in Process-Aware Infor-

mation Systems. Decision Support Systems 492–511.

Aalst, W.M.P. van der, Weske, M., Grünbauer, D., 2005.

Case Handling: A New Paradigm for Business Process

Support. Data & Knowledge Engineering 53, 129–162.

Allen, J.F., 1983. Maintaining Knowledge about Temporal

Intervals. Communications of the ACM 26, 832–843.

Bauer, T., 2025. Extending BPMN to Enable the Pre-Model-

ling of Flexibility for the Control Flow of Business Pro-

cesses, Proc. ICEIS25. Porto

Bauer, T., 2024. A Formal Execution Semantics for Sophis-

ticated Dynamic Jumps within Business Processes, Proc.

ICEIS24. Angers, 634–642.

Bauer, T., 2023. Modelling of Advanced Dependencies Be-

tween the Start and the End of Activities in Business Pro-

cesses. Proc. ICEIS23. Prague, 457–465.

Bauer, T., 2022. Requirements for Dynamic Jumps at the Ex-

ecution of Business Processes. Proc. 12th Int. Sympo-

sium on Business Modeling and Software Design.

Bauer, T., 2021. Pre-modelled Flexibility for the Control-

Flow of Business Processes, in: Enterprise Information

Systems. Springer, pp. 833–857.

Bauer, T., 2020. Business Processes with Pre-designed Flex-

ibility for the Control-Flow. Proc. ICEIS20, 631–642.

Bauer, T., 2019. Pre-modelled Flexibility for Business Pro-

cesses. Proc. ICEIS19. Heraklion, 547–555.

Dakic, D., Stefanovic, D., Cosic, I., Lolic, T., Medojevic, M.,

2018. Business Process Mining Application: A Literature

Review. Proc. 29th DAAAM Int. Symposium on Intelli-

gent Manufacturing and Automation 866–875.

Heinlein, C., 2001. Workflow and Process Synchronization

with Interaction Expressions and Graphs. Proc. 17th Int.

Conf. on Data Engineering 243–252.

Hewelt, M., Weske, M., 2016. A Hybrid Approach for Flex-

ible Case Modeling and Execution. Proc. 14th Int. Conf.

on Business Process Management 38–54.

Lanz, A., Weber, B., Reichert, M., 2010. Workflow Time

Patterns for Process-Aware Information Systems. Proc.

Enterprise, Business-Process, and Information 94–107.

OASIS, 2007. Web Services Business Process Execution

Language Version 2.0.

OMG, 2011. Business Process Model and Notation (BPMN)

2.0.

Reichert, M., Dadam, P., 1998. ADEPTflex - Supporting Dy-

namic Changes of Workflows Without Losing Control.

Journal of Intelligent Information Systems 10.

Reichert, M., Weber, B., 2012. Enabling Flexibility in Pro-

cess-Aware Information Systems. Springer.

Russell, N., Hofstede, A.H.M., 2006. Workflow Control-

Flow Patterns: A Revised View. BPM Center Report.

Weske, M., 2019. Business Process Management: Concepts,

Languages, Architectures, 3rd ed. Springer.

Wysocki, R.K., 2019. Effective Project Management. Wiley.

Zerbino, P., Stefanini, A., Aloini, D., 2021. Process Science

in Action. Technological Forecasting and Social Change

172.

ICEIS 2025 - 27th International Conference on Enterprise Information Systems

836
