Idempotency in Service Mesh: For Resiliency of Fog-Native Applications

in Multi-Domain Edge-to-Cloud Ecosystems

Matthew Whitaker

1 a

, Bruno Volckaert

2 b

and Mays Al-Naday

1 c

School of Computer Science and Electrical Engineering University of Essex, U.K.

Ghent University - imec, IDLab, Department of Information Technology, Gent, Belgium

Keywords:

Microservices Architecture, Multi-Domain Cloud Systems, Resiliency, Cloud-Native Applications, Service

Mesh.

Abstract:

Resilient operation of cloud-native applications is a critical requirement to service continuity, and to fostering

trust in the cloud paradigm. So far, service meshes have been offering resiliency to a subset of failures. But,

they fall short in achieving idempotency for HTTP POST requests. In fact, their current resiliency measures

may escalate the impact of a POST request failure. Besides, the current tight control over failures - within

central clouds - is being threatened by the growing distribution of applications across heterogeneous clouds.

Namely, in moving towards a fog-native paradigm of applications. This renders achieving both idempotency

and request satisfaction for POST microservices a non-trivial challenge. To address this challenge, we propose

a novel, two-pattern, resiliency solution: Idempotency and Completer. The ﬁrst is an idempotency manage-

ment system that enables safe retries, following transient network/infrastructure failure. While the second is

a FaaS-based completer system that enables automated resolution of microservice functional failures. This

is realised through systematic integration and application of developer-deﬁned error solvers. The proposed

solution has been implemented as a fog-native service, and integrated over example service mesh Consul. The

solution is evaluated experimentally, and results show considerable improvement in user satisfaction, includ-

ing 100% request completion rate. The results further illustrate the scalability of the solution and beneﬁt in

closing the current gap in service mesh systems.

1 INTRODUCTION

The cloud-native paradigm is being adopted in de-

veloping digital services and networks, including 6G

(Netﬂix, 2018). So far, cloud-native applications

(CNAs) have been operating within a single cloud

data centre, and connected by the internal network.

Moving towards edge-to-cloud computing (a.k.a. fog

computing) fosters higher distribution of a CNA’s

over multiple autonomous cloud systems (ACSes),

which connect over an external network. This means

the resiliency of distributed CNAs will require co-

operation and coordination across multiple ACSes.

Cooperation through multi-cluster service peering is

emerging with the Multi-Cluster Service (MCS) API,

but it is limited to peering provisions at infrastructure

layer with no knowledge or management of service

failures (Kubernetes, 2024).

Service meshes enable microservice peering

https://orcid.org/0009-0009-1146-1519

https://orcid.org/0000-0003-0575-5894

https://orcid.org/0000-0002-2439-5620

across clusters of the same cloud, as well as across

ACSes (Gattobigio et al., 2022). In particular, the

Consul service mesh enables secure microservice

peering through mutual TLS across multiple clouds

(Consul, 2024). Moreover, meshes enable a range of

resiliency measures to a subset of microservice fail-

ures, including: ‘circuit breakers’, ‘retries’ and ‘bulk-

heads’. However, existing service meshes lack the

ability to achieve idempotency of a request to a HTTP

POST microservice. This is because they do not have

the ability to differentiate the cause of the request fail-

ure and whether this is due to infrastructure disrup-

tion, and hence it is safe to retry to a fallback instance,

or the failure is caused by a microservice defect that

must be resolved ﬁrst, before retrying. More so, im-

plementing some of the measures above when the fail-

ure is due to a microservice defect risks creating what

we deﬁne as an idempotency error storm.

An idempotency error occurs when a non-

idempotent HTTP POST request is interrupted by an

error, resulting in a request retry that has a different

side effect from the original request. Attempting to

retry without a prior state can lead to undeﬁned be-

182

Whitaker, M., Volckaert, B. and Al-Naday, M.

Idempotency in Service Mesh: For Resiliency of Fog-Native Applications in Multi-Domain Edge-to-Cloud Ecosystems.

DOI: 10.5220/0013293900003950

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 15th International Conference on Cloud Computing and Services Science (CLOSER 2025), pages 182-189

ISBN: 978-989-758-747-4; ISSN: 2184-5042

haviour, leaving the system in an unknown state or

creating duplicate resources. An idempotency error

storm is a compounding variation of random unknown

states that has an undetermined likelihood of booking

duplicate resources (i.e. nondeterministic behaviour),

as a result of the compounding number of retries,

which may occur in a microservices-based applica-

tion at different levels of the call stack (Microsoft,

2022). The prevention of idempotency storms is crit-

ical in saving resources from duplicate reservations.

Currently, preventing idempotency storms and

guaranteeing ‘exactly-once’ semantics requires dis-

abling the ‘retries’ measures in service meshes. How-

ever, this eliminates gains from retries and automatic

request satisfaction when the failure is due to infras-

tructure disruption, not a microservice defect.

This work proposes a novel, two-pattern, re-

siliency solution that provides idempotency with au-

tomatic request completion for POST microservices.

Idempotency is achieved through differentiation of

failures caused by infrastructure disruption, from

those caused by a microservice defect. The for-

mer are allowed retries by the service mesh as they

are deemed ‘safe’, while the latter are prevented

from retrying before the microservice defect is re-

solved. The Completer facilitates automatic reso-

lution of microservice defects and request comple-

tion. This is achieved through a FaaS-based appli-

cation of developer-deﬁned error solvers. Notably,

The completer does not interfere or tamper with the

application function, but merely facilitate a pathway

to implement the developer resolvers. The range of

microservice defects that the completer can handle,

solely depends on the comprehension of solvers of-

fered by the application provider.

Both the Idempotency Manager (IM) and Com-

pleter system are programming language-agnostic, al-

lowing them to interact with a variety of fog-native

applications on top, and multiple service meshes un-

derneath. The proposed solution has been prototyped

as Java microservices and GoLang functions, integrat-

ing with Consul mesh and operating over Kubernetes

cluster(s), although the design is not tied to an speciﬁc

programming language or Service Mesh implemen-

tation or container orchestration tool. The solution

has been evaluated experimentally and results illus-

trate 100% user satisfaction, while averting consider-

able resource waste with idempotency-safe retries.

The remainder of this paper is structured as fol-

lows: Section 2 reviews state of the art related work

and current implementations to achieve idempotency

with further information given in GitHub

. Section

https://github.com/M-Whitaker/closer-idempotency-

in-service-mesh-apps

3 presents our proposed two-part solution, describ-

ing the IM and Completer systems. Section 4 evalu-

ates the proposed solution with a realistic sample fog-

native application, distributed over multiple clusters.

Finally, Section 5 draws our conclusions and the fore-

seen future work.

2 RELATED WORK

Resiliency of edge-cloud ecosystems have been in-

vestigated comprehensively, covering infrastructure,

applications and systems architectures (Amiri et al.,

2023; Shahid et al., 2021; Prokhorenko and Ali Babar,

2020). Application resilience generally focuses on re-

covering task executions to successfully complete a

request (Amiri et al., 2023; Mendonca et al., 2020).

In a cloud-native environment, the latter breaks down

to recovery of inter-microservice communication and

operation, disrupted by a transient infrastructure fail-

ure, and, of microservice operation caused by func-

tional failure of the microservice itself.

Service meshes have been developed largely to

provide resilience to the application through patterns

such as fail-safe and retries (Mendonca et al., 2020;

Services, 2024). The works of (Saleh Sedghpour

et al., 2022; Karn et al., 2022) provide a systematic

benchmark analysis of the circuit breaking and retry

patterns in Istio service mesh, formulating a set of

conﬁgurations for these patterns found to be most efﬁ-

cient. However, their works does not cover challenges

of POST idempotency, or how these patterns behave

in case of microservice functional failures. The work

of (Chandramouli, 2022; de O. J

unior et al., 2022)

provides guidelines for leveraging service mesh re-

silience patterns in DevSecOps but, similar to other

work, it does not tackle idempotency issues. The

work of (Furusawa et al., 2022) proposes a service

mesh controller to actively counter transient failure

of infrastructure due to load imbalance. While their

work provides a solution for redirecting requests to a

different cluster, it does not address functional failure

challenges.

Less efforts have tackled functional (non-

transient) failures. Example implementations have

proposed to re-process failed requests, identiﬁed by

their idempotency keys after a functional error is

ﬁxed (Leach, 2017). However often, complicated

(non-reusable) logic is needed to achieve eventual

consistency across multiple services because of the

types of errors often found in distributed systems

(Gabrielson, 2019). Added to that, having error-

solver logic concentrated in one codebase violates

principles of service decoupling and modularity.

Idempotency in Service Mesh: For Resiliency of Fog-Native Applications in Multi-Domain Edge-to-Cloud Ecosystems

183

3 PROPOSED SYSTEMS

3.1 Overall Design and Example

Application

Here, we deﬁne a resiliency solution for FNAs com-

prised of: an Idempotency system and a Completer.

The ﬁrst introduces idempotency within a service

mesh, enabling safe automatic retries of POST re-

quests that failed due to infrastructure/network dis-

ruption while preventing retries of failed requests

due to microservice defects. The Completer pro-

vides a systematic approach to resolving microservice

errors and completing failed POST requests asyn-

chronously, using data collected from the IM. Both

systems are built on top of the Consul

service mesh,

as an example, with ports to other Envoy-based ser-

vice meshes possible. The design only relies on the

fact that each microservice has its own unique Envoy

proxy, intercepting all incoming requests.

Figure 1 depicts the proposed solution within an

example ecosystem, provides a sample FNA.

3.1.1 Fog Native Application (FNA) Integration

The sample FNA consists of four microservices: a

central API gateway, booking, payments, and restau-

rant. The application is spread over multiple clusters

connected via Consul cluster peering. The payment

microservice has additional instances, possibly de-

ployed in multiple clusters. The restaurant microser-

vice is a CRUD API for managing the conﬁguration

for different restaurants in the system. This conﬁgu-

ration can be used to determine business logic in other

microservices. The booking microservice depends on

both its restaurant and payment counterparts. It is im-

portant that the payment microservice is idempotent,

so that end-users do not incur duplicate payments and

the FNA does not include duplicate payment state.

It is also a requirement that the payment microser-

vice responds positively to the booking counterpart to

complete the booking transaction and satisfy the end-

user request.

3.1.2 The Idempotency System

The IM is formed of three components: a LUA ﬁl-

ter associated with the Envoy of each microservice;

the idempotency manager (IM); and, the idem-

potency information base. The LUA ﬁlter in-

tercepts POST requests and responses on the up-

stream Envoy. The ﬁlter extracts data from the re-

quests, calls out to the IM and interprets the re-

https://www.consul.io

sponse back, deciding on the logic to be run next.

The ﬁrst part involves extracting the request method

and necessary headers, such as x-request-id and

completer-downstream-resource.

This information is used to determine whether the

ﬁlter is required to run on the request or not. After

this, a request digest can be calculated by creating a

hash of the request body and base64 encoding it. The

request digest is then sent to the IM to check if an

already existing request has the same key. The mes-

sage to the IM additionally includes: the idempotency

key (x-request-id), the service name and the clus-

ter name. These are needed to ensure that users do

not send multiple requests with the same idempotency

key and to enable idempotency for multiple services

in the same call chain. The cluster name allows each

cluster to manage its own idempotency state.

The second part of the ﬁlter interprets the response

from the idempotency manager, conﬁrming if the re-

quest is new or has been processed before. If the re-

quest has not been processed before, the IM returns

a status code of 404. The request details are then

saved by Envoy to be used on exit of the applica-

tion, to store the idempotency key for the request.

As seen in Figure 2, the request is then forwarded

as normal to the application. If the request has been

processed before, the idempotency service returns a

status code of 200 with all the details of the ﬁrst re-

sponse, sent originally by the application. The ﬁlter

then constructs a response from the information re-

turned by the IM and returns this to the client, as if

the response was from the application itself, as seen

in Figure 3. The response headers also include two

additional ﬁelds: idempotency-status with a value

of true, and x-envoy-ratelimited with a value of

true. These response headers are used to inform the

client that the response sent back is from the idem-

potency manager and not the application itself. The

client can then choose either to react accordingly, or

leave it to the system to resolve the issue. If an er-

ror occurs in the ﬁlter, a 500 response is returned to

the client with the idempotency-status header set

to false, informing the client of a problem with the

ﬁlter.

The ﬁnal part of the ﬁlter is run after the appli-

cation has completed. It calls out to the IM to store

the idempotency data for the request, which then says

that this request has been processed. On a 201 re-

sponse from the IM the ﬁlter returns to the client as

normal. Notably, for any response from the IM that

indicates an error, the ﬁlter logs the error so that it

can be processed by the observability system.

The idempotency manager (IM) is a RESTful mi-

croservice with two endpoints that retrieve and save

CLOSER 2025 - 15th International Conference on Cloud Computing and Services Science

184

Figure 1: Example microservice fog-native application for restaurant reservations, showing further the underlying middleware

services for managing the application within a Kubernetes cluster and connecting it to microservices in other clusters over

Consul service mesh.

Figure 2: Idempotency request not already processed.

Figure 3: Idempotency request already processed.

idempotency entries. Notably, although idempotency

state is maintained within the system, the IM itself

is designed to be stateless and horizontally scalable

because management of the idempotency state is of-

ﬂoaded to a database system. This allows the IM to be

fast and lightweight. One endpoint of the IM is a GET

that takes as input: an idempotency key, service name

and request digest. First, the idempotency key and

service name are extracted from the request. The two

provide a unique composition that allows for inject-

ing multiple idempotency entries, for a given request

from different services. Then, a lookup is performed

over the idempotency key and service name, in the

database. If an entry is found, the request digest is

examined to verify if the received digest matches the

stored one. If the two match, the response details are

extracted and returned to the ﬁlter as described ear-

lier. Otherwise, i.e. if the two digests do not match,

the endpoint responds back to the ﬁlter with a status

code 409, indicating a conﬂict of idempotency.

The second endpoint of the IM is a POST that in-

teracts with the idempotency database to inject new

entries. The POST endpoint takes as input: the

idempotency key, the service name, cluster name, re-

sponse body, response status code, request digest and

completer downstream resource (described in Sec-

tion 3.1.3), if present. These are used to construct

a new idempotency entry in a database-compliant

JSON format. The new entry is added along with

the current timestamp to allow for cleanup to miti-

gate idempotency key conﬂicts. The functional ﬂow

for both endpoints is illustrated in the papers Github.

The idempotency information base is imple-

mented over a database system, to ofﬂoad state syn-

chronisation along with other management operations

to the database platform, keeping the IM stateless.

This exploits existing capabilities of database systems

to synchronize across clusters in near real-time. A

PostgreSQL relational database is used here as an ex-

Idempotency in Service Mesh: For Resiliency of Fog-Native Applications in Multi-Domain Edge-to-Cloud Ecosystems

185

ample, for its scalability, as observed in Active/Ac-

tive database systems, as well as the beneﬁts of ACID

transactions. The database schema is deﬁned in the

aforementioned GitHub repository.

3.1.3 Completer System

The Completer system illustrated in Figure 4 han-

dles non-transient errors due to microservice defects,

that the idempotency system cannot resolve. It pro-

vides automatic and systematic completion of re-

quests, without manual intervention or ad-hoc tem-

porary solutions, speciﬁcally when an error occurs

within a service while processing a request. Here, the

IM would have processed and saved the error, and all

subsequent automated retries of the request by Envoy

will yield the same result. However, with the com-

pleter, if a problem and a solution to that problem

are known in advance, a successful response can be

sent back to the client and the retry can be issued at

a later time once the error within the service has been

rectiﬁed. This is to allow the request to succeed asyn-

chronously. The approach works well for use-cases of

aggregated JSON resources, made up of sub resources

that were not the main purpose of the request but are

necessary to its successful completion. If such sub

resources are not required immediately by the user,

they can be handled by the completer and have the

full resource ready for when needed for example, an

error occurs with the payment service, a successful

booking can still be made, while the payment issue is

resolved later by the Completer.

To achieve the above, the Completer requires ser-

vices to conform to RFC9457 (Nottingham et al.,

2023). This deﬁnes a machine-readable type mem-

ber, used here to commonly identify a speciﬁc prob-

lem and map directly to a solver FaaS function. Fur-

thermore, to allow a completer function to create a

valid solution, additional information may need to be

obtained from a downstream service about the up-

stream request. In order to facilitate this, a new header

is deﬁned completer-downstream-resource. This

header is formed of a list of key-value pairs sepa-

rated by semi-colons, following the same format as

the x-forwarded-client-cert, deﬁned by Envoy.

To allow developers of a microservice to deﬁne

their own solutions without coupling the Completer

with the microservice, a FaaS approach is adopted in

offering solvers - illustrated in Figure 4a. Here, devel-

opers write modular and self-contained functions that

solve speciﬁc problems, independent from each other,

and expose them as a service within the Completer. In

order for the relevant FaaS solvers to be called, a cen-

tral batch microservice is developed within the com-

pleter. The batch microservice performs a one-to-one

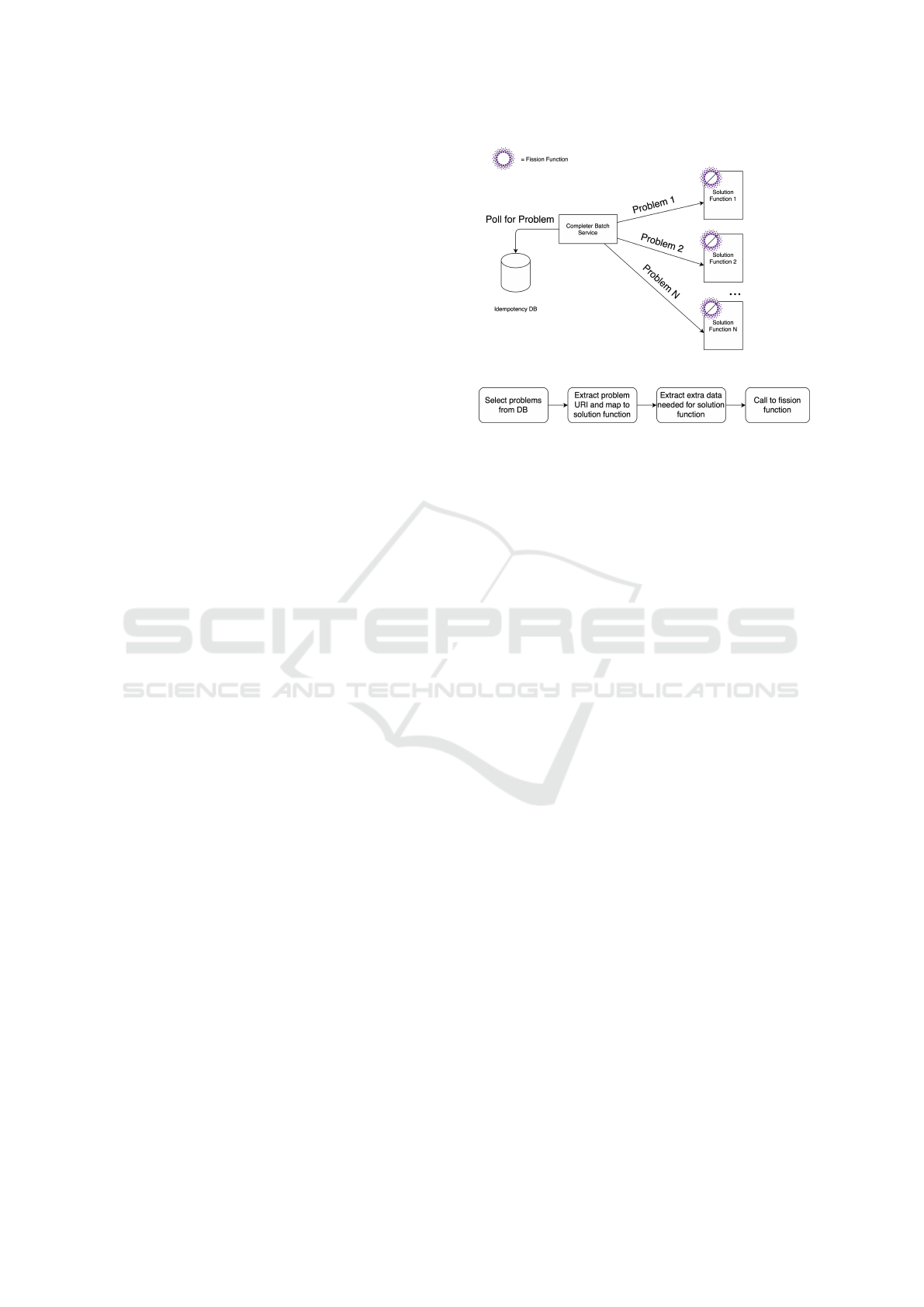

(a) FaaS Architecture.

(b) Batching Pipeline.

Figure 4: Completer System.

exact matching between an idempotency problem and

the FaaS solvers. If a match is found, the solver is

called to address the problem. Subsequently, the only

point of the completer that needs to be updated when

adding a new solver function, is the map of problems

to solvers.

Figure 4b illustrates the workﬂow of the Com-

pleter. First, the batch service queries the Idem-

potency Information Base for entries with incom-

plete requests. For each entry, the batch service

veriﬁes: if the entry has already been processed;

and, if the response is of type “ProblemDetails”. If

so, the batch looks up a matching solver function

for the problem, using the problem URI, and ex-

tracts any further data needed from the error and

the completer-downstream-resource header. The

batch then calls out to the ﬁssion router using the

HTTP trigger associated with the problem. Notably,

ﬁssion is used here merely as an example for FaaS

management platform. However, the batch service is

not coupled to ﬁssion and can be integrated with any

FaaS platform that allows an HTTP endpoint, which

accepts POST messages.

4 EVALUATION

This section evaluates the performance of the pro-

posed solution experimentally, using the application

of Figure 1. It compares the performance of the FNA

deployment over multiple clusters, with and without

the proposed idempotency-completer solution. The

experiments are deployed over an elementary testbed.

in the Network Convergence Laboratory (NCL) of the

CLOSER 2025 - 15th International Conference on Cloud Computing and Services Science

186

University of Essex

. The testbed is comprised of

two clusters, each including two machines. Standard

Consul failover is enabled as a default resiliency mea-

sure, both within a cluster and across clusters. The

upper bounds of 18 users per second is a limitation of

computational power in our testbed and should not be

seen as a limitation of the proposed systems. Given

an environment with a production-level PostgreSQL

database cluster among others, the throughput of the

system would be much higher. Nevertheless, the re-

sults still show the capability of the system.

The four machines are of similar capacities, and

connected by a standard 1Gb/s Ethernet switch. Each

cluster is locally orchestrated by its own Kubernetes,

with K3s chosen as a lightweight ﬂavour of the or-

chestrator. Consul Connect cluster peering is used to

facilitate cross-cluster communication. The choice of

only two clusters is merely for simplicity. The sys-

tem can technically scale beyond this, exploiting the

multi-cluster peering capability of Consul. Each ex-

periment is run with an increasing number of users,

to scale up the offered load. Each user generates 1 re-

quest per second, having 30 requests over the bench-

mark period. Request generation is realised using

Gatling

, a widely used load testing tool.

Three Key Performance Indicators were analyzed

for the Idempotency and Completer systems: User

Satisfaction, Cost Savings from Duplicate Re-

sources and Solution Overheads. The ﬁrst is mea-

sured by the number of lost requests when disabling

‘retries’, as opposite to enabling safe retries with the

idempotency system. The KPI is measured for the

Completer by the total number of completed requests

as opposite to the ones sent (results in the GitHub

repository). Cost Savings is measured by the number

of prevented non-safe retries that would have caused

duplicate booking of user resources. Solution Over-

heads is measured by the observed response time.

Each experiment is repeated for 5 times, for each

benchmark setting.

4.1 Idempotency System

This section illustrates the beneﬁts of the IM in en-

abling safe retries, in contrast to nondiscriminatory

disabling of all retries, to avoid idempotency storms.

https://www.essex.ac.uk/departments/

computer-science-and-electronic-engineering/research/

communications-and-networks

http://gatling.io

3 9 18

·10

−2

Users per second

Total Fraction of Lost Requests

Figure 5: Fraction of lost requests that would have been

safely retried if the idempotency system is enabled.

4.1.1 User Satisfaction

User satisfaction is analyzed when one of two in-

stances of a microservice fails and is being evicted/re-

added to the load balancer of the mesh. Here, the fail-

ure is in the infrastructure not the microservice logic,

hence a retry to the other instance is idempotency-

safe. Figure 5 shows the fraction of lost requests over

the benchmark period, without the IM and when re-

tries are disabled. Notably, when the IM is operating

and retries are enabled, no requests are lost due to in-

frastructure failure. Without retries and the IM, hav-

ing the outlier detection and circuit breaker patterns

of Envoy, the failing instance is evicted after 3 failed

requests. Envoy’s circuit breaker tries to bring the in-

stance back into the load balancer after a base ejection

time (10s in this case), with exponential backoff. This

will cause more requests to fail.

Hence, when the number of users is 3 or 9, the

fraction of lost requests is constant to 0.067 and

0.037, respectively. However, when the number of

users is 18, the loss varies between 0.026 and 0.028.

This is because when the number of requests within a

time period increases, the service is restored for short

periods of time before it’s ejected again which results

in lower number of lost requests than offered ones.

4.1.2 Cost Savings from Duplicate Resources

This section shows the scale of savings in duplicate

resources from non-safe retries, due to application

failure. Here, two instances of a microservice are de-

ployed in each cluster, C1 and C2. The two instances

of C1 both have a functional error at some point, caus-

ing Envoy to retry requests to C1 instances. The in-

stances in C2 are healthy, but Envoy does not redi-

Idempotency in Service Mesh: For Resiliency of Fog-Native Applications in Multi-Domain Edge-to-Cloud Ecosystems

187

3 9 18

Users per second

Savings in Duplicate Resources

Figure 6: Number of duplicate resource savings by the

Idempotency system.

rect C1 requests to them. Because, C1 instances are

still active as the infrastructure is healthy. The IM is

disabled to allow for quantifying duplicate resources

due to such non-safe retries, which would otherwise

be saved when the IM is enabled. Enovy conﬁgura-

tions are described in the GitHub repository, due to

space limitation.

Figure 6 shows the savings in end-user duplicate

resources over the benchmark period, achieved by the

IM when preventing idempotency non-safe retries. In

the context of our example FNA, these are duplicate

payments charged to clients accounts. They are as

well the number of duplicate state that the FNA and

infrastructure provides need to resolve manually and

maintain ‘exactly-once’ semantic. The results illus-

trate an almost linear growth in the number of saved

duplicates with the increase in number of requests.

The variation seen in the results is due to Envoy’s

fully jittered retry algorithm

that has a certain ran-

dom delay in retrying selected compounded on multi-

ple levels of the application ﬂow.

4.1.3 Solution Overheads

Figure 7 shows the percentage of requests success-

fully achieved within a certain response time, when

the service mesh is with or without the idempotency

system. The results illustrate the overhead of the

idempotency system on the end-to-end workﬂow of

a request, including Envoy operations and the FNA

task execution. Load is ﬁxed here to 18 users/s.

The results show the current implementation adds

≈ 59.626ms per idempotency-safe microservice. This

is recognised as a marginal overhead only here, where

the application response time is around 580ms. How-

https://www.envoyproxy.io/docs/envoy/

latest/conﬁguration/http/http ﬁlters/router ﬁlter#

x-envoy-max-retries

500

1000

1500

2000

2500

10%

Response Time (ms)

Percentage of requests

Without idempotency system

With idempotency system

Figure 7: Requests distribution by their response time, with

and without enabling the Idempotency system.

ever, for time-critical applications, such as some of

6G scenarios where response time need not to exceed

10s of ms, optimised software engineering is needed

to reduce this overhead.

4.2 Completer System

This section analyzes the Completer overhead com-

pared to the gains in user satisfaction. Results of

the latter are provided in the aforementioned GitHub

repository.

4.2.1 Solution Overheads

We quantify the overhead of the Completer by the

number of requests completed within a time frame.

Note that this measure is directly dependent on the

CPU and memory speciﬁcations of the machine(s)

running the Completer. Given our testbed speciﬁca-

tions, on average the Completer has been able to pro-

cess 500 requests in 5s period across all experiments.

It is worth noting that Fission (the FaaS platform) in-

troduce a marginal, controllable, overhead (Fission,

2024).

5 CONCLUSION

Resiliency of Fog-native applications, distributed

over multiple edge-cloud autonomous systems is

a critical challenge because the scale of inter-

microservice exchanges elevates the likelihood of

failures to unprecedented levels. Service mesh frame-

works address many of the failure scenarios, but they

fall short in achieving idempotency-safe retries for

HTTP POST-based microservices. This work pro-

CLOSER 2025 - 15th International Conference on Cloud Computing and Services Science

188

posed a novel two-part fog-native resiliency solu-

tion, providing idempotency-safe retries and auto-

matic completion of requests for HTTP POST mi-

croservices. The proposed solution ﬁrst enables

idempotency-safe retries following infrastructure fail-

ure, while preventing non-safe retries following ap-

plication functional failure. The completer part of

the solution, overcomes functional failure through au-

tomatic application of developer-deﬁned solvers via

FaaS. The two parts were implemented as microser-

vice patterns. They have been integrated with Con-

sul service mesh and Fission FaaS platform, as exam-

ple enablers. The proposed solution has been evalu-

ated experimentally. The results have shown ≈ 0.03 −

0.07 improvement in request satisfaction due to safe-

retries, compared to no-retries. The results have fur-

ther shown 100% request completion rate, facilitated

by the Completer system. This illustrated the beneﬁts

of the proposed solution in enabling resilient opera-

tion of fog-native applications.

ACKNOWLEDGMENTS

This work has been partially co-funded by the Smart

Networks and Services Joint Undertaking (SNS JU)

and the UK Research and Innovation (UKRI), un-

der the European Union’s Horizon Europe research

and innovation programme, in the frame of the NAT-

WORK project (Grant Agreement No 101139285).

REFERENCES

Amiri, Z., Heidari, A., Navimipour, N. J., and Unal,

M. (2023). Resilient and dependability manage-

ment in distributed environments: a systematic and

comprehensive literature review. Cluster Computing,

26(2):1565–1600. https://doi.org/10.1007/s10586-

022-03738-5.

Chandramouli, R. (2022). Implementation of devsecops for

a microservices-based application with service mesh.

Technical report, NIST.

Consul (2024). Enabling peering control plane trafﬁc.

https://developer.hashicorp.com/consul/docs/connect/

gateways/mesh-gateway/peering-via-mesh-gateways.

de O. J

unior, R. S., da Silva, R. C. A., Santos, M. S., Albu-

querque, D. W., Almeida, H. O., and Santos, D. F. S.

(2022). An extensible and secure architecture based

on microservices. In 2022 IEEE International Confer-

ence on Consumer Electronics (ICCE), pages 01–02.

Fission (2024). Deﬁne correct resource request/lim-

its. https://ﬁssion.io/docs/installation/advanced-

setup/#deﬁne-correct-resource-requestlimits.

Furusawa, T., Abe, H., Okada, K., and Nakao, A. (2022).

Service mesh controller for cooperative load balanc-

ing among neighboring edge servers. In 2022 IEEE

International Symposium on Local and Metropolitan

Area Networks (LANMAN), pages 1–6.

Gabrielson, J. (2019). Challenges with distributed

systems. https://aws.amazon.com/builders-

library/challenges-with-distributed-

systems/#Distributed bugs are often latent.

Gattobigio, L., Thielemans, S., Benedetti, P., Reali, G.,

Braeken, A., and Steenhaut, K. (2022). A multi-cloud

service mesh approach applied to internet of things. In

IECON 2022 – 48th Annual Conference of the IEEE

Industrial Electronics Society, pages 1–6.

Karn, R. R., Das, R., Pant, D. R., Heikkonen, J., and Kanth,

R. (2022). Automated testing and resilience of mi-

croservice’s network-link using istio service mesh. In

2022 31st Conference of Open Innovations Associa-

tion (FRUCT), pages 79–88.

Kubernetes (2024). Multicluster services api.

https://multicluster.sigs.k8s.io/concepts/multicluster-

services-api.

Leach, B. (2017). Implementing stripe-like idempotency

keys in postgres. https://brandur.org/idempotency-

keys.

Mendonca, N. C., Aderaldo, C. M., Camara, J., and Gar-

lan, D. (2020). Model-based analysis of microservice

resiliency patterns. In 2020 IEEE International Con-

ference on Software Architecture (ICSA), pages 114–

124.

Microsoft (2022). Retry storm antipattern. https:

//learn.microsoft.com/en-us/azure/architecture/

antipatterns/retry-storm.

Netﬂix (2018). How netﬂix increased developer produc-

tivity and defeated the thundering herd with grpc.

https://www.cncf.io/case-studies/netﬂix.

Nottingham, M., Wilde, E., and Dalal, S. (2023). Problem

Details for HTTP APIs. RFC 9457. https://www.rfc-

editor.org/info/rfc9457.

Prokhorenko, V. and Ali Babar, M. (2020). Architectural

resilience in cloud, fog and edge systems: A survey.

IEEE Access, 8:28078–28095.

Saleh Sedghpour, M. R., Klein, C., and Tordsson, J. (2022).

An empirical study of service mesh trafﬁc manage-

ment policies for microservices. In Proceedings of the

2022 ACM/SPEC on International Conference on Per-

formance Engineering, ICPE ’22, page 17–27, New

York, NY, USA. Association for Computing Machin-

ery.

Services, A. W. (2024). What is a service mesh?

https://aws.amazon.com/what-is/service-mesh/#seo-

faq-pairs#how-does-a-service-mesh-work.

Shahid, M. A., Islam, N., Alam, M. M., Mazliham, M., and

Musa, S. (2021). Towards resilient method: An ex-

haustive survey of fault tolerance methods in the cloud

computing environment. Computer Science Review,

40:100398. https://www.sciencedirect.com/science/

article/pii/S1574013721000381.

Idempotency in Service Mesh: For Resiliency of Fog-Native Applications in Multi-Domain Edge-to-Cloud Ecosystems

189
