Toolshed: Scale Tool-Equipped Agents with

Advanced RAG-Tool Fusion and Tool Knowledge Bases

Elias Lumer

, Vamse Kumar Subbiah, James A. Burke,

Pradeep Honaganahalli Basavaraju and Austin Huber

PricewaterhouseCoopers, U.S.A.

Keywords:

Tool Learning, Tool Selection, Function Calling, Retrieval-Augmented-Generation, Tool Retrieval,

Knowledge Retrieval, AI Agents, Large Language-Models.

Abstract:

Recent advancements in tool-equipped agents (LLMs) have enabled complex tasks like secure database in-

teractions and code development. However, scaling tool capacity beyond agent reasoning or model limits

remains a challenge. In this paper, we address these challenges by introducing Toolshed Knowledge Bases,

a tool knowledge base (vector database) designed to store enhanced tool representations and optimize tool

selection for large-scale tool-equipped agents. Additionally, we propose Advanced RAG-Tool Fusion, a novel

ensemble of tool-applied advanced retrieval-augmented generation (RAG) techniques across the pre-retrieval,

intra-retrieval, and post-retrieval phases, without requiring ﬁne-tuning. During pre-retrieval, tool documents

are enhanced with key information and stored in the Toolshed Knowledge Base. Intra-retrieval focuses on

query planning and transformation to increase retrieval accuracy. Post-retrieval reﬁnes the retrieved tool docu-

ments, enables self-reﬂection, and equips the tools to the agent. Furthermore, by varying both the total number

of tools (tool-M) an agent has access to and the tool selection threshold (top-k), we address trade-offs between

retrieval accuracy, agent performance, and token cost. Our approach achieves 46%, 56%, and 47% absolute

improvements on the ToolE single-tool, ToolE multi-tool and Seal-Tools benchmarks, respectively (recall@5).

1 INTRODUCTION

The latest advancements in Large Language Models

(LLMs) have enabled LLM agents to autonomously

handle tasks through external tools or APIs. With tool

calling, or function calling, these agents can execute

complex actions such as interacting with data APIs,

collaborating on code development, and performing

domain-speciﬁc question answering. Current models

handle up to 128 tool function deﬁnitions, though this

limit presents challenges for scaling agent capabilities

in production, where hundreds or thousands of tools

may be required (Google Cloud, 2024).

Despite advancements in retriever-based tool se-

lection systems, a signiﬁcant gap remains com-

pared to the advanced retrieval-augmented generation

(RAG) community (Gao et al., 2024). Current tool

retrievers rely on only 1–2 key tool components (tool

name and description) to embed as vector representa-

tions, whereas advanced RAG methods append docu-

ment summaries, questions, and key metadata. Addi-

tionally, inference-time solutions such as query plan-

ning, expansion, and reranking, remain unexplored.

https://orcid.org/0009-0000-9180-3690

In this paper, we introduce Toolshed Knowledge

Bases, a knowledge base optimized for storing and

retrieving tools for scalable tool-equipped agents,

through enhancing tool documents with 5 tool compo-

nents (Fig. 1). This approach also addresses and op-

timizes the trade-off of how the tool deﬁnition count

(tool-M) and tool selection threshold (top-k) affect re-

trieval accuracy, agent performance, and cost.

We also introduce Advanced RAG-Tool Fusion,

a modular ensemble of advanced RAG patterns ap-

plied to tool selection and planning without requir-

ing model ﬁne-tuning. They include 1) pre-retrieval

techniques (optimizing tool document vector embed-

dings), 2) intra-retrieval strategies (query transforma-

tions to retrieve relevant tools), and 3) post-retrieval

techniques (reranking or self-correction) (Fig. 1). Our

Advanced RAG-Tool Fusion signiﬁcantly advances

tool retrieval, achieving 46%, 56%, and 47% abso-

lute improvements over BM25 on ToolE single-tool,

ToolE multi-tool, and Seal-Tools benchmarks, while

outperforming current SOTA retrievers (recall@5).

The paper is organized as follows: Section 2 re-

views advanced RAG and tool learning, Section 3 out-

lines methods, Section 4 covers evaluations, Section

5 concludes, and Section 6 discusses limitations.

1180

Lumer, E., Subbiah, V. K., Burke, J. A., Basavaraju, P. H. and Huber, A.

Toolshed: Scale Tool-Equipped Agents with Advanced RAG-Tool Fusion and Tool Knowledge Bases.

DOI: 10.5220/0013303000003890

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 17th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2025) - Volume 3, pages 1180-1191

ISBN: 978-989-758-737-5; ISSN: 2184-433X

2 BACKGROUND

2.1 Advanced RAG

Advanced Retrieval-Augmented Generation (RAG)

builds on naive RAG by improving relevance and ef-

ﬁciency, addressing the challenge of selecting cor-

rect documents from large knowledge bases for LLM

reasoning (Gao et al., 2024). Query rewriting and

hypothetical document embeddings (HyDE) trans-

form queries and improve out-of-domain understand-

ing (Ma et al., 2023; Gao et al., 2022). Query expan-

sion adds relevant terms to improve accuracy (Jager-

man et al., 2023; Wang et al., 2023; Peng et al., 2024).

Document chunk enhancements such as summaries

and potential questions (reverse HyDe) align docu-

ments to queries in semantic space (Setty et al., 2024;

Gao et al., 2024). Query decomposition and plan-

ning break complex questions into steps, improving

multi-step reasoning (Tang and Yang, 2024; Trivedi

et al., 2023; Yao et al., 2023; Khattab et al., 2023;

Joshi et al., 2024; Xu et al., 2023; Zheng et al.,

2024a). Reranking algorithms reorder results for con-

textual relevance (Raudaschl, 2023; Sun et al., 2023;

Sawarkar et al., 2024). Corrective methods discard

poor documents or retrieve new ones (Yan et al., 2024;

Asai et al., 2023). Agentic RAG equips agents with a

RAG tool, while Adaptive-RAG adjusts strategies to

query complexity (Roucher, 2023; Jeong et al., 2024).

Our approach, Advanced RAG-Tool Fusion, ap-

plies the aforementioned document RAG techniques

to tool selection and planning for agents.

2.2 Task Planning for Tools

Similar to advanced RAG, task planning is essential

for breaking down complex queries into manageable

sub-tasks for tool retrieval. Chain-of-Thought (Wei

et al., 2023) and ReAct (Yao et al., 2023) laid the

foundation by enabling agents to systematically de-

compose tasks. EasyTool, PLUTO, and Re-Invoke

extend this by retrieving tools for each sub-task (Yuan

et al., 2024b; Huang et al., 2024a; Chen et al., 2024).

Advanced RAG-Tool Fusion leverages task planning

while also employing other pre-, intra-, and post-

retrieval strategies to enhance tool retrieval (Fig. 1).

2.3 Tool Selection or Retrieval

2.3.1 Retriever-Based Tool Selection

Tool retrieval is tightly coupled to task planning for

tools. Early retriever-based methods, such as TF-

IDF (Papineni, 2001) and BM25 (Robertson and

Zaragoza, 2009), rely on exact term matching to align

queries with documents or tools, forming the baseline

for modern retrieval methods. ProTIP (Anantha et al.,

2023) uses a BERT-base-uncased retriever to match

decomposed queries with tool descriptions. CRAFT

(Yuan et al., 2024a) retrieves tools using SimCSE

embeddings and aligns generated names and descrip-

tions to queries with function names. ToolRerank

(Zheng et al., 2024b) combines Adaptive Truncation

and Hierarchy-Aware Reranking with dual-encoder

and cross-encoder models for queries. Re-Invoke

(Chen et al., 2024) and Tool2Vec (Moon et al., 2024)

employ synthetic queries to enhance embeddings.

Our approach showcases zero-shot usage with

out-of-the-box embedders from providers like Ope-

nAI that avoid reliance on labeled data for train-

ing. While Re-Invoke and ToolRerank enhance vec-

tor representations with synthetic queries, Advanced

RAG-Tool Fusion extends this by generating syn-

thetic queries, key topics, themes, and intents, as well

as detailed descriptions and schema parameters for

embedding. Furthermore, Advanced RAG-Tool Fu-

sion’s ensemble modules include query rewriting, de-

composition into sub-tasks (user intents), and multi-

query expansion or variation for each sub-task, cap-

turing diverse descriptions to better match tools.

2.3.2 LLM-Based Tool Selection

Researchers have also used LLMs for tool retrieval

alongside retriever-based methods. API-Bank (Li

et al., 2023) uses a Plan+Retrieve+Call paradigm,

similar to Agentic RAG (Roucher, 2023), but strug-

gles with GPT-4’s limited use of the search API tool.

AnyTool (Du et al., 2024) retrieves tools via a hier-

archical API structure and incorporates self-reﬂection

when retrieved tools are insufﬁcient.

Our approach uses retriever-based tool selection

with additional post-retrieval strategies. Unlike Agen-

tic RAG (Roucher, 2023), we prompt LLMs to ﬁrst

decompose queries for tool retrieval and can self-

correct itself if the retrieval does not yield all neces-

sary tools. Furthermore, Advanced RAG-Tool Fusion

can utilize metadata ﬁltering or hierarchy groupings

in the Toolshed Knowledge Base (Appendix C).

2.4 Tool Calling

Prior work focuses on tool invocation through pa-

rameter extraction and ﬁne-tuning. GorillaLLM ﬁne-

tunes LLaMA-7B with retriever-aware training to ac-

cess tool documentation (Patil et al., 2023), while

ToolLLM is trained on 16,000 APIs from the Tool-

Bench dataset using a retriever with DFSDT (Qin

et al., 2023). ToolACE uses multi-agents to train

Toolshed: Scale Tool-Equipped Agents with Advanced RAG-Tool Fusion and Tool Knowledge Bases

1181

Final Set of top-k for D1

Q1 Set of top-k

Pre-retrieval (indexing)

Get_Record()

Toolshed Knowledge Base

Update_Record() (...) M Tools

(...) M Tools

Tool Description: "Retrieves a record from a

database from an ID"

Argument Schema: "ID: The unique ID of the

record to filter."

Hypothetical Questions: "Fetch me the record for

ID 243","I want the database row of ID 34"

Key Topics: "Database get request","Fetching

records"

Tool Name: "Get Record"

Metadata: {"tool_name_in_code":"get_record"}

Human: "get ID 304 from db"

Intra-retrieval (inference)

Query Rewrite: "Get me ID 304 from the database"

Post-retrieval

Q1: "Retrieve

the record with

ID 304 from the

database"

Q2: "Fetch the

database entry

where the ID

equals 304"

Q3: "Query the

database for the

row with ID 304"

Multi-query Expansion or Variation

Toolshed KB

(...) M Tools

Q1 Set of top-k

Q2 Set of top-k

Q1 Set of top-k

Q3 Set of top-k

Q1 Set of top-k

D1 Set of top-k

Retrieve sets of tools

D1: "Get me ID 304 from the database"

Query Decomposition

Q1 Set of top-k

Q2 Set of top-k

Q1 Set of top-k

Q3 Set of top-k

Q1 Set of top-k

D1 Set of top-k

Query Decomposition: D1

Final Set of top-k for D1

(Additional D2, D3, etc.)

Q1 Set of top-k

Q2 Set of top-k

Q1 Set of top-k

Q3 Set of top-k

Q1 Set of top-k

D1 Set of top-k

Final Set of top-k for D1

Re-ranking, Corrective

RAG, or Self-RAG

Re-ranking every final set of top-k of D1-n

Final Set of top-k for D1

Final Set of top-k to solve user question

Final Set of top-k for Dn

Agent + final tools

Figure 1: Advanced RAG-Tool Fusion within three phases. The pre-retrieval phase optimizes the tool document by appending

a high-quality name, description, argument schema, hypothetical questions the tool can answer, related key topics, and meta-

data. The intra-retrieval and post-retrieval phases transform the user question into decomposed queries and expanded/varied

queries to retrieve the top-k relevant tools from the Toolshed Knowledge Base and rerank the ﬁnal tools to the agent.

LLaMA-8B (Liu et al., 2024), CITI uses MOLoRA

(Hao et al., 2024b), and ToolkenGPT trains output to-

kens as tools (Hao et al., 2024a). Unlike prior work,

we do not ﬁne-tune LLMs for tool calling. We use

function-calling LLMs (e.g., OpenAI, Anthropic) as

a plug-and-play tool selection and planning solution,

analyzing how tool count and top-k thresholds affect

retrieval accuracy, agent performance, and cost.

3 METHOD

3.1 Tool Datasets

Notable datasets in the tool-calling community in-

clude ToolBench (Qin et al., 2023), ToolAlpaca (Tang

et al., 2023), ToolE (Huang et al., 2024b), τ-bench

(Yao et al., 2024), and Seal-Tools (Wu et al., 2024).

Upon reviewing these datasets and golden query-

tool-parameter pairings, we identiﬁed several issues:

unclear tool descriptions, missing parameter details,

overlapping tools, and queries solvable by multiple

similar tools. For this study, we selected Seal-Tools

and ToolE as primary datasets. Seal-Tools (∼3,500)

and ToolE (∼200 tools) both contain high tool counts

and minimal tool overlap to reduce retrieval errors.

3.2 LLM and Embedder Models

We use Azure OpenAI gpt-4o, 2024-05-13 (ﬁ-

nal result), gpt-4o (0613), gpt-35-turbo-16k

(0613) for the LLM. For the embedders, we

use Azure OpenAI text-embedding-3-large

(ﬁnal result), text-embedding-3-small,

text-embedding-ada-002.

3.3 Toolshed Knowledge Bases

The Toolshed Knowledge Base serves as the vector

database for storing tools that will be retrieved and

equipped to a Single agent during inference. The

strategy we use to represent tool documents stems

from the pre-retrieval phase of Advanced RAG-Tool

Fusion. Each tool’s vector representation combines

up to 5 components: tool name, description, argu-

ment schema, synthetic queries, and key topics (Fig.

1. Since tool names cannot contain spaces when using

OpenAI function deﬁnitions, we modify tool names

by adding spaces (e.g., “GetRecord” becomes “Get

Record”) to better represent them in the vector space,

along with other features for enhanced retrieval. Each

tool document also includes a metadata dictionary

(“tool name”) that links its unique name to its cor-

responding Python function. During inference, with

the user query or decomposed query well-represented

across the vector space, the top-k tools are retrieved

and mapped to Python functions via the dictionary.

3.4 Advanced RAG-Tool Fusion

Having an agent retrieve and choose the correct

tool(s) from a large collection of tools is fundamen-

tally the same problem as document RAG (Gao et al.,

2024; Kamradt, 2023). Thus, we can apply advanced

RAG principles to the tool selection and planning

ﬁeld. While previous tool scaling work touched on

few, if any, individual components of advanced RAG,

our approach, Advanced RAG-Tool Fusion (Fig. 1),

introduces an ensemble of state-of-the-art advanced

RAG patterns applied to tool selection and planning

in three phases (pre-retrieval, intra-retrieval, post-

retrieval). See Appendix C for a detailed case study.

ICAART 2025 - 17th International Conference on Agents and Artiﬁcial Intelligence

1182

3.4.1 Pre-Retrieval (Indexing)

In the pre-retrieval or indexing phase of Advanced

RAG-Tool Fusion, our goal is to enhance the quality

of the tool document to be retrieved at a higher accu-

racy rate in the retrieval stage. Prior work demon-

strates storing a tool’s name and description in a

vector database does not yield optimal results (Chen

et al., 2024; Moon et al., 2024). Our approach in

Advanced RAG-Tool Fusion enhances the tool doc-

uments with 5 tool components and stores them in

the Toolshed Knowledge Base: 1) tool name, 2)

tool description, 3) argument schema (parameters &

description), 4) hypothetical questions, and 5) key

topics/intents (both questions/topics are synthetically

generated). The corresponding advanced RAG meth-

ods involve appending document chunks with meta-

data, summaries, key topics, and hypothetical ques-

tions (Gao et al., 2024). See Appendix C, Fig. 16.

Recommendations for Pre-Retrieval. If opting to

enhance the tool document with any 5 components:

• Tool functionality should not overlap, and tool

names should be unique with an “embedded ver-

sion” (spaces instead of underscores/dashes).

• Tool descriptions should be long, unique, and de-

scriptive (e.g., explain when to use or not use it).

• Appending the tool’s argument schema can help

retrieval. Ensure parameter names and descrip-

tions are descriptive with no abbreviations.

• Appending synthetic questions can increase re-

trieval. Ensure questions are diverse, mirror future

user questions, and utilize required and optional

parameters in the question.

• Appending key topics/intents can increase re-

trieval. Ensure key topics are based on tool names,

descriptions, and any synthetic questions.

3.4.2 Intra-Retrieval (Inference-Time)

In the retrieval stage of Advanced RAG-Tool Fusion,

our goal is to retrieve the correct tool(s) needed for a

user question. Previous work demonstrates that, be-

cause users often use shorthand, rely on pronouns in-

stead of using the subject, or ask unclear queries, the

user query may not capture the full intent of which

tool should be retrieved (Ma et al., 2023). There-

fore, our approach in Advanced RAG-Tool Fusion

(Fig. 1) initially rewrites the query to ﬁx any typos,

errors, unclear pronouns (with available chat history),

and overall conciseness. Additionally, a single user

question may consist of multiple distinct steps requir-

ing several tools. Directly embedding and querying

the entire question leads to poor retrieval results for

tools (Tang and Yang, 2024). Advanced RAG-Tool

Fusion then breaks the query into logical, indepen-

dent steps, then rewrites/expands each step, captur-

ing ways to solve the decomposed query. Finally, for

each individual expanded query, we retrieve the ini-

tial top-k tools. The corresponding applied advanced

RAG methods are query decomposition, query rewrit-

ing, multi-query expansion or variation, and step-

back prompting (Joshi et al., 2024; Gao et al., 2024;

Zheng et al., 2024a). See Appendix C, Fig. 18.

Recommendations for Intra-Retrieval. If opting

to add query decomposition, transformation, or more:

• Query planning or decomposition helps retrieve

different tools for a multi-hop query.

• If a user’s question uses shorthand, contains gram-

matical or spelling errors, or relies on pronouns,

rewriting it initially (and utilizing previous chat

history, if applicable) can improve retrieval.

• If there are multiple tools that can solve the same

question, multi-query expansion or variation can

help identify diverse pathways to solve the ques-

tion by broadening the search scope of tools.

• Step-back query rewriting can help answer ab-

stract questions in the planning module, but is an

optional module in the framework.

• Test the retrieval accuracy for various top-k values

(e.g., 1, 5, 10, 20... ≤ 128), and adjust threshold

as needed based on the tool dataset complexity.

3.4.3 Post-Retrieval

In the post-retrieval phase of Advanced RAG-Tool

Fusion, the goal is to ﬁnalize the list of tools for the

agent. Reranking can occur in the query decomposi-

tion level, the multi-query expansion/variation level,

and/or the individual query variation level. Some

irrelevant tools may pass through the intra-retrieval

phase because they are similar enough to be re-

trieved but not useful for answering the user’s ques-

tion. To address this, we rerank and discard irrel-

evant tools, selecting only the top-k most relevant

tools. While we use an LLM-based reranker (due

to increased reasoning), an embedder cross-encoder

reranker (Theja, 2023) can be used as well. Finally,

using self-reﬂection, the agent can autonomously re-

search the Toolshed Knowledge Base if it identiﬁes

missing tools. The associated advanced RAG patterns

include reranking (Sun et al., 2023; Theja, 2023), cor-

rective RAG (Yan et al., 2024), and self-RAG (Asai

et al., 2023). See Appendix C, Fig. 19.

Toolshed: Scale Tool-Equipped Agents with Advanced RAG-Tool Fusion and Tool Knowledge Bases

1183

Table 1: Retriever results comparison on the Seal-Tools and ToolE datasets. We compare our Advanced RAG-Tool Fusion

approach against a BM25 baseline (Robertson and Zaragoza, 2009), and the SOTA retrievers, Seal-Tool’s DPR (Wu et al.,

2024) and Re-Invoke (Chen et al., 2024). The metrics are reported as recall@k, some k values were not calculated or clearly

deﬁned in the original papers, thus not reproduced for our approach. The best-performing method is highlighted in boldface.

Dataset Retriever Recall @ 1 Recall @ 5 Recall @ 10

BM25 0.410 0.550

Seal-Tools Seal-Tools DPR 0.480 0.680

Advanced RAG-Tool Fusion with Toolshed Knowledge Base 0.876 0.965

BM25 0.272 0.462

ToolE - Single Tool Re-Invoke’s 0.672 0.871

Advanced RAG-Tool Fusion with Toolshed Knowledge Base 0.726 0.928

BM25 0.093 0.335

ToolE - Multi Tool Re-Invoke’s 0.333 0.801

Advanced RAG-Tool Fusion with Toolshed Knowledge Base 0.400 0.894

Recommendations for Post-Retrieval. If opting to

add reranking, corrective, or self-RAG:

• A post-requisite to intra-retrieval Recommenda-

tions 1 and 3 is reranking the N sets of retrieved

tools from the decomposed/expanded queries to

the ﬁnal condensed top-k (if limiting k).

• Explore the retrieval accuracy vs. cost/latency

trade-off of an embedder vs. LLM-based reranker.

• Self-RAG can help if not all tools were retrieved.

• Remove duplicates in each sub-query tool set.

3.4.4 Advanced RAG-Tool Fusion Equation

The Advanced RAG-Tool Fusion equation is modeled

for any given tool-M and top-k value. The abbrevi-

ated ARTF Agent Accuracy can be measured by its

retrieval accuracy (tool-M, top-k), multiplied by Base

Agent’s accuracy where tool-M

= top-k. A Base

Agent is a simple LLM with M

tools equipped. This

equation is critical when optimizing the top-k value

(from 1-128) due to the trade-off of Base Agent Ac-

curacy, ARTF retrieval accuracy, and cost.

E[ARTF Agent Acc.(tool-M, top-k)] =

E[Base Agent Acc.(tool-M

= top-k)]×

E[ARTF Retrieval Acc.(tool-M, top-k)]

(1)

4 EVALUATIONS

In this section, we describe two experiments, evaluate

results, and discuss impacts to gauge the 1) tool selec-

tion effectiveness of Advanced RAG-Tool Fusion and

the 2) impact of varying the number of tools (tool-M)

an agent has on Base Agent accuracy and the tool se-

lection threshold (top-k) has on retrieval accuracy, and

cost. The former is a study on our approach and the

latter dictates the optimization and trade-off of top-k

in Advanced RAG-Tool Fusion.

4.1 Scaling Tool Selection and Planning

with Advanced RAG-Tool Fusion

4.1.1 Experiment Settings

We assess Advanced RAG-Tool Fusion’s retrieval ac-

curacy compared to baselines and SOTA retrievers

at recall@k (k = 1, 5, 10). Section 3.1 speciﬁes the

dataset. Section 3.2 states the models used.

4.1.2 Results Analysis

Table I compares retrieval results on the Seal-Tools

and ToolE datasets. Each dataset section begins with

a baseline BM25 result, followed by comparisons of

our approach against Seal-Tools DPR and Re-Invoke.

Advanced RAG-Tool Fusion outperforms the

baseline by approximately 46% across all datasets.

On the Seal-Tools dataset (both single and multi-tool

evaluations), our approach shows an improvement of

41% over Seal-Tools DPR. On the ToolE single-tool

dataset, it outperforms Re-Invoke by 5% and 9% on

the single- and multi-tool datasets, respectively (re-

call@5). All metrics are absolute improvements.

4.1.3 Discussion

Comparing results in Table 1, the key differentiator

(among all other modules) on the Seal-Tools DPR

benchmark is the query decomposition module. Sim-

ilarly, the distinction between our approach and the

Re-Invoke ToolE (single and multi tool) benchmark

lies in the pre-retrieval, multi-query expansion, query

rewriting, and reranking modules.

Our ﬁndings show our ensemble-based Advanced

RAG-Tool Fusion consistently outperforms individ-

ual (1-2) applications of advanced RAG within their

isolated tool selection frameworks. Notably, for

the Seal-Tools dataset, our approach enables tool-

equipped agents to scale to thousands of tools without

a signiﬁcant drop in retrieval accuracy.

ICAART 2025 - 17th International Conference on Agents and Artiﬁcial Intelligence

1184

Advanced RAG-Tool Fusion and Toolshed

Knowledge Bases require no ﬁne-tuning, allowing

easy implementation for researchers and practition-

ers. We encourage benchmarking your tool datasets

to identify which tool components are most impactful

in pre-retrieval, and which modules are beneﬁcial in

intra-retrieval and post-retrieval phases.

4.2 Varying Number of Tools (tool-M)

and Selection Threshold (top-k)

4.2.1 Experiment Settings

We assess the tool-calling ability of a Base LLM

Agent by incrementally equipping it with M tools,

ranging from 1 to 128. The evaluation uses our Tool-

shed Evaluation Framework (Appendix A).

Next, we evaluate the retrieval accuracy of Ad-

vanced RAG-Tool Fusion by varying both the selec-

tion threshold top-k (from 1 to 128) and the total num-

ber of tools in the Toolshed Knowledge Base (from 1

to ∼3,500). For each tool-M level, we vary top-k such

that top-k ≤ M. We also explore different conﬁgura-

tions within Advanced RAG-Tool Fusion, including

the components in the tool embedding, the embedder

for indexing and retrieving, and the LLM.

4.2.2 Results Analysis

Base Agent Accuracy. Across all M values

(1–128), Base Agent accuracy remains around

97–100% (See Appendix B). Thus, for the Seal-Tools

dataset, the number of tools equipped to an agent

(tool-M) does not signiﬁcantly affect Base Agent’s

accuracy (likely due to the dataset’s distinct non-

overlapping query-tool pairs and lack of sequential

tool calls).

Retrieval Accuracy. In Fig. 2 and Fig. 3, we com-

pare the retrieval accuracy of multi-hop queries for

Seal-Tools DPR and Advanced RAG-Tool Fusion, re-

spectively. As tool-M and top-k increase for Seal-

Tools DPR, accuracy decreases signiﬁcantly. How-

ever, Advanced RAG-Tool Fusion maintains high ac-

curacy (∼95–100%) across all tool-M and top-k.

Other Variations. Adding the argument schema

hypothetical questions and key topics improved re-

trieval. However, this depends on the query-tool

dataset. Varying embedders and LLMs (Appendix

B, Fig. 13 and Fig. 14) showed minor gains

(1–3%); text-embedding-large-3 and gpt-4o

outperformed others (See Section 3.2 for models).

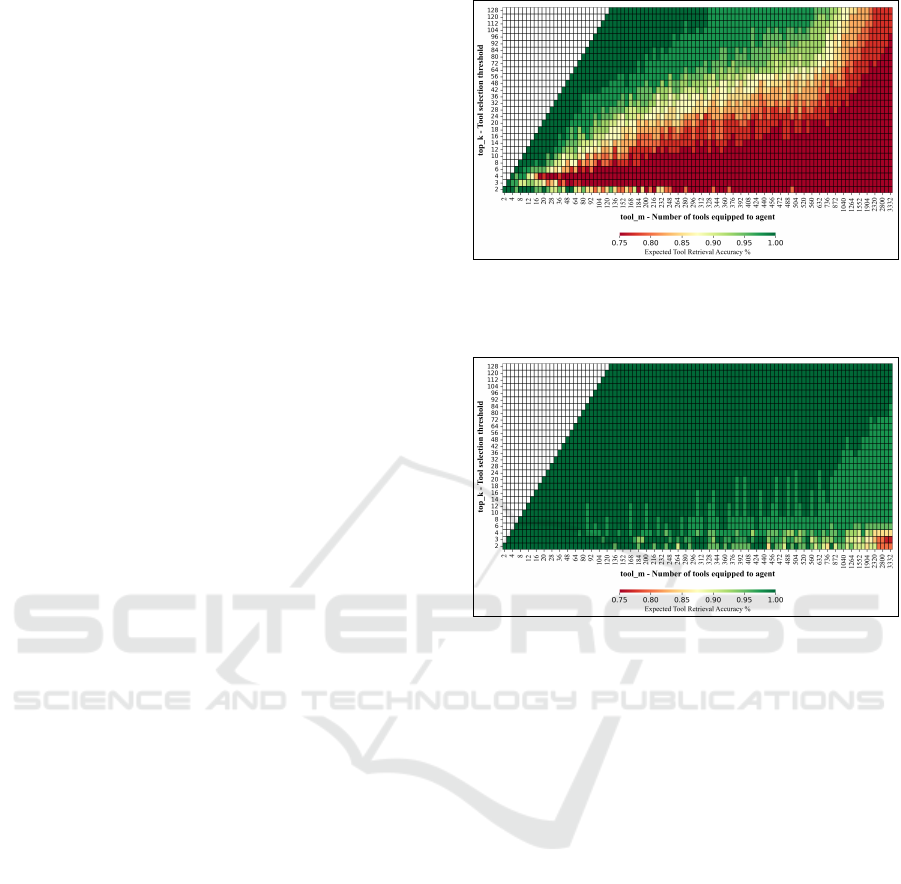

Figure 2: Impact of varying the selection threshold (top-k)

(y-axis) and number of total tools (tool-M) (x-axis) from

1–3,500 on retrieval accuracy (recall@top-k) of Seal-Tools

DPR benchmark, without query decomposition.

Figure 3: Impact of varying the selection threshold (top-k)

and number of total tools (tool-M) from 1–3,500 on retrieval

accuracy of Advanced RAG-Tool Fusion. This approach

uses query decomposition among other patterns.

4.2.3 Discussion

Our work highlights how tool-M and top-k impact re-

trieval accuracy, Base Agent accuracy, and cost (Ap-

pendix B). As top-k increases, retrieval improves but

raises token costs and may lower Base LLM Agent

accuracy on complex datasets. Thus, optimizing top-

k involves a trade-off between retrieval accuracy, Base

Agent accuracy, and cost (Anthropic, 2024). In sce-

narios with complex tool datasets (Appendix B), a

Base Agent may struggle to select the correct tools

for high tool-M. Setting a lower top-k can help the

agent reason with fewer tools and reduce cost, though

it may hinder retrieval accuracy if top-k is too low.

We recommend ﬁrst analyzing how a Base Agent

performs on your tool dataset (tool-M). While the

number of tools did not affect accuracy in the Seal-

Tools dataset, other datasets with overlapping tools,

intra-tool dependencies, or sequential reasoning (Lu

et al., 2024; Yao et al., 2024) may show varied re-

sults. Finally, after customizing pre-retrieval, intra-

retrieval, and post-retrieval modules, optimize top-k

by considering Base Agent accuracy tool-M

= top-k.

Toolshed: Scale Tool-Equipped Agents with Advanced RAG-Tool Fusion and Tool Knowledge Bases

1185

5 CONCLUSION

As agent applications become more complex and

scale to hundreds or thousands of tools, there is a

need to consistently retrieve the correct tools to an-

swer a user question. In this work, we present Ad-

vanced RAG-Tool Fusion, an ensemble of advanced

RAG patterns novelly applied to tool selection and

planning. Our framework consists of strategies within

three phases: pre-retrieval, intra-retrieval, and post-

retrieval. We have demonstrated that this ensemble

of methods enables scalable tool-equipped agents and

signiﬁcantly outperforms both the baseline and an ap-

proaches using single applications of advanced RAG,

without ﬁne-tuning LLMs or retrievers. Furthermore,

we present Toolshed Knowledge Bases, the vector

database to efﬁciently store the collection of tools dur-

ing the pre-retrieval stage. Lastly, we study the im-

pact of varying both 1) the total tools (tool-M) in the

Toolshed Knowledge Base and 2) the tool selection

threshold (top-k) on retrieval accuracy, Base Agent

tool calling ability, and cost. Advanced RAG-Tool

Fusion moves the needle for scaling tool-equipped

agents and sheds light on the trade-off between re-

trieval accuracy, agent accuracy, and cost.

6 LIMITATIONS

Challenges remain for production-grade scalable tool-

equipped agents. The ﬁrst limitation is the need for

human-in-the-loop planner modules to ask clarifying

questions, such as “to conﬁrm, you want to do X and

Y?” Although deviating from zero-shot tool calling,

this could conﬁrm users’ true intent, reﬁne sub-intent

breakdowns, improving retrieval accuracy.

The second limitation concerns optimizing the

tool selection threshold (top-k) for sub-queries. Cur-

rently, a ﬁxed threshold is split even across sub-

intents. However, if one sub-intent is more complex,

the ﬁxed top-k may hinder accuracy. Future research

could explore dynamic thresholds based on sub-intent

complexity, capped at the overall tool threshold.

The third limitation involves multi-turn chat his-

tory. For instance, if a chatbot calculates the net

present value of the user’s cash ﬂows and follows up

with “what if the initial cost was $500 more?”, re-

search is needed to determine whether to reuse the

initial tool set or rerun the retrieval process. We hope

that future contributions build on Advanced RAG-

Tool Fusion and Toolshed Knowledge Bases to maxi-

mize the tool-calling ability of LLM agents.

REFERENCES

Anantha, R., Bandyopadhyay, B., Kashi, A., Mahinder, S.,

Hill, A. W., and Chappidi, S. (2023). ProTIP: Pro-

gressive Tool Retrieval Improves Planning. Preprint,

arXiv:2312.10332.

Anthropic (2024). Tool use system prompt.

Asai, A., Wu, Z., Wang, Y., Sil, A., and Hajishirzi, H.

(2023). Self-RAG: Learning to Retrieve, Gener-

ate, and Critique through Self-Reﬂection. Preprint,

arXiv:2310.11511.

Chen, Y., Yoon, J., Sachan, D. S., Wang, Q., Cohen-Addad,

V., Bateni, M., Lee, C.-Y., and Pﬁster, T. (2024). Re-

Invoke: Tool Invocation Rewriting for Zero-Shot Tool

Retrieval. Preprint, arXiv:2408.01875.

Du, Y., Wei, F., and Zhang, H. (2024). AnyTool: Self-

Reﬂective, Hierarchical Agents for Large-Scale API

Calls. Preprint, arXiv:2402.04253.

Gao, L., Ma, X., Lin, J., and Callan, J. (2022). Precise

Zero-Shot Dense Retrieval without Relevance Labels.

Preprint, arXiv:2212.10496.

Gao, Y., Xiong, Y., Gao, X., Jia, K., Pan, J., Bi, Y., Dai, Y.,

Sun, J., Wang, M., and Wang, H. (2024). Retrieval-

Augmented Generation for Large Language Models:

A Survey. Preprint, arXiv:2312.10997.

Google Cloud (2024). Function declarations.

Hao, S., Liu, T., Wang, Z., and Hu, Z. (2024a).

ToolkenGPT: Augmenting Frozen Language Models

with Massive Tools via Tool Embeddings. Preprint,

arXiv:2305.11554.

Hao, Y., Cao, P., Jin, Z., Liao, H., Chen, Y., Liu, K., and

Zhao, J. (2024b). CITI: Enhancing Tool Utilizing

Ability in Large Language Models without Sacriﬁcing

General Performance. Preprint, arXiv:2409.13202.

Huang, T., Jung, D., and Chen, M. (2024a). Planning and

Editing What You Retrieve for Enhanced Tool Learn-

ing. Preprint, arXiv:2404.00450.

Huang, Y., Shi, J., Li, Y., Fan, C., Wu, S., Zhang, Q.,

Liu, Y., Zhou, P., Wan, Y., Gong, N. Z., and Sun, L.

(2024b). MetaTool Benchmark for Large Language

Models: Deciding Whether to Use Tools and Which

to Use. Preprint, arXiv:2310.03128.

Jagerman, R., Zhuang, H., Qin, Z., Wang, X., and Bender-

sky, M. (2023). Query Expansion by Prompting Large

Language Models. Preprint, arXiv:2305.03653.

Jeong, S., Baek, J., Cho, S., Hwang, S. J., and Park, J. C.

(2024). Adaptive-RAG: Learning to Adapt Retrieval-

Augmented Large Language Models through Ques-

tion Complexity. Preprint, arXiv:2403.14403.

Joshi, A., Sarwar, S. M., Varshney, S., Nag, S., Agrawal, S.,

and Naik, J. (2024). REAPER: Reasoning based Re-

trieval Planning for Complex RAG Systems. Preprint,

arXiv:2407.18553.

Kamradt, G. (2023). Needle in a haystack - pressure testing

LLMs: A simple ’needle in a haystack’ analysis to test

in-context retrieval ability of long context LLMs.

Khattab, O., Santhanam, K., Li, X. L., Hall, D., Liang,

P., Potts, C., and Zaharia, M. (2023). Demonstrate-

Search-Predict: Composing retrieval and language

ICAART 2025 - 17th International Conference on Agents and Artiﬁcial Intelligence

1186

models for knowledge-intensive NLP. Preprint,

arXiv:2212.14024.

Li, M., Zhao, Y., Yu, B., Song, F., Li, H., Yu, H., Li, Z.,

Huang, F., and Li, Y. (2023). API-Bank: A Com-

prehensive Benchmark for Tool-Augmented LLMs.

Preprint, arXiv:2304.08244.

Liu, W., Huang, X., Zeng, X., Hao, X., Yu, S., Li, D.,

Wang, S., Gan, W., Liu, Z., Yu, Y., Wang, Z., Wang,

Y., Ning, W., Hou, Y., Wang, B., Wu, C., Wang, X.,

Liu, Y., Wang, Y., Tang, D., Tu, D., Shang, L., Jiang,

X., Tang, R., Lian, D., Liu, Q., and Chen, E. (2024).

ToolACE: Winning the Points of LLM Function Call-

ing. Preprint, arXiv:2409.00920.

Lu, J., Holleis, T., Zhang, Y., Aumayer, B., Nan, F., Bai, F.,

Ma, S., Ma, S., Li, M., Yin, G., Wang, Z., and Pang,

R. (2024). ToolSandbox: A Stateful, Conversational,

Interactive Evaluation Benchmark for LLM Tool Use

Capabilities. arXiv:2408.04682 [cs].

Ma, X., Gong, Y., He, P., Zhao, H., and Duan, N. (2023).

Query Rewriting for Retrieval-Augmented Large Lan-

guage Models. Preprint, arXiv:2305.14283.

Moon, S., Jha, S., Erdogan, L. E., Kim, S., Lim, W.,

Keutzer, K., and Gholami, A. (2024). Efﬁcient and

Scalable Estimation of Tool Representations in Vector

Space. Preprint, arXiv:2409.02141.

Papineni, K. (2001). Why Inverse Document Frequency?

In Second Meeting of the North American Chapter of

the Association for Computational Linguistics.

Patil, S. G., Zhang, T., Wang, X., and Gonzalez, J. E.

(2023). Gorilla: Large Language Model Connected

with Massive APIs. Preprint, arXiv:2305.15334.

Peng, W., Li, G., Jiang, Y., Wang, Z., Ou, D., Zeng, X.,

Xu, D., Xu, T., and Chen, E. (2024). Large Language

Model based Long-tail Query Rewriting in Taobao

Search. Preprint, arXiv:2311.03758.

Qin, Y., Liang, S., Ye, Y., Zhu, K., Yan, L., Lu, Y., Lin,

Y., Cong, X., Tang, X., Qian, B., Zhao, S., Hong, L.,

Tian, R., Xie, R., Zhou, J., Gerstein, M., Li, D., Liu,

Z., and Sun, M. (2023). ToolLLM: Facilitating Large

Language Models to Master 16000+ Real-world APIs.

Preprint, arXiv:2307.16789.

Raudaschl, A. H. (2023). Forget RAG, the future is RAG-

Fusion: The next frontier of search: Retrieval Aug-

mented Generation meets Reciprocal Rank Fusion and

generated queries.

Robertson, S. and Zaragoza, H. (2009). The Probabilis-

tic Relevance Framework: BM25 and Beyond. ISSN:

1554-0669 Issue: 4 Pages: 333-389 Publication Title:

Foundations and Trends® in Information Retrieval

Volume: 3.

Roucher, A. (2023). Agentic RAG: Turbocharge your RAG

with query reformulation and self-query!

Sawarkar, K., Mangal, A., and Solanki, S. R. (2024).

Blended RAG: Improving RAG (Retriever-

Augmented Generation) Accuracy with Semantic

Search and Hybrid Query-Based Retrievers. Preprint,

arXiv:2404.07220.

Setty, S., Thakkar, H., Lee, A., Chung, E., and Vidra,

N. (2024). Improving Retrieval for RAG based

Question Answering Models on Financial Documents.

Preprint, arXiv:2404.07221.

Sun, W., Yan, L., Ma, X., Wang, S., Ren, P., Chen, Z., Yin,

D., and Ren, Z. (2023). Is ChatGPT Good at Search?

Investigating Large Language Models as Re-Ranking

Agents. Preprint, arXiv:2304.09542.

Tang, Q., Deng, Z., Lin, H., Han, X., Liang, Q., Cao, B.,

and Sun, L. (2023). ToolAlpaca: Generalized Tool

Learning for Language Models with 3000 Simulated

Cases. Preprint, arXiv:2306.05301.

Tang, Y. and Yang, Y. (2024). MultiHop-RAG: Benchmark-

ing Retrieval-Augmented Generation for Multi-Hop

Queries. Preprint, arXiv:2401.15391.

Theja, R. (2023). Boosting RAG: Picking the best embed-

ding & reranker models.

Trivedi, H., Balasubramanian, N., Khot, T., and Sabhar-

wal, A. (2023). Interleaving Retrieval with Chain-of-

Thought Reasoning for Knowledge-Intensive Multi-

Step Questions. Preprint, arXiv:2212.10509.

Wang, L., Yang, N., and Wei, F. (2023). Query2doc: Query

Expansion with Large Language Models. Preprint,

arXiv:2303.07678.

Wei, J., Wang, X., Schuurmans, D., Bosma, M., Ichter, B.,

Xia, F., Chi, E., Le, Q., and Zhou, D. (2023). Chain-

of-Thought Prompting Elicits Reasoning in Large

Language Models. Preprint, arXiv:2201.11903.

Wu, M., Zhu, T., Han, H., Tan, C., Zhang, X., and Chen,

W. (2024). Seal-Tools: Self-Instruct Tool Learning

Dataset for Agent Tuning and Detailed Benchmark.

Preprint, arXiv:2405.08355.

Xu, B., Peng, Z., Lei, B., Mukherjee, S., Liu, Y., and Xu,

D. (2023). ReWOO: Decoupling Reasoning from Ob-

servations for Efﬁcient Augmented Language Models.

Preprint, arXiv:2305.18323.

Yan, S.-Q., Gu, J.-C., Zhu, Y., and Ling, Z.-H. (2024). Cor-

rective Retrieval Augmented Generation. Preprint,

arXiv:2401.15884.

Yao, S., Shinn, N., Razavi, P., and Narasimhan, K.

(2024). τ-bench: A Benchmark for Tool-Agent-

User Interaction in Real-World Domains. Preprint,

arXiv:2406.12045.

Yao, S., Zhao, J., Yu, D., Du, N., Shafran, I., Narasimhan,

K., and Cao, Y. (2023). ReAct: Synergizing Rea-

soning and Acting in Language Models. Preprint,

arXiv:2210.03629.

Yuan, L., Chen, Y., Wang, X., Fung, Y. R., Peng, H., and Ji,

H. (2024a). CRAFT: Customizing LLMs by Creating

and Retrieving from Specialized Toolsets. Preprint,

arXiv:2309.17428.

Yuan, S., Song, K., Chen, J., Tan, X., Shen, Y., Kan, R.,

Li, D., and Yang, D. (2024b). EASYTOOL: Enhanc-

ing LLM-based Agents with Concise Tool Instruction.

Preprint, arXiv:2401.06201.

Zheng, H. S., Mishra, S., Chen, X., Cheng, H.-T., Chi,

E. H., Le, Q. V., and Zhou, D. (2024a). Take a Step

Back: Evoking Reasoning via Abstraction in Large

Language Models. Preprint, arXiv:2310.06117.

Zheng, Y., Li, P., Liu, W., Liu, Y., Luan, J., and Wang,

B. (2024b). ToolRerank: Adaptive and Hierarchy-

Aware Reranking for Tool Retrieval. Preprint,

arXiv:2403.06551.

Toolshed: Scale Tool-Equipped Agents with Advanced RAG-Tool Fusion and Tool Knowledge Bases

1187

APPENDIX

A: Toolshed Evaluation Framework

The Toolshed Evaluation Framework enhances Tool-

Eval (Qin et al., 2023) by introducing granular met-

rics: 1) tool name, 2) parameter keys, and 3) param-

eter values. These metrics pinpoint if poor agent per-

formance stems from errors in selecting tool names,

understanding parameter keys, or inputting values.

Recall is computed at the sub-metric level using the

golden dataset and agent responses. A weighted score

combines these metrics (50% tool name, 25% each for

keys and values), averaged for multiple tool calls in a

golden QA set.

User (Golden QA):

What is $AAPL's stock price?

Toolshed Evaluation Framework

Correct Tool Names (%) = 0% (Stock_Price)

Correct Tool Parameter Keys (%) = 100% (ticker)

Correct Tool Parameter Values (%) = 100% (AAPL)

Weighted Score (%) = 50%

Agent Response: [

{"tool_name":"Get_Stock_Price",

"arguments":[{"ticker":"AAPL"}]}]

Golden Tool(s): [

{"tool_name": "Stock_Price",

"arguments": [{"ticker":"AAPL"}]}]

Weighted Accuracy Score = Correct Tool Names (%) x .50 + Correct Tool Parameter

Keys (%) x .25 + Correct Tool Parameter Values (%) x .25

User (Golden QA):

What is $AAPL stock price?

Also, what is Ford's stock ticker?

Toolshed Evaluation Framework

Correct Tool Names (%) = 100% (Stock_Price and Get_Stock_Ticker)

Correct Tool Parameter Keys (%) = 50% (ticker but not company_name)

Correct Tool Parameter Values (%) = 100% (AAPL and Ford)

Weighted Score (%) = 87.5%

Agent Response: [

{"tool_name":"Stock_Price",

"arguments": [{"ticker":"AAPL"}]},

{"tool_name":"Get_Stock_Ticker",

"arguments":[{"company":"Ford"}]}]

Golden Tool(s): [

{"tool_name": "Stock_Price",

"arguments": [{"ticker":"AAPL"}]},

{"tool_name": "Get_Stock_Ticker",

"arguments": [{"company_name":"Ford"}]}]

Query type: Single reasoning trace

Query type: Multi-reasoning trace -- Parallel

(Since both tool calls are independent and can be executed in parallel)

Figure 4: Toolshed Evaluation Framework.

B: Varying tool-M and top-k

Measuring Base Agent Accuracy. The graphs

compare Seal-Tools weighted accuracy (Fig. 4) of

the Base Agent and Advanced RAG-Tool Fusion at

ﬁxed top-k across tool-M levels (1–3,500). The Base

Agent drops to 0% at tool-M=129 due to API limits

(128 tools) from providers (Anthropic, 2024; Google

Cloud, 2024). Advanced RAG-Tool Fusion, with top-

k ≤ 128, consistently outperforms the Base Agent.

Figure 5: Base Agent accuracy for Single Reasoning

Traces, varying tools 1–128.

Figure 6: Base Agent accuracy for Multi-Reasoning Traces,

varying tools 1–128. Sequential reasoning performs lower.

Figure 7: Comparison of Single-Reasoning Traces, varying

tools 1–3,500 and top-k. Higher top-k improves retrieval.

Figure 8: Comparison of Multi-Reasoning Traces, varying

tools 1–3,500 and top-k. Red retriever has no query decom-

position.

ICAART 2025 - 17th International Conference on Agents and Artiﬁcial Intelligence

1188

Measuring Token Cost. The graphs compare Seal-

Tools token counts for Base Agent and Advanced

RAG-Tool Fusion across tool-M levels ( 1–3,500) at

ﬁxed top-k. Token costs rise with more tools.

Figure 9: Prompt tokens (tools only) for Base Agent, vary-

ing tools 1–128 and top-k at 8, 16, 24.

Figure 10: Prompt tokens (tools only) for Base Agent, vary-

ing tools 1–3,500 and top-k at 8, 16, 24.

Optimizing Trade-Offs in Accuracy, Performance,

and Cost. A Base Agent struggles with more than

20 tools, while Advanced RAG-Tool Fusion scales to

thousands or limits tools to a manageable top-k. Fix-

ing top-k balances retrieval accuracy with token cost.

Figure 11: Trade-off between retrieval accuracy, agent per-

formance, and token cost across tool-M and top-k values.

Uses the Advanced RAG-Tool Fusion equation.

Impact of Embedders, Tool Conﬁgurations, tool-

M, and top-k. Retrieval accuracy improves slightly

with advanced embedders and richer tool compo-

nents, while relying only on tool name and descrip-

tion leads to lower accuracy.

Figure 12: No query decomposition: Embedder is text-

embedding-ada-002, using tool name and description.

Figure 13: With query decomposition: Embedder is text-

embedding-ada-002, using tool name and description.

Figure 14: Query decomposition, embedder is text-

embedding-3-small, with tool name, description, and arg

schema.

C: Case Study

Conﬁguration (per each Toolshed Knowledge

Base).

• LLM: AOI gpt-4o-2024-08-06

• Embedder: AOI text-embedding-3-small

• Tool-M: 1,000 (per each TSKB)

• Top-k: 10 (ﬁnal agent)

Toolshed: Scale Tool-Equipped Agents with Advanced RAG-Tool Fusion and Tool Knowledge Bases

1189

Hypothetical Situation

You have 3,000 tools or functions and aim to create a multi-agent system. Each agent uses a dedicated Toolshed Knowledge Base and implements

Advanced RAG-Tool Fusion for optimized retrieval and execution. The tools are divided among the following sub-agents:

• 1,000 Finance Tools: Focused on financial operations and analytics.

• 1,000 Database Operation Tools: Designed for database management and query execution.

• 1,000 Healthcare Tools: Tailored for healthcare-related tasks and insights.

Figure 15: Hypothetical Situation for Case Study. See above for conﬁguration of each Toolshed Knowledge Base.

Pre-retrieval (indexing)

The following steps outline the pre-processing pipeline needed for each set of tools. After step 6, store the tool documents in a vector database.

1. Create Clear, Descriptive Names for Each Tool

Each tool should have a name that clearly describes its function.

2. Develop Clear Descriptions for Each Tool

Provide a detailed description of each tool, including specific scenarios where it would be used and where it wouldn't.

3. Define Clear Argument Schema with Parameter Names and Descriptions for Each Tool

List and define the input arguments for each tool.

4. Optional: Generate Hypothetical Questions for Each Tool (may help with retrieval)

Add 1-10 diverse user questions related to the tool. Use existing questions if available. Try to include parameters.

5. Optional: Generate Key Topics, Themes, or Intents for Each Tool (may help with retrieval)

Add 1–10 key topics or intents associated with the tool. Be concise and differentiable from other tools. Can generate from the hypothetical questions and tool name, description, and argument schema.

6. Metadata for Tool Name in Code Repository

7. Optional: Metadata filtering for hierarchical or group-based tool groups

e.g. "get_net_present_value"

"Calculates the net present value (NPV) of a series of cash inflows and outflows over a specified period, discounted to present value based on a given rate. Useful for determining the value of future

cash flows, particularly in investment scenarios, when provided with initial investment, discount rate, and time period."

initial_value: "The initial cash flow at the start of the period, which could be an investment, cost, or inflow."

start_date: "The beginning date of the cash flow period."

end_date: "The end date of the cash flow period."

discount_rate: "The rate used to discount future cash flows to their present value."

scrap_value: "The final residual value of the asset at the end of the period."

cash_flows: "A series of inflows and outflows over the specified period."

1. "What is the NPV for a project starting on January 1, 2025, with an initial outflow of $100,000, annual cash flows of $15,000, and a discount rate of 8%?"

2. "Calculate the net present value for cash flows of $20,000 per year over 10 years, with a 7% discount rate."

3. "What is the NPV if my project ends in December 2030, with an initial cost of $50,000 and a scrap value of $5,000?"

1. "Investment Valuation"

2. "Cash Flow Analysis"

{"tool_name":"get_net_present_value"}

{"sub_group":"financial_calculations"}

Figure 16: Case study pre-retrieval phase.

Logistics and Maintenance of Toolshed Knowledge Base with Tool Calling

The following steps outline best practice considerations when using Advanced RAG-Tool Fusion and Toolshed Knowledge Bases in production.

1. Unified tools.py for each Toolshed Knowledge Base

To aid in maintaining the tools or functions, each set of tools used for a Toolshed Knowledge Base should be separated.

2. Ability to add a new tool to the Toolshed Knowledge Base

Automated systems in place to add a new tool/function to the Toolshed Knowledge Base.

Recommended solution: Use hashes to track changes in tool name, description, argument schema, and any appended questions or key topics/intents. Steps: generate a unique hash for each tool and compare it to

the previously stored hash to identify when re-indexing or updates are necessary.

3. Ability to delete a tool to the Toolshed Knowledge Base

Automated systems in place to add a new tool/function to the Toolshed Knowledge Base.

the previously stored hash to identify when re-indexing or updates are necessary.

4. Ability to update a tool to the Toolshed Knowledge Base

Automated systems in place to update an existing tool/function to the Toolshed Knowledge Base.

the previously stored hash to identify when re-indexing or updates are necessary.

5. Generate a Toolshed Dictionary from the tools.py file for actual agent-tool execution

The Toolshed dictionary will serve as a in-app, inference-time look-up, where each key is the tool name in tools.py, and the value is the actual python tool or function.

After Advanced RAG-Tool Fusion retrieves the top-k relevant tools to equip to an agent, these tools are actually the documents represented by the vector database. For each retrieved tool document, use the tool

document metadata key "tool_name" that we set up in step 6 of phase 1 pre-retrieval/indexing to access the key-value pair of the Toolshed Dictionary. You can then attach these functions to the agent in the

framework of your choice.

finance_tools.py -- the collection of 1,000 finance tools in whatever tool creation framework of your choice.

top-k

tools

tool.metadata["tool_name"]

( ...)

Toolshed Dictionary:

{"get_net_present_value":

GetNetPresentValue(),

"...": Tool()}

Agent

Attach tools to agent

[ GetNetPresentValue(), Tool() ]

Figure 17: Case study logistics in production.

ICAART 2025 - 17th International Conference on Agents and Artiﬁcial Intelligence

1190

Intra-retrieval (inference)

User: "current value of inv of 5k, yearly flows 3k for 3 yrs @ R 3.5, also IRR for

another one 7k cost, 4k flows for 8 yrs, 2.75%"

Initial Query Rewriting: "What is the NPV of an initial investment of $5,000 with

yearly cash flows of $3,000 for 3 years at a 3.5% rate? Also, calculate the internal rate

of return (IRR) for another investment with an initial cost of $7,000 and yearly cash

flows of $4,000 for 8 years."

Query/Intent Decomposition and Planning:

D1. "What is the NPV of an initial investment of $5,000 with yearly cash flows of

$3,000 for 3 years at a 3.5% rate?"

D2. "What's the internal rate of return (IRR) for an investment with initial cost of

$7,000 and yearly cash flows of $4,000 for 8 years at 2.75% rate?"

Q1. "How do I calculate the NPV for a

$5,000 investment with yearly cash flows

of $3,000 for 3 years at a 3.5% discount

rate in Excel or Python?"

Q2. "Calculate net present value or

NPV?"

Q3. "If I’m learning finance from courses

or a tutor, how do I calculate the net

present value of a $5,000 investment

generating $3,000 yearly for 3 years with

a discount rate of 3.5%?"

Multi-query Expansion or Variation

Can be parallelized by each D1, D2, Dn

Q1. "What is the internal rate of return

(IRR) and how does it show profitability

of an investment?"

Q2. How can I use IRR to determine if a

$7,000 investment with $4,000 yearly

cash flows for 8 years is profitable?"

Q3. "How to calculate the IRR or

Internal Rate of Return in Excel or

Python to assess the profitability of an

investment with $4,000 annual returns

over 8 years?"

Retrieval (mini top-k for each query variation can be configured, using 5 here)

top-k

tools

The following are Advanced RAG-Tool Fusion modules to build. Not all

modules are necessary, but if used, require an ordered pipeline.

Module 1: Initial Query Rewriting

Rewrite the query to correct any errors (spelling, grammar,

unclear pronouns) using available context, like chat history, to

improve clarity and quality for retrieval.

Module 2: Query/Intent Decomposition and Planning

Break down the query into smaller, independent steps, ensuring

each sub-question focuses on a specific tool or task.

Module 3: Multi-query Diversification, Variation, or Expansion

Generate multiple query variations by adding relevant keywords

and phrases, ensuring the expanded queries cover different

approaches and variations in terminology to improve retrieval

accuracy.

Can utilize step-back prompting to generate a abstract high-

level query to aid in retrieval

Can utilize key topics/intents/themes of the query to aid in

retrieval

Module 4: Retrieval

Use the rewritten, decomposed, and expanded query to retrieve

the correct tool(s) from the Toolshed Knowledge Base, ensuring

the retrieved tools match the sub-questions for relevance and

correctness.

Can be parallelized by each D1, D2, Dn, and by each D1, Q1-3

Q1-D1 Q2-D1 Q2-D1

top-k

tools

top-k

tools

top-k

tools

top-k

tools

Q1-D2 Q2-D2 Q2-D2

top-k

tools

top-k

tools

top-k

tools

Figure 18: Case study intra-retrieval phase.

not all

found all tools needed

Post-retrieval

The following are Advanced RAG-Tool Fusion modules to build. Not all

modules are necessary, but if used, require an ordered pipeline. Post-

retrieval primarily deals with reranking, corrective RAG, and self-RAG.

Module 1: Optional: reranking, Corrective RAG for Individual

Query Variations

Using a reranking embedder or LLM can improve the retrieval

accuracy for each query variation by reranking the initial top

10-15 tools and keeping the top 5. If reranking isn't necessary,

directly retrieve the top 5 tools.

Module 2: Reranking, Corrective RAG for Multiple Query

Variations for D1 (Di)

Condensing/reranking the multiple sets of retrieved mini top-k

query variations into a single penultimate set of top-k tools for a

single query decomposition/intent/plan.

Use either an LLM or reranking embedder, and discard

irrelevant tools during the process.

Ensure no duplicates in the final set.

Module 3: Reranking, Corrective RAG if multiple query

decompositions

Rerank the top-k tools across multiple decomposed queries and

retain the most relevant tools.

Corrective RAG can discard irrelevant tools during reranking,

and duplicates should be removed.

Module 4: Optional: Self-RAG

If necessary tools are missing, an agent can re-query the

Toolshed Knowledge Base using additional keywords to

retrieve the correct tools to answer the user question

Previous Step: Retrieval (mini top-k for each query variation, using 5 in this case)

Q1-D1 Q2-D1 Q2-D1 D2 Q1-D2 Q2-D2 Q2-D2

top-k

tools

top-k

tools

top-k

tools

top-k

tools

top-k

tools

top-k

tools

top-k

tools

top-k

tools

Optional: Reranking Individual Query Variations

top-k

tools

top-k

tools

top-k

tools

top-k

tools

The first top-k from D1→top-k can be larger and reranked to the bottom top-k.

Ex. D1→10 tools→reranked→5 tools

top-k

tools

top-k

tools

top-k

tools

top-k

tools

top-k

tools

Reranking Multiple Query Variations for D1, D2, Dn

The individual query variation top-k can be different than the final top-k for D1 (Di).

Ex. 5 tools + 5 tools + 5 tools + 5 tools → max. 10 tools (or max. 5)

top-k

tools

Reranking Multiple Query Decompositions into Final Tool List for Agent

Attach to Agent

top-k

tools

Agent

Optional: Self-RAG

Agent

{"tool_query":

"NPV "}

top-k

tools Agent:

Answers using tools.

Figure 19: Case study post-retrieval phase.

Toolshed: Scale Tool-Equipped Agents with Advanced RAG-Tool Fusion and Tool Knowledge Bases

1191
