Application-Guided Image Fusion: A Path to Improve Results in

High-Level Vision Tasks

Gisel Bastidas-Guacho

1,2 a

, Patricio Moreno-Vallejo

2,1 b

, Boris Vintimilla

1 c

and

Angel D. Sappa

1,3 d

ESPOL Polytechnic University, Campus Gustavo Galindo, Km. 30.5 V

ıa Perimetral, Guayaquil, Ecuador

ESPOCH Polytechnic University, South Pan-American Highway km 1 1/2, Riobamba, Ecuador

Computer Vision Center, Campus UAB, 08193 Bellaterra, Barcelona, Spain

Keywords:

Multimodal, Fusion, Semantic Segmentation, Application-Driven.

Abstract:

This paper proposes an enhanced application-driven image fusion framework to improve ﬁnal application

results. This framework is based on a deep learning architecture that generates fused images to better align

with the requirements of applications such as semantic segmentation and object detection. The color-based

and edge-weighted correlation loss functions are introduced to ensure consistency in the YCbCr space and

emphasize structural integrity in high-gradient regions, respectively. Together, these loss components allow

the fused image to retain more features from the source images by producing an application-ready fused image.

Experiments conducted on two public datasets demonstrate a signiﬁcant improvement in mIoU achieved by

the proposed approach compared to state-of-the-art methods.

1 INTRODUCTION

In recent years, the proliferation of imaging devices

capable of capturing data across a range of spectral

bands has unlocked new possibilities for computer vi-

sion applications beyond the visible spectrum. These

multimodal devices are increasingly used in ﬁelds

such as surveillance, driver assistance, mobile tech-

nology, and industrial monitoring, just to mention a

few (Sun et al., 2021; Karim et al., 2023). Effec-

tively processing the diverse information from these

sensors requires advanced multimodal image fusion

techniques, which combine data from different spec-

tral bands to provide a comprehensive, enhanced view

of the scene. It is important to note that for opti-

mal fusion results, the images captured by different

modalities must be properly registered to ensure ac-

curate alignment and integration of information (Ve-

lesaca et al., 2024).

Multimodal image fusion techniques aim to ex-

tract and integrate complementary information from

images captured in different modalities. As an exam-

https://orcid.org/0000-0002-6070-7193

https://orcid.org/0000-0002-9317-9884

https://orcid.org/0000-0001-8904-0209

https://orcid.org/0000-0003-2468-0031

ple of these multimodal image fusion techniques, we

can mention approaches based on the usage of vis-

ible (VIS) and thermal infrared (IR). In these cases

VIS and IR are commonly fused because each pro-

vides complementary information. For instance, visi-

ble images offer texture details of the image, but low-

light conditions and occlusions can hinder it. In con-

trast, infrared images capture thermal radiation, al-

lowing them to provide temperature information in-

dependently of lighting conditions (Liu et al., 2024b).

Therefore, the resulting fused image contains valu-

able enriched information for high-level vision tasks

such as semantic segmentation, object detection, and

classiﬁcation.

Several multimodal image fusion approaches ex-

ist; however, most do not consider application. In

other words, the fused image is not optimized for a

high-level task (Tang et al., 2022c; Le et al., 2022;

Karim et al., 2023; Liang et al., 2024; Yang et al.,

2024). For instance, PIAFusion is a fusion frame-

work that integrates a cross-modality differential fu-

sion module and an illumination-aware loss func-

tion to adaptively combine salient features from both

modalities according to the lighting context. How-

ever, this framework does not consider speciﬁc high-

level vision application contexts that could be useful

178

Bastidas-Guacho, G., Moreno-Vallejo, P., Vintimilla, B. and Sappa, A. D.

Application-Guided Image Fusion: A Path to Improve Results in High-Level Vision Tasks.

DOI: 10.5220/0013307300003912

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 20th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2025) - Volume 3: VISAPP, pages

178-187

ISBN: 978-989-758-728-3; ISSN: 2184-4321

to decide which salient feature is more important.

In order to enhance high-level vision tasks with

multimodal images, several studies propose end-to-

end frameworks where the fusion result is not repre-

sented as an image (Zhang et al., 2021; Sun et al.,

2021; Chu and Lee, 2023; Xiao et al., 2024; Liu

et al., 2024c). However, these frameworks often

need more ﬂexibility and adaptability to different

applications. Therefore, recent deep learning ap-

proaches integrate the fusion and application process

in a uniﬁed pipeline, using the fused image as an in-

termediate output (Tang et al., 2022b; Tang et al.,

2022a; Sun et al., 2022; Liu et al., 2024b). These

application-driven multimodal image fusion methods

connect the fusion and application networks through

a feedback mechanism during learning, enabling mu-

tual enhancement. That is, the high-level vision ap-

plication beneﬁts from improved fusion, while the

fusion process is simultaneously optimized to more

effectively support the application (Bastidas-Guacho

et al., 2023). Figure 1 illustrates the pipeline of

the end-to-end application framework and the multi-

modal application-driven image fusion framework.

Among the different applications that take advan-

tage of multimodal source of information, we can

ﬁnd the multimodal semantic segmentation (MSS).

MSS is a high-level vision task that has gained sig-

niﬁcant attention due to its ability to capture com-

prehensive information from various modalities, such

as infrared and visible images, to enhance segmenta-

tion accuracy. This approach has proven invaluable in

ﬁelds such as autonomous driving (Feng et al., 2020)

and surveillance (Wang et al., 2021), where single-

modal data often need more detail to ensure reliable

decision-making (Dong et al., 2024). Application-

driven frameworks have been developed for multi-

modal semantic segmentation. For example, Tang

et al. introduce a semantic-aware framework for in-

frared and visible image fusion (Tang et al., 2022b).

This framework employs the loss function as a feed-

back mechanism between fusion and application to

optimize both the quality of the fused image and the

effectiveness of high-level vision tasks. Another ap-

proach is proposed in (Liu et al., 2023), which em-

ploys a hierarchical interactive attention block to en-

hance feature exchange between fusion and segmen-

tation tasks.

In application-driven approaches, the loss func-

tion is the feedback mechanism, integrating fusion

and application during learning. The current work

proposes an adaptation of an existing application-

driven fusion approach to improve MSS results. A

new loss function is proposed to simultaneously opti-

mize both fusion and ﬁnal application, incorporating

additional semantic information into the learning pro-

cess. The network architecture is based on the frame-

work presented in (Tang et al., 2022b). We propose

the use of color and correlation between the source

multimodal images and fused images in order to max-

imizes the preservation of the salient features from

visible and infrared modalities. The correlation is

computed in a weighted manner to measure the sim-

ilarity of intensity variations between the fused and

source images. This approach aims to preserve more

detail in the fused image to improve high-level vision

tasks results. The approach proposed in this paper is

compared with the state-of-the-art application-driven

image fusion frameworks.

This paper is organized as follows. Section 2

brieﬂy introduces existing application-driven multi-

modal image fusion approaches for semantic segmen-

tation. In Section 3, the adaptation proposed in the

current work is presented. Section 4 presents the ex-

perimental validations of the proposed method. Fi-

nally, Section 5 provides conclusions and discusses

future directions for deep learning-based multimodal

image fusion in semantic segmentation.

2 RELATED WORK

This section details deep learning-based multi-

modal image fusion methods for semantic segmenta-

tion. Firstly, standalone approaches are summarized,

then end-to-end frameworks, and ﬁnally application-

driven approaches are reviewed.

2.1 Standalone Fusion Frameworks

Traditional multimodal image fusion methods are

limited by ﬁxed fusion rules and high computational

demands (Li et al., 2023). Recent deep learning-based

frameworks automate feature extraction, integration,

and image reconstruction, addressing limitations in

traditional methods. These frameworks dynamically

balance the contributions of each modality. (Zhang

and Demiris, 2023) categorize these approaches as

CNN-based (Mustafa et al., 2020; Li et al., 2020;

Tang et al., 2022c; Xu et al., 2022), autoencoder-

based (Li and Wu, 2018; Wang et al., 2022; Yang

et al., 2024; Liu et al., 2024a), GAN-based (Ma et al.,

2020; Fu et al., 2021; Zhang et al., 2024a), and

transformer-based.

CNN-based frameworks ﬁrst automate feature ex-

traction and fusion with enhancements such as resid-

ual and dense connections to retain good detail and

attention mechanisms for feature emphasis. For in-

stance, in (Li et al., 2020) the author propose to use

Application-Guided Image Fusion: A Path to Improve Results in High-Level Vision Tasks

179

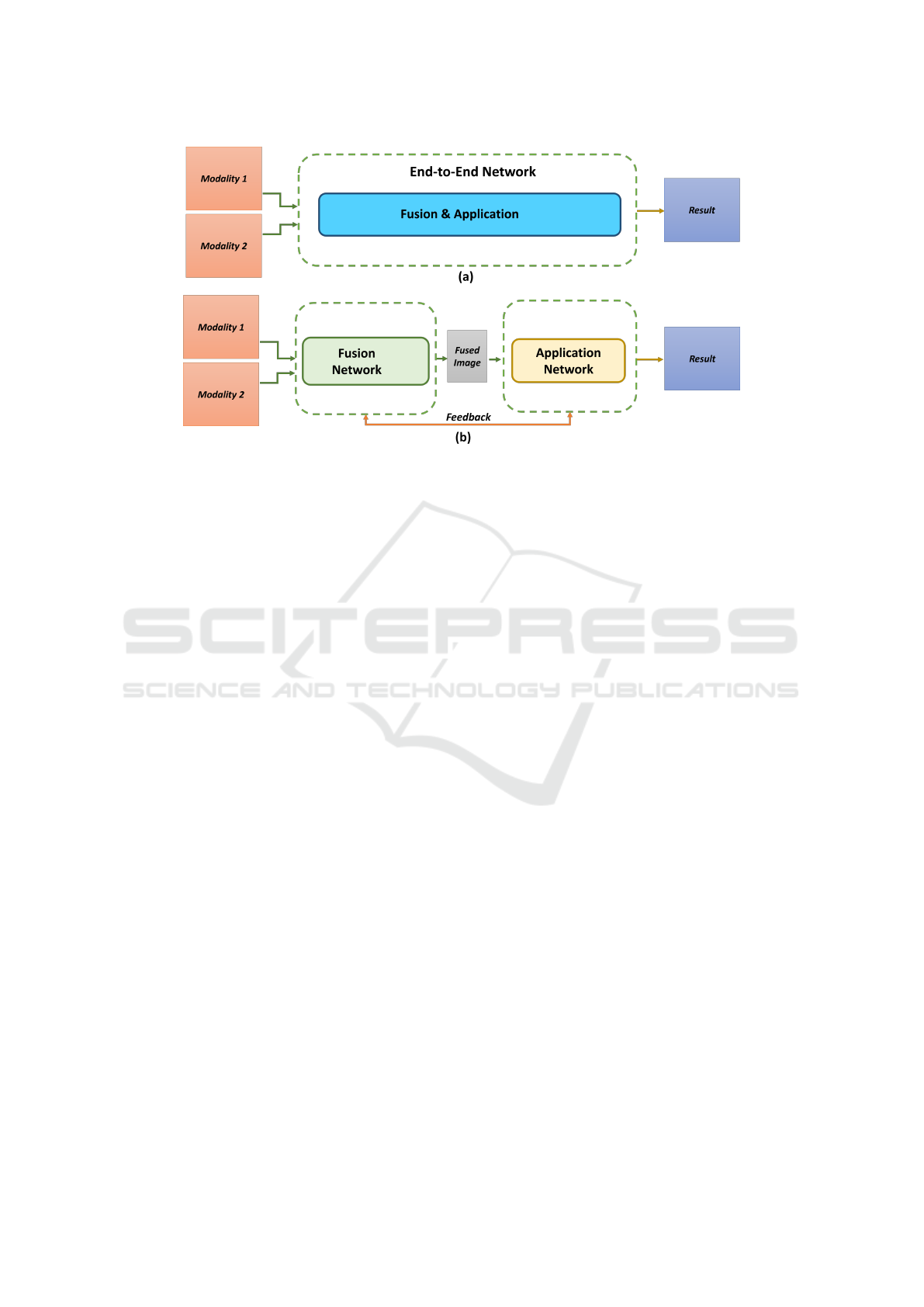

Figure 1: (a) End-to-end approaches of multimodal image-based application pipeline. (b) Application-driven image fusion

approaches pipeline.

a dense connection structure combined with an atten-

tion mechanism to enhance fusion performance. They

introduce cross-dimensional weighting and aggrega-

tion to calculate an attention map tailored for infrared

and visible image fusion. Another standalone fusion

framework has been proposed in (Tang et al., 2022c),

referred to as PIAFusion; this architecture is a CNN-

based framework incorporating an illumination esti-

mation module that detects the lighting conditions of

the scene (day or night). This module adapts the fu-

sion process by focusing on visible details in well-

lit conditions and prioritizing infrared information in

low-light scenarios.

Autoencoder-based frameworks use the encoder

for feature extraction and the decoder for image re-

construction. Recently, in (Liu et al., 2024a), the DS-

Fusion model has been proposed. It consists of an

encoder, a local attention module, an attention mech-

anism for feature extraction and fusion, and a decoder

to generate the fused image. Similarly, the CEFu-

sion framework has been proposed in (Yang et al.,

2024). It includes a multigranularity feature separa-

tion encoder, a triple-branch scene ﬁdelity module,

a progressive cross-granularity interaction feature en-

hancement module, and an image reconstruction de-

coder.

GAN-based frameworks have been also proposed

for image fusion. For instance, FusionGAN (Ma

et al., 2019) use adversarial networks to integrate visi-

ble and infrared features while retaining target clarity.

Recently, (Zhang et al., 2024a) introduces a Guided

Restoration Module, which uses a Conditional GAN

to recover relevant information hidden in the darkness

in the visible modality. GAN-based models incor-

porate multiple discriminators to effectively maintain

thermal and visible information. Due to transform-

ers’ ability to handle long-range dependencies, they

have recently been applied to feature extraction in im-

age fusion. Frameworks like DNDT (Zhao and Nie,

2021) and SwinFusion (Ma et al., 2022), utilize self-

attention to enhance multi-scale feature extraction.

Other architectures combine transformers with GANs

and CNNs, integrating spatial and channel-based at-

tention such as CGTF (Li et al., 2022).

Although standalone approaches are designed to

obtain the best representation based on the input data,

these approaches do not consider the speciﬁc needs

or constraints of the application where the fused im-

age will be used. For this reason, when attempting to

preserve the input information in a balanced way, the

best result may not be optimized for a given applica-

tion. Thus, if the method does not adapt the fusion

to the needs of applications, the intended multimodal

preservation balance can degrade the performance of

the application. It highlights the need for application-

driven image fusion strategies.

2.2 End-to-End Fusion and Application

Frameworks

End-to-end frameworks for multimodal fusion and

applications consist of a uniﬁed pipeline to stream-

line workﬂow, from data preprocessing to feature ex-

traction, fusion and prediction. Most of these ap-

proaches use a two-branched encoder-decoder back-

bone network. In (Sun et al., 2021) a backbone net-

work based on residual FCN architecture is used. It

introduces two types of attention fusion modules (in-

VISAPP 2025 - 20th International Conference on Computer Vision Theory and Applications

180

tramodal and intermodal) to integrate features within

and across modalities effectively. The network also

employs a multiscale supervision training strategy to

optimize performance across different resolutions of

the feature.

On the other hand, (Wang et al., 2023) proposes

SGFNet. This network uses an asymmetric encoder

and a decoder. The encoder processes RGB and IR

branches. It uses semantic guidance head for semantic

information extraction from IR images. Besides, the

multimodal coordination and distillation unit and the

cross-level and semantic-guided enhancement unit

are designed to enhance feature fusion while minimiz-

ing interference from lighting noise in RGB inputs.

Moreover, the edge-aware Lawin ASPP decoder (Yan

et al., 2022) reﬁnes segmentation boundaries by in-

corporating edge information from low-level features.

Recently, in (Xiao et al., 2024) the authors use the

encoder and transformer decoder as the backbone of

the framework and propose GM-DETR, which em-

ploys a two-stage training strategy that involves iso-

lated training on individual RGB and IR data sets fol-

lowed by a fusion stage with aligned multimodal data.

End-to-end frameworks for multimodal fusion and

application often do not allow visualizing intermedi-

ate fusion results, which may limit the ability to as-

sess how well information from each modality is in-

tegrated. This limitation highlights the need for ap-

proaches that offer modular fusion and application

stages to allow more control and interpretation of the

fusion process, as well as the use of different applica-

tion frameworks.

2.3 Application-Driven Fusion

Frameworks

Application-driven multimodal image fusion frame-

works optimize the fusion process to improve perfor-

mance in a given high-level vision task—in the cur-

rent work semantic segmentation will be considered.

These approaches leverage the complementary infor-

mation of each modality by aligning the fused out-

put with the speciﬁc needs of high-level vision tasks.

In (Tang et al., 2022b) the SeAFusion is proposed;

it performs cascade optimization between the fusion

and application networks using semantic loss to guide

high-level vision task information back into the image

fusion module. The infrared and visible image fusion

network consists of a feature extractor and an image

reconstructor. The feature extractor is based on gradi-

ent residual dense blocks, while the image reconstruc-

tor utilizes a convolutional layer. The training strategy

iteratively alternates between the fusion network and

the segmentation network. As segmentation network

the authors propose to use the architecture presented

in (Peng et al., 2021), but other networks could be

also considered.

Another application-driven fusion framework is

the SegMiF (Liu et al., 2023); it is a multi-interactive

feature learning framework for joint multimodal im-

age fusion and segmentation. This framework uti-

lizes a cascade structure combining a fusion sub-

network and a segmentation sub-network, where se-

mantic information is exchanged through a hierar-

chical interactive attention block to enhance feature

integration. In order to balance the importance of

each task, a dynamic weighting factor is proposed,

which automatically optimizes parameters. Recently,

the mutually reinforcing image fusion and segmenta-

tion framework has been proposed in (Zhang et al.,

2024b). It leverages a coupled learning approach

that uses the interactive gated mix attention module,

which reﬁnes visual features and addresses issues like

mismatched feature scores, and the progressive cy-

cle attention module, which enhances semantic under-

standing by enabling both self-reinforcement within

a single modality and cross-modal complementarity.

HitFusion (Chen et al., 2024) is another example of

a application-driven framework. It is based on trans-

formers using a three-stage training strategy. A cross-

feature transformer module is introduced to enhance

feature extraction by capturing correlations between

visible texture and infrared contrast features. The

architecture also uses a dual-branch network design

with contrast residual and texture enhancement mod-

ules to allow deep feature extraction from source im-

ages.

The aforementioned application-driven frame-

works have progressively reﬁned loss functions to

enhance the extraction and integration of critical in-

formation across modalities. The enhancement in

the loss function design helps preserve salient fea-

tures from infrared images and detailed textures from

visible images. As a result, the fused images are

more valuable and practical for high-level vision ap-

plications. Therefore, it demonstrates that a well-

structured loss function is necessary for effective fea-

ture integration and task performance in multimodal

image fusion for a given application.

3 METHODOLOGY

This section presents in detail the proposed frame-

work introducing the designed loss function.

Application-Guided Image Fusion: A Path to Improve Results in High-Level Vision Tasks

181

3.1 Problem Deﬁnition

The infrared and visible fusion problem in this paper

aims to combine complementary information from an

infrared image I

and a visible image I

into a single

fused image I

. Formally, given two registered input

images I

and I

, the objective is to construct a fused

image I

, which is deﬁned as:

= F(I

), (1)

where F(·) represents the fusion network. The net-

work F(·) must learn to capture and retain the contrast

information from I

(such as thermal radiation and

object saliency) and the ﬁne-grained texture details

from I

, optimizing I

in order to improve the high-

level vision application performance. Since ground

truth fused images are unavailable, the fusion prob-

lem is approached as an unsupervised learning task.

Thus, a loss function that guides the training is de-

ﬁned.

3.2 Framework

In the current paper the SeAFusion framework (Tang

et al., 2022b) is used as the basis for the application-

driven multimodal image fusion approach. Through

SeAFusion’s application-driven structure, we can op-

timize the fusion output for visual ﬁdelity and support

high-level vision tasks such as semantic segmenta-

tion; other tasks, or segmentation architectures, could

be also considered. In that way, we ensure that the

fused images are informative and applicable to real-

world scenarios. In this framework we introduce a

new loss function to address certain limitations in

SeAFusion and preserve more structural and texture

details in the fused image. Thus, the new loss function

generates a more balanced fusion output, which helps

to enhance the performance of application-driven im-

age fusion approaches and makes them more robust

for real-world applications.

3.3 Loss Function

The fused image quality relies on the loss function

because it is the primary guide for the fusion pro-

cess. The loss function ensures that the fused image

retains features and details from the source images.

A well-designed loss function can balance preserv-

ing structural information, enhancing feature contrast,

and reducing artifacts. In order to reinforce seman-

tic information in the fused image, we propose a loss

function that maximizes the preservation of the con-

tent and structural integrity of I

with respect to both,

and I

to facilitate high-level vision tasks such as

semantic segmentation, which is the case of the cur-

rent study. The loss function includes both fusion loss

fusion

) and segmentation loss (L

seg

), formulated as:

total

= L

fusion

) + λL

seg

), (2)

where λ is a hyperparameter to trade off the content

and segmentation losses.

3.3.1 Fusion Loss

In order to achieve a more accurate fusion output that

preserves structural and texture details to align with

the requirements of the given high-level vision tasks,

we propose L

fusion

, which consists of four terms de-

ﬁned as follows:

fusion

= L

int

+ αL

text

+ βL

color

+ γL

wcorr

, (3)

where L

int

, L

text

, L

color

, and L

wcorr

denote the inten-

sity loss, the texture loss, the color loss, and the edge-

weighted correlation loss, respectively. α, β, and γ

are hyperparameters that control the inﬂuence of each

component on the total fusion loss.

The intensity loss aims to preserve the intensity

patterns in the fused image by measuring pixel-by-

pixel intensity difference between fused images and

source image. This loss is represented as:

int



−max(I

)



, (4)

where H and W represent the height and width of the

images, respectively.

∥

denotes ℓ

-norm. max(·)

stands for the element-wise maximum selection.

The texture loss is used to preserve the texture de-

tails of the source images, which is deﬁned as:

texture



|∇I

|−max(|∇I

|,|∇I



, (5)

where ∇ refers to Sobel gradient operator. |·| indi-

cates the absolute operation.

The color loss aims to maintain color consistency

in YCbCr space as proposed in (Zhang et al., 2024b),

which is deﬁned as:

color



−Cb



−Cr



, (6)

where Cb

and Cr

represent the Cb and Cr channels

of I

, respectively.

denotes the visible image that

is transformed using gamma correction, and Cb

and

denote the Cb and Cr channels of

Finally, the edge-weighted correlation loss

wcorr

) measures the Pearson correlation coefﬁcient

in a weighted manner. Traditional correlation mea-

sures treat all regions of an image equally, which can

lead to suppression of structural features, especially

in areas such as edges. These features convey critical

VISAPP 2025 - 20th International Conference on Computer Vision Theory and Applications

182

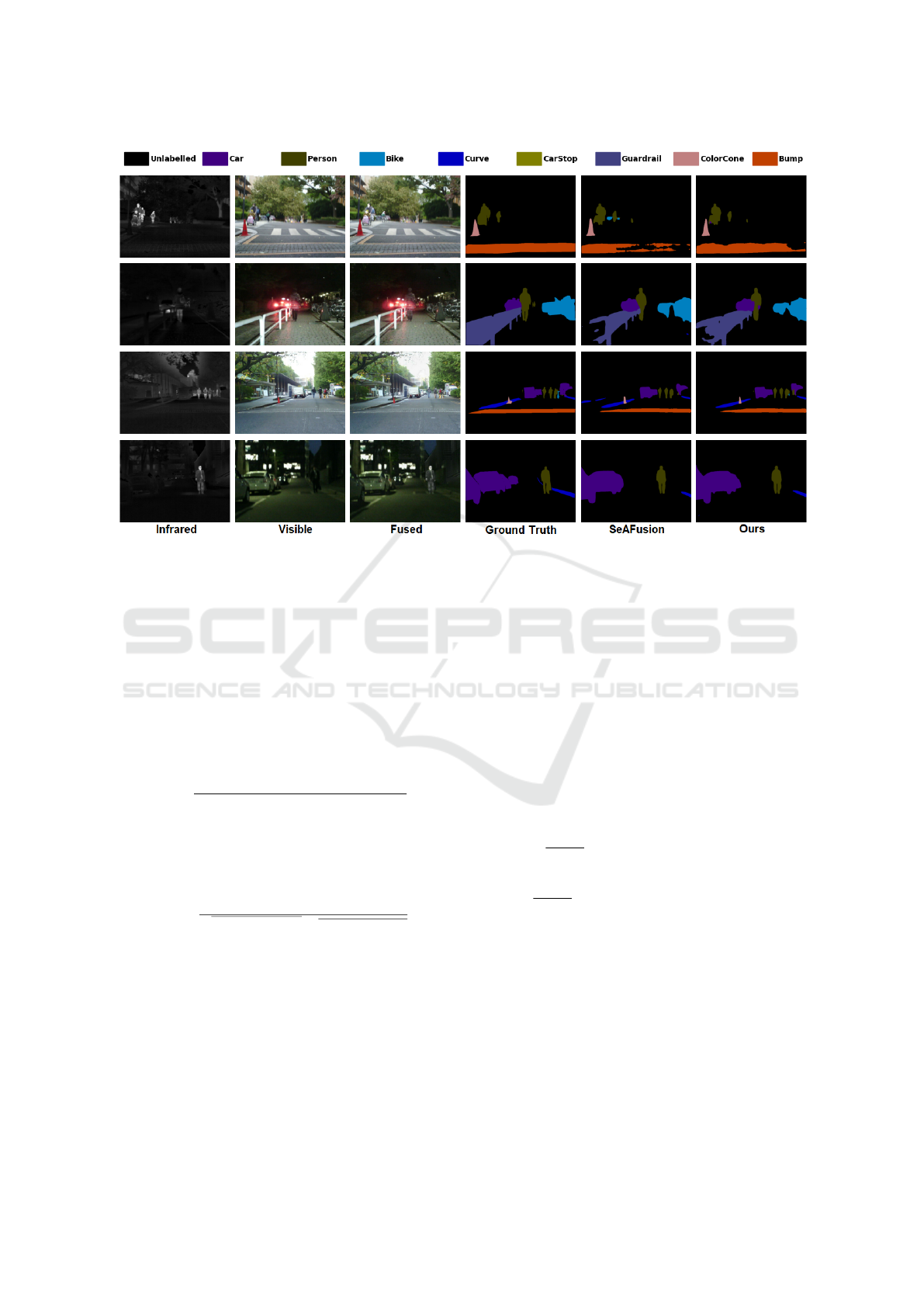

Figure 2: Results on MSRS dataset.

information about the underlying content, which

can be helpful for computer vision applications.

Therefore, L

wcorr

uses the Sobel gradient value as

the mask for prioritizing regions with high structural

importance to make the correlation measure more

sensitive to edge preservation in the fusion process.

High-weighted correlations in edge regions indicate

effective retention of essential features from the

source images. On the other hand, lower correlations

in homogeneous regions imply less emphasis on

these areas. It is expressed as:

wcorr

WCorr

)+WCorr

)

, (7)

where WCorr (·) denotes the weighted correlation

function, S

and S

refer to Sobel gradient mask for

infrared and visible modalities, respectively. WCorr

is computed as follows:

WCorr

∑

i=1

·(I

−

)(I

−

)

∑

i=1

·(I

−

)

√

∑

i=1

·(I

−

)

(8)

where x denotes the infrared or visible modalities.

The weighted correlation function ensures that the

correlation calculation focuses on high-gradient re-

gions (edges) while reducing the inﬂuence of homo-

geneous areas (non-edge regions).

In conclusion, the proposed fusion loss compo-

nents together balance preservation and adaptation

among multimodality information. In that way, they

allow the production of a fusion result that is both vi-

sually consistent and application-ready.

3.3.2 Segmentation Loss

In this work, a semantic segmentation task is used

as a case study for application-driven fusion; specif-

ically, the real-time semantic segmentation model

(Peng et al., 2021) is employed to segment the fused

images. Therefore, the semantic loss (L

seg

) includes

a main semantic loss and an auxiliary semantic loss,

deﬁned as:

seg

= L

main

+ λ

aux

, (9)

where λ

= 0.1 balances the main and auxiliary

losses. The main semantic loss and the auxiliary se-

mantic loss are expressed as:

main

−1

H ×W

∑

h=1

∑

w=1

∑

c=1

(h, w, c)

log(I

(h, w, c)

), (10)

aux

−1

H ×W

∑

h=1

∑

w=1

∑

c=1

(h, w, c)

log(I

(h, w, c)), (11)

where L

∈R

H×W×C

is a one-hot vector transformed

from the segmentation label L

∈ (1,C)

H×W

. For

more comprehensive details on the segmentation loss

function deﬁnitions and network architecture, refer to

(Peng et al., 2021).

4 EXPERIMENTAL RESULTS

This section details the experimental settings and

datasets used to evaluate the proposed framework.

Application-Guided Image Fusion: A Path to Improve Results in High-Level Vision Tasks

183

Table 1: Comparison of Segmentation Results on MFNet Dataset.

Framework Car Person Bike Curve Carstop Color Tone Bump mIoU

SegMiF 87.80 71.40 63.20 47.60 31.10 48.90 50.30 57.19

PSFusion 88.62 75.00 65.53 47.34 42.59 52.96 58.68 61.53

MRFS 89.40 75.40 65.00 49.00 37.20 53.10 58.80 61.13

Seafusion 92.95 82.69 81.25 88.52 43.87 54.90 72.32 73.79

Ours 93.36 84.16 81.54 90.29 46.49 55.69 73.13 74.95

Table 2: Performance comparison of the proposed approach on MFNet and MSRS datasets.

Car Person Bike Curve Carstop Color Tone Bump mIoU

MFNet 93.36 84.16 81.54 90.29 46.49 55.69 73.13 74.95

MSRS 97.90 89.08 90.30 97.72 92.05 83.24 99.05 92.76

Then, comparison with recent application-driven im-

age fusion approaches are presented to demonstrate

the advantages of the approach proposed for semantic

segmentation.

In order to evaluate the proposed method, the

MFNet (Ha et al., 2017) and MSRS (Tang et al.,

2022c) datasets are selected. The MFNet consists

of 1569 pairs of infrared and visible images, while

MSRS consists of 1083. Additionally, the proposed

approach is compared with recent application-driven

image fusion frameworks for semantic segmenta-

tion, including Seafusion (Tang et al., 2022b), Seg-

MiF (Liu et al., 2023), PSFusion(Tang et al., 2023),

MRFS (Zhang et al., 2024b). The fusion network

is iteratively trained with the segmentation network

based on the joint adaptive learning strategy proposed

in (Tang et al., 2022b). The hyperparameters for the

fusion loss are set as α = 10, β = 10, and γ = 0.01.

The visible images are converted to the YCbCr color

space, where the Y channel of visible images and in-

frared images are fused. The fused images are then

converted to the RGB color space using the Cb and

Cr channels from the given visible images. Gamma

correction in the color loss is set to 0.1.

For fair comparisons with the baseline framework

of our approach, we retrain SeAFusion using both the

original loss function and our proposed loss function.

The results presented for the other application-driven

image fusion methods are the reported results in the

original papers. The semantic segmentation perfor-

mance is measured by pixel intersection-over-union

(IoU). The results on the MFNet dataset are shown

in Table 1. The MFNet dataset includes nine classes:

car, person, bike, curve, carstop, guardrail, color tone,

bump, and background. The results reported here are

based on the classes available across all application-

driven approaches, meaning that the guardrail and

background classes are excluded from the results on

the MFNet dataset.

The proposed method achieves the highest mean

Intersection over Union (mIoU) score, outperform-

ing others in all categories. These scores reﬂect our

approach’s ability to retain ﬁne details and seman-

tic information in complex image regions. Addition-

ally, our approach performs well in less frequent cat-

egories, such as Car stop and Color Tone. These re-

sults demonstrate that our proposed method consis-

tently orients the fused image toward the segmenta-

tion task, improving the segmentation quality across

various classes.

In addition, the proposed framework is also eval-

uated on the MSRS dataset. This dataset is generated

from MFNet dataset by removing 125 misaligned im-

age pairs. Furthermore, an image enhancement algo-

rithm based on the dark channel prior is applied to op-

timize the contrast and signal-to-noise ratio of the in-

frared images. On this dataset, the proposed approach

achieves a mIoU of 92, 76. Figure 2 shows some

results for a qualitative comparison between SeA-

Fusion and the proposed approach across different

scenes on the MSRS dataset. The results show a more

precise scene segmentation by enhancing the delin-

eation of object boundaries, especially obstacles such

as bumps, and cones. This advantage highlights our

approach’s robustness in both day and night scenes by

contributing better segmentation accuracy.

Table 2 compares the performance of the proposed

method on the MFNet and MSRS datasets. The re-

sults show that the proposed approach achieves high

mIoU scores in the MSRS dataset, with a score of

92.76. Additionally, there are performance differ-

ences between datasets for speciﬁc classes, such as

carstop, colortone, and bump, where the method per-

forms signiﬁcantly better in MSRS than in MFNet.

An ablation study is performed to demonstrate the

effectiveness of the proposed framework. Speciﬁ-

cally, the impact of each loss component on the per-

formance of the proposed framework is evaluated.

VISAPP 2025 - 20th International Conference on Computer Vision Theory and Applications

184

Table 3: Ablation Study on Different Loss Conﬁgurations

using MFNet dataset.

int

text

color

wcorr

mIoU

✓ 66.65

✓ 68,99

✓ 55.19

✓ 69.13

✓ ✓ 73.79

✓ ✓ 68.09

✓ ✓ 66.32

✓ ✓ 67.27

✓ ✓ ✓ 66.55

✓ ✓ 66.41

✓ ✓ 68.92

✓ ✓ ✓ 74.13

✓ ✓ ✓ ✓ 74.95

The experiments are conducted on the MFNet dataset

The results in Table 3 indicate that the conﬁgura-

tion that includes all loss components yields the high-

est mIoU score. These results show that the proposed

loss function improves overall segmentation perfor-

mance by balancing intensity preservation, texture de-

tails, color ﬁdelity, and structural coherence.

5 CONCLUSIONS

This paper presents an application-driven image fu-

sion framework that introduces a new loss function

that addresses the challenges of maintaining seman-

tic and structural integrity in fused images to im-

prove high-level vision tasks. The experimental re-

sults on the MFNet and MSRS datasets highlight

that the framework outperforms recent application-

driven fusion approaches. In particular, the pro-

posed framework achieves a mIoU of 92.76% on

the MSRS dataset. This performance is evident in

accurately segmenting challenging objects, such as

bumps, guardrails, and cones. The ablation study fur-

ther validates the contribution of the color-based and

edge-weighted correlation loss to enhancing the fu-

sion quality for high-level vision tasks. Therefore,

this framework generates fused images that beneﬁt

the performance of high-level vision applications. Fu-

ture work will focus on integrating this framework

with additional high-level vision, such as object de-

tection.

ACKNOWLEDGEMENTS

This work was supported in part by

Grant PID2021-128945NB-I00 funded by

MCIN/AEI/10.13039/501100011033 and by “ERDF

A way of making Europe”, in part by the Air

Force Ofﬁce of Scientiﬁc Research Under Award

FA9550-24-1-0206 and in part by the ESPOL project

CIDIS-003-2024. The authors acknowledge the

support of the Generalitat de Catalunya CERCA

Program to CVC’s general activities, and the Depar-

tament de Recerca i Universitats from Generalitat de

Catalunya with reference 2021SGR01499.

REFERENCES

Bastidas-Guacho, G., Moreno-Vallejo, P., Vintimilla, B.,

and Sappa, A. D. (2023). Application on the loop

of multimodal image fusion: Trends on deep-learning

based approaches. In 2023 IEEE 13th International

Conference on Pattern Recognition Systems (ICPRS),

pages 1–8.

Chen, J., Ding, J., and Ma, J. (2024). Hitfusion: Infrared

and visible image fusion for high-level vision tasks

using transformer. IEEE Transactions on Multimedia,

26:10145–10159.

Chu, S.-Y. and Lee, M.-S. (2023). Mt-detr: Robust end-to-

end multimodal detection with conﬁdence fusion. In

Proceedings of the IEEE/CVF Winter Conference on

Applications of Computer Vision, pages 5252–5261.

Dong, S., Feng, Y., Yang, Q., Huang, Y., Liu, D., and Fan,

H. (2024). Efﬁcient multimodal semantic segmenta-

tion via dual-prompt learning. In 2024 IEEE/RSJ In-

ternational Conference on Intelligent Robots and Sys-

tems (IROS), pages 14196–14203. IEEE.

Feng, D., Haase-Sch

utz, C., Rosenbaum, L., Hertlein,

H., Glaeser, C., Timm, F., Wiesbeck, W., and Di-

etmayer, K. (2020). Deep multi-modal object de-

tection and semantic segmentation for autonomous

driving: Datasets, methods, and challenges. IEEE

Transactions on Intelligent Transportation Systems,

22(3):1341–1360.

Fu, Y., Wu, X.-J., and Durrani, T. (2021). Image fusion

based on generative adversarial network consistent

with perception. Information Fusion, 72:110–125.

Ha, Q., Watanabe, K., Karasawa, T., Ushiku, Y., and

Harada, T. (2017). Mfnet: Towards real-time seman-

tic segmentation for autonomous vehicles with multi-

spectral scenes. In 2017 IEEE/RSJ International Con-

ference on Intelligent Robots and Systems (IROS),

pages 5108–5115. IEEE.

Karim, S., Tong, G., Li, J., Qadir, A., Farooq, U., and Yu,

Y. (2023). Current advances and future perspectives of

image fusion: A comprehensive review. Information

Fusion, 90:185–217.

Le, Z., Huang, J., Xu, H., Fan, F., Ma, Y., Mei, X., and

Ma, J. (2022). Uifgan: An unsupervised continual-

learning generative adversarial network for uniﬁed

image fusion. Information Fusion, 88:305–318.

Li, G., Qian, X., and Qu, X. (2023). Sosmaskfuse: An in-

frared and visible image fusion architecture based on

salient object segmentation mask. IEEE Transactions

Application-Guided Image Fusion: A Path to Improve Results in High-Level Vision Tasks

185

on Intelligent Transportation Systems, 24(9):10118–

10137.

Li, H. and Wu, X.-J. (2018). Densefuse: A fusion approach

to infrared and visible images. IEEE Transactions on

Image Processing, 28(5):2614–2623.

Li, J., Zhu, J., Li, C., Chen, X., and Yang, B. (2022). Cgtf:

Convolution-guided transformer for infrared and visi-

ble image fusion. IEEE Transactions on Instrumenta-

tion and Measurement, 71:1–14.

Li, Y., Wang, J., Miao, Z., and Wang, J. (2020). Unsuper-

vised dense attention network for infrared and visi-

ble image fusion. Multimedia Tools and Applications,

79(45):34685–34696.

Liang, L., Shen, X., and Gao, Z. (2024). Iﬁci: Infrared

and visible image fusion based on interactive compen-

sation illumination. Infrared Physics & Technology,

136:105078.

Liu, J., Liu, Z., Wu, G., Ma, L., Liu, R., Zhong, W., Luo,

Z., and Fan, X. (2023). Multi-interactive feature learn-

ing and a full-time multi-modality benchmark for im-

age fusion and segmentation. In Proceedings of the

IEEE/CVF international conference on computer vi-

sion, pages 8115–8124.

Liu, K., Li, M., Chen, C., Rao, C., Zuo, E., Wang, Y., Yan,

Z., Wang, B., Chen, C., and Lv, X. (2024a). Dsfu-

sion: Infrared and visible image fusion method com-

bining detail and scene information. Pattern Recogni-

tion, page 110633.

Liu, X., Huo, H., Li, J., Pang, S., and Zheng, B. (2024b).

A semantic-driven coupled network for infrared and

visible image fusion. Inf. Fusion, 108(C).

Liu, X., Xu, X., Xie, J., Li, P., Wei, J., and Sang, Y.

(2024c). Fdenet: Fusion depth semantics and edge-

attention information for multispectral pedestrian de-

tection. IEEE Robotics and Automation Letters,

9(6):5441–5448.

Ma, J., Liang, P., Yu, W., Chen, C., Guo, X., Wu, J., and

Jiang, J. (2020). Infrared and visible image fusion

via detail preserving adversarial learning. Information

Fusion, 54:85–98.

Ma, J., Tang, L., Fan, F., Huang, J., Mei, X., and Ma, Y.

(2022). Swinfusion: Cross-domain long-range learn-

ing for general image fusion via swin transformer.

IEEE/CAA Journal of Automatica Sinica, 9(7):1200–

1217.

Ma, J., Yu, W., Liang, P., Li, C., and Jiang, J. (2019). Fu-

siongan: A generative adversarial network for infrared

and visible image fusion. Information fusion, 48:11–

26.

Mustafa, H. T., Yang, J., Mustafa, H., and Zareapoor, M.

(2020). Infrared and visible image fusion based on

dilated residual attention network. Optik, 224:165409.

Peng, C., Tian, T., Chen, C., Guo, X., and Ma, J. (2021).

Bilateral attention decoder: A lightweight decoder for

real-time semantic segmentation. Neural Networks,

137:188–199.

Sun, Y., Cao, B., Zhu, P., and Hu, Q. (2022). Detfusion: A

detection-driven infrared and visible image fusion net-

work. In Proceedings of the 30th ACM international

conference on multimedia, pages 4003–4011.

Sun, Y., Fu, Z., Sun, C., Hu, Y., and Zhang, S. (2021).

Deep multimodal fusion network for semantic seg-

mentation using remote sensing image and lidar data.

IEEE Transactions on Geoscience and Remote Sens-

ing, 60:1–18.

Tang, L., Deng, Y., Ma, Y., Huang, J., and Ma, J. (2022a).

Superfusion: A versatile image registration and fusion

network with semantic awareness. IEEE/CAA Journal

of Automatica Sinica, 9(12):2121–2137.

Tang, L., Yuan, J., and Ma, J. (2022b). Image fusion in

the loop of high-level vision tasks: A semantic-aware

real-time infrared and visible image fusion network.

Information Fusion, 82:28–42.

Tang, L., Yuan, J., Zhang, H., Jiang, X., and Ma, J. (2022c).

Piafusion: A progressive infrared and visible image

fusion network based on illumination aware. Infor-

mation Fusion, 83:79–92.

Tang, L., Zhang, H., Xu, H., and Ma, J. (2023). Rethink-

ing the necessity of image fusion in high-level vision

tasks: A practical infrared and visible image fusion

network based on progressive semantic injection and

scene ﬁdelity. Information Fusion, 99:101870.

Velesaca, H., Bastidas, G., Rouhani, M., and Sappa, A.

(2024). Multimodal image registration techniques: a

comprehensive survey. Multimedia Tools and Appli-

cations, 83:1–29.

Wang, C., Yang, G., Sun, D., Zuo, J., Wang, E., and Wang,

L. (2021). Frequency domain fusion algorithm of in-

frared and visible image based on compressed sensing

for video surveillance forensics. In 2021 IEEE 20th

International Conference on Trust, Security and Pri-

vacy in Computing and Communications (TrustCom),

pages 832–839. IEEE.

Wang, Y., Li, G., and Liu, Z. (2023). Sgfnet: semantic-

guided fusion network for rgb-thermal semantic seg-

mentation. IEEE Transactions on Circuits and Sys-

tems for Video Technology, 33(12):7737–7748.

Wang, Z., Wu, Y., Wang, J., Xu, J., and Shao, W. (2022).

Res2fusion: Infrared and visible image fusion based

on dense res2net and double nonlocal attention mod-

els. IEEE Transactions on Instrumentation and Mea-

surement, 71:1–12.

Xiao, Y., Meng, F., Wu, Q., Xu, L., He, M., and Li, H.

(2024). Gm-detr: Generalized muiltispectral detection

transformer with efﬁcient fusion encoder for visible-

infrared detection. In Proceedings of the IEEE/CVF

Conference on Computer Vision and Pattern Recogni-

tion, pages 5541–5549.

Xu, D., Zhang, N., Zhang, Y., Li, Z., Zhao, Z., and Wang,

Y. (2022). Multi-scale unsupervised network for in-

frared and visible image fusion based on joint at-

tention mechanism. Infrared Physics & Technology,

125:104242.

Yan, H., Zhang, C., and Wu, M. (2022). Lawin transformer:

Improving semantic segmentation transformer with

multi-scale representations via large window atten-

tion. arXiv preprint arXiv:2201.01615.

Yang, B., Hu, Y., Liu, X., and Li, J. (2024). Cefusion: An

infrared and visible image fusion network based on

cross-modal multi-granularity information interaction

VISAPP 2025 - 20th International Conference on Computer Vision Theory and Applications

186

and edge guidance. IEEE Transactions on Intelligent

Transportation Systems, 25(11):17794–17809.

Zhang, H., Tang, L., Xiang, X., Zuo, X., and Ma, J. (2024a).

Dispel darkness for better fusion: A controllable vi-

sual enhancer based on cross-modal conditional ad-

versarial learning. In Proceedings of the IEEE/CVF

Conference on Computer Vision and Pattern Recogni-

tion, pages 26487–26496.

Zhang, H., Zuo, X., Jiang, J., Guo, C., and Ma, J. (2024b).

Mrfs: Mutually reinforcing image fusion and segmen-

tation. In Proceedings of the IEEE/CVF Conference

on Computer Vision and Pattern Recognition, pages

26974–26983.

Zhang, X. and Demiris, Y. (2023). Visible and infrared

image fusion using deep learning. IEEE Transac-

tions on Pattern Analysis and Machine Intelligence,

45(8):10535–10554.

Zhang, Y., Sidib

e, D., Morel, O., and M

eriaudeau, F.

(2021). Deep multimodal fusion for semantic image

segmentation: A survey. Image and Vision Comput-

ing, 105:104042.

Zhao, H. and Nie, R. (2021). Dndt: Infrared and visible im-

age fusion via densenet and dual-transformer. In 2021

International Conference on Information Technology

and Biomedical Engineering (ICITBE), pages 71–75.

IEEE.

Application-Guided Image Fusion: A Path to Improve Results in High-Level Vision Tasks

187
