X-Ray Radiation Effects on SRAM-Based TRNG and PUF

Martin Holec

1 a

, Jan B

elohoubek

2,3 b

, Pavel Rous

3 c

, Tom

s Pokorn

3 d

obert L

orencz

2 e

and Franti

sek Steiner

3 f

Faculty of Nuclear Sciences and Physical Engineering, Czech Technical University in Prague, Czech Republic

Faculty of Information Technology, Czech Technical University in Prague, Czech Republic

Faculty of Electrical Engineering, University of West Bohemia in Pilsen, Czech Republic

holecma9@fjﬁ.cvut.cz, {jan.belohoubek, robert.lorencz}@ﬁt.cvut.cz,

Keywords:

Complementary Metal–Oxide–Semiconductor (CMOS), Total Ionizing Dose (TID), Physically-Unclonable-

Function (PUF), True-Random-Number-Generator (TRNG), Static Random-Access Memory (SRAM),

Electrical-Level Model, Simulation Program with Integrated Circuit Emphasis (SPICE), Flicker Noise,

CMOS Threshold.

Abstract:

The security primitives, such as True-Random-Number-Generator (TRNG) or Physically-Unclonable-

Function (PUF), are widely used in many cryptographic devices. Properties of these primitives affect the

security, reliability, and longevity of the whole device. In this work, we evaluate the inﬂuence of the total

ionizing X-ray dose on hardware structures underlying conventional SRAM-based security primitives – PUF

and TRNG. In contrast with other works, we aim with conventional CMOS circuits, we employ lower total

ionizing dose (TID) levels, and we also take annealing into account. We quantify the induced changes in

SRAM cell entropy, provide a quality analysis of related physical effects, summarize potential effects on both

security primitives. Besides analyzing the experimental data, we explain experimental data by comparison to

the electrical-level (SPICE) model of SRAM cells taking X-ray-induced effects – ﬂicker noise and threshold

shift – into account. Our comparative analysis points to inconsistencies and deﬁciencies in related literature

and provides a view into effects affecting observed entropy. The novelty of our work is in the comparative

analysis of experimental data combined with low-level electrical model, which is the enabler of the qualitative

analysis. Our results form the basis for future work.

1 INTRODUCTION

The security primitives, such as True-Random-

Number-Generator (TRNG) or Physically-

Unclonable-Function (PUF), are today widely

used in many digital designs incorporating security

features for the secret (random or unique) value

generation (Garg and Kim, 2014), (Larimian et al.,

2020). Conventional CMOS implementations of

TRNG employ simple structures to extract entropy

from the (i) noise-originated jitter, where ring-

oscillator-based TRNG is a prominent example

(Valtchanov et al., 2008). Another conventional

entropy source (ii) employs metastability (Kinniment

https://orcid.org/0009-0003-8308-8852

https://orcid.org/0000-0003-4312-9931

https://orcid.org/0000-0002-0158-3602

https://orcid.org/0000-0001-7810-2558

https://orcid.org/0000-0001-5444-8511

https://orcid.org/0000-0002-5702-7015

and Chester, 2002), (Wang et al., 2020). An example

of a metastability-based entropy source is the SRAM-

cell-based TRNG. Equal basic building blocks can

be used to create Physically-Unclonable-Function

(PUF) by extracting stable and device-unique secret

numbers employing the manufacturing variability.

Both PUF and TRNG typically employ the same

or very similar basic building blocks. The TRNG

source of randomness – (i) noise-originated jitter, or

(ii) metastability – represents a source of the PUF

output instability.

Security primitives such as PUF or TRNG might

be implemented as a dedicated hardware block or

on top of conventional hardware structures, such as

SRAM blocks or RC oscillators (Clark et al., 2018),

(Gebali and Mamun, 2022). The natural and of-

ten choice for implementation of both TRNG and

PUF is the SRAM memory block (Mikhail Platonov

and L

orencz, 2013),(Wang et al., 2020), (Holcomb

et al., 2009). One of advantages of the SRAM is,

that it is available even in devices without dedicated

Holec, M., B

elohoubek, J., Rous, P., Pokorný, T., Lórencz, R. and Steiner, F.

X-Ray Radiation Effects on SRAM-Based TRNG and PUF.

DOI: 10.5220/0013314100003899

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 11th International Conference on Information Systems Security and Privacy (ICISSP 2025) - Volume 2, pages 375-384

ISBN: 978-989-758-735-1; ISSN: 2184-4356

375

TRNG/PUF blocks. Such dedicated security blocks

could be added e.g. to constrained designs incorpo-

rating common SRAM-equipped microcontroller(s).

Such blocks could be even added to many existing

designs by means of software update only, when the

target hardware allows control of (parts or whole)

SRAM memory, which is quite common for micro-

controllers implementing different low-power modes.

This paper does not analyze intra or inter-die sta-

tistical properties of an SRAM memory important for

PUF or TRNG design, but it deals with the long-term

reliability of the security primitive under ionizing ra-

diation pointing on changes in the security primitive

behavior triggered by the degradation of the underly-

ing structures.

There are many other aging mechanisms involved

in silicon degradation, which could cause the degra-

dation of the security primitives employing them. The

mainstream research is concentrated on conventional

factors like temperature, over/undervoltage, electro-

migration etc. (Wang et al., 2020), (Zhang et al.,

2017). Our research deals with ionizing radiation as a

source of silicon degradation, a less-discovered phe-

nomenon in the security area (Lawrence et al., 2022).

In contrast to recently published works (Lawrence

et al., 2022), we concentrate on lower total ioniz-

ing dose (TID) levels several orders of magnitude

closer to real-world doses. To accelerate experimen-

tal data acquisition, employed dose levels are still

about three orders of magnitude higher than com-

mon dose sources (United Nations Environment Pro-

gramme, 2016) and two orders of magnitude higher

than doses (normally) caused by conventional medi-

cal or inspection X-ray equipment. Typical TID levels

in experiments with SRAM-based security primitives

are above 100 Gy, we work with lower TID ranging

from 10 Gy up to (about) 100 Gy, while received TID

from medical and inspection devices or even natural

background are typically much below 0.1 Gy.

The rest of the paper is structured as follows: Sec-

tion 2 summarizes properties of SRAM-based secu-

rity primitives, Section 3 brieﬂy describes the silicon

trap formation process, Section 4 describes our exper-

imental setup, and presents results of our preliminary

experiments, while the Section 5 analyses them, Sec-

tion 6 concludes the paper and presents the main open

questions and future work.

2 SRAM-BASED SECURITY

PRIMITIVES

The SRAM memory cell is appropriate for TRNG

design, as it tends to provide uncertain output after

Figure 1: Symmetric structure of the conventional 6-T

SRAM cell with complementary input/output (Y /Y ) is com-

posed of two cross-coupled inverters and two access tran-

sistors controlled by a word line (W L) signal.

power-up. The structure of the SRAM cell is typi-

cally well balanced and both inverters in the conven-

tional 6-transistor cell – see Figure 1 – are designed to

be (almost) matching. Such structure may be subject

to the metastable behavior after power-up generating

high entropy between (independent) power-ups. On

the other hand, even a small mismatch caused by the

manufacturing variability in the SRAM cell structure

(Figure 1) could signiﬁcantly decrease the cell value

entropy between independent power-ups, as the mis-

match effectively limits the metastability effect. Cells

with a signiﬁcant mismatch manifest higher stability.

Compared to cells experiencing metastability, highly

stable cells could be good PUF candidates, as they

provide highly stable, while unpredictable and unique

output given by the manufacturing variability.

The ﬁrst step of the conventional approach to the

design of SRAM-based PUF or TRNG is the charac-

terization of the SRAM block used for security primi-

tive design and identifying two sets of cells (S1) cells

with low entropy – stable in logic 1 or logic 0, and

(S2) cells with high entropy – unstable cells. These

disjoint sets (with some margins) represent a set of

cells appropriate for the construction of the device-

speciﬁc security primitives PUF or TRNG respec-

tively.

The long-term reliability of any such security

primitives – both PUF and TRNG – depends on

temporal changes in the structure of the underlying

semiconductors (Garg and Kim, 2014), (Wang et al.,

2020), (Zhang et al., 2017). The temporal changes

may lead to both loss or increase in the entropy of any

SRAM cell. In other words, cell characteristics could

develop over time and cells could drift in/out of S1

and S2 sets over time causing issues for the security

primitive. This is why the design of any such security

primitive involves a spatial redundancy to ensure sta-

bility (PUF) or high entropy (TRNG) over the whole

device life (Wang et al., 2020), (Vijayakumar et al.,

2017).

For the sake of simplicity, we formally deﬁne the

ICISSP 2025 - 11th International Conference on Information Systems Security and Privacy

376

following terms to be used throughout the paper to

demonstrate S1 and S2 set migrations through the ex-

periments:

• PUF candidate (stable SRAM cell) – the SRAM

cell with at least 95 % probability of value one

or the cell with at least 95 % probability of value

zero after power-up, representing cells in the S1

set (low-entropy, stable cells),

• TRNG candidate (unstable SRAM cell) – the

SRAM cell with 45 – 55 % probability of value

zero (or one) after power-up representing cells in

the S2 set (high-entropy, unstable cells).

• healthy cells – cells remaining in the same set (S1

or S2) from the beginning of the experiment (cells

not drifting in/out of sets S1 and S2).

Any SRAM-based security primitive involves a

signiﬁcant redundancy to reduce the security primi-

tive quality ﬂuctuations in both the short- and long-

term. The art of the SRAM-based security primi-

tive design lies in the amount of redundancy to estab-

lish the trade-off between reliability, area utilization,

power consumption, and the long-term reliability of

the security primitive. This kind of decision should

ideally be based on the technology-level characteriza-

tion, proﬁling, and knowledge gained by accelerated

aging and stressing experiments. On the other hand,

this is not always possible, e.g. in the case, when a

cryptographic feature, depending on PUF or TRNG,

must be added to an existing design, where no ded-

icated and pre-characterized block is present, but an

SRAM memory is available.

Our work aims to develop recommendations and

reliability estimations to optimize design decisions

concerning a realistic level of ionizing radiation stress

of SRAM-based security primitives and enable quan-

titative modeling of TID inﬂuence on SRAM-based

security primitives.

3 X-RAY-INDUCED SILICON

TRAP FORMATION

When a silicon device is exposed to ionizing X-ray

radiation, the photoelectric and the Compton effects

dominate in the silicon lattice (Claeys and Simoen,

2002). The continuous X-ray spectra are broad – the

photon energy varies from tens of eVs to keV. The re-

sult of the stochastic effects in the silicon lattice is the

emerge of defects. The most notable defects affecting

charge in the CMOS transistor channel are the sili-

con traps located near the Si/SiO

-interface (Barnaby,

2006), (Entner, 2007). Traps emerging in the Si/SiO

interface layer – see dangling bond defects in Figure 2

S i

S iS iS i

S i

Figure 2: Si-SiO

interface includes irregularities like hy-

drogen bonds and dangling bonds: dangling bond defects

located near the transistor channel area behave like charge

traps. Novel traps emerge due to the absorbed ionizing ra-

diation. The P

type defect is formed by an unpaired va-

lence electron of a silicon atom back-bonded to three silicon

atoms, while the P

type defect is connected with the sil-

icon atom back-bonded to two other silicon atoms and an

oxygen atom (Entner, 2007).

– inﬂuence the device leakage and transistor transcon-

ductance (Tebina et al., 2023), but increase also the

ﬂicker noise level, and inﬂuence the transistor thresh-

old voltage at the same time (Barnaby, 2006), (Kirton

et al., 1989).

The lattice of the conventional semiconductor in-

terface layer – see Figure 2 – is composed of Si and

SiO

molecules. To ionize Si, energy about 4eV is

needed, while for SiO

ionization, a slightly higher

energy of 17eV is necessary (Barnaby, 2006).

An important process started by the ionizing radi-

ation in the silicon lattice, due to the ionizing radia-

tion exposure, is the annealing process. The anneal-

ing process involves trap migration in the electrical

potential direction – to the interfaces (Batyrev et al.,

2006). The annealing process could be accelerated by

the increased temperature, while the room tempera-

ture is sufﬁcient enough to allow it.

To be more speciﬁc about trap-formation scenar-

ios, one of the real-world scenarios for the crypto-

graphic device stress represents the (repeating) in-

spection of the personal electronics on X-ray detec-

tors at airports, or medical X-ray scanners stressing

electronic implants. An interesting, and potentially

prospective case is also using ionizing radiation to

compromise the cryptographic device through dam-

age in the security primitive (Bouat et al., 2023).

The radiation load from the natural radiation back-

ground is on average 2.4 mGy/year (United Nations

Environment Programme, 2016). During medical ex-

posures, the patient is normally burdened with doses

from 0.01 mGy to about 10 mGy, which corresponds

to exposure from the natural radiation background in

the range from less than 1.5 days to 4.5 years.

X-Ray Radiation Effects on SRAM-Based TRNG and PUF

377

4 EXPERIMENTAL EVALUATION

The experimental evaluation aims to quantify and ex-

plain the effects of a lower total ionizing dose (TID)

on the PUF and TRNG security primitives based on

SRAM. The emphasis is put on SRAM in common

devices like microcontrollers. The microcontroller-

SRAM-based primitives can be used in constrained

applications or as an upgrade option in existing de-

signs or even deployed products.

4.1 Experimental Setup

As an X-ray radiation source, we used a computer to-

mography (CT) device GE v|tome|x s with a 240kV

micro-focus direct tube that emits a reﬂected signal

off of a tungsten target to expose samples to the X-

ray radiation. For the parameter settings, we used in-

tegrated basic SW with the timer settings option, that

counts time after X-ray power is stabilized. The X-ray

beam used is similar in its properties to the standard-

ized RQT150 X-ray beam (International Electrotech-

nical Commission, 2005). Compared to the standard-

ized RQT150 beam, less ﬁltering was used – only the

X-ray’s own (basic) ﬁltering to maintain the greatest

possible spectrum without lower restrictions.

For our experiments, we used two types of sam-

ples: (i) simple samples, represented by discrete

silicon-based transistors, and (ii) complex samples

represented by conventional STM32 microcontrollers

(MCUs) STM32L072CZ manufactured in the STMs’

130nm technology node. We used tens of simple sam-

ples and several complex samples for our initial ex-

periments, while four of them remained operational

after receiving a signiﬁcant level of dose, and were

used for gaining data.

The discrete transistors (BS170s and BS250)

were only used for sensitivity analysis, while their

technology-level similarity to complex samples is

limited. By the sensitivity analysis, the characteristic

energy (X-ray tube acceleration voltage) causing the

rapid threshold voltage shift in simple samples was

found. The ﬁnal dose rate was ≈ 1.3 Gy/s.

Some of the obtained IV characteristics from sim-

ple sample measurements are reported in Figure 3 for

illustration.

After performing the sensitivity analysis, we per-

formed measurements on complex samples aimed at

the stability of SRAM cells before and after irradia-

tion. We applied several iterations utilizing the setup

learned during the sensitivity analysis. Each itera-

tion involves 10 Gy total dose delivered to the sam-

ple within 7 seconds. The sample ionization was fol-

lowed by a delay between iterations utilized for data

0 Gy≈ 350 Gy≈ 1 kGy

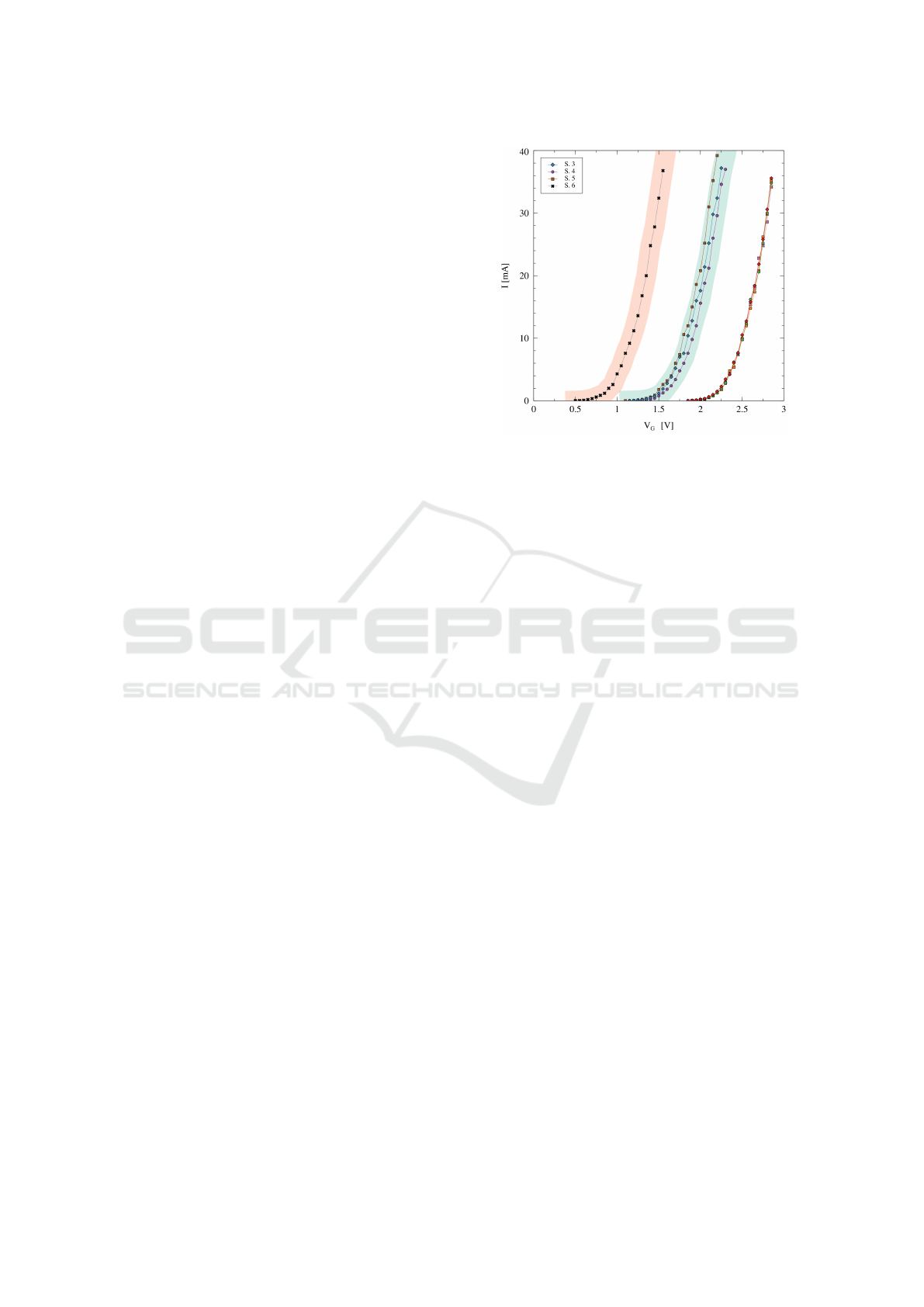

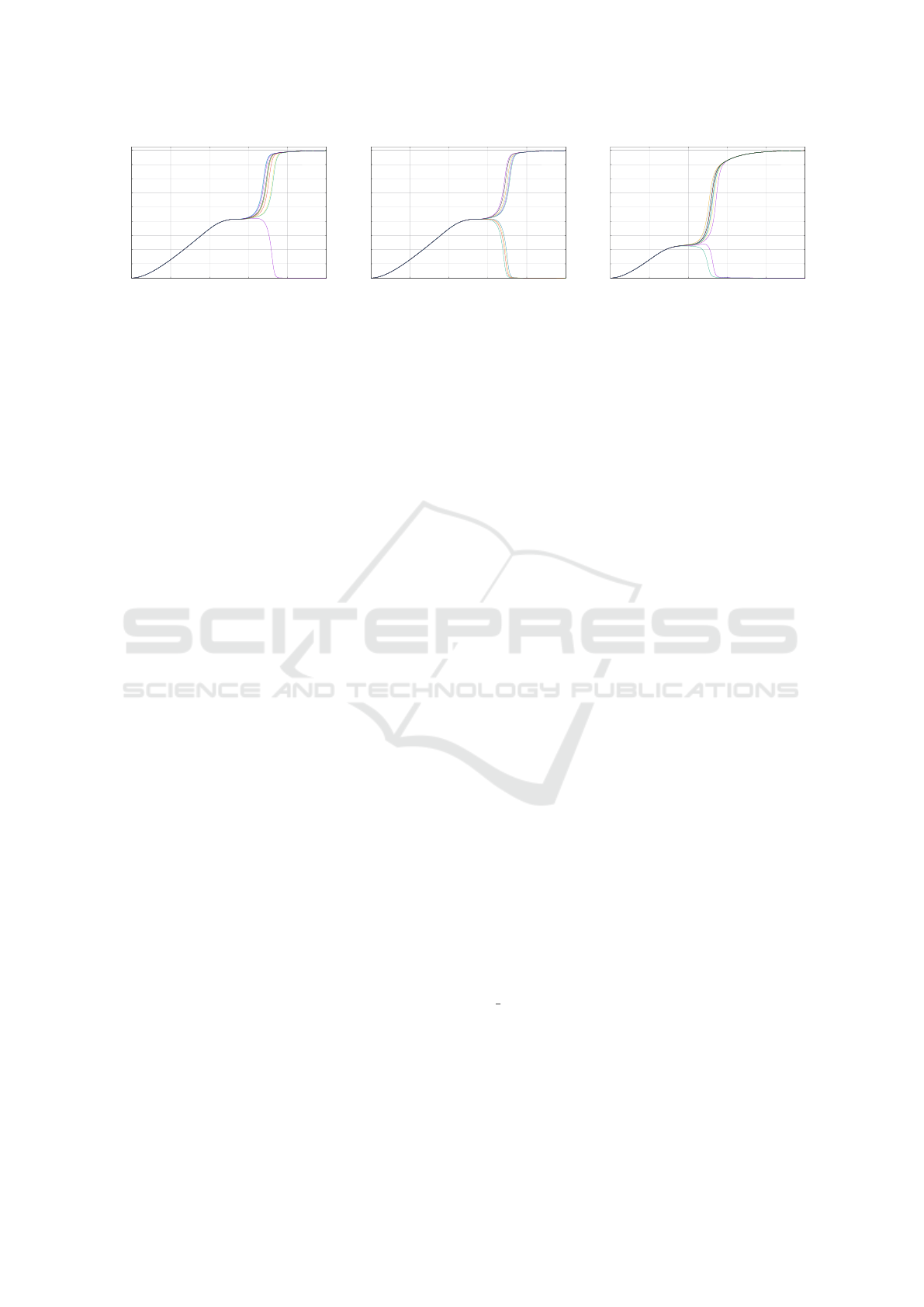

Figure 3: The shift in the initial IV characteristics and the

shift of the threshold voltage for simple NMOS samples

depends on the irradiation level. We used the X-ray dose

rate of ≈ 0.5 Gy/s for 720 seconds for sample 03 (500 µA,

140 kV), and dose rate of ≈ 1.9 Gy/s for 180 seconds for

samples 04 and 05 (2000 µA, 140 kV) resulting in TID of

≈ 350 Gy. The dose rate of ≈ 1.9 Gy/s for 540 seconds was

used for sample 06 (2000 µA, 140 kV) resulting in TID of

≈ 1 kGy.

acquisition process. The standard delay between iter-

ations was below 24 hours. Longer relaxation pauses

were inserted between speciﬁed iterations for the se-

lected sample only to include the effect of the anneal-

ing process.

All complex samples were not powered during the

irradiation, as experiments even with relatively low

total doses led to the rapid destruction of samples.

Our goal was to identify the PUF/TRNG candi-

date cells – and track their (in)stability over the in-

creasing total dose. To evaluate SRAM cell stability,

we performed 1,000 independent SRAM power-offs

followed by power-ons and SRAM cell value read-

outs in every experiment iteration.

Total doses above ≈ 100 Gy lead to MCU de-

struction in all cases for yet unknown reason. The

device destruction is probably unrelated to stud-

ied SRAM cells implemented using relatively thin-

dielectric (Barnaby, 2006), but it is probably caused

by a TID-sensitive part of the MCU, as relatively low

survival dose levels were reported for similar complex

devices (Avery et al., 2011).

4.2 Simulation Setup

For simulations, we used the SPICE model of the 6-T

SRAM cell (see Figure 1) in the Sky130 technology

node (SkyWater PDK, 2023). This technology node

ICISSP 2025 - 11th International Conference on Information Systems Security and Privacy

378

v(s)

XSPICE Code Model

i(d) = -i

i(s) = i

v(g)

v(ref

ﬂicker

)

v(ref

white

)

v(d)

white

shift

ﬂicker

Gate

Drain

Sky130

NMOS Model

Source

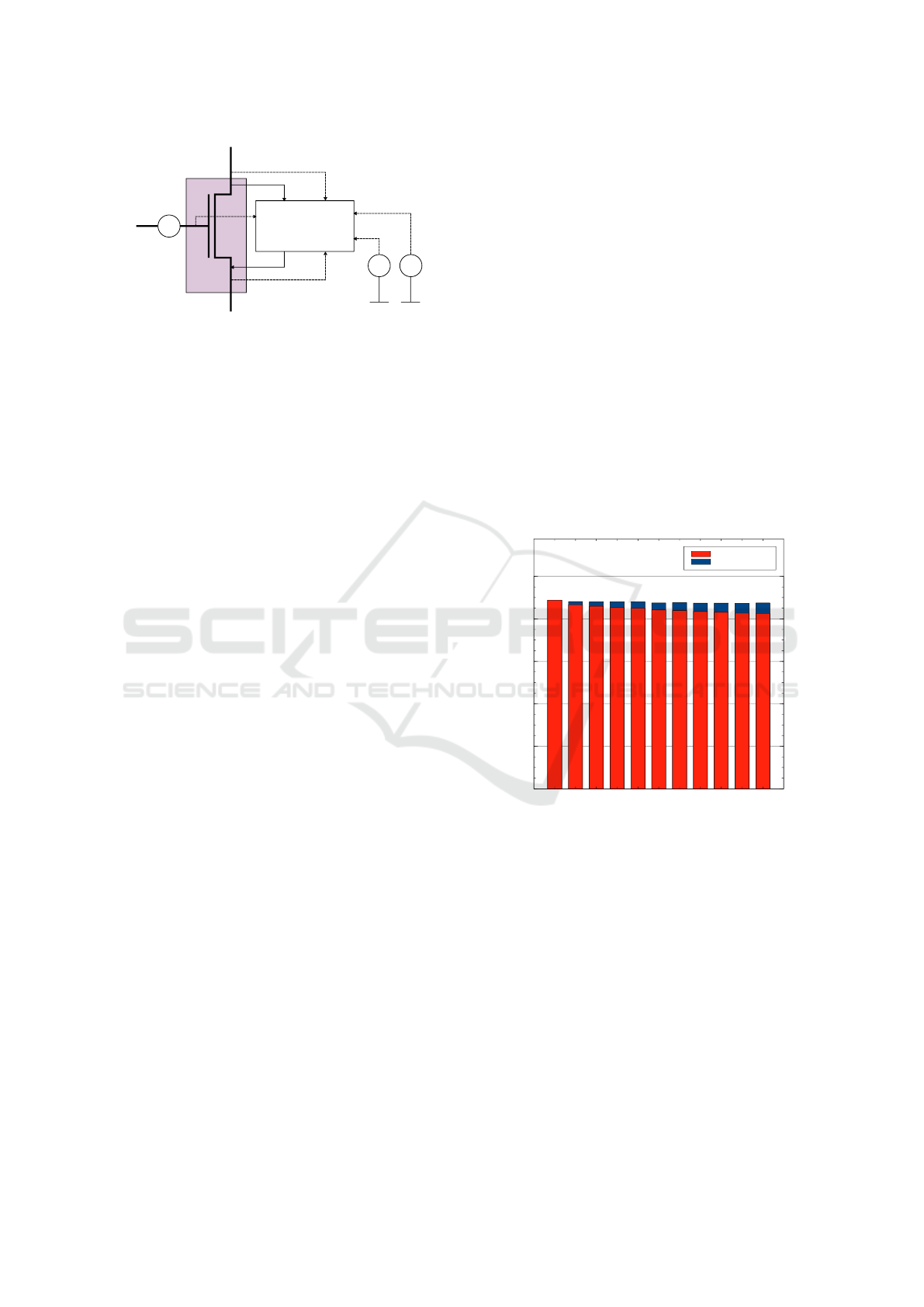

Figure 4: Employed simulation model for the transient

noise simulation and threshold voltage shift in Ngspice: the

Sky130 transistor model is extended by the custom XSPICE

Code Model injecting the noise current in parallel to the

transistor channel (solid lines); the XSPICE Code Model

takes multiple references to inject noise with correct na-

ture and amplitude (dashed lines): the transistor operat-

ing point, pre-generated random noise sequences (transient

voltage sources), and noise RMS extracted from the transis-

tor BSIM model for every operating point of the transistor.

is comparable to the technology node used for man-

ufacturing complex samples, while the PDK is avail-

able to the public under no restrictions increasing the

repeatability of the conducted research.

The simulation was conducted in Ngspice using

standard SPICE primitives and the custom XSPICE

extension code model – see Figure 4. The white and

the ﬂicker noise current sequence was generated and

injected in parallel to the transistor channel of the

MOS transistor, where the transistor model is the con-

ventional industry-standard BSIM model.

The conventional SPICE voltage sources were

used to generate the white and the ﬂicker noise ref-

erence sequences respectively. The ﬂicker noise se-

quence in Ngspice is generated by the algorithm pre-

sented in (Kasdin, 1995).

The white and ﬂicker noise, injected by the

XSPICE code model, for each simulation step,

was derived from the mentioned reference voltage

sources, and modulated by the noise RMS value spe-

ciﬁc for the current transistor operation point given by

Drain/Gate/Source potential.

The noise RMS of the SKY130 transistors was ex-

tracted from the industry-standard BSIM model by

employing the conventional small-signal noise anal-

ysis.

The complete setup was encapsulated into the

Ngspice XSPICE extension. The ﬁnal corner-case

issue solution and veriﬁcation of the XSPICE Code

Model is our current ongoing work directing to the

Code Model publication.

The threshold shift was injected into the simula-

tion model by inserting a voltage source in series to

the transistor gate – see Figure 4.

The threshold shift considered in our simulations

varied from 0 to 0.3V. The noise was varied by em-

ploying the noise RMS values between 1 and 3 mul-

tiples, while the character of the injected noise re-

mained equal.

4.3 Experimental Results

Our results come from the irradiation by the relatively

low total dose levels below ≈ 100 Gy, which is the

safe limit we achieved, where complex samples re-

main operational.

Based on our experimental results, we conﬁrmed

(Garg and Kim, 2014), that the stability is a natural

property of SRAM cells, indifferently on irradiation

dose: effects like the mismatch, manufacturing vari-

ability, or threshold shift dominate signiﬁcantly over

the increased noise levels induced by irradiation. The

share of highly stable cells – PUF candidate cells – re-

mains over 80% indifferently on the irradiation dose

– see Figure 5.

HealthyPUFcells

PUFcells

PUFcells[%]

100

Irradiationsteps

0 1 2 3 4 5 6 7 8 9 10

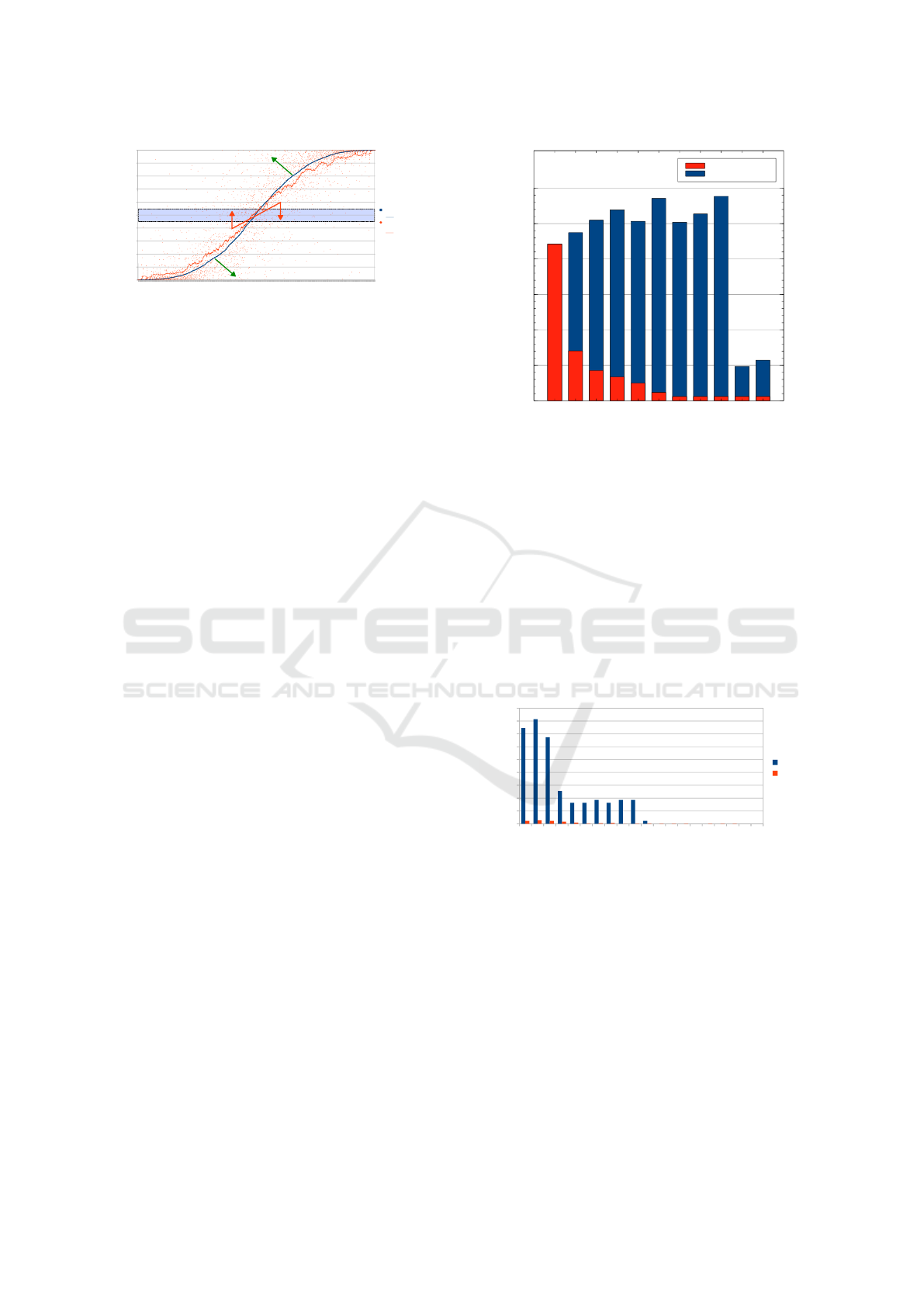

Figure 5: The number of PUF candidates among the SRAM

cells on sample 04 (red) decreases slowly with increased

TID, while the number of highly stable cells (current PUF

candidates; red+blue) remains almost constant – indepen-

dently on the received total dose.

Based on a careful analysis of SRAM-cell stabil-

ity data, cells being selected as highly stable cells dur-

ing the initial SRAM memory characterization exhibit

only a small increase of instability – up to 5% for all

samples – which is quite acceptable for any PUF de-

sign incorporating a sufﬁcient level of redundancy.

Under quantitative analysis, we observed two con-

tradicting phenomenons: (i) the ﬁrst signiﬁcant phe-

nomenon is, that many cells experience increased en-

tropy, while (ii) the second phenomenon is the in-

creased stability experienced by many cells as well.

X-Ray Radiation Effects on SRAM-Based TRNG and PUF

379

TRNG Candidates

161

315

469

623

777

931

1085

1239

1393

1547

1701

1855

2009

2163

2317

2471

2625

2779

2933

3087

3241

100

No dose

Moving average

Dose ~ 10 krad

Moving average

cell #

share of '0' [%]

Entropy is increased

Entropy is decreased

Figure 6: 100 Gy X-ray ionization effects on SRAM cells

on sample 03: cells were sorted according to the share of the

value ’0’ for the cell power cycles prior to irradiation (blue

square+solid line). The share of the value ’0’ for each cell

after irradiation is shown (red diamonds), while the ﬂoating

average for the irradiation-caused shift is denoted (red solid

line) – slight increase in total entropy was observed for sam-

ple 03, a number of TRNG candidates remains comparable

for 0 to 100 Gy TID, but number of TRNG candidates de-

creased signiﬁcantly after irradiation.

Both phenomenons were observed at the same time

for dozens of cells under the equal total dose on the

same sample – see Figure 6. These ﬁghting phenom-

ena lead interestingly to the increasing dominance of

stable cells manifesting signiﬁcant variability – most

cells are/become strongly stable, low entropy, but

their variability is not negligible at the same time. As

a result, the total entropy computed over all SRAM

cells in the sample may increase or decrease, but the

change is negligible – no clear conclusion about the

dominance of one or the other effect on the total sam-

ple entropy depending on the total dose could be made

from our data, as the observed differences are too low

and not consistent among all samples – the nature of

induced total entropy changes over all SRAM cells is

stochastic.

To interpret measurement results, we create

SPICE models of SRAM cell (Figure 1) incorporat-

ing the dominating irradiation-induced effects: ﬂicker

noise and threshold shift in the SKY130 technol-

ogy node. The transient simulations show, that in-

creased noise increases the entropy produced by the

unmatched cell after independent power-ups signiﬁ-

cantly only if there is no or only little threshold shift –

compare Figures 9a and 9b, otherwise, threshold shift

leading to decreased entropy dominates – see Figure

9c.

To conclude, the results of our analysis are as fol-

lows: (i) an increase in entropy (increased cell in-

stability) is caused by increased ﬂicker noise, while

(ii) a decrease in entropy (increased cell stability) is

caused by dominating shift in the threshold voltage.

Based on a careful analysis of SRAM-cell stabil-

ity data, we found, that the conditional probability

of entropy loss for cells identiﬁed as TRNG candi-

HealthyTRNGcells

TRNGcells

TRNGcells[%]

0.25

0.5

0.75

1.25

1.5

Irradiationsteps

0 1 2 3 4 5 6 7 8 9 10

Figure 7: The number of TRNG candidates preserving the

TRNG candidate properties among received TID (red) de-

creases with accumulated TID in sample 04, while the total

share of TRNG candidate cells remains high for iterations

1 to 8 for sample 04 (red+blue).

dates during the initial SRAM memory characteriza-

tion (prior irradiation) is surprisingly high. Almost all

cells exhibiting the highest entropy prior irradiation

(entropy > 0.993; share of zeroes 45% - 55%) expe-

rienced a signiﬁcant entropy loss (more than 80% for

all samples) – see Figure 7 for a decrease of initially-

identiﬁed TRNG candidate cells share in the sam-

ple 04.

5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100

TRNG

PUF

Stability change [%]

Share of healthy cells [%]

Figure 8: Stability shift of TRNG and PUF candidate cells

in sample 04 after 10 Gy of the total dose (the ﬁrst irradia-

tion iteration).

The observed average entropy loss is surprisingly

high – more than 0.1 bit (instability was decreased

by ±20% in the average case) – see Figure 8. The ini-

tial set of TRNG candidate cells )healthy cells) almost

vanishes after iteration 5 (5 · 10 Gy) – see a decrease

of initially-identiﬁed TRNG candidates in Figure 7 –

while the total number of highly unstable cells (cur-

rent TRNG candidates) remained relatively high (or

even increased) for for all 10 iterations on most sam-

ples, and up to iteration 8 on sample 04. The drop

ICISSP 2025 - 11th International Conference on Information Systems Security and Privacy

380

after the iteration 8 for sample 04 is caused by the

15-day relaxation period inserted between iterations

8 and 9 to allow material annealing. All observed

variations lead to a signiﬁcant loss of entropy in the

original set of TRNG candidates, and could signiﬁ-

cantly decrease the TRNG performance, while the an-

nealing process itself caused rapid decrease of TRNG

candidate cells available in the sample.

5 ANALYSIS

In this work, we performed irradiation experiments

employing the available conventional X-ray source:

the inspection CT device, comparable to widely used

X-ray medical or baggage inspection sources. The re-

sults obtained using the conventional X-ray source are

overall consistent with results reported for measure-

ments on other ionizing radiation sources (Lawrence

et al., 2022), (Surendranathan et al., 2023), (Zhang

et al., 2020), but novel knowledge about cell stabil-

ity development were gained, and inconsistencies and

deﬁciencies were detected in recent works (Lawrence

et al., 2022), (Surendranathan et al., 2023), (Zhang

et al., 2020).

Effects of Annealing

We found, that annealing, which is omitted by current

research of ionizing radiation effects on structures un-

derlying the SRAM-based security primitives, has a

signiﬁcant effect and could not be omitted in any fu-

ture research: our analysis provides a good starting

point for further experiments. The observed effect is

illustrated in Figure 7.

Flicker Noise vs. Threshold Shift

Despite the lower variability of samples and limited

resources, we were able to provide a solid explana-

tion of the observed changes in silicon due to the

alignment of our results with theory and simulation

results. The simulations explain the observed phe-

nomenons in this way: the increased variability is a

result of induced (ﬂicker) noise caused by radiation-

formed traps, while the increased stability is a result

of the induced threshold voltage shift. These effects

combine resulting in:

• a slight increase in instability for originally stable

cells,

• a signiﬁcant increase in stability for originally

highly unstable cells.

As a result, these effects may cause a signiﬁcant

loss of entropy for SRAM-cell-based TRNG even for

a relatively small total ionizing dose (TID), especially

when combined with (natural) annealing over a rea-

sonable period of time.

Related Research Results

Our results regarding cell stability, and the potential

PUF reliability, in particular, are consistent with re-

sults reported in recent works (Lawrence et al., 2022),

(Surendranathan et al., 2023), despite the referenced

experiments aimed higher dose effects. PUF reliabil-

ity should not be affected signiﬁcantly by lower doses.

Authors of (Lawrence et al., 2022) and (Suren-

dranathan et al., 2023) provide only poor or none

security-perspective motivation, while conclusions

and interpretations provided in (Lawrence et al.,

2022) are in part incorrect, (1) as observed one-sided

variations are too small, and (2) could not be ex-

plained by nMOS/pMOS differences as argued by au-

thors, due to the symmetries of the considered CMOS

cells. The results rather represent a stochastic mixture

of ﬁghting phenomenons (increased noise and thresh-

old shifts) described in our paper.

Experimental Setup Properties and Limitations

Our experiments were designed to lower total doses

than most of other reported experiments with sili-

con samples, however, they are still much higher than

dose exposures from common X-ray sources. Despite

this fact, X-ray irradiation is a process with a behavior

of highly stochastic nature, thus behavior similar to

behavior induced by higher doses could be observed

on a random basis, and with low, but non-zero, prob-

ability in devices exposed to common dose levels as

well. These effects can thus still inﬂuence the behav-

ior of security primitives present in X-ray-exposed de-

vices.

Effects on the PUF Security Primitive

The observed ﬁghting phenomenons (increased noise

and threshold shifts) leading to increasing dominance

of stable cells manifesting signiﬁcant variability at the

same time – could affect the long-term reliability of

PUF in terms of repeatability of the output, but spa-

tial redundancy methods should remain a successful

measure in this case.

Effects on the TRNG Security Primitive

Our results related to the low ionization levels target-

ing metastability-based SRAM cell entropy sources

are novel:

• in pointing on long-term quality limitations of

SRAM-based TRNGs under ionizing radiation,

X-Ray Radiation Effects on SRAM-Based TRNG and PUF

381

time

[

]

Y [V]

0.2

0.4

0.6

0.8

1.0

1.2

1.4

1.6

1.8

6 8 1

(a)

time

[

]

Y [V]

0.2

0.4

0.6

0.8

1.0

1.2

1.4

1.6

1.8

6 8 1

(b)

time

[

]

Y [V]

0.2

0.4

0.6

0.8

1.0

1.2

1.4

1.6

1.8

6 8 1

(c)

Figure 9: Simulation results for independent power-ups of the slightly unbalanced stable SRAM cell model: (a) under normal

conditions, the majority of power-up states lead to logic 1 at the cell output; (b) when the noise level is increased, entropy

is increased as a result; (c) under the signiﬁcant threshold shift and increased noise, threshold shift effect dominates over

increased noise, and the cell stability remains high.

• in providing insight into wear-out mechanisms

and their connection with loss or increase of en-

tropy,

• in showing the severity of the annealing process

on the SRAM cell stability.

Our results do not conﬁrm (Zhang et al., 2020),

where better TRNG properties were reported after

low-dose irradiation, but do not strictly contradict

them: temporary increase in number of TRNG can-

didate cells is possible – see Figure 7.

6 CONCLUSIONS

First, we pointed out the importance of the evaluation

of the annealing process effects having a signiﬁcant

effect on SRAM cell stability, as it was not consid-

ered in past research (see Figure 7.). Based on our ex-

perimental data, the anealing process initiated by the

ionizing radiation has higher effect on SRAM cell sta-

bility, than the immediate energy absorption effects.

We also pointed on misleading interpretations of

results in related works (Lawrence et al., 2022),

(Surendranathan et al., 2023) caused by incorrect in-

terpretations of a poor and false determinism in re-

sults affected by a mixture of stochastic effects, as

discussed in Section 5. The mixture effect of the ﬁght-

ing phenomenons – increased ﬂicker noise and thresh-

old shift – is stochastic, and could be simply misinter-

preted.

To summarize the security perspective: (i) PUF

function is almost unaffected by lower X-ray doses

(up to ≈ 100 Gy), but (ii) the TRNG function is en-

dangered by this level of intensity of ionizing irradia-

tion: the total number of high-entropy cells available

in SRAM is decreased, and initially-unstable cells

may become signiﬁcantly stable.

Our results indicate, that irradiating an SRAM

memory always decreases the number of the TRNG

healthy cells with the highest entropy, despite the fact,

that the average entropy computed over all SRAM

cells might be increased due to ﬁghting noise and

threshold voltage shift phenomenons in all SRAM

cells.

When implementing a SRAM-based TRNG, no

simple measure can be applied to prevent the signiﬁ-

cant loss of entropy of SRAM cells, but the loss of en-

tropy could be still detected by the (repeated) TRNG

health test. Other options for potentially sensitive ap-

plications are: accepting the entropy loss and apply-

ing higher spatial redundancy and/or repeat SRAM

proﬁling for unstable cell re-detection.

6.1 Future Work

Possible research directions include the quantiﬁcation

of TID and mainly irradiation-triggered annealing ef-

fects on the TRNG and PUF quality, modeling, devel-

opment and validation of treatment methods (Tebina

et al., 2023), (Oldham, 2004) or methods for protect-

ing the security primitives from entropy ﬂuctuations

employable in-the-ﬁeld.

Creating a simpliﬁed, statistical model of the en-

tropy evolution for low to medium total ionization

dose (TID) could bring a real beneﬁt to circuit design.

ACKNOWLEDGMENTS

The authors acknowledge the support of the OP

VVV MEYS funded project CZ.02.1.01/0.0/0.0/

16 019/0000765 “Research Center for Informatics”.

This research has been supported from the state

budget by the Technology agency of the Czech Re-

public under the Future Electronics for Industry 4.0

and Medical 4.0 project No. TN02000067 and the

Student Grant Agency of the University of West Bo-

hemia in Pilsen, grant No. SGS-2024-008 “Materials

ICISSP 2025 - 11th International Conference on Information Systems Security and Privacy

382

and Technologies for Electrical Engineering”.

Computational resources were provided by the e-

INFRA CZ project (ID:90254), supported by the Min-

istry of Education, Youth and Sports of the Czech Re-

public.

REFERENCES

Avery, K., Finchel, J., Mee, J., Kemp, W., Netzer, R.,

Elkins, D., Zufelt, B., and Alexander, D. (2011). Total

Dose Test Results for CubeSat Electronics. In 2011

IEEE Radiation Effects Data Workshop, pages 1–8.

IEEE.

Barnaby, H. (2006). Total-Ionizing-Dose Effects in Modern

CMOS Technologies. IEEE transactions on nuclear

science, 53(6):3103–3121.

Batyrev, I. G., Rodgers, M. P., Fleetwood, D. M., Schrimpf,

R. D., and Pantelides, S. T. (2006). Effects of Water on

the Aging and Radiation Response of MOS Devices.

IEEE Transactions on Nuclear Science, 53(6):3629–

3635.

Bouat, S., Anceau, S., Maingault, L., Clediere, J., Salvo,

L., and Tucoulou, R. (2023). X-ray Nanoprobe for

Fault Attacks and Circuit Edits on 28-nm Integrated

Circuits. In 2023 IEEE International Symposium on

Defect and Fault Tolerance in VLSI and Nanotechnol-

ogy Systems (DFT), pages 1–6. IEEE Computer Soci-

ety.

Claeys, C. and Simoen, E. (2002). Radiation Effects

in Advanced Semiconductor Materials and Devices,

volume 57 of Springer Series in Materials Science.

Springer Berlin Heidelberg, Berlin, Heidelberg.

Clark, L. T., Medapuram, S. B., and Kadiyala, D. K. (2018).

Sram circuits for true random number generation us-

ing intrinsic bit instability. IEEE Transactions on Very

Large Scale Integration (VLSI) Systems, 26(10):2027–

2037.

Entner, R. (2007). Modeling and Simulation of Negative

Bias Temperature Instability. Ph.d. thesis, Technical

University Wien.

Garg, A. and Kim, T. T. (2014). Design of SRAM PUF

with improved uniformity and reliability utilizing de-

vice aging effect. In 2014 IEEE international sym-

posium on circuits and systems (ISCAS), pages 1941–

1944. IEEE.

Gebali, F. and Mamun, M. (2022). Review of physically

unclonable functions (pufs): Structures, models, and

algorithms. Frontiers in Sensors, 2.

Holcomb, D. E., Burleson, W. P., and Fu, K. (2009). Power-

Up SRAM State as an Identifying Fingerprint and

Source of True Random Numbers. IEEE Transactions

on Computers, 58(9):1198–1210.

International Electrotechnical Commission (2005). Medi-

cal diagnostic X-ray equipment - Radiation conditions

for use in the determination of characteristics. IEC

61267:2005, 2.0.

Kasdin, N. (1995). Discrete Simulation of Colored Noise

and Stochastic Processes and 1/f

Power Law Noise

Generation. Proceedings of the IEEE, 83(5):802–827.

Kinniment, D. and Chester, E. (2002). Design of an On-

Chip Random Number Generator Using Metastability.

In Proceedings of the 28th European Solid-State Cir-

cuits Conference, pages 595–598.

Kirton, M., Uren, M., Collins, S., Schulz, M., Karmann,

A., and Scheffer, K. (1989). Individual Defects at the

Si:SiO2 Interface. Semiconductor science and tech-

nology, 4(12):1116.

Larimian, S., Mahmoodi, M. R., and Strukov, D. B. (2020).

Lightweight Integrated Design of PUF and TRNG

Security Primitives Based on eFlash Memory in 55-

nm CMOS. IEEE Transactions on Electron Devices,

67(4):1586–1592.

Lawrence, S., Smith, S., Cannon, J., Carpenter, J., Reising,

D., and Loveless, T. (2022). Effects of Total Ionizing

Dose on SRAM Physical Unclonable Functions. IEEE

Transactions on Nuclear Science, 69(3):349–358.

Mikhail Platonov, J. H. and L

orencz, R. (2013). Using

Power-Up SRAM State of Atmel ATmega1284P Mi-

crocontrollers as Physical Unclonable Function for

Key Generation and Chip Identiﬁcation. Information

Security Journal: A Global Perspective, 22(5-6):244–

250.

Oldham, T. R. (2004). Switching Oxide Traps. Interna-

tional journal of High Speed Electronics and Systems,

14(02):581–603.

SkyWater PDK (2020 – 2023). SkyWater SKY130 PDK’s

documentation.

Surendranathan, U., Wilson, H., Wasiolek, M., Hattar, K.,

Milenkovic, A., and Ray, B. (2023). Total Ioniz-

ing Dose Effects on the Power-Up State of Static

Random-Access Memory. IEEE Transactions on Nu-

clear Science, 70(4):641–647.

Tebina, N.-E. O., Zergainoh, N.-E., Hubert, G., and Maistri,

P. (2023). Simulation Methodology for Assessing X-

Ray Effects on Digital Circuits. In 2023 IEEE Inter-

national Symposium on Defect and Fault Tolerance in

VLSI and Nanotechnology Systems (DFT), pages 1–6.

IEEE; IEEE.

United Nations Environment Programme (2016). Ra-

diation: effects and sources. https://wedocs.

unep.org/bitstream/handle/20.500.11822/7790/

-Radiation

Effects and sources-2016Radiation -

Effects and Sources.pdg.pdf.pdf. United Nations

Environment Programme, 2016.

Valtchanov, B., Aubert, A., Bernard, F., and Fischer, V.

(2008). Modeling and observing the jitter in ring os-

cillators implemented in FPGAs. In 2008 11th IEEE

Workshop on Design and Diagnostics of Electronic

Circuits and Systems, pages 1–6.

Vijayakumar, A., Patil, V. C., and Kundu, S. (2017). On Im-

proving Reliability of SRAM-Based Physically Un-

clonable Functions. Journal of Low Power Electronics

and Applications, 7(1).

Wang, W., Guin, U., and Singh, A. (2020). Aging-resilient

SRAM-based True Random Number Generator for

Lightweight Devices. Journal of Electronic Testing,

36:301–311.

X-Ray Radiation Effects on SRAM-Based TRNG and PUF

383

Zhang, R., Liu, T., Yang, K., and Milor, L. (2017). Model-

ing of the Reliability Degradation of a FinFET-based

SRAM due to Bias Temperature Instability, Hot Car-

rier Injection, and Gate Oxide Breakdown. In 2017

IEEE International Integrated Reliability Workshop

(IIRW), pages 1–4.

Zhang, X., Jiang, C., Dai, G., Zhong, L., Fang, W., Gu,

K., Xiao, G., Ren, S., Liu, X., and Zou, S. (2020).

Improved performance of SRAM-based true random

number generator by leveraging irradiation exposure.

Sensors, 20(21):6132.

ICISSP 2025 - 11th International Conference on Information Systems Security and Privacy

384
