A Process to Compare ATAM and Chapter 9 of ISO/IEC/IEEE

42020:2019

Gustavo S. Melo

and Michel S. Soares

Federal University of Sergipe, Department of Computing, S

ao Crist

ao, Brazil

Keywords:

ATAM, ISO/IEC/IEEE 42020:2019, Software Architecture Evaluation.

Abstract:

The evaluation of software architecture is a critical activity for ensuring system quality and alignment with

business goals. The Architecture Tradeoff Analysis Method (ATAM) offers a systematic approach to iden-

tifying, prioritizing, and resolving tradeoffs within architectural decisions. In contrast, the ISO/IEC/IEEE

42020:2019 standard provides a structured framework for the design, evaluation, and documentation of

software architectures in various domains. This paper presents a comparative analysis of ATAM and

ISO/IEC/IEEE 42020:2019, highlighting their strengths and limitations. One conclusion is that it is important

to note that the broader scope of ISO/IEC/IEEE 42020:2019 does not diminish the value of specialized meth-

ods like ATAM. Rather, it suggests a complementary relationship in which targeted evaluation techniques can

be integrated into a more comprehensive framework. By examining their different approaches to architectural

evaluation, this study aims to provide insights into their applicability to different contexts and implications for

software architecture practices.

1 INTRODUCTION

Correct and timely decision-making for software ar-

chitecture is crucial for the success of a software

project (van Vliet and Tang, 2016). Architectural

decisions, reviewed throughout the software lifecy-

cle, must be based on a thorough analysis to en-

sure the selection of the most appropriate solutions

(Chaves Costa and Soares, 2023a). Consequently,

identifying quality attributes and accurately mapping

usage scenarios are essential steps to avoid inefﬁcien-

cies in time and resources (Agerwala and Bass, 2024).

An assessment of software architecture is a cor-

nerstone of the development lifecycle, allowing teams

to assess their planning and understanding of a

project’s requirements (Kaur et al., 2021). This pro-

cess, conducted at various stages of the software life-

cycle, helps mitigate risks, identify quality require-

ments, and evaluate proposed architectural solutions

(Rocha et al., 2023). Assessment of software archi-

tecture anticipates potential failure points, preventing

them from evolving into critical issues (Silva et al.,

2023).

Proper evaluation of software architecture plays a

key role in the development of robust and efﬁcient

https://orcid.org/0009-0007-8141-2064

https://orcid.org/0000-0002-7193-5087

software (Banijamali et al., 2019). Documenting and

evaluating software architectures involves complex

processes that require collaboration between multi-

ple activities and stakeholders (Franc¸a et al., 2017)

(Santos et al., 2020). Effective communication of ar-

chitectural elements such as layers, tools, decisions,

components, patterns, and processes is vital to ensure

that designs are understandable to different audiences

(Ribeiro et al., 2017) (Kaur et al., 2021).

Several methods have been developed to analyze

and validate the quality attributes of software systems.

Notable among these are the Architecture Tradeoff

Analysis Method (ATAM) and the ISO/IEC/IEEE

42020 standard, along with others such as SAAM,

SACAM, and SBAR.

Each method provides mechanisms for document-

ing and assessing the architecture, ensuring alignment

with project requirements, adaptability to change, and

achievement of business objectives. The choice of an

assessment method typically depends on factors such

as the domain of the system, prioritized quality at-

tributes, and speciﬁc characteristics of the project. In

many cases, it is necessary to combine or adapt dif-

ferent approaches to achieve a comprehensive and ef-

fective analysis.

This paper focuses on a comparative analysis

of two widely recognized approaches, ATAM and

Melo, G. S. and Soares, M. S.

A Process to Compare ATAM and Chapter 9 of ISO/IEC/IEEE 42020:2019.

DOI: 10.5220/0013351800003929

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 27th International Conference on Enterprise Information Systems (ICEIS 2025) - Volume 2, pages 37-46

ISBN: 978-989-758-749-8; ISSN: 2184-4992

the ISO/IEC/IEEE 42020:2019 standard, highlighting

their strengths, limitations, and applicability in soft-

ware architecture assessment. Therefore, one can aim

to provide insights into how these approaches for soft-

ware evaluation support decision-making processes

and contribute to architectural robustness.

2 THEORETICAL REFERENCE

ATAM (Architecture Tradeoff Analysis Method) is a

structured method designed speciﬁcally for analyz-

ing and evaluating architectural tradeoffs. The cen-

tral point of the ATAM approach is to identify risks

and make informed decisions throughout the software

development lifecycle (Kazman et al., 2000; M

uller,

2020; ISO, 2015). The idea is to reﬁne the multi-

ple attributes and architectural decisions according to

the needs of the project, to prevent hasty observations

from jeopardizing the development of the product.

ATAM has its roots in three distinct areas: the fun-

damental principles of architecture, the communities

dedicated to analyzing quality attributes, and its direct

predecessor, SAAM (Software Architecture Analysis

Method). Although it shares similarities with ATAM,

SAAM’s main objective is to determine which archi-

tectures best meet quality requirements, taking into

account the speciﬁc context of software development

(Kazman et al., 1994; M

uller, 2020).

There are risk assessment models that focus

on unitary requirements, for example, performance,

availability, and modiﬁability, which can skew the

software product since a study focused on a single re-

quirement can cause other requirements to be left out

or go unnoticed. Using ATAM, the analysis is based

on multiple requirements, making it clear which ar-

eas have trade-offs and which areas need attention for

a better balance (Kazman et al., 2000; M

uller, 2020).

By applying ATAM, organizations can explore in

depth how architectural decisions have an impact on

achieving the quality attributes that are essential to the

success of the ﬁnal product. ATAM contains phases

deﬁned as preparation, evaluation and consolidation

of results, promoting a detailed evaluation of architec-

tures at different stages of development, using tech-

niques such as scenarios, allowing potential risks to

be identiﬁed and mitigated before they become con-

crete problems (Saldana et al., 2019).

ATAM consists of nine steps:

1. Present the ATAM. The person responsible for

the evaluation describes the evaluation method to

the assembled participants, deﬁnes their expecta-

tions in line with the project’s objectives, and an-

swers the participants’ questions.

2. Present Business Drivers. A project spokesper-

son describes what business goals are motivating

the development efforts and hence what will be

the primary architectural drivers.

3. Present Architecture. The architect will describe

the proposed architecture through the level of de-

tail collected during the previous two steps, focus-

ing on how it addresses the business drivers.

4. Identify Architectural Approaches. Identiﬁca-

tion of the best architectural approaches by the ar-

chitect and the team for the system to be devel-

oped.

5. Generate a Quality Attribute Utility Tree. The

quality factors that comprise system “utility”

(e.g., availability, security, modiﬁability, usabil-

ity) are elicited, speciﬁed to the level of scenarios,

annotated with stimuli and responses, and priori-

tized.

6. Analyze Architectural Approaches. Based on

high-priority factors identiﬁed in Step 5, the ar-

chitectural approaches that address those factors

are elicited and analyzed. For this step, architec-

tural risks, sensitivity points, and trade-off points

are identiﬁed.

7. Brainstorm and Prioritize Scenarios. A larger

set of scenarios is elicited from the entire group

of stakeholders. This set of scenarios is priori-

tized through a voting process involving the entire

stakeholder group.

8. Analyze Architectural Approaches. This step

reiterates the activities of Step 6 but uses the

highly ranked scenarios from Step 7. Those sce-

narios are considered test cases to conﬁrm the

analysis performed so far. This analysis may un-

cover additional architectural approaches, risks,

sensitivity, and trade-off points, which are then

documented.

9. Present Results. Based on the information col-

lected in ATAM (which may include approaches,

scenarios, attribute-speciﬁc questions, risks, the

utility tree, sensitivity points, and tradeoffs), the

ATAM team presents the ﬁndings to stakeholders.

The ISO/IEC/IEEE 42020:2019 standard comple-

ments processes related to ISO/IEEE 15288:2015 in

the ﬁeld of Systems Engineering, offering a more

comprehensive approach to architecture practices.

In addition, the ISO/IEC/IEEE 42020:2019 standard

improves and complements the procedures estab-

lished in ISO/IEC/IEEE 12207:2017 and ISO/IEC

15704:2019, effectively integrating them (ISO, 2019;

ISO, 2015).

ICEIS 2025 - 27th International Conference on Enterprise Information Systems

The ISO/IEC/IEEE 42020:2019 standard is in-

trinsically linked to ISO/IEC/IEEE 42010:2011 and

ISO/IEC/IEEE 42030:2019, which are, respectively,

standards for Architecture Description and Architec-

ture Evaluation (Martin, 2018; Chaves Costa and

Soares, 2023b). These related standards contribute

to a consistent understanding and practice within the

ﬁeld of software architecture.

ISO/IEC/IEEE 42020:2019 is articulated through

six main processes: Governance, Management, Con-

ceptualization, Evaluation, Elaboration, and Enable-

ment. Each of these processes is designed to

strengthen architecture practices and promote effec-

tive implementation. Together, they form a robust

framework that not only improves architectural prac-

tices but also ensures successful project development

by providing a solid foundation for governance, strat-

egy, and efﬁcient execution.

Chapter 9 of ISO/IEC/IEEE 42020:2019 provides

general guidelines for managing software architecture

assessments, without delving into a speciﬁc method-

ology. It sets out principles and processes that can be

applied in different organizational contexts and soft-

ware projects. Rather than prescribing a step-by-step

approach, ISO/IEC/IEEE 42020:2019 emphasizes the

importance of adaptation to the speciﬁc needs of

the project, collaboration between stakeholders and

proper documentation of the assessment results.

Table 1 shows the functions of each process.

The Architecture Evaluation Process, as described

in Chapter 9 of ISO/IEC/IEEE 42020:2019, aims to

determine the suitability of one or more architectures

to achieve the needs and objectives of stakeholders.

Clause 9 is crucial for answering fundamental ques-

tions about the proposed architecture:

1. Is the architecture suitable for the intended uses

and operational situations?

2. Is the architecture ﬂexible and extensible enough

to meet future needs?

3. Is the quality of the architecture acceptable?

4. Does the architecture address the concerns of

stakeholders?

5. Does the architecture achieve its stated objec-

tives?

6. Can the architecture be implemented success-

fully?

These questions are essential to ensure successful

execution. The process is structured into 10 speciﬁc

tasks, detailed in the standard, which guide the ar-

chitecture assessment in a systematic objective way.

Tasks of clause 9 are listed as follows:

Table 1: Architecture Process ISO/IEC/IEEE 42020:2019.

Process Description

Governance Provides direction and guid-

ance on the architectures

developed by the company

and are usually decisions

that come from the business

level.

Management Responsible for implement-

ing the directives coming

from governance is a pro-

cess that requires continuous

communication with gover-

nance, transmitting the de-

ﬁned strategies and progress

towards achieving the objec-

tives.

Conceptualization Determines the appropriate

solutions that must meet the

needs arising from gover-

nance.

Evaluation Determines the extent to

which one or more of the ar-

chitectures developed meet

the needs of the stakehold-

ers, guaranteeing linear de-

velopment in line with the

deﬁned objectives.

Elaboration Responsible for document-

ing the architecture(s) in a

sufﬁciently complete man-

ner for its intended use.

Enablement Provides the necessary facil-

itators to carry out activities

efﬁciently and intelligently.

9.1 Prepare and plan the architecture assessment ef-

fort.

9.2 Monitor, evaluate and control architecture as-

sessment activities.

9.3 Determine evaluation objectives and criteria.

9.4 Determine evaluation methods and integrate

them into the evaluation objectives and criteria.

9.5 Establish measurement techniques, methods and

tools.

9.6 Collecting and reviewing evaluation-related in-

formation.

9.7 Analyze architectural concepts and properties

and assess value for stakeholders.

9.8 Characterize the architecture based on the eval-

uation results.

9.9 Formulate conclusions and recommendations.

A Process to Compare ATAM and Chapter 9 of ISO/IEC/IEEE 42020:2019

9.10 Capture and communicate the results of the as-

sessment.

3 COMPARISON BETWEEN

ATAM AND ISO/IEC/IEEE

42020:2019

Two widely known approaches for evaluating soft-

ware architectures are ATAM and Chapter 9 of

ISO/IEC/IEEE 42020:2019, each with its character-

istics, similarities, and differences.

3.1 Similarities Between ATAM and

ISO/IEC/IEEE 42020:2019

By correlating ATAM and ISO/IEC/IEEE

42020:2019, several similarities can be high-

lighted. The ﬁrst is the ﬂexibility in the order of

the stages. Although numbered and sequential, both

approaches allow the steps to be carried out as the

architecture team and stakeholders decide to proceed.

Constant communication between stakeholders and

business drivers is essential for both approaches.

From this communication and initial planning, the

most important functional requirements, technical,

economic, management constraints, key stakeholders,

and business objectives are deﬁned.

Stakeholder involvement is a feature present from

the outset in both ATAM and the ISO/IEC/IEEE

42020:2019 guidelines. Stakeholders must maintain

continuous communication and be involved during re-

ﬁnements throughout the development of the project,

ensuring that their objectives are aligned and can be

achieved. Both approaches emphasize the impor-

tance of continually evaluating the software architec-

ture to ensure that it meets the quality requirements

and project objectives.

Both ATAM and ISO/IEC/IEEE 42020:2019 em-

phasize the importance of proper documentation that

contains all the objectives, requirements and possible

scenarios, allowing stakeholders to have a complete

understanding of the project.

ATAM and the ISO/IEC/IEEE 42020:2019 guide-

lines identify possible architectural approaches to be

followed. In ATAM, the identiﬁcation is performed

in an initial phase, followed by the generation of the

quality attribute tree and a thorough evaluation to

correlate which architectures meet the most require-

ments with the best quality, according to prioritiza-

tion. ISO/IEC/IEEE 42020:2019 guidelines establish

techniques, methods, and tools to assist in the inves-

tigation of architectural alternatives, followed by an

analysis of the architectural properties that best meet

the requirements, highlighting the favourite choices.

Finally, both approaches highlight the importance

of adapting to the project, with alignment meetings

from the beginning of the product’s conception to en-

sure that the main objectives are accepted by the ma-

jority of stakeholders.

3.2 Differences Between ATAM and

ISO/IEC/IEEE 42020:2019

ATAM is a speciﬁc method for analyzing and eval-

uating architectural trade-offs, focused on identify-

ing risks, sensitivity points, and making informed

decisions during the software development process.

In contrast, Chapter 9 of ISO/IEC/IEEE 42020:2019

provides general guidelines for managing architecture

assessments, without delving into a speciﬁc method-

ology.

The ATAM evaluation scope focuses on evalu-

ating a system’s architecture in terms of quality at-

tributes and identifying possible points of sensitivity

between these attributes. ISO/IEC/IEEE 42020:2019

addresses the lifecycle management of software archi-

tecture evaluations, including the deﬁnition of evalu-

ation criteria, the selection of appropriate evaluation

methods, and the integration of evaluation results into

the development process.

Although ATAM and ISO/IEC/IEEE 42020:2019

address quality attributes as an essential pillar, they

do so in different ways. ATAM is highly effective

in creating a comprehensive tree of quality attributes

by systematically evaluating architectural decisions

against multiple attributes such as performance, se-

curity, modiﬁability, and usability. This helps stake-

holders understand the trade-offs involved in different

architectural choices and their impact on system qual-

ities. For example, ATAM can be used to determine

the balance between performance and modiﬁability,

highlighting architectural risks and their priorities. In

contrast, ISO/IEC/IEEE 42020:2019 provides general

guidelines for deﬁning and managing the architecture

of software-intensive systems, including guidance on

architectural documentation, architectural description

management, and business-oriented architecture plan-

ning.

When comparing the tasks of each method, there

are some signiﬁcant differences. ATAM consists of

9 tasks, while ISO/IEC/IEEE 42020:2019 deﬁnes 10

tasks. One notable difference is that ATAM’s ﬁrst task

involves presenting the method, setting expectations,

and clarifying any doubts the meeting may have. In

contrast, ISO/IEC/IEEE 42020:2019 begins by noting

the level of effort required for the architecture assess-

ICEIS 2025 - 27th International Conference on Enterprise Information Systems

ment, without involving a detailed initial discussion

with stakeholders.

The approach to the existing architecture is an-

other point of difference. In ATAM, after deﬁning the

business drivers, the responsible team drafts the ar-

chitecture to be followed, which will be discussed and

adjusted as necessary. ISO/IEC/IEEE 42020:2019, on

the other hand, works directly with the identiﬁcation

of possible architectures that can meet the demand,

without the need to write a preliminary architectural

sketch.

Another distinguishing factor is brainstorming

and prioritization of scenarios, which in ATAM in-

volves bringing together all stakeholders to discuss

possible scenarios that could occur. These scenarios

are classiﬁed as use case scenarios and change sce-

narios, which can be subdivided into growth and ex-

ploratory scenarios. Growth scenarios help to iden-

tify strengths and weaknesses, while exploratory sce-

narios identify points of sensitivity in the software.

ISO/IEC/IEEE 42020:2019 does not specify this level

of detail for prioritization of scenarios.

ATAM structure is divided into three phases:

preparation, evaluation, and consolidation, using

techniques focused on quality attributes, scenarios

and sensitivity points to conduct the evaluation. In

contrast, Chapter 9 of ISO/IEC/IEEE 42020:2019

takes a more generic approach, focusing on documen-

tation of the assessment and stakeholder collaboration

throughout development.

Regarding the focus on risks, ATAM highlights

risk mapping as a priority, helping the team to identify

and mitigate these risks from the earliest stages of the

project. ISO/IEC/IEEE 42020:2019, even tough rec-

ognizes the importance of risks, does not speciﬁcally

focus on them during the architecture assessment.

4 A PROCESS TO COMPARE

ATAM AND CHAPTER 9 OF

ISO/IEC/IEEE 42020:2019

Based on systematic literature reviews presented be-

fore (Silva et al., 2023; Banijamali et al., 2019; Ah-

madi et al., 2019; Abrah

ao and Insfran, 2017), the

methods were analyzed to generate ideas on how to

compare ATAM with the aforementioned guidelines

from Chapter 9 of the ISO/IEC/IEEE 42020:2019

standard. Through the ideas collected, a process and

a comparison of the evaluation criteria referred to the

construction of a software architecture is carried out

from its initial phase. Through this classiﬁcation, it is

possible to predict the sustainability (in the sense of

durability) of the software architecture designed with

these tools (Koziolek, 2011).

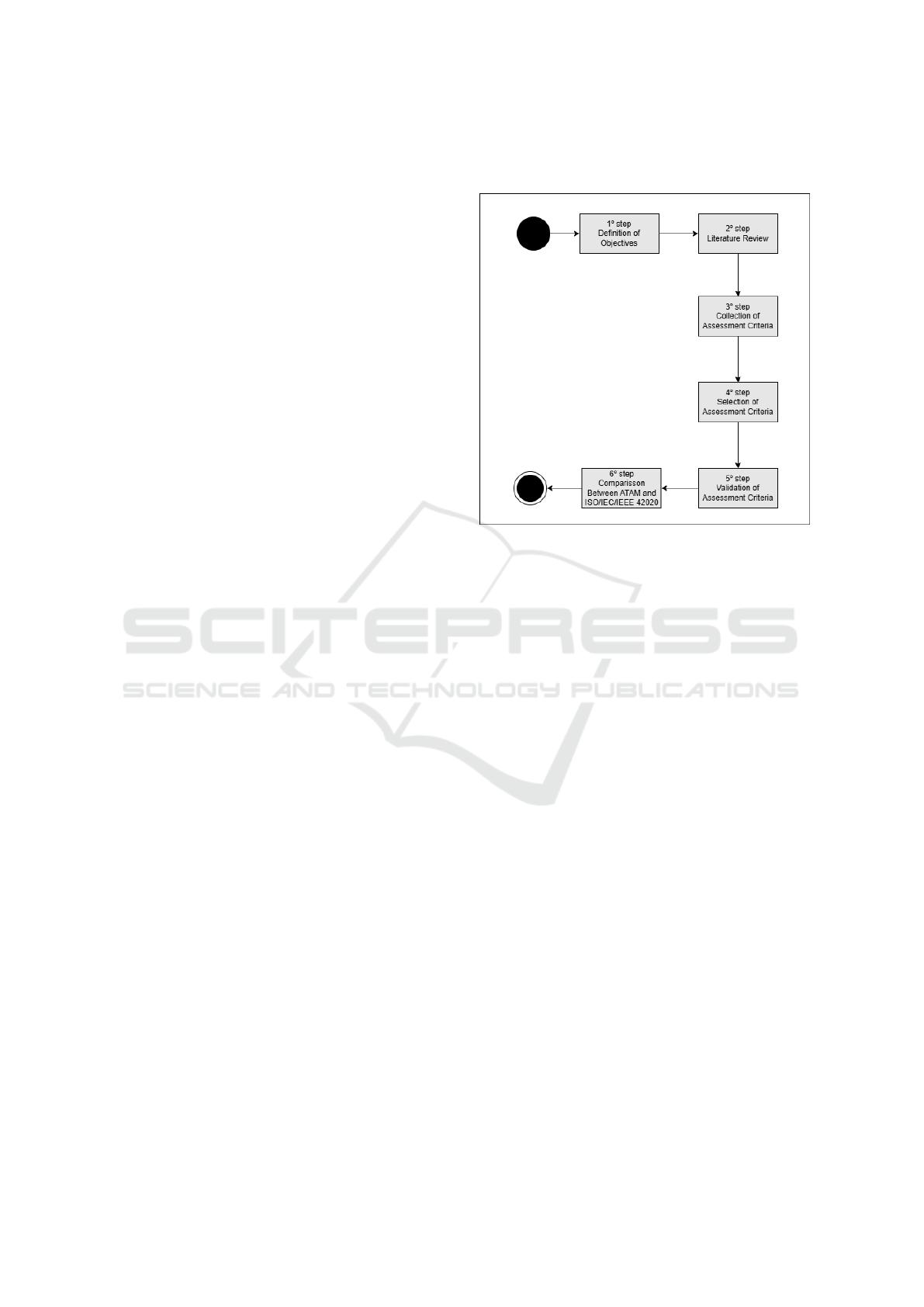

Figure 1: Article development process

The due diligence process in this article is sum-

marized in six steps, as illustrated in Fig. 1.

The ﬁrst step is to deﬁne the objective: to carry

out a comparison between the ATAM architecture as-

sessment methodology and the guidelines presented

in Chapter 9 of ISO/IEC/IEEE 42020:2019, to iden-

tify their differences, similarities, and the evolution

that has occurred over the 19 years that separate them.

The second step consists of reviewing the litera-

ture, looking for works that can guide and serve as a

basis for the development of the article, also investi-

gating evaluation criteria that can be used in the com-

parison.

The third step is to collect the evaluation criteria

found in the literature. The fourth step is the thorough

selection of tangible and intangible criteria, aiming to

describe their similarities and differences.

The ﬁfth step is the validation of the criteria

to verify whether both ATAM and ISO/IEC/IEEE

42020:2019 meet the selected criteria. Finally,

the sixth step is the comparison between ATAM

and ISO/IEC/IEEE 42020:2019, describing the crite-

ria presented and highlighting the improvements of

ISO/IEC/IEEE 42020:2019 compared to ATAM.

Eliciting functional and non-functional require-

ments is the ﬁrst process of Requirements Engineer-

ing. Through it, it is possible to understand and

identify the needs of interested parties (Akram et al.,

2024). The software architect is responsible for deter-

mining the technologies that should be used to build

the software, selecting architectures appropriate to the

A Process to Compare ATAM and Chapter 9 of ISO/IEC/IEEE 42020:2019

context in which they are applied, and choosing archi-

tectural styles.

Architectural styles provide general patterns for

organizing system components’ and deﬁning how

they interact with each other. Choosing the right ar-

chitectural style facilitates system maintenance, scal-

ability, and adaptability, ensuring that it meets spec-

iﬁed requirements efﬁciently and effectively (Power

and Wirfs-Brock, 2019; Marzooni et al., 2021). These

crucial points such as requirements elicitation, tech-

nology selection, choice of appropriate architectures,

and deﬁnition of architectural styles are addressed in

both ATAM and ISO/IEC/IEEE 42020:2019, high-

lighting the importance of addressing these aspects to

ensure the development of software architectures that

are robust and effective.

Design patterns are reusable conceptual solutions

to common software design problems throughout the

development cycle, providing a construction pattern

that developers can follow. The application of a de-

sign pattern varies depending on the problem to be

solved, making some patterns more or less suitable

for certain cases (Uluda

g and Matthes, 2020; Eigler

et al., 2023), a point addressed by both.

The discussion and detailing of scenarios are im-

portant points covered in different ways by ATAM

and ISO/IEC/IEEE 42020:2019. Both approaches in-

volve discussing possible scenarios with stakehold-

ers, and reﬁning the main ideas that should be incor-

porated into the project. However, the detailing of

scenarios is an exclusive feature of ATAM, as it is

a scenario-based methodology, while ISO/IEC/IEEE

42020:2019 addresses this issue in a more generic

way.

Table 2: Comparison of Requirements & Design between

ATAM and ISO/IEC/IEEE 42020:2019.

Criteria ATAM ISO 42020

Functional Requirements ✓ ✓

Non-Functional Requirements ✓ ✓

Technical Selection ✓ ✓

Architecture Selection ✓ ✓

Architecture Style ✓ ✓

Design Patterns ✓ ✓

Possible Scenarios ✓ ✓

Scenario Details ✓

Adopting CI/CD (Continuous Integration and

Continuous Delivery) practices plays a crucial role in

new software development standards, allowing devel-

opers to reduce product release cycles and detect fail-

ures more quickly. However, despite its signiﬁcant

contributions, using CI/CD in practice can be labo-

rious and generate new challenges for development

teams (Zampetti et al., 2023). Monitoring and man-

agement of logs is a process that is intrinsically linked

to risk mitigation. In a software architecture they

are essential for monitoring and recording system

behaviour, facilitating error detection, performance

analysis and maintenance (C

andido et al., 2021). The

selection of development tools, which will be used in

conjunction with the support technologies chosen for

the design of the software architecture, is a concern

addressed exclusively by ISO/IEC/IEEE 42020:2019.

Table 3: Comparison of Development Tools between

ATAM and ISO/IEC/IEEE 42020:2019.

Criteria ATAM ISO 42020

CI/CD Tools ✓

Logging Tools ✓

Versioning Tools ✓

Dependency Manager ✓

IDE Tools ✓

Two crucial topics, addressed by both ATAM and

ISO/IEC/IEEE 42020:2019, are infrastructure and

platform choices. These are fundamental in soft-

ware development, as they directly inﬂuence efﬁ-

ciency, scalability, and maintenance. Selecting the ap-

propriate infrastructure can facilitate the implementa-

tion of robust architectural standards and ensure sys-

tem adaptability to changing technology and business

needs. These decisions impact not only the immedi-

ate performance of software but also its evolution and

ability to integrate with other technological solutions

(Garcia et al., 2021).

Mapping security strategies is crucial to the suc-

cess and reliability of software. Security processes,

based on CIA principles (Conﬁdentiality, Integrity,

Availability), need to be discussed from the initial

stages of software architecture design (Zarour et al.,

2020). Software scalability is an irrefutable and nec-

essary feature of software architectures. As the num-

ber of users of a piece of software grows, it becomes

more likely that the system will be overloaded.

If the hardware used in conjunction with the soft-

ware developed does not support this exponential

growth, then the software could fail, revealing ﬂaws

in the design of the software architecture. Therefore,

software scalability must be considered from the out-

set of its design to avoid future problems, mainte-

nance costs, and even the loss of customers due to

not being able to serve them (Amorim et al., 2014).

Table 4: Comparison of Infrastructure & Platform between

ATAM and ISO/IEC/IEEE 42020:2019.

Criteria ATAM ISO 42020

Infra. Management ✓ ✓

Platform Services ✓ ✓

Recovery and fault tolerance strategies, also

present in ATAM and ISO/IEC/IEEE 42020:2019,

ICEIS 2025 - 27th International Conference on Enterprise Information Systems

Table 5: Comparison of Strategic Issues between ATAM and ISO/IEC/IEEE 42020:2019.

Criteria ATAM ISO 42020

Flexibility ✓ ✓

Stakeholder Involvement ✓ ✓

Continuous Evaluation ✓ ✓

Architecture Alternatives ✓ ✓

Recovery & Fault Tolerance ✓ ✓

Maintenance & Support ✓

Monitoring ✓

Alignment Meetings ✓ ✓

Testing Strategies ✓ ✓

Communication ✓ ✓

Type Speciﬁc method General guidelines

Evaluation Scope Quality attributes Lifecycle management

Quality Attributes Tree of QA Architecture documentation

Number of Tasks 9 10

Preliminary Architecture Sketch ✓

General Structure Prepare, evaluate & consolidate Documentation & collaboration

Risk Focus Priority No speciﬁc focus

are crucial concerns in new software development

models. High-performance software developed to-

day seeks to have as many errors as possible due to

the brutal competition imposed by the software in-

dustry. Small errors are enough for companies to suf-

fer huge losses (Parchman et al., 2016). Maintenance

and support strategies are fundamental in the devel-

opment of a software architecture, as they guarantee

the longevity, efﬁciency, and adaptability of systems.

Maintenance allows software to evolve as user needs

and market conditions change, ﬁxing bugs, improving

performance, and implementing new features. Sup-

port, in turn, ensures that users receive the help they

need to solve problems and use the software effec-

tively. Together, these strategies aim to achieve cus-

tomer satisfaction, reduce costs in the long term and

prevent failures that could compromise software exe-

cution (Hinrichs and Prifti, 2022).

Testing strategies are crucial steps in software de-

velopment, by enabling exhaustive testing to identify

bugs, ﬂaws, and incorrectly implemented processes.

These tests ensure software quality and reliability, in-

creasing end-user satisfaction, and reducing costs as-

sociated with post-deployment ﬁxes (Costa and Teix-

eira, 2018; Duarte et al., 2024). Effective com-

munication and coordination strategies are necessary

in software development, especially in distributed or

multidisciplinary teams.

Clear and consistent communication facilitates

the exchange of information, rapid problem resolu-

tion, and informed decision making, ensuring that all

team members are aligned with project objectives and

deadlines. Project management tools, regular meet-

ings and detailed documentation are essential for co-

ordinating activities, distributing responsibilities and

monitoring progress. Good cooperation also helps to

minimize rework and conﬂicts, improving efﬁciency

and productivity (Kalogiannidis, 2020) (Muller et al.,

2019). Both are concerns explained by ATAM and

ISO/IEC/IEEE 42020:2019.

5 GUIDELINES FOR FUTURE

WORK

For future work, we propose three possible research

projects.

First, the development of a software architecture

assessment framework based on the guidelines in

Chapter 9 of the ISO/IEC/IEEE 42020:2019 standard.

This framework would aim to:

1. Integrate the strengths of focused evaluation

methods like ATAM with the comprehensive ap-

proach of ISO/IEC/IEEE 42020:2019.

2. Provide practical guidelines for implementing the

standard’s recommendations in real-world soft-

ware development contexts.

3. Incorporate emerging trends in software architec-

ture, such as microservices, cloud-native applica-

tions, and AI-driven systems.

Such a framework would contribute to the on-

going evolution of software architecture assessment

methods, helping practitioners navigate the increasing

complexity of modern software systems while adher-

ing to international standards.

Second, research on the development and further

integration of software tools that help and facilitate

the use and application of architectural processes.

Software tools for architecture description and eval-

uation are rarely employed in practice, as such tools

are too primitive (simply storing and describing data)

A Process to Compare ATAM and Chapter 9 of ISO/IEC/IEEE 42020:2019

or too expensive to be used in small to medium-size

companies, which are the vast majority in the soft-

ware industry (da Costa Junior et al., 2019). In ad-

dition, the inclusion of emerging technologies, such

as techniques of machine learning with the aforemen-

tioned tools to increase efﬁciency and effectiveness in

decision-making in the ﬁeld of software architecture,

as well as the continued exploration of best practices

and evolving standards in architectural frameworks

and modelling languages, which remain key to keep-

ing up with advances in the industry.

Third, develop a standardized set of metrics and

automation mechanisms for architecture evaluation

methodologies. This research direction would focus

on:

1. Creating quantiﬁable metrics to measure the ef-

fectiveness of different architecture evaluation

methods in various contexts.

2. Developing automated tools for collecting and an-

alyzing these metrics during the evaluation pro-

cess.

3. Establishing benchmarks and comparative anal-

yses between different evaluation methodologies

based on empirical data.

4. Investigating the correlation between architecture

evaluation results and actual project outcomes.

This research would help organizations make

more informed decisions about which evaluation

methodology to use based on concrete data, while

also providing a foundation for continuous improve-

ment of these methodologies through automated feed-

back and measurement systems. The automation as-

pect would address the current challenge of manual-

intensive evaluation processes, making architecture

evaluation more accessible and efﬁcient for organiza-

tions of all sizes.

6 CONCLUSION

This comparative study between ATAM and

ISO/IEC/IEEE 42020:2019 reveals signiﬁcant ad-

vancements in software architecture evaluation

methodologies over the past two decades. ATAM

continues to be a valuable tool in the software in-

dustry, the emergence of ISO/IEC/IEEE 42020:2019

represents a more comprehensive approach to

software architecture development and assessment.

The analysis highlights several key improvements

embodied in ISO/IEC/IEEE 42020:2019:

1. Broader Scope. The standard encompasses a

wider range of aspects in software architecture

development, extending beyond evaluation to in-

clude crucial elements such as tool selection and

development processes.

2. Integration of Modern Practices.

ISO/IEC/IEEE 42020:2019 incorporates contem-

porary software development practices, including

continuous integration and delivery (CI/CD) and

systematic logging for failure analysis.

3. Emphasis on Maintenance and Monitoring.

The standard places greater emphasis on long-

term aspects of software architecture, including

maintenance strategies and monitoring practices.

4. Comprehensive Task Framework.

ISO/IEC/IEEE 42020:2019 outlines a more

extensive set of tasks for the design and eval-

uation of software architectures, reﬂecting

the increased complexity of modern software

systems.

5. Enhanced Stakeholder Collaboration. The

standard emphasizes the importance of docu-

mentation and collaboration with stakeholders

throughout the architecture development process.

These advancements reﬂect the Software Engi-

neering community, evolving understanding of the

complexities involved in designing and evaluating

software architectures. The shift from ATAM’s

focused approach on quality attribute tradeoffs to

ISO/IEC/IEEE 42020:2019’s holistic view of archi-

tecture development demonstrates the ﬁeld’s maturity.

However, it is important to note that the broader

scope of ISO/IEC/IEEE 42020:2019 does not di-

minish the value of specialized methods such as

ATAM. Rather, it suggests a complementary relation-

ship where targeted evaluation techniques can be in-

tegrated into a more comprehensive framework.

REFERENCES

Abrah

ao, S. and Insfran, E. (2017). Evaluating Software Ar-

chitecture Evaluation Methods: An Internal Replica-

tion. In Proceedings of the 21st International Confer-

ence on Evaluation and Assessment in Software Engi-

neering, EASE ’17, pages 144—-153, New York, NY,

USA. Association for Computing Machinery.

Agerwala, G. and Bass, L. (2024). Teaching Software Ar-

chitecture Design - Building Intuition. In Proceedings

of the 1st International Workshop on Designing Soft-

ware, Designing ’24, pages 27—-33, New York, NY,

USA. Association for Computing Machinery.

Ahmadi, H., Farahani, B., Aliee, F. S., and Motlagh, M. A.

(2019). Cross-layer Enterprise Architecture Evalua-

tion: An Approach to Improve the Evaluation of TO-

BE Enterprise Architecture. In Proceedings of the

ICEIS 2025 - 27th International Conference on Enterprise Information Systems

International Conference on Omni-Layer Intelligent

Systems, COINS ’19, pages 223––228, New York,

NY, USA. Association for Computing Machinery.

Akram, F., Ahmad, T., and Sadiq, M. (2024). Recommen-

dation Systems-based Software Requirements Elicita-

tion Process—a Systematic Literature Review. Jour-

nal of Engineering and Applied Science, 71.

Amorim, S. d. S., Almeida, E. S. d., and McGregor, J. D.

(2014). Scalability of Ecosystem Architectures. In

2014 IEEE/IFIP Conference on Software Architec-

ture, pages 49–52.

Banijamali, A., Heisig, P., Kristan, J., Kuvaja, P., and Oivo,

M. (2019). Software Architecture Design of Cloud

Platforms in Automotive Domain: An Online Survey.

In 2019 IEEE 12th Conference on Service-Oriented

Computing and Applications (SOCA), pages 168–175.

Chaves Costa, J. E. and Soares, M. S. (2023a). A Review

on the Capacities of the ISO/IEC/IEEE 42020:2019

Standard for Architecture Elaboration of Software and

Systems. In Proceedings of the XIX Brazilian Sympo-

sium on Information Systems, SBSI ’23, pages 412–

–418, New York, NY, USA. Association for Comput-

ing Machinery.

Chaves Costa, J. E. and Soares, M. S. S. (2023b). A Review

on the Capacities of the ISO/IEC/IEEE 42020:2019

Standard for Architecture Elaboration of Software and

Systems. In Proceedings of the XIX Brazilian Sympo-

sium on Information Systems, pages 412—-418, New

York, NY, USA. Association for Computing Machin-

ery.

Costa, A. and Teixeira, L. (2018). Testing Strategies for

Smart Cities applications: A Systematic Mapping

Study. In Proceedings of the III Brazilian Symposium

on Systematic and Automated Software Testing, SAST

’18, pages 20—-28, New York, NY, USA. Association

for Computing Machinery.

andido, J., Aniche, M., and van Deursen, A. (2021). Log-

based Software Monitoring: A Systematic Mapping

Study. PeerJ Computer Science, 7:1–38.

da Costa Junior, A. A., Misra, S., and Soares, M. S. (2019).

ArchCaMO - A Maturity Model for Software Archi-

tecture Description Based on ISO/IEC/IEEE 42010:

2011. In Misra, S., Gervasi, O., Murgante, B.,

Stankova, E. N., Korkhov, V., Torre, C. M., Rocha, A.

M. A. C., Taniar, D., Apduhan, B. O., and Tarantino,

E., editors, Computational Science and Its Applica-

tions - ICCSA 2019 - 19th International Conference,

Saint Petersburg, Russia, July 1-4, 2019, Proceedings,

Part V, volume 11623 of Lecture Notes in Computer

Science, pages 31–42. Springer.

Duarte, Y., Durelli, V., Nardi, P. A., and Endo, A. T. (2024).

Exploratory Testing Strategies for Video Games: An

Experience Report. In Proceedings of the 22nd Brazil-

ian Symposium on Games and Digital Entertainment,

SBGames ’23, pages 46—-55, New York, NY, USA.

Association for Computing Machinery.

Eigler, T., Huber, F., and Hagel, G. (2023). Tool-Based

Software Engineering Education for Software Design

Patterns and Software Architecture Patterns - a Sys-

tematic Literature Review. In Proceedings of the 5th

European Conference on Software Engineering Edu-

cation, ECSEE ’23, pages 153—-161, New York, NY,

USA. Association for Computing Machinery.

Franc¸a, J. M. S., de S. Lima, J., and Soares, M. S. (2017).

Development of an Electronic Health Record Appli-

cation using a Multiple View Service Oriented Archi-

tecture. In Hammoudi, S., Smialek, M., Camp, O.,

and Filipe, J., editors, ICEIS 2017 - Proceedings of

the 19th International Conference on Enterprise In-

formation Systems, Volume 2, Porto, Portugal, April

26-29, 2017, pages 308–315. SciTePress.

Garcia, J., Mirakhorli, M., Xiao, L., Zhao, Y., Mujhid, I.,

Pham, K., Okutan, A., Malek, S., Kazman, R., Cai,

Y., and Medvidovi

c, N. (2021). Constructing a Shared

Infrastructure for Software Architecture Analysis and

Maintenance. In 2021 IEEE 18th International Con-

ference on Software Architecture (ICSA), pages 150–

161.

Hinrichs, M. and Prifti, L. (2022). Visualizing Maintenance

Data to Support Decisions on Strategic Maintenance

Planning. In Proceedings of the 15th International

Conference on PErvasive Technologies Related to As-

sistive Environments, PETRA ’22, pages 473––479,

New York, NY, USA. Association for Computing Ma-

chinery.

ISO (2015). Systems and Software Engineering — System

Life Cycle Processes.

ISO (2019). Enterprise, Systems and Software — Archi-

tecture Processes. Final Draft International Standard

(FDIS).

Kalogiannidis, S. (2020). Impact of Effective Business

Communication on Employee Performance. Euro-

pean Journal of Business and Management Research,

5(6).

Kaur, K., Khurana, M., and Manisha (2021). Impact of Ag-

ile Scrum Methodology on Time to Market and Code

Quality – A Case Study. In 2021 3rd International

Conference on Advances in Computing, Communica-

tion Control and Networking (ICAC3N), pages 1673–

1678.

Kazman, R., Bass, L., Abowd, G., and Webb, M. (1994).

SAAM: A Method for Analyzing the Properties of

Software Architectures. In Proceedings of 16th Inter-

national Conference on Software Engineering, pages

81–90. IEEE.

Kazman, R., Klein, M., Clements, P., Northrop, L., and Mc-

Gregor, J. (2000). ATAM: Method for Architecture

Evaluation. In Proceedings of the 22nd international

conference on Software engineering, pages 478–487.

ACM.

Koziolek, H. (2011). Sustainability Evaluation of Software

Architectures: A Systematic Review. In Proceedings

of the Joint ACM SIGSOFT Conference – QoSA and

ACM SIGSOFT Symposium – ISARCS on Quality of

Software Architectures – QoSA and Architecting Crit-

ical Systems – ISARCS, QoSA-ISARCS ’11, pages 3–

–12, New York, NY, USA. Association for Computing

Machinery.

Martin, J. N. (2018). Overview of an Emerging Standard on

Architecture Processes — ISO/IEC/IEEE 42020. In

A Process to Compare ATAM and Chapter 9 of ISO/IEC/IEEE 42020:2019

2018 Annual IEEE International Systems Conference

(SysCon), pages 1–8, Vancouver, BC, Canada. IEEE.

Marzooni, H. H., Motameni, H., and Ebrahimnejad, A.

(2021). Architecture Style Selection using Statistics

of Quality Attributes to Reduce Production Costs. In-

ternational Arab Journal Of Information Technology,

18(4):513–522.

uller, H. (2020). Software Architecture Evaluation Meth-

ods and Tools: Analyzing Methods and Tools for

Evaluating Software Architectures to Ensure Adher-

ence to Quality Attributes and Design Principles. Dis-

tributed Learning and Broad Applications in Scientiﬁc

Research, 6:1–14.

Muller, M., Fussell, S. R., Gao, G., Hinds, P. J., Oliveira,

N., Reinecke, K., Robert, L., Siangliulue, K. P., Wulf,

V., and Yuan, C.-W. (2019). Learning from Team

and Group Diversity: Nurturing and Beneﬁting from

our Heterogeneity. In Companion Publication of the

2019 Conference on Computer Supported Coopera-

tive Work and Social Computing, CSCW ’19 Compan-

ion, page 498–505, New York, NY, USA. Association

for Computing Machinery.

Parchman, Z. W., Vallee, G. R., Naughton, T., Engel-

mann, C., Bernholdt, D., and Scott, S. L. (2016).

Adding Fault Tolerance to NPB Benchmarks Using

ULFM. In Proceedings of the ACM Workshop on

Fault-Tolerance for HPC at Extreme Scale, FTXS ’16,

pages 27—-34, New York, NY, USA. Association for

Computing Machinery.

Power, K. and Wirfs-Brock, R. (2019). An Exploratory

Study of Naturalistic Decision Making in Complex

Software Architecture Environments. In Bures, T.,

Duchien, L., and Inverardi, P., editors, Software Ar-

chitecture, ECSA 2019, volume 11681 of Lecture

Notes in Computer Science, pages 55–70. Univ Lille;

I Site ULNE; Inria; CNRS, Miss Femmes; CNRS,

GDR, Genie Programmation Logiciel; CNRS, UMR,

CRIStAL Comp Sci Lab; Spirals Res Grp. 13th Euro-

pean Conference on Software Architecture Engineer-

ing (ECSA), Paris, FRANCE, SEP 09-13, 2019.

Ribeiro, Q. A. D. S., Ribeiro, F. G. C., and Soares, M. S.

(2017). A Technique to Architect Real-time Embed-

ded Systems with SysML and UML through Multiple

Views. In Hammoudi, S., Smialek, M., Camp, O.,

and Filipe, J., editors, ICEIS 2017 - Proceedings of

the 19th International Conference on Enterprise In-

formation Systems, Volume 2, Porto, Portugal, April

26-29, 2017, pages 287–294. SciTePress.

Rocha, F. G., Misra, S., and Soares, M. S. (2023). Guide-

lines for Future Agile Methodologies and Architecture

Reconciliation for Software-Intensive Systems. Elec-

tronics, 12(7).

Saldana, Y. P., Toribio, G. G., Hernandez, M. J. S., Mora,

J. J. H., Bautista, H. N., Alegria, J. A. H., Ordonez,

C. A. C., Davila, L. M., and Gutierrez, N. A. (2019).

Evaluation of the Modiﬁability of an Evolution Sys-

tem Using the ATAM Method. International Journal

of Science and Research (IJSR), 8(2):1772–1779.

Santos, V. M., Misra, S., and Soares, M. S. (2020). Ar-

chitecture Conceptualization for Health Information

Systems Using ISO/IEC/IEEE 42020. In Gervasi, O.,

Murgante, B., Misra, S., Garau, C., Blecic, I., Taniar,

D., Apduhan, B. O., Rocha, A. M. A. C., Tarantino,

E., Torre, C. M., and Karaca, Y., editors, Computa-

tional Science and Its Applications - ICCSA 2020 -

20th International Conference, Cagliari, Italy, July

1-4, 2020, Proceedings, Part VI, volume 12254 of

Lecture Notes in Computer Science, pages 398–411.

Springer.

Silva, S., Tuyishime, A., Santilli, T., Pelliccione, P., and

Iovino, L. (2023). Quality Metrics in Software Archi-

tecture. In 2023 IEEE 20th International Conference

on Software Architecture (ICSA), pages 58–69.

Uluda

g, O. and Matthes, F. (2020). Large-Scale Agile De-

velopment Patterns for Enterprise and Solution Archi-

tects. In Proceedings of the European Conference on

Pattern Languages of Programs 2020, EuroPLoP ’20,

New York, NY, USA. Association for Computing Ma-

chinery.

van Vliet, H. and Tang, A. (2016). Decision Making in Soft-

ware Architecture. Journal of Systems and Software,

117:638–644.

Zampetti, F., Tamburri, D., Panichella, S., Panichella, A.,

Canfora, G., and Di Penta, M. (2023). Continuous

Integration and Delivery Practices for Cyber-Physical

Systems: An Interview-Based Study. ACM Trans.

Softw. Eng. Methodol., 32(3).

Zarour, M., Alenezi, M., and Alsarayrah, K. (2020). Soft-

ware Security Speciﬁcations and Design: How Soft-

ware Engineers and Practitioners Are Mixing Things

Up. In Proceedings of the 24th International Confer-

ence on Evaluation and Assessment in Software Engi-

neering, EASE ’20, pages 451––456, New York, NY,

USA. Association for Computing Machinery.

ICEIS 2025 - 27th International Conference on Enterprise Information Systems
