Business Process Design Support with Automated Interviews

Danielle Silva de Castro

1 a

, Marcelo Fantinato

2 b

and Mateus Barcellos Costa

1 c

Postgraduate Program in Applied Computing (PPComp), Instituto Federal do Esp

ırito Santo, Serra, Brazil

School of Arts, Sciences and Humanities, Universidade de Sao Paulo, S

ao Paulo, Brazil

Keywords:

Business Process Design, Conversational Agents, Automated Model Generation.

Abstract:

Interviews are widely used to collect and organize decentralized, unstructured, and undocumented informa-

tion, serving as a valuable tool for business process design and re-design. Conversely, they present several

challenges, including high costs related with planning, preparation, and execution, as well as the need for

strong engagement from interviewees. Additionally, interviewees often lack a clear and comprehensive un-

derstanding of the processes, which complicates their ability to fully articulate them. The advent of intelligent

conversational tools presents new opportunities for process elicitation but also introduces challenges in manag-

ing the subjective and tacit nature of business process knowledge, while ensuring the generation of consistent

and high-quality models. Considering these issues, this paper discusses an automated approach for conduct-

ing business process modeling interviews. This approach is designed to capture process behavior using the

so-called Situation-Based Modeling Notation (SBMN), which further enables the automated generation of

alternative imperative business process models. To evaluate the proposed approach, a conversational agent

prototype and a model generator of possible solutions were developed. The experiments conducted demon-

strate the ability to construct high-quality models according to the metrics of recall, precision, generalization,

and simplicity. The results also indicate that the generated models maintain consistency with process con-

straints and uncover alternative models effectively.

1 INTRODUCTION

Business process modeling is increasingly adopted by

organizations aiming to enhance their efﬁciency and

effectiveness. Its main role is to create models that

support mitigating the complexity of planning, man-

aging, executing, controlling, and evolving business

processes (Beerepoot et al., 2023).

Modeling occurs either to capture the current be-

havior and structure of the processes under consid-

eration (as-is) or to introduce modiﬁcations and in-

novations to be implemented in the same processes

(to-be), including the design of new processes. In

both cases, knowledge about these processes, often

manifested only tacitly or subjectively (Dumas et al.,

2013; Verner, 2004), must be captured and subse-

quently transcribed into models using some notation

or modeling language, e.g., BPMN – Business Pro-

cess Model and Notation (OMG, 2013) or EPC –

Event-Driven Process Chain (Kim, 1996).

https://orcid.org/0009-0001-8582-3182

https://orcid.org/0000-0001-6261-1497

https://orcid.org/0000-0002-4235-5411

A common practice in modeling involves the par-

ticipation of a modeling expert who constructs mod-

els, e.g., using drawing tools, based on informa-

tion gathered from domain experts through inter-

views. Such an approach, although attractive, is

prone to errors in conception or interpretation, which

can lead to models that deviate from the actual re-

ality they are meant to represent (Kannengiesser and

Oppl, 2015; Leyh et al., 2016). According to Leyh

et al. (2016), for example, the perspectives of do-

main experts may be based on fragmented knowledge,

lacking individual clarity and/or depth, and originat-

ing from multiple sources. The modeler, acting as

an intermediary, may produce models based on in-

accurate or limited interpretations of reality (Kan-

nengiesser and Oppl, 2015). In addition, it is also

recognized that interviewing-drawing-based process

modeling involves many manual activities and re-

mains one of the least automated efforts of Business

Process Management (BPM) projects. In fact, gen-

erally speaking, automating process design and re-

design has been pointed out as a major challenge in

BPM (Beerepoot et al., 2023).

In Business process modeling, while processing

734

Silva de Castro, D., Fantinato, M. and Costa, M. B.

Business Process Design Suppor t with Automated Interviews.

DOI: 10.5220/0013362000003929

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 27th International Conference on Enterprise Information Systems (ICEIS 2025) - Volume 2, pages 734-745

ISBN: 978-989-758-749-8; ISSN: 2184-4992

modeling information ﬂows, the modeler may en-

counter cognitive challenges, including the need to:

retain the expected behavior of the process, under-

stand the solution space for modeling and its alterna-

tives, and remain aware of the inherent constraints of

the desired process behavior. Since process behavior

is typically well-understood by domain experts, this

paper presents an approach to support modelers by

automating the process of interviewing them. The re-

sults of the interview lead to the generation of alterna-

tive and possible business process models that capture

the speciﬁed process behavior and its constraints.

The automated interview is designed to assist

modelers in deﬁning the control ﬂow of the process in

terms of logical-temporal constraints. In the proposed

approach, a computational agent poses a sequence of

yes/no questions to a domain expert. The interview

results in control ﬂow models that are both consistent

and aligned with the reality described by the domain

expert.

To evaluate the proposed approach, an empiri-

cal study was conducted using a publicly model-

ing dataset. The experiments demonstrated the abil-

ity to generate models with high-quality metrics, as

evaluated by typical process mining measures of re-

call, precision, generalization, and simplicity. It was

also observed that the interviews required a relatively

small number of questions to produce viable results.

However, signiﬁcant computational effort was ob-

served during this phase to derive the initial solution

space.

The remainder of this paper is organized as fol-

lows: Section 3 provides an overview of the proposed

approach. Section 2 reviews essential conceptual as-

pects relevant for understanding the proposed solu-

tion. In Section 4, aspects of the interviewing model

and automated model generation are provided. Sec-

tion 5 details the experiments conducted. Section 6

reviews related work and Section 7 concludes the ar-

ticle with a discussion on the results obtained, limita-

tions, and directions for future work.

2 BACKGROUND

The control-ﬂow behavior of business processes can

be deﬁned through constraints, which can be rep-

resented using declarative notations or languages

(Fahland et al., 2009). Declarative approaches are de-

signed to focus on specifying the behavioral bound-

aries of a process by articulating logical and temporal

constraints (Pesic et al., 2007). Notable examples of

declarative approaches include the Declare language

(Pesic et al., 2007) and the Situation-Based Model-

ing Notation (SBMN), which builds upon the previ-

ously established concept of Recommendation Pat-

terns(Costa and Tamzalit, 2017). This study considers

the SBMN declarative model, given that this model

demonstrates sufﬁcient expressiveness for represent-

ing control-ﬂow constraints, while also offering sim-

plicity (Sch

utzenmeier et al., 2023).

In SBMN, a situation is a type of relationship be-

tween active ﬂow objects that constitute the Process

Domain (D). The situation set of a process repre-

sents the mandatory constraints that should be ob-

served during process execution. Table 1 presents the

set of situation types that are considered in this work.

Table 1: SBMN Situations Types.

Situation Description Usage

Strict Depen-

dence

Strict precedence

between two distinct

AFO groups

b DEP a –

b depends on

Circumstantial

Dependence

Precedence between

two distinct AFO

groups in the presence

of the depended-upon

group

b DEPC a –

b depends on

a, in the pres-

ence of a.

Non-

coexistence

Mutual exclusion

between two distinct

AFO groups

a XOR b –

a excludes

b, and b

excludes at a

same ﬂow.

Union Logical OR relation-

ship between two dis-

tinct AFO groups

a U NI b –

only a, a and

b, or only b

may occur in

the same ﬂow.

In Table 2, it is presented a SBMN model from

which the Project Approval Model, shown in Figure

1, was derived.

Table 2: SBMN model for the Project Approval process.

Domain *****************

Pr6 Project Arrival | Re8 Register Project

Re7 Retrieve Project| Ev0 Evaluate

Fi2 Fill Report | i4 Visit in Loco

Is3 Issue Permit | Re6 Request Changes

Situations ***************

Re8 DEP Pr6 | Re7 DEP Pr6 | Ev0 DEPC Pr6

Fi2 DEP Pr6 | Ev0 DEPC Re8 | Ev0 DEP Re7

Fi2 DEP Ev0 | Re8 XOR Re7 | Is3 DEP Ev0

Is3 DEP Fi2 | Re6 DEP Ev0 | Vi4 DEP Re7

Vi4 DEP Re8 | Re6 DEP Fi2 | Is3 XOR Re6

The labels DEP, DEPC and XOR are used to rep-

resent, respectively, strict dependency, circumstantial

dependency, and non-coexistence. It can be noted

Business Process Design Support with Automated Interviews

735

that the BPMN model in Figure 1 is a valid instance

of a BPMN model concerning the constraint model.

Even tough this model does not violate any of the con-

straints deﬁned by the declarative model, it does not

provide a high quality score given the reference model

for the process problem. It occurs because not enough

constraints were given for the Visit in loco task and it

may occur even after the Issue Permit task is done.

However, a better solution was also generated for the

same SBMN speciﬁcation as illustrated in Figure 2.

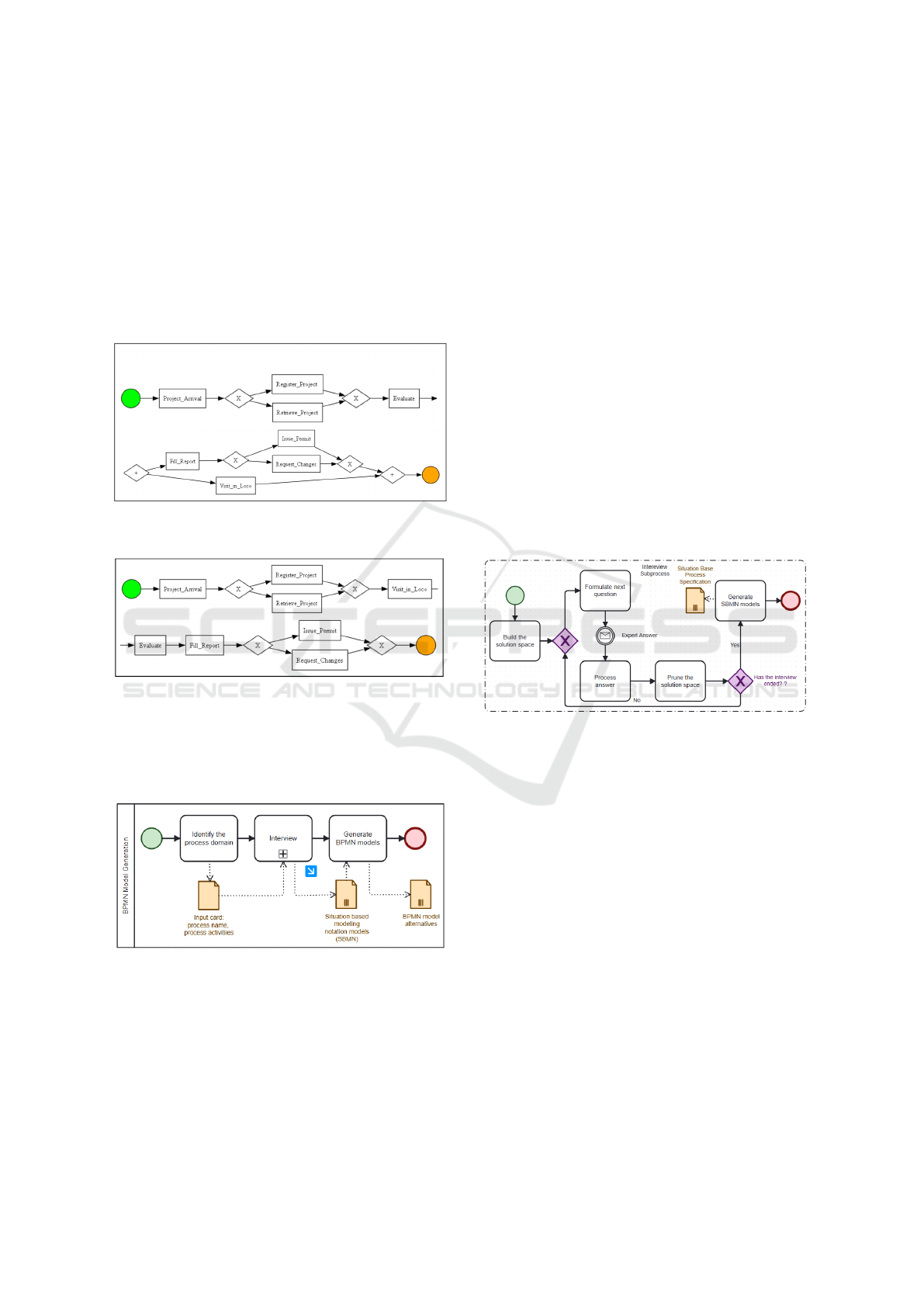

Figure 1: One of the 9 models automatically generated

based on the SBMN Speciﬁcation illustrated in Box 2.

Figure 2: A better BPMN solution based on the SBMN

Speciﬁcation illustrated in Table 2.

3 PROPOSAL OVERVIEW

Figure 3: Model Generation Flow.

Figures 3 and 4 provide an overview of the pro-

posed approach, illustrating all stages from identify-

ing the process to be modeled to obtaining alternative

BPMN models.

In the ﬂow of model generation, the business pro-

cess to be modeled must ﬁrst be identiﬁed by a name,

along with its a priori activities and events. For sim-

plicity, and considering that tasks, events, and sub-

processes are indistinguishable in deﬁning the control

ﬂow, these elements will collectively be referred to

as Active Object Flows (AFOs), or interchangeably

as tasks. Ideally, the AFOs that comprise the pro-

cess should be identiﬁed a priori; however, additional

AFOs may also be introduced during the interview

process.

The second stage comprises the interview for the

deﬁnition of the model based on the perspective of

the domain expert. The interview model establishes a

ﬂow of questions, considering all plausible hypothe-

ses for the model in the current state of the interview.

At the beginning of the interview, the solution space

for the modeled process is constructed. This solution

space allows inferring questions whose answers lead

to new reconﬁgurations of the solution space to keep

it consistent with the interview results. The inter-

view process continues until the solution space is con-

sidered satisfactorily sized, meaning the remaining

models are appropriate representations of the mod-

eled process given the available information.

Figure 4: Interviewing Internal ﬂow.

Figure 4 illustrates the interview process in de-

tail. The construction of the Solution Space for the

process, as discussed in Section 4.1, encompasses

all probable hypotheses of models for the modeled

process. These models are built using a declara-

tive notation called Situation-Based Modeling Nota-

tion (SBMN), which describes the operational seman-

tics of processes through a logic-temporal constraint-

based notation. The solution space is represented as

a directed graph, where the vertices correspond to sit-

uations and the edges connect valid models. For in-

stance, let us suppose a model containing the follow-

ing situations exists in the graph: (B Dep A), (C Dep

A), (C Xor D), (E Dep C). Then, this graph would

have a path of edges connecting the set of vertices

that represent these situations.

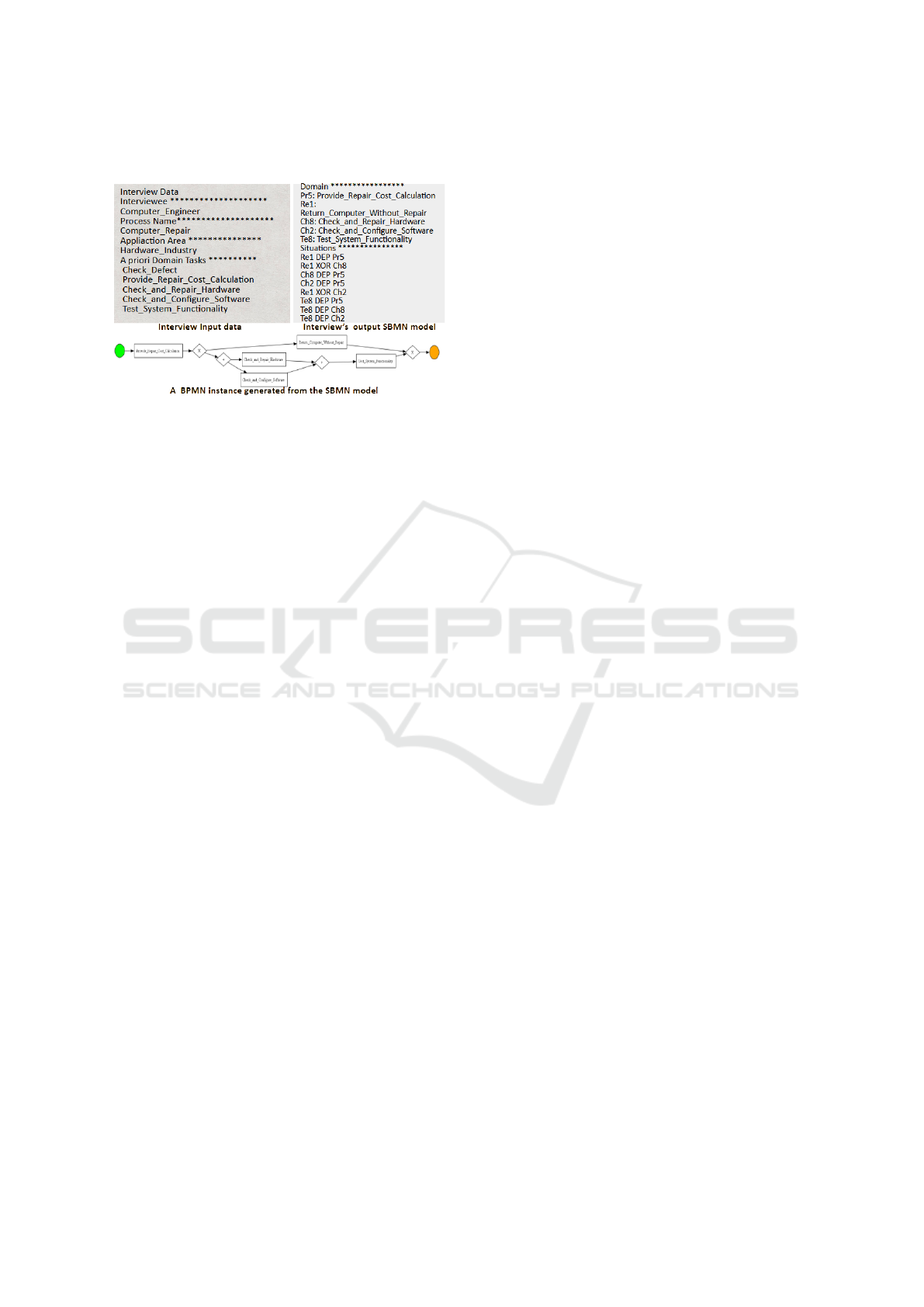

Figure 5 illustrates the proposed approach, pre-

senting the interview input artifacts, which include

basic interview data (interviewee, process name, and

application area) and a priori tasks; the SBMN

model, obtained through the interview, and a BPMN

ICEIS 2025 - 27th International Conference on Enterprise Information Systems

736

model generated from the SBMN model.

Figure 5: Proposal artifacts. From the interview input to the

BPMN result.

The questions are formulated on the basis of the

set of valid questions not yet asked and the current

state of the solution space. As the questions are an-

swered, the solution space is reconﬁgured through

pruning. For instance, if a given situation, say B Dep

A, is indicated as true (present) for the model, the so-

lution space is pruned by removing all models that

do not include this situation. If the situation is indi-

cated as false (not present) for the model, the Solution

Space is pruned by removing all models that include

it.

The interview process can end with one or more

valid models reﬂecting consistent arrangements of

the situations indicated as true during the interview.

These models are referred to as declarative speciﬁca-

tions of the process, described using SBMN. These

speciﬁcations are then used for the automatic gen-

eration of BPMN models consistent with them. For

each SBMN model generated, its alternative BPMN

models, i.e., the BPMN models that meet the con-

straints at the SBMN model, can be produced. To

analyze the quality of the generated models, exper-

iments were conducted using processes for which a

Reference Model was available. The generated mod-

els were then compared to the reference models us-

ing the typical metrics used to evaluate solutions gen-

erated with Process Mining techniques. These met-

rics were obtained according to the techniques dis-

cussed by Fantinato et al. (2023), by using the Pro-

cesses Mining Python (pm4py) library.

4 INTERVIEWING AND MODEL

GENERATION

Interviews aimed at identifying a process’s con-

trol ﬂow often focus on logical-temporal constructs,

which can create a vast possibility space, making it

challenging for interviewees to fully disclose process

variability. Furthermore, transcribing this information

into model constructs involves numerous acceptable

combinations of elements. As discussed previously,

this combined approach of interviews and modeling

can be quite appealing but may be prone to errors and

deviations caused by issues in the conception and in-

terpretation of process requirements.

To address these issues, a computational agent-

based interviewing and model generator is proposed,

aimed at generating procedural model alternatives to

describe the process control ﬂow. The interviewing

model is designed to simplify interactions through a

series of questions with ”yes,” ”no,” or ”indifferent”

answers.

During the interview process, after identifying the

preliminary process domain (its set of a priori tasks),

the computational agent begins posing questions in-

volving the domain tasks and the constraints per-

mitted by the target notation (SBMN). For example,

consider the following question: ”Does the Register

project Depend on Project arrival?” In this question,

two tasks are linked by a dependency constraint. The

response to this question may introduce the constraint

into the model, eliminate the possibility of its exis-

tence, or leave its inclusion undecided. ”Yes” or ”No”

answers enable the agent to prune the solution space,

narrowing it to a set of models that are fully consis-

tent and aligned with the constraints under evaluation

by the interviewee.

4.1 Solution Space

The interview sequence of questions is based on

the analysis of the Frame of discernment (Schubert,

2012). This structure corresponds to the set of all ac-

ceptable hypotheses for process models, referred to

as the modeling solution space. It was derived from

subset trees of the set P (S) of all possible situations

that can be formulated for the process domain. Con-

sequently, the problem assumes time and space com-

plexity with the ceiling function F(N

) ∝ 2

, where

represents the number of possible situations for a

process with domain size n in the chosen language.

For an interviewing model that considers the sub-

set of the SBMN notation comprising strict depen-

dence, union, and non-coexistence, as discussed in

previously work (Cabral et al., 2021), with S as the set

of all situations that can be formulated for the process

domain and the process domain having cardinality n,

the cardinality of S is given by 2n(n − 1). The growth

of N

therefore follows the second-order arithmetic

progression {4, 12, 24, 40, 60, 84, 112, . . .}. Assum-

Business Process Design Support with Automated Interviews

737

ing all models in the Solution Space are consistent,

the problem size in terms of time and space would

grow proportionally to 2

2n(n−1)

, becoming intractable

even for a small number of tasks.

To mitigate the problem of combinatorial explo-

sion in the solution space, a strategy of gradual in-

troduction of task was adopted. In these cases, the a

priori set of tasks is reduced to a manageable subset,

and the interview is initiated. The remaining tasks are

gradually introduced after a signiﬁcant reduction in

the solution space. Another possible strategy is the

modularization of the process into phases when ap-

plicable. In this case, the interview can be divided

into stages, each composed of a manageable number

of tasks.

The concept of circumstantial dependence was in-

troduced as a model extension, ensuring that the ad-

dition did not increase the size of the solution space.

There are two typical scenarios for Depc use. The

SBMN meta-model deﬁnes the [B Depc A] (A de-

pends circumstantially on B) semantics as: B depends

on A if and only if A executes. Otherwise, if A does

not run in a process case, B will execute without any

constraints related to A. Depc is necessary to pre-

serve the consistency of models in cases where a task

should depend on tasks that may not occur.

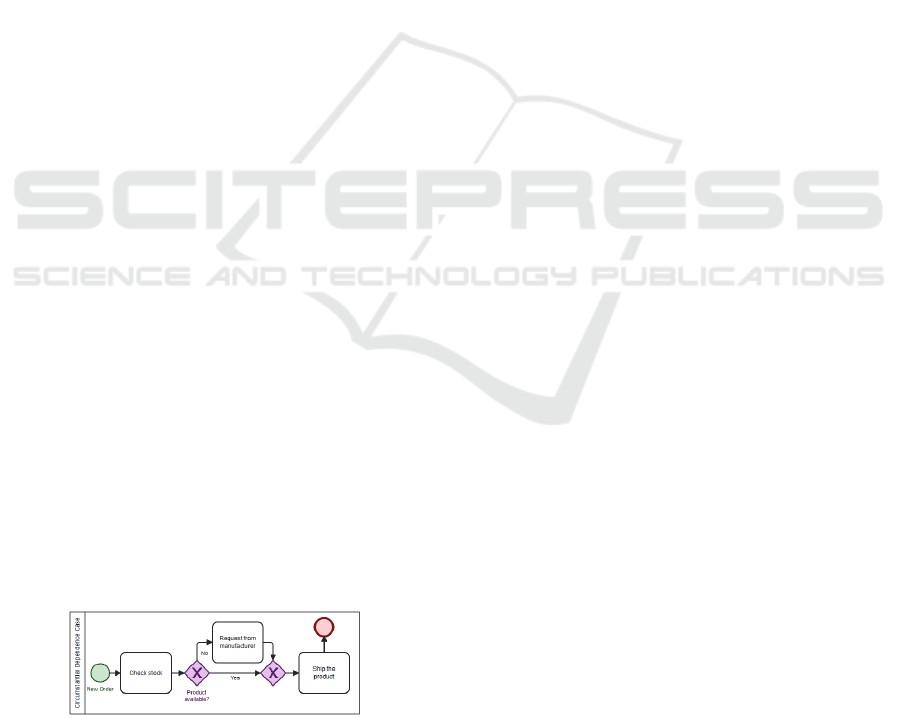

Figure 6 illustrates a typical case of Depc use.

While Ship the product should execute only after Re-

quest from manufacturer if it executes, Ship the prod-

uct can execute without verifying this dependence

when it is not necessary to execute Request from man-

ufacturer. In the development of the SBMN model, if

a strict dependence were used to represent the rela-

tion between these two tasks, the model would be-

come inconsistent, given that a non-coexistence be-

tween Request from manufacturer and a void branch

should also be formulated to represent the complete

speciﬁcation. That is, instead of modeling with

the strict Dep situation ([Request from manufacturer

XOR voidbranch], [Ship the product DEP Request

from manufacturer]), the DEPC is used and the model

remains consistent: ([ Request from manufacturer

XOR voidbranch], [ Ship the product DEPC Request

from manufacturer]). The second scenario is quite

Figure 6: Circumstantial Dependence Out of Stock Exam-

ple.

common. It is the case where a task depends on two

non-coexistent tasks. Again, if strict dependence were

used, the model would become inconsistent (e.g., [ A

DEP B], [A DEP C], [ C XOR B]). The correct model

should use DEPC ([ A DEPC B], [ A DEPC C], [ C

XOR B]).

4.2 Guaranteeing Consistency of

Models in SBMN

Given that the solution space consists of models de-

scribed in SBMN, the validity of these models must

be ensured, and only consistent models should be in-

cluded in the solution space. This consistency eval-

uation is performed indirectly by considering part of

the semantics of the BPMN notation, ensuring the fol-

lowing property:

Validity Property: A SBMN model is considered

valid if a BPMN model that satisﬁes its set of situa-

tions can be derived from it.

As an example, consider the model M

= {D =

{a, b, c}, S = {b DEP a, a XOR c}}. This

speciﬁcation is valid because it is possible to con-

struct a BPMN model that includes all elements of

the domain of P and does not violate its situations.

On the other hand, M

= {D = {a, b, c}, S =

{b DEP a, a XOR b}} is invalid, as it is impossible to

construct a BPMN model that complies with the pro-

cess constraints, since b cannot depend on a while a

is non-coexistent with b.

To verify this property, the following set of as-

sertive tests must be checked as false:

1. Equivalent Operators - Two situations of differ-

ent types have the same operators. For instance,

C = {b DEP a, a XOR b}.

2. Cyclic Dependency - It occurs when a set

of operators forms a dependency cycle caused

by the situations in a model. For exam-

ple, a cycle can be found in the speciﬁca-

tion C = {b DEP a, a DEP b} or C =

{b DEP a, a DEP c, c DEP b}. Cyclic depen-

dency should be ensured for any linear process.

In the presence of loops this assertion should be

ﬂexibilized in order to avoid deadlock-style de-

pendencies and, at the same time, to enable loops

relation.

3. Blocking of Indirect Dependency - Occurs

when the operators in an indirect dependency

relationship are involved in a choice relation

within the same speciﬁcation. In such cases,

no valid BPMN model exists where the opera-

tors can depend on each other while satisfying

the choice relation. In the speciﬁcation C =

{a DEP b, b DEP c, a XOR c}, an indirect depen-

ICEIS 2025 - 27th International Conference on Enterprise Information Systems

738

dency blocking occurs because a indirectly de-

pends on c, and both are in a choice relation.

4. Promiscuity - Occurs when there is a dependency

between two operands, each involved in different

choice relations of different types. For instance,

C = {a XOR c, a DEP b, b XOR c} has a promis-

cuous relationship, as a depends on b, making

it impossible to have a BPMN model containing

a non-coexistence (xor) between a and b and an

union (or inclusive) between b and c.

5. Dual Dependency - Dual dependency occurs

when both operators in a choice relation de-

pend on the same operator in the speciﬁca-

tion. For example, in the speciﬁcation C =

{a XOR b, c DEP a, c DEP b}, there is a dual

dependency violation because c depends on both

a and b, which are non-coexistent, preventing c

from being executed.

As previous discussed, the conversational agent is

based on determining the set of possible models for

a given process domain, formulating yes/no questions

in a manner consistent with the current state of the in-

terview and the responses already provided. To ensure

unambiguity, the agent applies the assertive tests and

avoids questions that may introduce inconsistencies.

The heuristic employed in the interview formulation

seeks to minimize the number of questions, prioritiz-

ing those that promote convergence toward a smaller

set of resulting models. For instance, if at a given

stage of the interview a dependency chain C → B → A

is identiﬁed, a new question involving task D will ﬁrst

be asked concerning the ﬁnal element of the chain (C),

thereby implicitly establishing the dependency of D

on both B and A without requiring additional veriﬁ-

cations. However, the interview process does not in-

corporate mechanisms to guide the interviewee in ex-

plicitly detailing the process based on its complexity.

A relevant aspect of this approach is the possi-

bility of decentralized SBPMN model construction,

enabling the integration of perspectives from differ-

ent stakeholders. Although no experiments have been

conducted in this regard, the merging of SBPMN

models would be straightforward if the typical chal-

lenges of semantic integration—common to the fu-

sion of any models—are overcome. If such inte-

gration occurs, for instance, through the terminolog-

ical reconciliation of task names, uniﬁcation at the

SBPMN level is direct, facilitating its application

in complex modeling scenarios. From this model,

BPMN models are generated in the same manner as

individual ones.

SBPMN models can be considered closer repre-

sentations of business models than BPMN implemen-

tations. Declarative models can capture more sta-

ble aspects of business processes compared to BPMN

diagrams. Although experimental validation of this

claim is still required, the proposed approach appears

to align with Business Process Management require-

ments.

4.3 Generation of BPMN Models from

SBMN Models

Valid SBMN models can be transformed into BPMN

models through the concept of Recommendation Pat-

terns which enable recognizing a situation and provid-

ing an imperative-style solution for that situation. As

with SBMN situation types, more than one solution

may be available; hence, a solution is considered a

recommendation. In practical terms, each solution for

a situation is represented as a BPMN fragment, and

the composition of these solutions results in the con-

struction of valid and complete BPMN model alterna-

tives (Van der Aalst et al., 2004; Costa and Tamzalit,

2017).

A composition algorithm was designed and

adapted for the automatic generation of BPMN mod-

els. Its general structure is depicted in Algorithm 1.

It receives a SBMN model as input and generate a

speciﬁc BPMN model alternative as output. In or-

der to generate all BPMN alternatives for one SBMN

model, the algorithm should be executed repetitively

by taking all possible recommendation for each step

of generation (that corresponds to the recommenda-

tion generation in the While loop of the algorithm).

Once a recommendation is selected, its correspon-

dent BPMN fragment can be generated and inserted

in the abstract BPMN model. Taking in to account

the adopted BPMN subset, the following structures

are valid recommendations:

Sequential: A single active ﬂow object. Sequen-

tial recommendation is represented by the ﬂow object

identiﬁer.

Parallel: A Parallel gateway connecting one or

more active objects ﬂow . Sequential Or: Sequential

inclusive Or gateway connecting one or more active

ﬂow objects.

Sequential Xor: An exclusive Xor gateway con-

necting one or more active ﬂow objects.

PAR Close: A convergent Parallel gateway rec-

ommendation to close parallel branches.

Or Close: An inclusive convergent Or gateway

recommendation to close Or branches.

Xor Close: An exclusive convergent Xor gateway

recommendation to close Xor branches.

The models are progressively constructed in a

forward-completion style (Kluza and Nalepa, 2013)

by analyzing the situations not yet addressed at spe-

Business Process Design Support with Automated Interviews

739

Data: SBMN Model sbmn m

Result: Abstract BPMN model

load(sbmn m);

preProcess(sbmn m);

RecommendationPoint rp =

CreateRecommendationPoint(sbmn m);

Q.Enqueue(rp);

while (Q.notEmpty()) do

RecommendationPoint currentRP = Q.dequeue();

RecommendationList recs =

determineRecommendations(currentRP);

if (recs.notEmpty()) then

rec = selectRecommendation(recs);

BPMN fragment = generateBPMNFragment(rec);

BPMN model.insertBPMNFragment(

BPMN fragment);

recommmendationPointList new rps=

processRecommendation(rec);

q.enqueue(new rps);

end

Algorithm 1: SBMN to BPMN Algorithm.

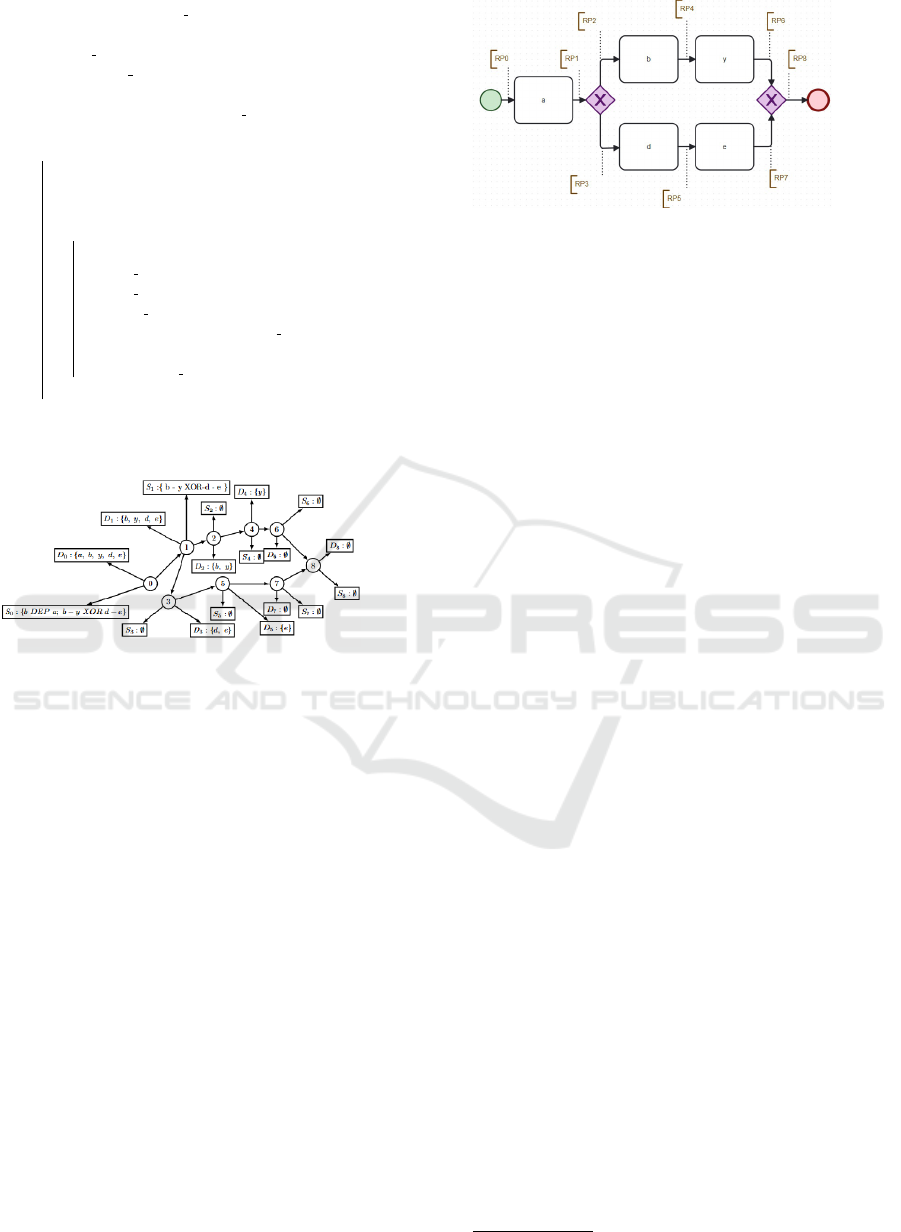

Figure 7: Recommendation Point Graph for the SBMN P

ciﬁc analysis points called recommendation points.

The recommendation points of a model are used to

construct a graph that indicates its generation ﬂow and

the corresponding modeling decisions made through-

out the generation process. Depending on the model

fragment inserted at a given point, new recommen-

dation points may be created, allowing the process

to continue until the complete model is built. Each

newly generated recommendation point determines

its respective subset of recommendations through its

associated subset of the domain and the situations that

apply to this subset. Figure 7 illustrates the Recom-

mendation Point Graph corresponding to the SBMN

model P

, with Domain D = a, b, y, d, e and Situations

S = [b DEP c], [b, y XOR d, e]. At each recommenda-

tion point, its subdomain D

and the incident set of

situations S

are shown.

5 EXPERIMENTATION AND

RESULT EVALUATION

To conduct validation experiments for the proposed

approach, prototype implementations of a conversa-

Figure 8: BPMN model with the Recommendation Points

of the RPG graph of Figure 7.

tional agent and a model generator were developed.

Additionally, an analysis application was created to

facilitate tasks related to experiment evaluation. The

conversational agent and model generator prototypes

were implemented in Java, while the analysis appli-

cation was developed in Python, utilizing the Process

Mining for Python (pm4py) API (Group, 2024).

The output of the interview application corre-

sponds to one or more SBMN models. These models

are represented as JSON ﬁles, which serve as input for

the Model Generator. The Model Generator produces

abstract BPMN ﬁles as output, also in JSON format.

These ﬁles are transformed into full BPMN 2.0 XML

based representations by the Result Analyzer, making

them ready for analysis.

All data produced and used are available in a pub-

lic repository on GitHub

5.1 Metrics and Evaluation Procedure

The evaluation of the results produced by the pro-

posed approach was carried out using metrics com-

monly employed in the context of Process Mining

to compare models obtained from event logs. The

following metrics were considered (Van Der Aalst,

2016):

• Fitness or Recall: Quantiﬁes how well the eval-

uated model allows the execution of behaviors

identiﬁed in the reference event log.

• Precision: Assesses the extent to which the iden-

tiﬁed model reproduces behavior not found in the

event log;

• Generalization: Measures the model’s ability to

generalize the diverse possible behaviors identi-

ﬁed in the reference event log;

• Simplicity: Quantiﬁes the simplicity of the gener-

ated model. According to Fantinato et al. (2023),

simplicity is achieved by using the minimum

number of elements necessary to represent behav-

ior, resulting in improved readability.

https://github.com/mbarcosta/ProsaviewDataSets.git

ICEIS 2025 - 27th International Conference on Enterprise Information Systems

740

For the evaluated processes, no real logs were

available. To address this obstacle and enable the ap-

plication of these metrics, a BPMN model referred to

as the Reference Model was created for each process.

These reference models were then used to generate

logs, which allowed the application of algorithms for

calculating metrics for each solution generated based

on the constraint model collected during the inter-

views. In other words, an event log was simulated

from the reference model and subsequently used for

analysis.

5.2 Results

During the experiments, good performance was ob-

served even with larger numbers of solutions. Figure

9 presents a comparison of execution time variation

for analyzing each solution. It can be observed that

there is little variation when comparing the sets of 9,

28, and 87 solutions. For the set of 189 solutions,

there was an increase in time, which still approxi-

mates the performance of the other sets. However,

for the problem containing 774 solutions, the values

are more divergent, suggesting a potential exponential

behavior.

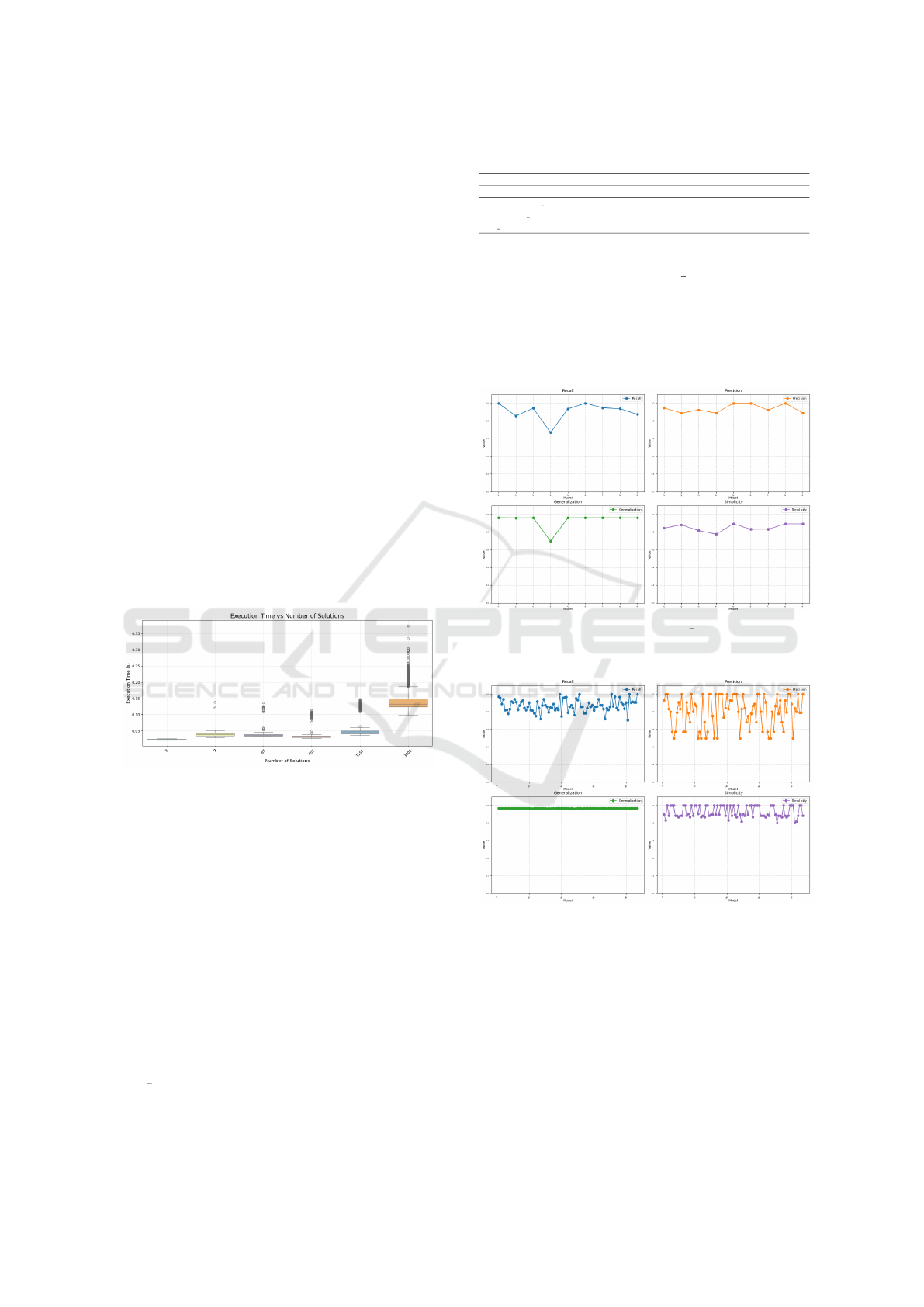

Figure 9: Time X Solutions.

Figures 10 - 14 show the values obtained for the

recall, precision, generalization and simplicity met-

rics for each solution to some of the analyzed prob-

lems. It is observed that, as the data sets grow, the

variation levels for each metric also increase. This be-

havior is due to the fact that, in most cases, data sets

containing more solutions are obtained from “quick”

interviews, where a small number of questions are

asked, resulting in fewer constraints for the model. In

contrast, interviews conducted with more detail, in-

volving a larger number of questions, produce solu-

tions closer to the ideal. These solutions, when ana-

lyzed by the metric algorithm, exhibit lower variation.

Table 3 provides a small example of the behav-

ior described above. For the problem “caseHan-

dling

1”, 452 solutions were generated from a declar-

ative model extracted during an interview involving

80 questions out of a total of 144 possible questions,

Table 3: Interviews Informations by Process.

Interviews by Process

Process Name Solution Count Questions Count Possible Questions

caseHandling 1 452 80 144

complaint 1 1157 72 112

E2 proc 87 32 60

meaning over 55% of the questions were addressed.

Conversely, for the problem “E2 proc”, only 87 valid

solutions were generated from 32 answered questions

out of a total of 60, achieving a response rate of ap-

proximately 53%. The slight decline in the response

rate was sufﬁcient to increase the number of possible

solutions generated for this problem.

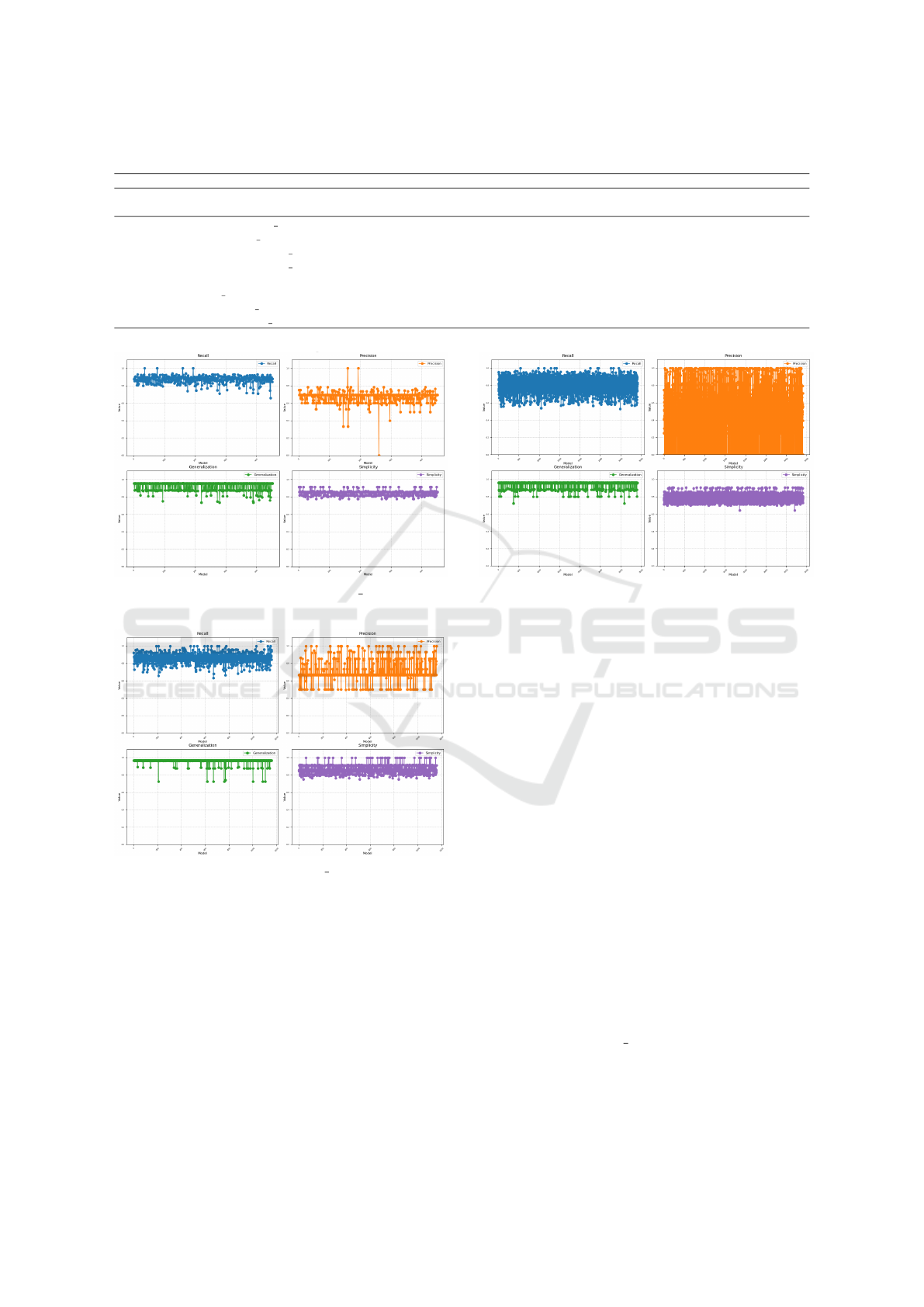

Figure 10: Results for the “permition 2” experiment (9 so-

lutions).

Figure 11: Results for the “E2 proc” experiment (87 solu-

tions).

Table 4 shows statistics of the results obtained for

each conducted experiment. It is observed that, as ex-

pected, problems containing a greater number of pos-

sible solutions exhibit an average rate of results ob-

tained for each metric decreasing compared to values

found for problems with fewer generated solutions.

However, the metrics for generalization and simplic-

ity show a more linear decline when compared to the

results obtained for the recall and precision metrics.

Business Process Design Support with Automated Interviews

741

Table 4: Statistics per experiment.

Metric Statistics

Process Index Process Name Solution Count

Recall Precision Generalization Simplicity

Mean Std Dev Mean Std Dev Mean Std Dev Mean Std Dev

1 caseHandling 1 452 0.8702 0.0423 0.6656 0.0717 0.9187 0.0498 0.8422 0.0295

2 complaint 1 1157 0.8607 0.0508 0.6883 0.0909 0.9616 0.0244 0.8640 0.0475

3 ComputerRepair 1 3 0.9728 0.0235 1.0000 0.0000 0.9593 0.0004 0.9608 0.0679

4 ComputerRepair 2 9 0.9617 0.0235 1.0000 0.0000 0.9581 0.0003 0.9406 0.0593

5 decpm8-200000 3408 0.8067 0.0775 0.4344 0.3052 0.9560 0.0228 0.7857 0.0382

6 E2 proc 87 0.8720 0.0683 0.8019 0.1765 0.9682 0.0007 0.9285 0.0646

7 permition 2 9 0.9078 0.1014 0.9403 0.0488 0.9335 0.0877 0.8528 0.0415

8 Steelmaking 1 9 0.9577 0.0226 1.0000 0.0000 0.9603 0.0005 0.9494 0.0510

Figure 12: Results for the “caseHandling 1” experiment

(452 solutions).

Figure 13: Results for the “complaint 1” experiment (1157

solutions).

5.3 Analysis of Results

In all experiments conducted, the presence of suitable

solutions was consistently conﬁrmed, as illustrated in

Figures 10 – 14. This behavior was expected, as the

solution generator based on SBMN speciﬁcations is

capable of exhaustively generating all possible solu-

tions for the same model. In the absence of a refer-

ence model, identifying the most appropriate solution

depends on minimizing solution variability, which, in

turn, is inﬂuenced by the amount of information pro-

vided during the interview.

Figure 14: Results for the “decpm8-200000” experiment

(3408 solutions).

To illustrate this issue, a synthetic model

(DecPM8) was created with minimal information pro-

vided, resulting in an SBMN model containing only

ﬁve situations. The SBMN input model is presented

in Table 5.

Table 5: SBMN model for DecPM8 process.

Domain *****************

Name a b c d e f x y

Id a b c d e f x y

Situations ***************

a XOR b | d XOR c

x XOR c | y XOR c | x DEP d

For this process, the experiment generated 774

variations of the model, including the reference

model, which is shown in Figure 16. The corre-

sponding generated model is presented in Figure 15.

In the absence of a reference model, identifying the

most appropriate one would be a challenging task.

Conversely, when the information gathered during

the interview is more comprehensive, as in the case

of the ComputerRepair 1 model, only three solutions

are possible, making the identiﬁcation of the correct

model signiﬁcantly more straightforward.

Among the evaluated processes, the Case Han-

dling process represents an actual interview con-

ICEIS 2025 - 27th International Conference on Enterprise Information Systems

742

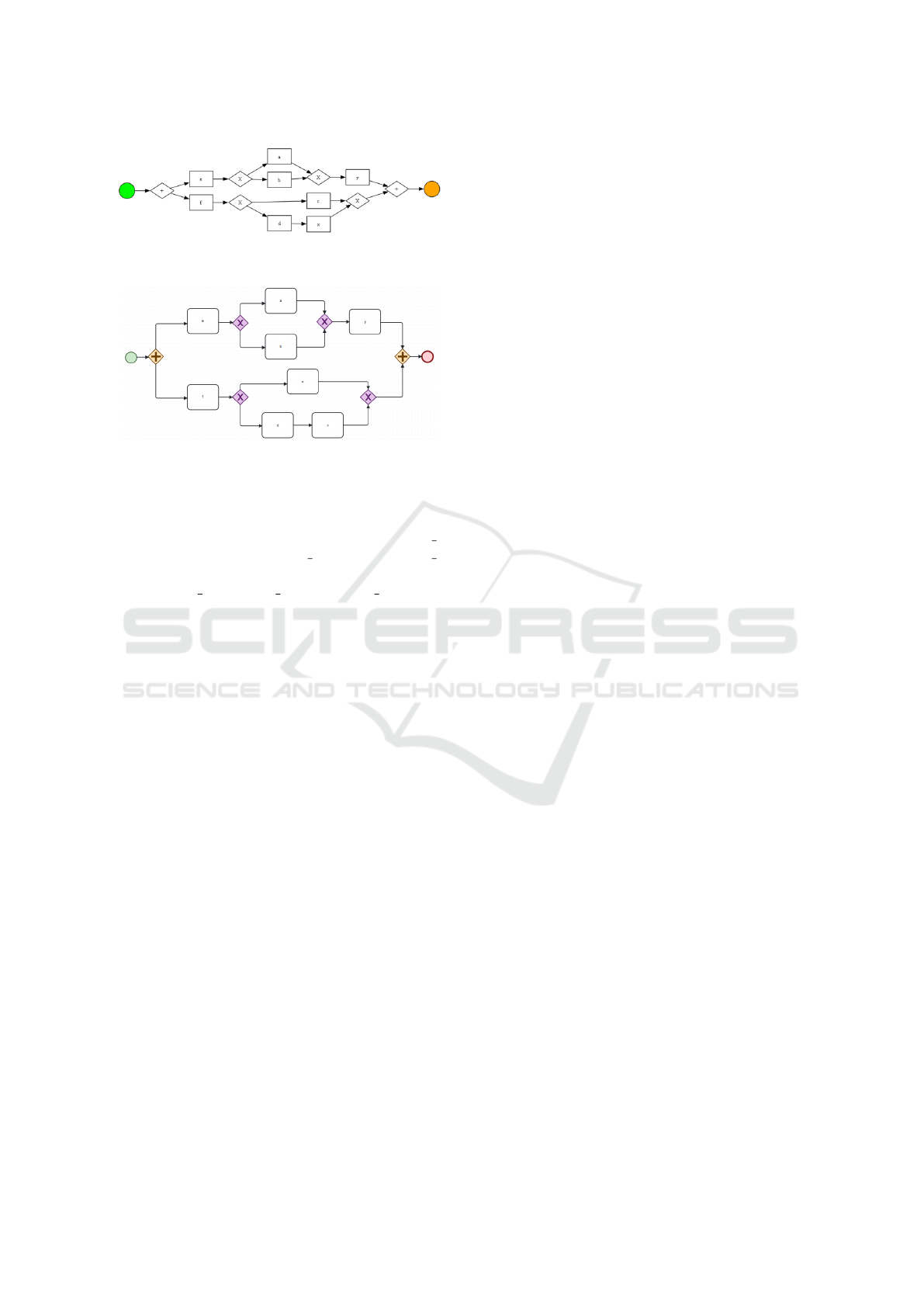

Figure 15: Generated Model for the Decpm8 process with

best ﬁtness.

Figure 16: Reference Model for the Decpm8 process.

ducted in the academic registry department of a Uni-

versity. The reference model for this process was

obtained from this department. The remaining pro-

cesses are sourced from the literature (Complaint 1

(Mendling et al., 2010), Permit 2, ComputerRepair 1

and 2 (Dumas et al., 2013)) or developed by our team

(Steelmaking 1, Decpm8 20000 and E2 proc). In

these cases, the interviews were conducted with indi-

viduals knowledgeable in BPMN, who were provided

with a textual description of the process and asked to

develop the reference model.

For the current version of the implemented proto-

types, the following considerations were made:

1. Linear processes without loops were considered,

although the addition of loops is already a deﬁned

aspect of the research, as discussed in the Exten-

sibility section.

2. For the generation of BPMN models, only control

ﬂow elements and exclusive or parallel gateways

were considered.

3. Aspects of communication and message exchange

were not yet taken into account.

4. The construction of the model was limited to pro-

ducing structured models, where each divergent

gateway has a corresponding convergent gate-

way. Additionally, only gateways with two out-

going branches were produced as recommenda-

tions. This limitation does not affect the expres-

siveness of the solution, as gateways with any

number of outgoing branches can be equivalently

represented using a set of gateways with a maxi-

mum of two branches. These aspects, while lim-

iting the variability of the models created, do not

impose representation limitations. They were also

adopted as they are recognized as best practices

for model creation (Mendling et al., 2010).

6 RELATED WORK

Klievtsova et al. (2023) provide a literature review

on the subject of Conversational Process Modeling.

The authors highlight that the application of Conver-

sational Agents or Chatbots for both gathering mod-

eling information and supporting Model Generation

remains a little explored theme, despite its recognized

potential. During their investigation, no substantial

work was found when searching for the terms “chat-

bots”, “conversational agents”, and “process model-

ing”. Moreover, most related studies have focused on

directions such as quality and analysis, primarily em-

ploying natural language processing methods, while

neglecting approaches designed to address speciﬁc

aspects of process modeling or to support its partic-

ular tasks. In particular, the use of such agents for in-

formation gathering and model construction remains

poorly addressed.

In the literature review conducted for this work,

two perspectives were considered to identify initia-

tives related to the proposed approach: the perspec-

tive of process control ﬂow determination and the per-

spective of information gathering and conversational

agents. Works with some proximity to the approach,

such as models based on NLP, are discussed. How-

ever, as also highlighted byKlievtsova et al. (2023), to

the best of our knowledge, no proposals involving the

direct application of conversational agents to control

ﬂow acquisition have been identiﬁed.

R’bigui and Cho (2017) discuss Process Mining as

a means of obtaining control ﬂow. One aspect high-

lighted is the inconsistency in the results, which are

often not easily interpretable and have usability and

accessibility limitations. The authors propose sug-

gestions for greater user involvement. This proce-

dure, called User-Centered Process Mining, is based

on ISO Standard 9241-210: 2010. More recently, the

use of more suitable metrics has led to better results,

as presented by Fantinato et al. (2023), who discuss

the application of a genetic algorithm to obtain pro-

cess models from event logs. These models, evalu-

ated using metrics such as recall, simplicity, general-

ization, and precision, achieved signiﬁcantly superior

results compared to alternative approaches, such as

those proposed by Augusto et al. (2019) and Leemans

et al. (2014).

Business process recommendation is another ap-

proach widely adopted for obtaining control ﬂow.

Wang et al. (2019) discuss a proposal focused on

incorporating behavioral characteristics of processes

Business Process Design Support with Automated Interviews

743

into search keys for similarity-based search methods

to ﬁnd recommendations. The authors suggest trans-

forming process models into representations based

on the so-called Task-Based Process Structure Tree

(TPST). Sola et al. (2021) address process recommen-

dation by generating activity suggestions for speciﬁc

positions in the model during the modeling process,

treating it as a knowledge graph completion problem.

Khider et al. (2018) propose an unique recommenda-

tion method that involves associating process models

with potential users. In this subject-based approach,

process models are recommended in their entirety to

promote reuse. Wang et al. Wang et al. (2022) suggest

a model for obtaining recommendations that comple-

ments a graph similarity-based method with a cost

model. Using the cost representation associated with

the retrieved models, a constraint-based cost method

is applied to identify more efﬁcient recommendations.

Shreya et al. (2023) present a generic recommenda-

tion model enabling ordinary users to design process

models simply and quickly.

Considering the perspective of conversational

agents and information gathering, van der Aa et al.

(2019) presented an approach using Natural Lan-

guage Processing (NLP) for the automated extrac-

tion of declarative process models from textual de-

scriptions. According to the authors, this approach

resulted in high accuracy compared to manually es-

tablished constraints, but many challenges related

to the extraction of declarative constraints inherent

to the use of NLP had to be overcome. Alman

et al. (2020) proposed a chatbot for deﬁning declar-

ative constraints using natural language instructions

provided via voice or text interactions with users.

The supported constraints employ Multi-Perspective

Declare (MP-Declare), complementing control ﬂow

constraints with data and temporal perspectives. Ad-

ditionally, van der Aa et al. (2019) and Van der Aa

et al. (2018) developed customized NLP techniques

to identify activities and their interrelationships based

on textual descriptions of constraints.

7 CONCLUSION

This work discussed the use of conversational agents

to assimilate specialized knowledge about business

processes, aiming at the automated generation of con-

trol ﬂow models from this knowledge. The results

demonstrate the generation of models with satisfac-

tory metrics when compared to reference models. In

the experiments, the presence of a small number of so-

lutions for a given process could be interpreted as the

result of a better speciﬁcation of the process through

the interview data. Conversely, a large number of gen-

erated solutions may indicate either a lack of speci-

ﬁcity in the interview data or a high ﬂexibility in the

process. In both scenarios, the absence of a reference

model requires determining which solution is most

appropriate. For cases involving numerous solutions,

a potential approach is the development of classiﬁers

capable of evaluating, in light of the interview data,

which solutions are better or worse.

The proposed approach seeks to simultaneously

facilitate access to tacit knowledge about processes,

typically held by domain experts, and support the

modeling task. The ﬁnding of good models demon-

strate the approach’s potential to address typical chal-

lenges in process design and leverage intelligent con-

versational tools to improve the efﬁciency of business

process management. With the establishment of AI

tools based on Large Language Models (LLMs), such

as GPTs, the use of conversational agents has become

a widely accepted and scalable approach. Since the

proposal is designed independently of the algorithms

developed, it becomes possible, for instance, to use

SBMN model validation rules to guide GPTs in for-

mulating questions. Future work is expected to in-

clude the incorporation of loops and the development

of a classiﬁcation method for the solutions based on

the obtained SBMN models.

ACKNOWLEDGMENTS

We would like to thank the Graduate Program in Ap-

plied Computing at Ifes–Serra (PPCOMP) and the

Capixaba Open University Program (UnAC) of the

Secretariat for Science, Technology, Innovation, and

Professional Education (SECTI) of the Government

of the State of Esp

ırito Santo, Brazil, for their support

in the development of this work.

REFERENCES

Alman, A., Balder, K. J., Maggi, F. M., and Aa, H. v. d.

(2020). Declo: A chatbot for user-friendly speciﬁcation

of declarative process models. In CEUR Workshop Pro-

ceeding, volume 2673, pages 122–126. RWTH.

Augusto, A., Conforti, R., Dumas, M., La Rosa, M., and

Polyvyanyy, A. (2019). Split miner: automated discov-

ery of accurate and simple business process models from

event logs. Knowledge and Information Systems, 59.

Beerepoot, I., Di Ciccio, C., Reijers, H. A., Rinderle-Ma,

S., Bandara, W., Burattin, A., Calvanese, D., Chen, T.,

Cohen, I., Depaire, B., et al. (2023). The biggest business

process management problems to solve before we die.

Computers in Industry, 146:103837.

ICEIS 2025 - 27th International Conference on Enterprise Information Systems

744

Cabral, F. B., Coutinho, B. C., de Castro, F. Z., and Costa,

M. B. (2021). Interac¸

oes automatizadas para apoio

a modelagem de processos de neg

ocio. In Brazilian

Symposium on Intelligent Automation (SBAI), volume 1.

Original in Portuguese.

Costa, M. B. and Tamzalit, D. (2017). Recommendation

patterns for business process imperative modeling. In

Proceedings of the Symposium on Applied Computing,

pages 735–742. ACM.

Dumas, M., La Rosa, M., Mendling, J., Reijers, H. A., et al.

(2013). Fundamentals of business process management,

volume 1. Springer.

Fahland, D., L

ubke, D., Mendling, J., Reijers, H., We-

ber, B., Weidlich, M., and Zugal, S. (2009). Declara-

tive versus imperative process modeling languages: The

issue of understandability. In Enterprise, Business-

Process and Information Systems Modeling, pages 353–

366. Springer.

Fantinato, M., Peres, S. M., and Reijers, H. A. (2023). X-

processes: Process model discovery with the best bal-

ance among ﬁtness, precision, simplicity, and generaliza-

tion through a genetic algorithm. Information Systems,

119:102247.

Group, P. M. (2024). Pm4py – process mining for python.

https://pm4py.ﬁt.fraunhofer.de. Accessed: (11/12/2024).

Kannengiesser, U. and Oppl, S. (2015). Business processes

to touch: Engaging domain experts in process modelling.

In BPM (Demos), pages 40–44.

Khider, H., Hammoudi, S., Benna, A., and Meziane, A.

(2018). Social business process model recommender:

An mde approach. In 2018 Fifth Int. Conf. on Social

Networks Analysis, Management and Security (SNAMS),

pages 106–113. IEEE.

Kim, Y.-G. (1996). Process modeling for bpr: event-process

chain approach. In Proceedings of The Korea Society

of Management Information Systems, pages 41–47. The

Korea Society of Management Information Systems.

Klievtsova, N., Benzin, J.-V., Kampik, T., Mangler, J., and

Rinderle-Ma, S. (2023). Conversational process mod-

elling: state of the art, applications, and implications in

practice. In International Conference on Business Pro-

cess Management, pages 319–336. Springer.

Kluza, K. and Nalepa, G. J. (2013). Automatic generation

of business process models based on attribute relation-

ship diagrams. In International Conference on Business

Process Management, pages 185–197. Springer.

Leemans, S., Fahland, D., and Aalst, W. (2014). Discov-

ering block-structured process models from event logs

containing infrequent behaviour. volume 171, pages 66–

78.

Leyh, C., Bley, K., and Seek, S. (2016). Elicitation of

processes in business process management in the era of

digitization–the same techniques as decades ago? In Int.

Conf. on Enterprise Resource Planning Systems, pages

42–56. Springer.

Mendling, J., Reijers, H. A., and van der Aalst, W. M.

(2010). Seven process modeling guidelines (7pmg). In-

formation and software technology, 52(2):127–136.

OMG, O. M. G. (2013). Bpmn 2.01 speciﬁcation. https:

//www.omg.org/spec/BPMN/2.0.1.

Pesic, M., Schonenberg, H., and Van der Aalst, W. M.

(2007). Declare: Full support for loosely-structured

processes. In Enterprise Distributed Object Comput-

ing Conference, 2007. EDOC 2007. 11th IEEE Interna-

tional, pages 287–287. IEEE.

R’bigui, H. and Cho, C. (2017). The state-of-the-art of busi-

ness process mining challenges. Int. Journal of Business

Process Integration and Management, 8(4):285–303.

Schubert, J. (2012). Constructing and evaluating alternative

frames of discernment. International Journal of Approx-

imate Reasoning, 53(2):176–189.

Sch

utzenmeier, N., Jablonski, S., K

appel, M., and Ack-

ermann, L. (2023). Comparing the expressiveness of

imperative and declarative process models. In Interna-

tional Workshop on Model-Driven Organizational and

Business Agility, pages 16–31. Springer.

Shreya, J., Saini, A., Kumari, S., and Jain, A. (2023).

Generic recommendation system for business process

modeling. In Int. Conf. On Innovative Computing And

Communication, pages 267–282. Springer.

Sola, D., Meilicke, C., van der Aa, H., and Stucken-

schmidt, H. (2021). A rule-based recommendation ap-

proach for business process modeling. In Int. Conf. on

Advanced Information Systems Engineering, pages 328–

343. Springer.

Van der Aa, H., Carmona Vargas, J., Leopold, H., Mendling,

J., and Padr

o, L. (2018). Challenges and opportunities of

applying natural language processing in business process

management. In COLING 2018: The 27th Int. Confer-

ence on Computational Linguistics: August 20-26, 2018

Santa Fe, NM, USA, pages 2791–2801. ACL.

van der Aa, H., Di Ciccio, C., Leopold, H., and Reijers,

H. A. (2019). Extracting declarative process models from

natural language. In Giorgini, P. and Weber, B., editors,

Advanced Information Systems Engineering, pages 365–

382, Cham. Springer.

Van Der Aalst, W. (2016). Process Mining - Data science

in action. Springer.

Van der Aalst, W., Weijters, T., and Maruster, L. (2004).

Workﬂow mining: Discovering process models from

event logs. IEEE Transactions on Knowledge and Data

Engineering, 16(9):1128–1142.

Verner, L. (2004). The challenge of process discovery. BPM

Trends, May, pages 05–04.

Wang, J., Gui, S., and Cao, B. (2019). A process rec-

ommendation method using bag-of-fragments. Interna-

tional Journal of Intelligent Internet of Things Comput-

ing, 1(1):32–42.

Wang, Q., Shao, C., Fang, X., and Zhang, H. (2022). Busi-

ness process recommendation method based on cost con-

straints. Connection Science, 34(1):2520–2537.

Business Process Design Support with Automated Interviews

745
