The Role of Architectures and Information Availability for Anomaly

Detection in Cyber-Physical Energy Systems

Emilie Frost

1,2 a

and Astrid Nieße

1 b

Department of Computing Science, Carl von Ossietzky Universit

at Oldenburg,

Ammerl

ander Heerstraße 114-118, Oldenburg, Germany

Distributed Artiﬁcial Intelligence, OFFIS - Institute for Information Technology, Escherweg 2, Oldenburg, Germany

{emilie.frost, astrid.niesse}@uni-oldenburg.de

Keywords:

Anomaly Detection, Controlled Self-Organization, Cyber-Physical Energy Systems.

Abstract:

In the context of Cyber Physical Energy Systems (CPES), anomaly detection is an important requirement

for dealing with the increasing threats of cyber-attacks. However, privacy or regulatory restrictions might

limit the access of information for performing anomaly detection. This paper discusses different possible

architectures for the development of an anomaly detection observer in CPES, in the context of information

availability. Using an agent-based control use case, these architectures, information availability and their

impact on anomaly detection performance are evaluated. The results shed light on the design of appropriate

architectures for anomaly detection in CPES with the aim of improving the overall robustness of the system.

1 INTRODUCTION

Current energy systems are evolving into Cyber Phys-

ical Energy Systems (CPES), where physical compo-

nents of the power grid are integrated with Informa-

tion and Communication Technology (ICT) systems.

These ICT systems are designed to monitor, control

and optimize the performance (Hasanuzzaman Sha-

won et al., 2019). With the increasing decentraliza-

tion resulting from energy transition, these control

systems must also address decentralized structures.

In this context, Multi-Agent Systems (MAS) are of-

ten applied in CPES (Taleb et al., 2023; Denysiuk

et al., 2020), as these are well suited to implement dis-

tributed system concepts (Ren et al., 2021) and allow

for self-organization, or even self-healing, in safety-

critical applications (Nieße and Tr

oschel, 2016; De-

hghanpour et al., 2017). However, the strong in-

terdependencies between power and ICT system not

only bring advantages but also lead to new threats

coming from the ICT side, as for example cyber at-

tacks (Yohanandhan et al., 2020; Zhu, 2019). The ne-

cessity to recognize errors and deviations from plan

or operation is therefore becoming more urgent. This

emphasizes the need for anomaly detection, as a pre-

requisite to react to threats and disturbances (Anwar

https://orcid.org/0000-0003-4791-2333

https://orcid.org/0000-0003-1881-9172

and Mahmood, 2014). In order to ensure robustness

against disturbances and attacks in self-organizing

systems, concepts of Organic Computing (OC) can be

applied (Chaaban et al., 2013; Kantert et al., 2017).

Here, an observer/controller architecture is used to

observe and control the system in order to achieve

controlled self-organization, i.e., the self-organization

of the system is given, while it is possible to react in

case of deviations from the desired behavior (Richter

et al., 2006). An observer is proposed, which mea-

sures and quantiﬁes emergent behavior of the sys-

tem (Richter et al., 2006). Thus, the observer can also

perform anomaly detection. However, the observer

performs its task based on the available information

of the system (Richter et al., 2006). Especially in

CPES, some information might not be available to the

observer, as regulatory restrictions or reasons such as

privacy and data protection might limit the access to

information. Depending on the use case, different ob-

server architectures are suitable. However, typically,

just one architecture is implemented in literature: a

centralized or distributed anomaly detection. In par-

ticular, multi-leveled or hierarchical architectures are

only discussed in theory. Tomforde et al. (2011) dis-

cuss different architectures of observers (and con-

trollers) for OC systems, stating that the designer

should choose the architecture based on the system’s

size, complexity and heterogeneity. However, when

applying OC to CPES, the available information also

Frost, E. and Nieße, A.

The Role of Architectures and Information Availability for Anomaly Detection in Cyber-Physical Energy Systems.

DOI: 10.5220/0013371400003890

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 17th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2025) - Volume 1, pages 671-678

ISBN: 978-989-758-737-5; ISSN: 2184-433X

671

needs to be considered when choosing the best suit-

able architecture.

For that reason, this paper discusses architectures

for anomaly detection in CPES, assuming different

levels of information availability. To do so, an imple-

mentation of an agent-based control use case is pre-

sented, considering communication effects on the sys-

tem. The implementation was used to perform exper-

iments with different architectures and thus different

levels of information availability. This allowed the ef-

fects on detection performance to be studied and the

suitability of different architectures to be evaluated.

The contributions of this paper are the following:

• We provide datasets for anomaly detection for an

agent-based control use case in CPES, consider-

ing a cyber attack on the agent system, based on

the analysis presented by Frost and Nieße (2024).

These datasets can serve as a basis for further in-

vestigations into the detection of anomalies and

the inﬂuence of cyber attacks on MAS.

• Possible architectures for an observer for CPES

are derived from the literature and discussed.

• Different layers of information that are available

for anomaly detection are addressed.

• In addition, we investigate the impact of the de-

ﬁned architectures and the availability of infor-

mation on the performance of anomaly detection.

The results are also used to evaluate architec-

tures and the suitability of combining these, e.g.,

as multi-leveled architectures. The proposed ar-

chitectures, information layers, and results pro-

vide a basis for a stable and appropriate design

of anomaly detection in CPES.

• A recommendation for the design of an architec-

ture for CPES is made, which can be built upon in

future work for robust detection of anomalies in

CPES, based on given constraints of the respec-

tive use case.

The paper is organized as follows. In section 2, we

present related work regarding anomaly detection ar-

chitectures. Afterward, in section 3, architectures for

CPES are discussed, including the declaration of lev-

els of information available. The details of the imple-

mentation are described in section 4, followed by the

evaluation in section 5. The paper ends with the dis-

cussion in section 6 and the conclusion in section 7.

2 RELATED WORK

In this section, related work regarding architectures

for anomaly detection is discussed. Architectures for

an observer performing anomaly detection can be de-

rived from from OC systems. Richter et al. (2006)

present a general architecture, which can be used in

a centralized, distributed or multi-leveled way. The

different architectures are discussed regarding the af-

fected control parameters and controlled elements.

Tomforde et al. (2011) extend the discussion by pre-

senting the architectures for the observer (and con-

troller): the centralized architecture considers a sin-

gle observer taking into account various components,

a distributed observer is implemented for each com-

ponent and the multi-leveled architecture contains a

highest instance to deﬁne goals, while lower layers

convert these into more speciﬁc goals. Haehner et al.

(2013) explicitly discuss architectural concepts for

anomaly detection, using OC. The authors discuss

local and cooperative anomaly detection.

For anomaly detection in sensor systems, Erhan

et al. (2021) present the following architectures: cen-

tralized, distributed, collaborative decentralized, or

between fully decentralized and fully centralized, pro-

cessing information immediately.

Tan et al. (2020) discuss typical control struc-

tures for attack detection. The authors distinguish be-

tween a centralized architecture that requires global

information knowledge from all control units, a de-

centralized architecture (no information from other

parts of the system is given), a distributed architec-

ture, which contains knowledge from local measure-

ments and neighbor units (measurements are commu-

nicated) and a hierarchical architecture, in which an

additional secondary detection is centralized as global

information from all essential units is required.

To sum up, previous works consider the architec-

tures for anomaly detection listed in the following.

Some authors also discuss the option for collabora-

tive anomaly detection, which can refer to different

architectures (Erhan et al., 2021).

• Centralized Anomaly Detection. Global infor-

mation knowledge from all control units is con-

sidered (Tan et al., 2020).

• Decentralized Anomaly Detection. This archi-

tecture is implemented separately for each com-

ponent (Tomforde et al., 2011), no information

from other parts of the system is given (Tan et al.,

2020).

• Distributed Anomaly Detection. This archi-

tecture considers knowledge from local measure-

ments and from neighbors (knowledge is commu-

nicated) (Tan et al., 2020).

• Multi-Leveled / Hierarchical Anomaly Detec-

tion. Here, an additional secondary instance is

centralized, considering global information (Tan

ICAART 2025 - 17th International Conference on Agents and Artiﬁcial Intelligence

672

et al., 2020), which deﬁnes goals as the highest

instance, while the lower layers convert these into

more speciﬁc goals (Tomforde et al., 2011).

However, the aforementioned approaches only

discuss different variations, none of the approaches

implement architectures and investigate their effects.

Anomaly detection methods in CPES are mostly im-

plemented either in a centralized (Turowski et al.,

2022; Fu et al., 2022) or decentralized architec-

ture (Gupta et al., 2021; Ramanan et al., 2022), with-

out discussing other options or comparing architec-

tures. In particular, the option of multi-leveled ar-

chitectures has only been discussed in the presented

literature, but never implemented or evaluated.

In previous work, Frost et al. (2024) compare the

effects of two anomaly detection architectures: cen-

tralized and distributed. The authors discuss the effect

of having insight into the exchanged messages of an

agent-based system. The results show that the chosen

architecture and the available information have a sig-

niﬁcant impact on the performance of anomaly detec-

tion. However, the authors only investigate the effect

of available information partially, only regarding in-

sights into the messages. Additionally, only an exam-

ple of an attack implementation is shown. Overall, the

authors only investigate two architectures. The option

to take into account multi-leveled architectures, con-

sidering available information, is not discussed and is

therefore evaluated in this paper. To do so, the perfor-

mance of multiple architectures is discussed regard-

ing different information available, and combinations

for multi-leveled architectures are derived. The infor-

mation and architectures available for this purpose are

described in the following section.

3 OBSERVER ARCHITECTURES

IN CYBER-PHYSICAL ENERGY

SYSTEMS

In this section, possible architectures for anomaly de-

tection in CPES are discussed. Additionally, different

levels of information availability are presented.

When applying the presented possible architec-

tures for anomaly detection in the literature to CPES,

access to information might be limited. In such de-

centralized systems, due to privacy or data protection,

some information, especially regarding local device-

speciﬁc data of a Distributed Energy Resource (DER),

might not be available. The architectures and their

assumptions regarding the information taken into ac-

count can therefore not be applied to the CPES for

all use cases. The assumption on the centralized ar-

chitecture, that global information knowledge from

all units is given, as presented by Tan et al. (2020),

is not always suitable for CPES. This information

might not include speciﬁc local information, such as

device-speciﬁc data or unit constraints. Instead, it

might be possible that selected information is avail-

able at a central location, while other information

might only be available locally, especially when con-

sidering agent-based systems for distributed control

in CPES. Often, each agent represents a DER or

its ﬂexibility (Ding et al., 2024), for optimization,

agents communicate with each other and exchange in-

formation. However, the available information is not

communicated completely, only selected information,

in order to preserve privacy or communication over-

head (Bremer and Lehnhoff, 2019). This way of op-

timization allows keeping technical details and con-

straints locally (Stark et al., 2024). Because the in-

formation on which the detection is based may be re-

duced, this affects how anomalies are detected.

Thus, in order to perform anomaly detection in

CPES, it is essential to discuss the suitability of cer-

tain architectures depending on the information avail-

able. Regarding the performance of different architec-

tures, several combinations for hierarchical or multi-

leveled architectures can be considered. For these ar-

chitectures, multiple variations are possible, depend-

ing on the number of nodes and information avail-

able. In the literature, multi-leveled approaches add

centralized detection to existing decentralized detec-

tion methods (Tan et al., 2020). When considering

anomaly detection in a distributed system, more vari-

ations can be possible, especially when considering

agent-based control in CPES use cases. For example,

multiple single wind plants in the system might be

controlled by one operator. Therefore, some informa-

tion might be available grouped in one place, e.g., per

unit type. For this reason, we decided to additionally

investigate the architecture of an observer grouped per

unit type. To investigate the inﬂuence of different ar-

chitectures, we additionally assume a further grouped

architecture, which considers a number of randomly

chosen units. This results in a total of four different

architectures to be investigated, depicted in Figure 1.

• Centralized anomaly detection (Figure 1a): this

architecture considers data of the whole network.

• Decentralized anomaly detection (Figure 1b):

data of individual units is considered.

• Grouped by unit type (Figure 1c): this architec-

ture considers data of a certain unit type (e.g.,

wind, photovoltaic (PV)).

• Grouped randomly (also Figure 1c): data of a ran-

dom group of units is considered.

The Role of Architectures and Information Availability for Anomaly Detection in Cyber-Physical Energy Systems

673

(a) Centralized

anomaly detection

(b) Decentralized

anomaly detection

detection

Figure 1: Architectures for anomaly detection in agent sys-

tems.

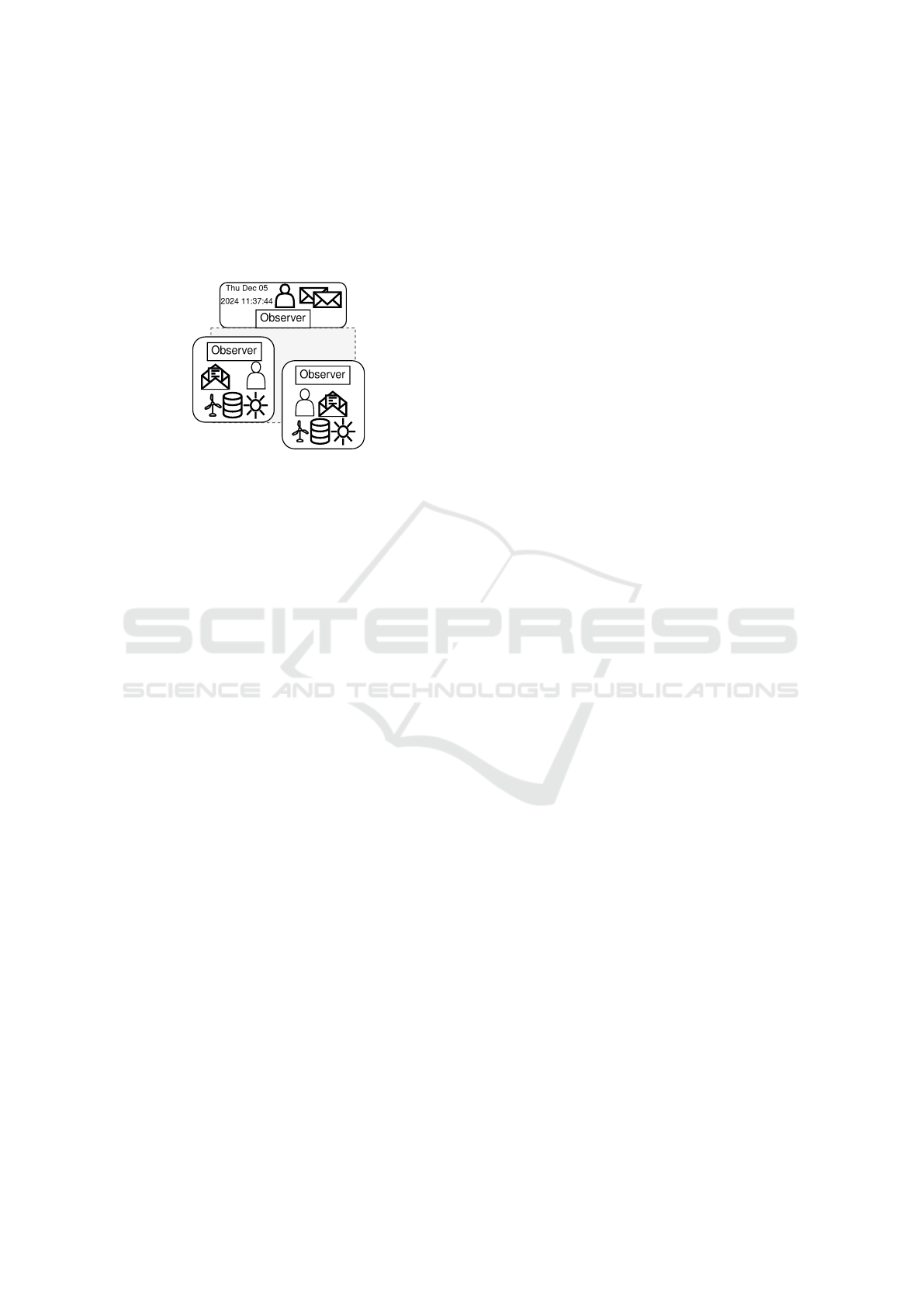

Possible multi-leveled or hierarchical architec-

tures can now be built by adding a centralized ob-

server to the decentralized (Figure 2a) or grouped ar-

chitecture (Figure 2a).

(a) Multi-leveled

decentralized

(b) Multi-leveled

grouped

Figure 2: Multi-leveled architectures for anomaly detection

in agent systems.

All architectures can be expanded to include com-

munication between observers. To evaluate different

architectures, their performance must be investigated

given the different information available. To do so,

four levels of information availability are assumed,

depicted in Figure 3 and described in the following.

When considering agent-based control in CPES,

agents communicate with each other to perform the

optimization of a certain task. To do so, messages

are exchanged. However, access to the content of

these messages can not always be assumed. The ﬁrst

level of information therefore only considers the agent

sending the message and the timestamp, similar to

the investigations in Frost et al. (2024). The second

level additionally considers communication informa-

tion, such as delays of exchanged messages and traf-

ﬁc information. Still, no insight into the message is

given, but information about the arrival and sending

Agent, timestamp, delays,

traffic information, message content,

additional data

Agent, timestamp, delays,

traffic information, message content,

additional data

Agent, timestamp, delays,

traffic information, message content,

additional data

Wed Dec 04

2024 15:34:33

Agent, timestamp, delays,

traffic information, message content,

additional data

Figure 3: Levels of information assumed to be available for

the anomaly detection.

of all messages is essential. The third level assumes

that insight into the message is given; the content of

the message is considered. The last level extends the

third level with additional information. This can con-

tain constraints or the current state of the unit, or fore-

cast data regarding weather, power, or load.

In CPES, anomaly detection may require differ-

ent information for different types of attacks. The

ﬁrst two levels are relevant to detect any kind of at-

tack on the communication behavior, such as Denial-

of-Service (DoS) attacks that cause delays or missing

messages, while this does not apply to attacks that tar-

get the message content.

4 ANOMALIES IN AGENT-BASED

SYSTEMS

In the following, the implementation of the anomaly

detection architectures is presented. To investigate

anomalies in agent-based systems in CPES, we chose

the practical implementation presented in Frost and

Nieße (2024), which is publicly available

. The use

case is self-consumption optimization of a neigh-

borhood grid (energy community), represented by a

MAS, considering redispatch requests from a grid op-

erator. The use case is therefore based on the system

concepts presented by Krueger et al. (2023); Radtke

et al. (2023). Each agent controls a selected DER or

household. Additionally, the implementation contains

a communication simulation, which enables a realis-

tic investigation of the ICT systems effects. The re-

alistic environment allows real-world conditions such

as delayed messages and message failures to be con-

sidered. Anomaly detection can therefore learn such

conditions and be better applied to practical cases.

Selected effects of cyber attacks affecting the

agent system are also considered in the implementa-

tion in Frost and Nieße (2024). For the detection of

anomalies, we refer to the implementation of com-

https://github.com/Digitalized-Energy-Systems/

communication-incidents-in-cpes

ICAART 2025 - 17th International Conference on Agents and Artiﬁcial Intelligence

674

promised process data, as this incident has particu-

lar relevance for the information layers. It is imple-

mented as the effect of selected cyber attacks, e.g.,

false data injection attacks, which are considered the

most dangerous cyber attacks in smart grids (Amin

et al., 2021), thus representing a particularly threat-

ening incident. Power values in exchanged messages

in the agent system are manipulated to consider com-

promised data, for one generation agent representing

a wind plant, as described in Frost and Nieße (2024).

The datasets consider a day in July 2023 and are

publicly available

. An overview of the datasets is

given in Table 1.

Table 1: Overview of datasets for anomaly detection.

Data Time Messages Anomalies

Normal July 2023 540.000 0%

Compromised July 2023 60.000 1%

To perform anomaly detection, a transformer au-

toencoder was implemented (Vaswani, 2017). Pre-

vious work found that the autoencoder, among oth-

ers, predominantly achieved best results (Frost et al.,

2024) and the transformer autoencoder is considered

as a promising approach due to good performances

in anomaly detection (Xu, 2021). The implementa-

tion of the detector was published, containing details

of the conﬁguration

. For the evaluation of differ-

ent anomaly detection architectures, we refer to those

presented in section 3. The architectures including the

considered data are listed in the following.

• Centralized anomaly detection: data of the whole

network is considered.

• Decentralized anomaly detection: data of only

one component is assumed (here: the manipulated

wind agent is considered).

• Grouped per unit type: data of one unit type is

given (here: wind units are considered).

• Grouped randomly: data of a group of units is

considered. The group was built randomly and

considers wind, PV, battery, and household units.

In the evaluation, the architectures are investigated re-

garding the performance given the information avail-

able, as presented in Figure 3. For the fourth layer,

in which additional information, as unit constraints or

forecast data is added, we consider the constraints of

the unit, i.e., the technical limitations of the power.

https://zenodo.org/records/14333637

https://gitlab.com/digitalized-energy-systems/models/

detection-and-prediction-of-communication-incidents-in-

cpes

5 EVALUATION

In this section, the performances of the different

anomaly detection architectures are presented. Al-

though the anomalies are in the performance values

within the messages, not only the information levels

that require access to the messages are analyzed. If

an agent sends manipulated values, other agents re-

act differently, affecting the behavior of others and

the duration of the overall optimization. The com-

promised data therefore also inﬂuences other parame-

ters than those only recognizable in the message con-

tent (such as the solution quality). As shown in Frost

and Nieße (2024), there are effects on the optimiza-

tion and transmission duration of the messages. For

this reason, the ﬁrst two levels of information, as-

suming insight into the messages, are also evaluated

to assess whether the changes in behavior can be de-

tected. For the results, precision, recall, and F1-score

are discussed. For completeness, the speciﬁcity of

the anomaly detection performance was also exam-

ined. True negative entries appear easily recognizable

(speciﬁcity always above 0.8). However, this can be

explained by the imbalanced dataset, so we focus on

the other metrics for discussion.

Centralized Anomaly Detection. The perfor-

mance of the centralized anomaly detection can be

seen in Table 2 for all information levels. It is visible,

that the centralized architecture does not succeed in

recognizing the anomalies satisfactorily. With no

insight into the messages (levels 1 and 2), the results

are very poor (no metric above 0.7, most below 0.2).

Adding the message content to the detection data

improves the performance, while additionally adding

the constraints does not make much difference (met-

rics between 0.58 and 0.77). Overall, the centralized

architecture does not reliably detect anomalies.

Table 2: Centralized architecture.

Information Level Precision Recall F1-Score

1 (Agent, time) 0.17 0.52 0.26

2 (Delays) 0.10 0.67 0.17

3 (Content) 0.77 0.58 0.66

4 (Constraints) 0.76 0.60 0.68

Decentralized Anomaly Detection The results of

the decentralized anomaly detection are shown in Ta-

ble 3. Here, too, it can be seen that the anomalies

cannot be detected without having the content of the

messages available (only recall above 0.7). Insight

into the messages improves the performance (all met-

rics higher than 0.8). Adding the unit constraints to

The Role of Architectures and Information Availability for Anomaly Detection in Cyber-Physical Energy Systems

675

the data again leads to improvements. The decentral-

ized anomaly detection achieves the overall best re-

sults and satisfactory results (all metrics above 0.8).

The high precision is striking; the detected anomalies

appear to be correct. The value for recall is worse;

some anomalies do not appear to have been detected.

Table 3: Decentralized architecture.

Information Level Precision Recall F1-Score

1 (Agent, time) 0.10 0.73 0.12

2 (Delays) 0.15 0.36 0.21

3 (Content) 0.91 0.80 0.85

4 (Constraints) 0.91 0.89 0.90

Anomaly Detection per Unit Type Group. Table 4

shows the results of the anomaly detection performed

on data for one unit type group (wind devices). The

results are, again, very poor without insights into

the messages (only recall above 0.7). However, also

given the content and additional information, the re-

sults are worse than those achieved by the decen-

tralized architecture. It can be concluded that the

joint consideration of units which have similar behav-

ior, since the respective DER have similar conditions,

does not result in any advantages in this case.

Table 4: Grouped unit type.

Information Level Precision Recall F1-Score

1 (Agent, time) 0.13 0.76 0.22

2 (Delays) 0.13 0.76 0.22

3 (Content) 0.92 0.47 0.62

4 (Constraints) 0.92 0.52 0.66

Anomaly Detection for a Random Group of Units.

The results of the anomaly detection performed for

a random group of DER is shown in Table 5. The

results are very similar to those of the grouping by

unit type: insight into messages leads to better re-

sults, however, the architecture performs worse than

the decentralized architecture (F1-score still below

0.7). These results support the thesis that grouping

the systems does not bring any advantages with re-

gard to the detection of anomalies.

Table 5: Grouped randomly.

Information Level Precision Recall F1-Score

1 (Agent, time) 0.23 0.72 0.35

2 (Delays) 0.32 0.70 0.44

3 (Content) 0.86 0.47 0.61

4 (Constraints) 1.0 0.49 0.66

6 DISCUSSION

When comparing the performance, overall, it is no-

ticeable that all architectures achieve very poor results

if no insight into the messages is given. Thus, it can

be assumed that changes in the values (compromised

process data) are not recognizable in the communica-

tion behavior of the agents. These information lev-

els (1 and 2) can still provide added value for attacks

affecting the communication behavior of the agents,

such as DoS attacks. The fact also emphasizes the

relevance of a decentralized architecture in CPES, as

local information cannot be assumed to be guaranteed

for anomaly detection. Overall, the best results are

found by the decentralized anomaly detection. This

type of architecture seems to be the most suitable for

anomalies related to compromised process data. This

can presumably be explained by the fact that the de-

centralized architecture is tailored to the behavior of

a single agent and can therefore presumably learn its

behavior better since only the relevant information re-

quired to detect its compromised data is considered.

The results also show that grouping the agents

(either randomly or by unit type) for anomaly de-

tection does not provide any added value. Commu-

nication between the observers for anomaly detec-

tion randomly or in DER area (neighboring agents)

is therefore not considered particularly promising. In

addition, this exchange would entail a communica-

tion overhead that could have a detrimental effect on

the system (delays, later response times due to in-

creased time to detection). Combining two detection

approaches into a multi-leveled one therefore only

makes sense for centralized and decentralized detec-

tion approaches.

In previous work, anomalies regarding the

communication behavior of agents were investi-

gated (Frost et al., 2024). There, distributed and cen-

tralized architectures were compared. It was found

that none of the architectures was more suitable; some

characteristics of the anomalies were better detected

by the centralized architecture, others vice versa.

Considering the results of the previous work and

this paper, the relevance of multi-leveled or hierarchi-

cal architectures becomes apparent. Different cyber

attacks have different effects on the agent system; in

addition to changes in values and communication be-

havior, agents or communication links fail. To de-

tect multiple types of attacks, architectures can be

combined. Multi-leveled architectures typically con-

tain a centralized observer in addition to, for exam-

ple, the decentralized instance. The centralized ob-

server monitors the entire system, e.g., without hav-

ing insight into the messages, in addition, decentral-

ICAART 2025 - 17th International Conference on Agents and Artiﬁcial Intelligence

676

ized anomaly detection is implemented for each node,

where insight into the messages is assumed (at least

level 3). The proposed architecture including the

available information for each observer is shown in

Figure 4. The decentralized observer considers all lo-

cally available information, which may include addi-

tional information such as forecast data or constraints.

Figure 4: Proposed multi-leveled architecture.

The anomalies detected by both observers can

serve as the basis for the reaction. For example, en-

semble learning, which combines the results of dif-

ferent models, could be considered for selecting the

anomalies. Finally, the results of both observers pro-

vide a good basis for a controller to make decisions.

The results can be communicated to a controller (ei-

ther local or central), which can decide based on

the detected anomalies and the information available.

Again, different (controller) architectures need to be

explored. This enables collaborative anomaly detec-

tion while respecting privacy constraints, as local in-

formation does not need to be shared. Furthermore,

no communication overhead is caused, as current val-

ues do not need to be exchanged between observers in

addition to the exchanged messages.

7 CONCLUSION

This paper presents and evaluates different architec-

tures for designing an observer to perform anomaly

detection in CPES. The impact of different available

information on the detection performance is investi-

gated. The results show that compromised data is only

detected when insight into the messages is provided.

This shows the importance of decentralized anomaly

detection, since some information, such as local DER

constraints, may not be available at a central location

in CPES. The need for decentralized anomaly detec-

tion is additionally emphasized by the fact that this

type of architecture outperforms the others. The re-

sults show that access to information must be consid-

ered when choosing an architecture for an observer.

Additionally, the need for multi-leveled architectures

for anomaly detection in CPES is emphasized, as dif-

ferent information is available at different locations.

Our results and ﬁndings support a robust observer de-

sign, according to customized and adaptable circum-

stances, thus, addressing the challenges of anomaly

detection in CPES by providing a basis for reliable

anomaly detection. Our ﬁndings can be used to imple-

ment a controller, which takes reaction to anomalies,

based on the results of a multi-leveled architecture.

The discussed architectures must also be compared

in terms of controller implementation. Future work

can build on our work to investigate the impact of ar-

chitectures and information access on anomaly pre-

diction, as part of the observer in OC systems is the

prediction of the systems’ behavior. Accurate predic-

tions simplify reacting to detected anomalies, thereby

improving the overall robustness of the system.

ACKNOWLEDGEMENTS

The authors would like to thank the German Federal

Government, the German State Governments, and

the Joint Science Conference (GWK) for their fund-

ing and support as part of the NFDI4Energy consor-

tium. The work was partially funded by the Ger-

man Research Foundation (DFG) – 501865131 within

the German National Research Data Infrastructure

(NFDI, www.nfdi.de).

REFERENCES

Amin, M., El-Sousy, F. F., Aziz, G. A. A., Gaber, K., and

Mohammed, O. A. (2021). Cps attacks mitigation ap-

proaches on power electronic systems with security

challenges for smart grid applications: A review. Ieee

Access, 9:38571–38601.

Anwar, A. and Mahmood, A. N. (2014). Cyber security of

smart grid infrastructure. CoRR, abs/1401.3936.

Bremer, J. and Lehnhoff, S. (2019). Lazy agents for large

scale global optimization. In ICAART (1), pages 72–

79.

Chaaban, Y., M

uller-Schloer, C., and H

ahner, J. (2013). Ro-

bustmas: Measuring robustness in hybrid central/self-

organising multi-agent systems. International Confer-

ence on Advanced Cognitive Technologies & Applica-

tions.

Dehghanpour, K., Colson, C., and Nehrir, H. (2017). A sur-

vey on smart agent-based microgrids for resilient/self-

healing grids. Energies, 10(5):620.

Denysiuk, R., Lilliu, F., Vinyals, M., Reforgiato, D., et al.

(2020). Multiagent system for community energy

management. In Proceedings of the 12th International

Conference on Agents and Artiﬁcial Intelligence-

The Role of Architectures and Information Availability for Anomaly Detection in Cyber-Physical Energy Systems

677

Volume 1, volume 1, pages 28–39. Scitepress, Science

and Technology Publications.

Ding, B., Li, Z., Li, Z., Xue, Y., Chang, X., Su, J., Jin, X.,

and Sun, H. (2024). A ccp-based distributed coopera-

tive operation strategy for multi-agent energy systems

integrated with wind, solar, and buildings. Applied

Energy, 365:123275.

Erhan, L., Ndubuaku, M., Di Mauro, M., Song, W., Chen,

M., Fortino, G., Bagdasar, O., and Liotta, A. (2021).

Smart anomaly detection in sensor systems: A multi-

perspective review. Information Fusion, 67:64–79.

Frost, E., Heiken, J. C., Tr

oschel, M., and Nieße, A.

(2024). Detecting and analyzing agent communica-

tion anomalies in distributed energy system control.

In ICAART (3), pages 625–632.

Frost, E. and Nieße, A. (2024). Communication incidents

in self-organising cyber-physical energy systems: As-

sessing robustness. In 5th International Conference

on Communications, Information, Electronic and En-

ergy Systems (CIEES), pages 1–6.

Fu, C., Arjunan, P., and Miller, C. (2022). Trimming out-

liers using trees: winning solution of the large-scale

energy anomaly detection (lead) competition. In Pro-

ceedings of the 9th ACM International Conference

on Systems for Energy-Efﬁcient Buildings, Cities, and

Transportation, pages 456–461.

Gupta, K., Sahoo, S., Mohanty, R., Panigrahi, B. K., and

Blaabjerg, F. (2021). Decentralized anomaly char-

acterization certiﬁcates in cyber-physical power elec-

tronics based power systems. In 2021 IEEE 22nd

Workshop on Control and Modelling of Power Elec-

tronics (COMPEL), pages 1–6.

Haehner, J., Rudolph, S., Tomforde, S., Fisch, D., Sick, B.,

Kopal, N., and Wacker, A. (2013). A concept for se-

curing cyber-physical systems with organic comput-

ing techniques. In 26th International Conference on

Architecture of Computing Systems 2013, pages 1–13.

Hasanuzzaman Shawon, M., Muyeen, S. M., Ghosh, A., Is-

lam, S. M., and Baptista, M. S. (2019). Multi-Agent

Systems in ICT Enabled Smart Grid: A Status Update

on Technology Framework and Applications. IEEE

Access, 7:97959–97973. Conference Name: IEEE

Access.

Kantert, J., Tomforde, S., M

uller-Schloer, C., Edenhofer, S.,

and Sick, B. (2017). Quantitative robustness-a gener-

alised approach to compare the impact of disturbances

in self-organising systems. In ICAART (1), pages 39–

50.

Krueger, C., Otte, M., Holly, S., Rathjen, S., Wellssow, A.,

and Lehnhoff, S. (2023). Redispatch 3.0–congestion

management for german power grids–considering

controllable resources in low-voltage grids. In ETG

Congress 2023, pages 1–7. VDE.

Nieße, A. and Tr

oschel, M. (2016). Controlled self-

organization in smart grids. In 2016 IEEE Inter-

national Symposium on Systems Engineering (ISSE),

pages 1–6. IEEE.

Radtke, M., Stucke, C., Trauernicht, M., Montag, C., Oest,

F., Frost, E., Bremer, J., and Lehnhoff, S. (2023). Inte-

grating agent-based control for normal operation in in-

terconnected power and communication systems sim-

ulation. In 2023 IEEE Symposium Series on Compu-

tational Intelligence (SSCI), pages 228–233. IEEE.

Ramanan, P., Li, D., and Gebraeel, N. (2022). Blockchain-

based decentralized replay attack detection for large-

scale power systems. IEEE Transactions on Systems,

Man, and Cybernetics: Systems, 52(8):4727–4739.

Ren, Y., Yu, J., Zhao, A., Jing, W., Ran, T., and Yang,

X. (2021). A multi-objective operation strategy op-

timization for ice storage systems based on decentral-

ized control structure. Building Services Engineering

Research and Technology, 42(1):62–81.

Richter, U., Mnif, M., Branke, J., M

uller-Schloer, C.,

and Schmeck, H. (2006). Towards a generic ob-

server/controller architecture for organic computing.

INFORMATIK 2006–Informatik f

ur Menschen, Band

1, pages 112–119.

Stark, S., Frost, E., and Nebel-Wenner, M. (2024).

Distributed multi-objective optimization in cyber-

physical energy systems. ACM SIGENERGY Energy

Informatics Review, 4(2):7–18.

Taleb, I., Guerard, G., Fauberteau, F., and Nguyen, N.

(2023). A holonic multi-agent architecture for smart

grids. In ICAART (1), pages 126–134.

Tan, S., Guerrero, J. M., Xie, P., Han, R., and Vasquez,

J. C. (2020). Brief survey on attack detection methods

for cyber-physical systems. IEEE Systems Journal,

14(4):5329–5339.

Tomforde, S., Prothmann, H., Branke, J., H

ahner, J., Mnif,

M., M

uller-Schloer, C., Richter, U., and Schmeck,

H. (2011). Observation and control of organic sys-

tems. Organic computing—a paradigm shift for com-

plex systems, pages 325–338.

Turowski, M., Heidrich, B., Phipps, K., Schmieder, K.,

Neumann, O., Mikut, R., and Hagenmeyer, V. (2022).

Enhancing anomaly detection methods for energy

time series using latent space data representations.

In Proceedings of the Thirteenth ACM International

Conference on Future Energy Systems, pages 208–

227.

Vaswani, A. (2017). Attention is all you need. Advances in

Neural Information Processing Systems.

Xu, J. (2021). Anomaly transformer: Time series anomaly

detection with association discrepancy. arXiv preprint

arXiv:2110.02642.

Yohanandhan, R., Elavarasan, R., Manoharan, P., and

Mihet-Popa, L. (2020). Cyber-physical power system

(cpps): A review on modeling, simulation, and analy-

sis with cyber security applications. IEEE Access, vol.

8, pages 151019–151064.

Zhu, Q. (2019). Multilayer cyber-physical security and re-

silience for smart grid. Smart grid control: overview

and research opportunities, pages 25–239.

ICAART 2025 - 17th International Conference on Agents and Artiﬁcial Intelligence

678
