When Are 1.58 Bits Enough? A Bottom-up Exploration of

Quantization-Aware Training with Ternary Weights

Jacob Nielsen

, Lukas Galke

and Peter Schneider-Kamp

Department of Mathematics and Computer Science, University of Southern Denmark, Odense, Denmark

Keywords:

Quantization, Quantization-Aware Training, Graph Neural Networks, Text Classiﬁcation, Language Models.

Abstract:

Contemporary machine learning models, such as language models, are powerful, but come with immense re-

source requirements both at training and inference time. Quantization aware pre-training with ternary weights

(1.58 bits per weight) has shown promising results in decoder-only language models and facilitates memory-

efﬁcient inference. However, little is known about how quantization-aware training inﬂuences the training

dynamics beyond such Transformer-based decoder-only language models. Here, we engage in a bottom-up

exploration of quantization-aware training, starting with multi-layer perceptrons and graph neural networks.

Then, we explore 1.58-bit training in other transformer-based language models: encoder-only and encoder-

decoder models. Our results show that in all of these settings, 1.58-bit training is on par with standard 32/16-bit

models, yet we also identify challenges speciﬁc to 1.58-bit encoder-decoder models. Our results on decoder-

only language models hint at a possible regularization effect introduced by quantization-aware training.

1 INTRODUCTION

Large Language Models (LLMs) have dominated

the ﬁeld of natural language processing in recent

years (Vaswani et al., 2017; Brown et al., 2020; Wei

et al., 2022). However, LLMs come with deployments

obstacles, especially regarding memory use, latency,

and throughput and considerations regarding LLM’s

environmental impact in terms of energy consumption

are threatening their uptake (Bommasani et al., 2021;

Schwartz et al., 2020).

Post-training quantisation methods have been pro-

posed, including but not limited to, Generative Pre-

trained Transformer Quantization (Frantar et al.,

2023) and Activation-aware Weight Quantization

(Lin et al., 2024). Post-training quantization has also

been employed in other domain such as computer vi-

sion (Li and Gu, 2023). However, post-training quan-

tization inherently comes with a decrease in perfor-

mance.

An alternative to post-training quantization is

quantization-aware training such as LLM-QAT (Liu

et al., 2023c) and QA-LoRA (Xu et al., 2023). Here,

the quantized weights are subject to training such that

https://orcid.org/0009-0009-8141-630X

https://orcid.org/0000-0001-6124-1092

https://orcid.org/0000-0003-4000-5570

there is no decrease in performance when the quan-

tized model is then usedfor inference. Recent works

on 1-bit (Wang et al., 2023) and 1.58-bit (Ma et al.,

2024) quantization-aware training architectures have

demonstrated the potential of training in a low-bit pre-

cision while maintaining most of the LLM’s perfor-

mance.

The 1.58-bit quantization-aware training architec-

ture introduced in BitNet b1.58 (Ma et al., 2024)

quantizes the weights of linear layers to the values

−1, 0, or 1 during forward passes. It has been shown

to yield only minimal performance decrease in 3B+

parameter LLMs. Building on this, recent work sug-

gests that 1.58-bit training is promising for multi-

modal architectures (Sundaram and Iyer, 2024) and

spiking language models (Bal et al., 2024). Investi-

gating this b1.58 training scheme in small vision and

language models ( ranging from 100K to 48M pa-

rameters), Nielsen and Schneider-Kamp (2024) iden-

tify scaling laws between 16-bit and 1.58-bit train-

ing, showing that 1.58-bit can achieve similar perfor-

mance to 16-bit training, even on these small lower-

capacity networks. Furthermore, they show that em-

ploying the median (as a basis for quantization and

rescaling) instead of the mean achieves even better

performance in some settings.

However, b1.58 architectures and training

schemes still pose numerous unanswered questions,

1440

Nielsen, J., Galke, L. and Schneider-Kamp, P.

When Are 1.58 Bits Enough? A Bottom-up Exploration of Quantization-Aware Training with Ternary Weights.

DOI: 10.5220/0013382400003890

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 17th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2025) - Volume 3, pages 1440-1449

ISBN: 978-989-758-737-5; ISSN: 2184-433X

which require further investigation of its poten-

tial and limitations. Here, we investigate 1.58-bit

quantization-aware training in a bottom-up manner,

starting from the classic exclusive-or (X-OR) task

and non-transformer architectures such as multi-layer

perceptrons and graph neural networks. We further

ﬁll a gap in the literature by analyzing 1.58-bit

quantization-aware training for encoder-only and

encoder-decoder transformer-based language models,

complementing prior work on decoder-only language

models.

Our results suggest that 1.58-bit weights can be

employed as a drop-in replacement for Linear layers

in a multitude of model architectures with no to mini-

mal loss in performance. We ﬁnd that in encoder-only

language models, commensurate accuracy with 16-bit

models can be obtained by increasing the hidden size

throughout the model. However, we also ﬁnd that

encoder-decoder transformer models, such as in 1.58-

bit variants of T5 (Raffel et al., 2020), yield lower

performance than their 16-bit counterparts.

In summary, our contributions are as follows:

• A bottom-up exploration of 1.58-bit quantization-

aware training, ranging from the X-OR problem

and 1.58-bit multi-layer perceptrons for text clas-

siﬁcation to 1.58-bit graph neural networks for

node classiﬁcation (Section 3).

• Experiments on 1.58-bit encoder-only language

models showing that an increase in model capac-

ity can compensate for the lower bit precision –

yet sub-proportionally to the decrease in bit width

(Section 4.1).

• Experiments on 1.58-bit encoder-decoder lan-

guage models showing that these models suffer

more from 1.58-bit training and struggle to reach

the performance of 16-bit. (Section 4.2).

2 BACKGROUND: b1.58

QUANTIZATION

We recapitulate the basics of 1.58-bit quantization

proposed by Nielsen and Schneider-Kamp (2024),

which generalizes the one from (Wang et al., 2023).

The core of the 1.58-bit quantization scheme is to

introduce a drop-in replacement for the Linear lay-

ers in common machine learning frameworks such

as PyTorch, which we denote as BitLinear. Dur-

ing training, the BitLinear layer retains 16-bit shadow

weights. During the forward pass, the shadow

weights are quantized to 1.58-bit precision which cor-

responds to ternary weights: {−1, 0, 1}. During the

backward pass, the shadow weights are optimized via

the straight-through estimator (Bengio et al., 2013).

Because forward passes are always conducted with

quantized weights, we can drop the shadow weights

when training concludes, using solely the ternary

weights during inference.

The computation ﬂow of a BitLinear layer fol-

lows a ﬁve-step procedure: First, the activations

are normalized via a parameter-free LayerNorm (Ba

et al., 2016), denoted here as

I for input I .

Second, the layer normalized activations are quan-

tized to k-bit precision (usually k = 8) via AbsMax

quantization. We ﬁrst calculate a scaling factor x

scale

such that x

scale

max(|

I|)+ε

, where Q

= 2

k−1

is the

range of the k bits used for the quantized activa-

tions and ε is a small positive value preventing zero-

division. This ensures that all activations can be

scaled to integer values {−Q

, . . . , Q

− 1}. We then

employ AbsMax quantization on the activations as

follows:

quant

= max(−Q

, min(Q

− 1, round(

I · x

scale

))

Third, the 16-bit shadow weights W ∈ R

n×m

are

scaled and quantized to a ternary system of integer

values in {−1, 0, 1} (corresponding to 1.58 bits per

weight through a generic AbsMeasure quantization

method (Nielsen and Schneider-Kamp, 2024). For

this, we calculate a second scaling factor w

scale

Measure(|W |)+ε

, where Measure denotes either the

mean or median function. The quantized weights

quant

can then be derived as:

quant

= max(−1, min(1, round(W · w

scale

))

Fourth, having quantized both activations and

weights, we can conduct a forward pass with x

quant

and W

quant

= x

quant

· W

quant

+ b

where b is an optional bias term. To fully exploit

the positive impacts on memory use, latency, and

throughput, the forward pass ought to be carried out

by a specialized kernel using bit-level operations.

We detach both x

quant

and w

quant

from the compu-

tation graph to facilitate a straight-through estimation

of the gradients. The gradients will then be estimated

with respect to the shadow weights, i.e., the 16-bit

weights that were quantized via AbsMeasure in step

Lastly, the result of this linear transformation is

rescaled with the scaling factors x

scale

and w

scale

from

steps 2 and 3, respectively. Thus, to calculate the

layer’s ﬁnal output y, we rescale y as follows:

y =

quant

scale

· x

scale

When Are 1.58 Bits Enough? A Bottom-up Exploration of Quantization-Aware Training with Ternary Weights

1441

3 BitNet IN NON-TRANSFORMER

MODELS

Prior work on BitNet quantization has predominantly

focused on analyzing transformer models (Wang

et al., 2023; Ma et al., 2024; Nielsen and Schneider-

Kamp, 2024). Here, we ask to what extent

quantization-aware training is a feasible strategy for

neural networks in general. We engage in a bottom-

up exploration, starting from the popular X-OR prob-

lem and a minimalist BitNet model, then advance to

BitNet in multilayer perceptrons to carry out text clas-

siﬁcation from a bag-of-words representation, and, ﬁ-

nally, explore BitNet for graph neural networks.

3.1 Can 1.58-bit Models Solve X-OR?

To better understand the dynamics of 1.58-bit train-

ing, we explore the X-OR problem, in which the

model needs to learn the function of exclusive-or:

Given two binary inputs, the task is to output 1 when

exactly one of the inputs is 1 and 0 otherwise. The

X-OR-problem is particularly interesting because it

is known that it cannot be solved by a purely linear

model and requires at least one hidden layer with a

non-linear activation.

In theory, ternary weights as in BitNet are suf-

ﬁcient to solve X-OR. One possible solution would

be to have a two hidden units, one assigning a posi-

tive weight to the ﬁrst input and a negative weight to

the second, and vice-versa for the second hidden unit:

= ReLU(x

− x

) and h

= ReLU(x

− x

). The

output layer would then have two positive weights

y = h

+ h

, solving the X-OR problem. Whether

these weights can be learned from data is a question

subject to experimentation.

Setup. We set up the basic X-OR-problem, while

adding two extra noise inputs which do not affect

the output and ought to be ignored (e.g., by assign-

ing weight zero). We are interested whether a BitNet

model with a single hidden layer, i.e., two BitLin-

ear layers with an intermediate ReLU activation, can

learn a perfect solution to the X-OR problem while

ignoring the noise inputs. The weight range is set to

1.58 bits (-1, 0, or 1), the activation range is 8 bits.

We train for 1k epochs on 5k examples with 4 fea-

tures, two of which determine the target X-OR out-

put. The learning rate is set to 0.01 unless noted oth-

erwise. Optimization is carried out by Adam (Kingma

and Ba, 2015) to minimize cross-entropy with the X-

OR ground truth.

Results. A standard MLP with one hidden layer of

two hidden units solves X-OR. BitNet variants with

two hidden units do not ﬁnd a solution.

With 8 hidden units, and the mean quantization

scheme, AbsMean, the model ﬁnds a perfect solution

(100% accuracy) with exactly 4 nonzero parameters

on the input layer and, in particular, all zero weights

on the noise inputs. However, with the median weight

quantization (AbsMedian), the model did not ﬁnd a

solution with 8 hidden units, converging at accuracy

86.8%. The L1 norm of the X-OR input weights was

12 (out of 16) and the L1 norm of the noise input

weights was 8 (out of 16).

When we increase the number of hidden units to

16, AbsMedian found a solution with perfect accu-

racy at the end of training, but the trajectory during

training was unstable. The L1 norm for X-OR input

weights was 24. The L1 norm for noise input weights

was 17. Output layer L1 norm 26 (out of 32).

With 32 hidden units, AbsMedian found a perfect

solution (100% accuracy) with less ﬂuctuation on the

trajectory. The L1 norm of the weights for X-OR in-

puts was 51 (out of 64). The L1 norm of the noise-

input weights was 28 (out of 64). The L1 norm of the

output layer was 50 (out of 64).

Going back to 8 hidden units, but larger learning

rate (0.1), AbsMedian also ﬁnds a 100% accurate so-

lution. The L1 norm of weights for X-OR inputs was

12 (out of 16), while the L1 norm of weights for noise

inputs: 5 (4 of them negative). The hidden-to-output

layer had all non-zero weights (L1 norm of 16).

The bias parameters seemingly help to ignore

parts of the inputs together with ReLU activation.

Note, when the weights for the noise inputs are neg-

ative, the bias term needs to compensate such that

the noise inputs do not distort the sum with the X-

OR inputs. Both AbsMean and AbsMedian managed

to solve the X-OR problem. However, AbsMedian

needed either a larger learning rate or a higher amount

of hidden units.

3.2 BitNet in Multilayer Perceptrons

Next, we investigate to what extent a 1.58-bit multi-

layer perceptron model can learn to categorize texts

based on bag-of-words features.

Setup. We use the same setup as a recent work on

text classiﬁcation (Galke and Scherp, 2022), where

a wide multilayer perceptron (WideMLP) on a bag-

of-words representation had shown good results. We

train two BitNet variants (WideMLP-b1.58-mean and

WideMLP-b1.58-median) of the WideMLP baseline.

The ﬁrst layer of the WideMLP model is implemented

ICAART 2025 - 17th International Conference on Agents and Artiﬁcial Intelligence

1442

Table 1: Text Classiﬁcation: A wide multi-layer perceptron on a bag-of-words (WideMLP) compared to corresponding Bit-

Net variants WideMLP-b1.58-mean and WideMLP-b1.58-median. WideMLP baseline results taken from Galke and Scherp

(2022).

Method 20ng R8 R20 ohsumed MR Average

WideMLP baseline 83.31 97.27 93.89 63.95 76.72 83.03

WideMLP-b1.58-mean lr=10

−3

79.89 97.40 93.54 60.75 77.10 81.74

WideMLP-b1.58-median lr=10

−3

80.08 97.35 94.20 62.28 76.14 82.01

WideMLP-b1.58-median lr=10

−2

81.74 96.80 93.69 62.73 76.22 82.24

as an embedding layer to avoid large matrix multipli-

cations with the dimensions of the vocabulary size.

Therefore, we quantize only the hidden-to-output

layer of the two-layer architecture. Nevertheless,

this leads to the interesting question of how quan-

tized fully-connected layers cope with non-quantized

embedding layers. We use 5 standard benchmark

datasets: 20ng, R8, R52, ohsumed, and MR – four be-

ing topic classiﬁcation and MR being sentiment clas-

siﬁcation. As in WideMLP, we train for 100 epoch

with batch size 16.

Results. As shown in Table 1, WideMLP-b1.58-

mean achieves 98.4% of WideMLP’s performance

(unweighted average over datasets). WideMLP-

b1.58-median achieves 98.8% of WideMLP perfor-

mance. With a learning rate of 10

−2

, WideMLP-

b1.58-median attains 99.0% of the WideMLP base-

line performance.

3.3 BitNet in Graph Neural Networks

We seek to understand how BitNet affects graph

representation learning. We evaluate 1.58-bit vari-

ants of graph convolutional networks (GCN; Kipf

and Welling, 2016) and simpliﬁed graph convolution

(SGC; Wu et al., 2019) on three commonly used cita-

tion datasets to evaluate node classiﬁcation in graphs:

Cora, Citeseer, Pubmed under the split by Yang et al.

(2016): using only the labels of 20 nodes per class for

training.

Setup. As base graph neural network models, we

use a 2-layer ReLU-activated GCN and an SGC

model with 2-hop neighborhood aggregation. In both

models, we substitute the linear layers with BitLinear

(2 for the GCN, and 1 for SGC). We then experiment

with mean and median weight quantization. All mod-

els are trained for 100 epochs with learning rate 0.01.

We report mean accuracy and 95% conﬁdence inter-

vals across 10 repetitions.

Results. Table 2 shows the results. For both GCN

and SGC, the b1.58-mean and b1.58-median vari-

ants yield accuracy scores very close to their full-

precision counterparts and even higher accuracy in

some cases: SGC-b1.58-median on Cora and GCN-

b.158-mean on Citeseer. On the unweighted averaged

over all three datasets, GCN-b1.58-median achieves

98.8% relative performance to GCN and SGC-b1.58-

median achieves 98.5% of SGC’s performance.

3.4 Summary and Interim Discussion

What can we learn from this set of experiments? In

the toy X-OR setting, we found that BitNet mod-

els need a higher number of parameters, or a higher

learning rate – as also suggested by prior work on

BitNet (Wang et al., 2023). However, in practical

settings, such as text classiﬁcation and node classi-

ﬁcation, BitNet variants yield almost the same per-

formance as their respective baselines – even without

increasing the learning rate or the number of model

parameters. We hypothesize that this is due to sufﬁ-

cient overparameterizion.

The experiments with the SGC-b1.58 models

show higher standard deviations, when compared to

the GCN-b1.58 models. A potential reason is that

SGC employs a linear mapping from neighborhood-

aggregated features to classes, which could lead to

higher variability as the model has less opportunities

to compensate for the reduced precision.

As for the difference between mean and median

quantization schemes, we ﬁnd that both options lead

to similar performance. In the following, we will pro-

ceed with the median option only.

4 BitNet IN TRANSFORMERS

We now move to transformer-based language mod-

els including encoder-only, encoder-decoder, and

decoder-only transformer architectures employing

BitLinear layers with the AbsMedian quantization for

1.58-bit weights and AbsMax quantization for 8-bit

When Are 1.58 Bits Enough? A Bottom-up Exploration of Quantization-Aware Training with Ternary Weights

1443

Table 2: Node classiﬁcation. Mean accuracy over 10 runs with 95% conﬁdence intervals. Graph convolutional networks

(GCN) and Simpliﬁed Graph Convolution (SGC) compared to their BitNet variants (*-b1.58-mean and *-b1.58-median).

Method Cora Citeseer Pubmed Avg.

GCN baseline 78.57 ± 0.49 63.76 ± 0.48 76.02 ± 0.19 72.78

GCN-b1.58-mean 76.03 ± 0.50 65.83 ± 0.45 73.51 ± 0.47 71.79

GCN-b1.58-median 75.76 ± 0.32 65.60 ± 0.65 74.42 ± 0.39 71.93

SGC baseline 77.07 ± 0.15 63.66 ± 0.18 75.63 ± 0.08 72.12

SGC-b1.58-mean 77.31 ± 0.38 59.31 ± 1.82 75.22 ± 0.33 70.61

SGC-b1.58-median 77.46 ± 0.75 61.31 ± 1.90 74.42 ± 0.26 71.06

activations. We will show that the performance of

b1.58 in encoder-only architectures align with previ-

ous results on decoder-only architectures, but that this

does not hold for the encoder-decoder architecture.

4.1 Encoder-Only Language Models

Here, we experiment with 1.58-bit variants of the

encoder-only model BERT (Devlin et al., 2019).

Setup. We employ the Cramming framework

(Geiping and Goldstein, 2023) and the crammed-

BERT architecture

with the bert-o4 conﬁg

provided

by the framework to standardize our experiments. As

such, we use a learning rate of 10

−3

, AdamW-optimizer

(Loshchilov, 2017) and a batch size of 8192. We train

for masked language model objective with the default

masking probability of 25%. We experiment with dif-

ferent hidden sizes for the 16-bit and 1.58-bit models.

Motivated by low-resource language modeling,

the experiments are conducted with a dataset consist-

ing of approximately 80% Danish texts mixed with

20% equal amounts of Norwegian, Swedish, Ger-

man, and English over 6.2 million documents, tok-

enized into 517M tokens with BERT tokenizer (Wu

et al., 2016), and into 403M tokens for T5’s tok-

enizer (Kudo, 2018). The dataset is collected from

high quality text sources and split into train and vali-

dation sets balanced equally from data sources. Due

to copyright restrictions and usage agreements, the

dataset cannot be published.

Results. We compare the performance of 16-bit and

1.58-bit training in Figures 1a and 1b. Encoders scale

as outlined by prior work, needing approximately

twice the hidden layer size to achieve performance

comparable to 16-bit versions. For instance, a hid-

den layer size of 384 in b1.58 archives performance

https://github.com/JonasGeiping/cramming/blob/

main/cramming/conﬁg/arch/crammed-bert.yaml

https://github.com/JonasGeiping/cramming/blob/

main/cramming/conﬁg/train/bert-o4.yaml

similar to hidden size of 192 in 16-bit. This trend is

observed across other pairs of hidden sizes, e.g., 768

and 384 as well as 1536 and 768.

4.2 Encoder-Decoder Language Models

Next, we investigate the impact of 1.58-bit training on

T5 (Raffel et al., 2020) as an encoder-decoder model.

Setup. We apply b1.58 to the standard masked span

reconstruction objective with a masking probability of

15%. We use the NanoT5 framework (Nawrot, 2023)

with a T5v1_1-base architecture and mT5’s Senten-

cePiece tokenizer (Kudo, 2018). Speciﬁcally, we use

a learning rate of 0.02, a batch size of 128, an input

sequence length of 512, a cosine learning rate sched-

uler and the adamwscale optimizer (Nawrot, 2023).

The architecture has 6 layers in the encoder and an-

other 6 in the decoder stack (Fig. 2). Hidden sizes are

varied between 48 and 1536. Experiments are con-

ducted on the dataset described in Section 4.1.

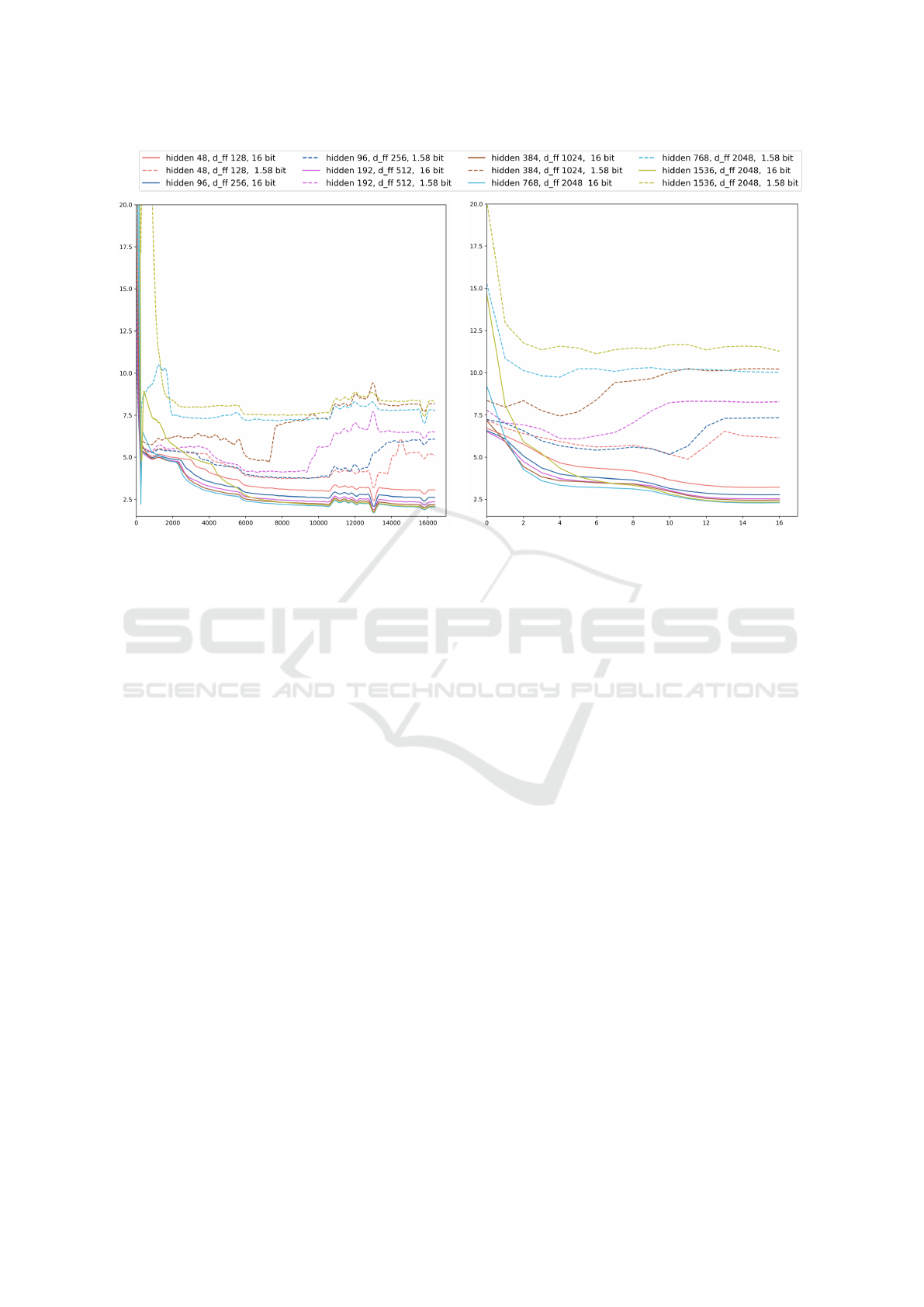

Results. We compare the 16 bit and 1.58 bit per-

formance in Figure 2. In Figure 2a we compare dif-

ferent hidden size’s performance between 16-bit and

1.58-bit (median). We observe that every 16-bit ver-

sion (solid line) outperform all the 1.58-bit versions

(dashed line). We refer to Figure 2b evaluating the

models on held-out validation set, however, coming

from the same distribution. We observe that the val-

idation loss aligns almost perfectly with their corre-

sponding training loss curve, likely indicative of de-

cent in-distribution generalization and decent down-

stream task performance (Liu et al., 2023a). In gen-

eral, we observe the 1.58-bit versions to exhibit more

unstable training behavior, resulting in an increase in

loss over time, which is also reﬂected in the validation

performance.

ICAART 2025 - 17th International Conference on Agents and Artiﬁcial Intelligence

1444

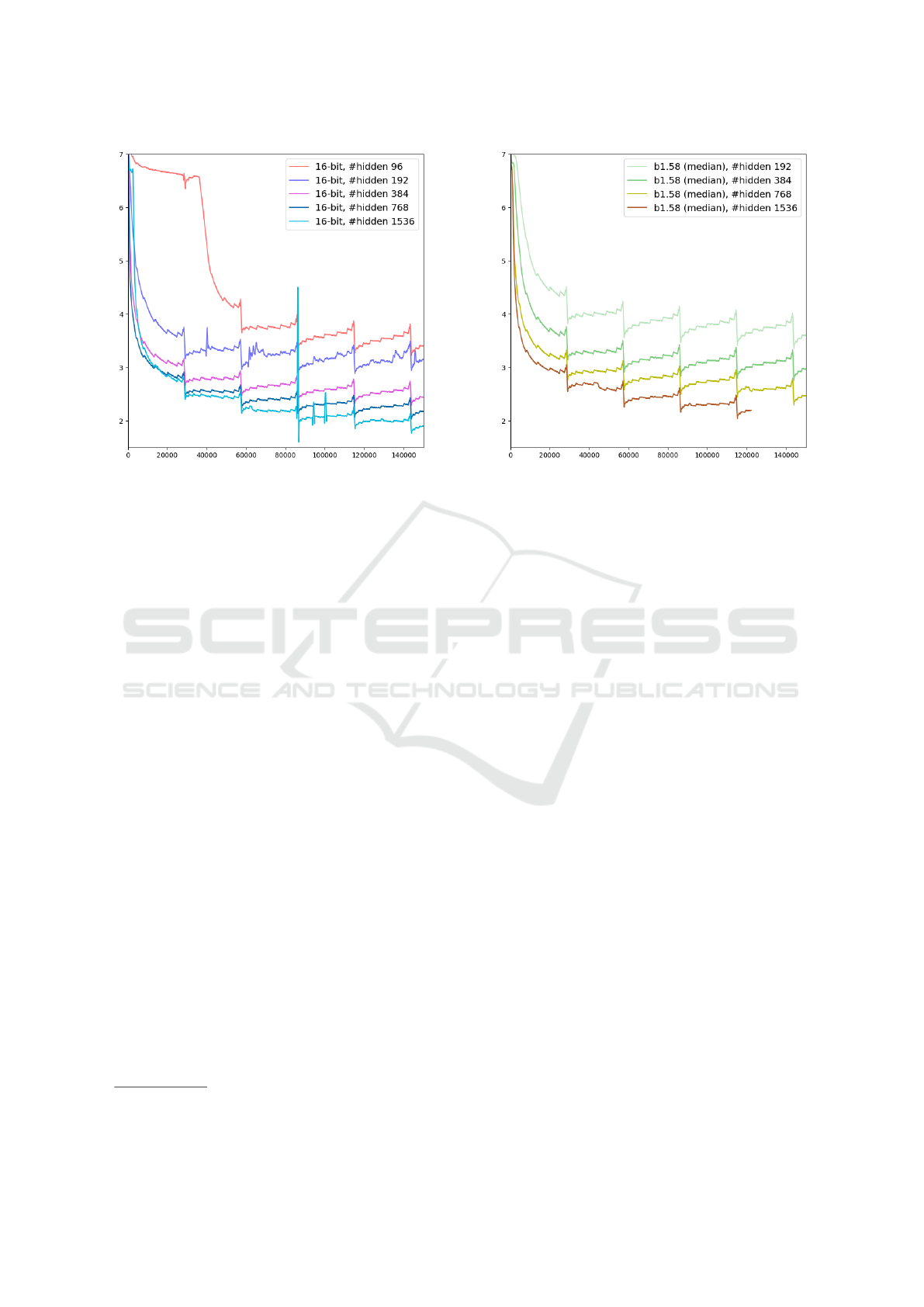

(a) Scaling for 16 bit (b) Scaling for 1.58 bit (median)

Figure 1: Scaling Behavior of 16-bit and 1.58-bit (median) BERT models. Training loss over 150K optimization steps.

Smoothing applied with a Savitzky-Golay ﬁlter with a window size of 1000 and a polynomial order of 2.

4.3 Decoder-Only Language Models:

Quantization as a Regularizer?

Here, we experiment with decoder-only language

models to better understand the training dynamics.

We hypothesize that there could be a regularization

effect of 1.58-bit quantization due to coarser repre-

sentations.

Setup. To investigate this potential regularization

effect, we experiment with Open Language Mod-

els (OLMo Groeneveld et al., 2024) with 1B param-

eters. We employ b1.58 with weight-only quantiza-

tion using AbsMedian with a 1.58-bit weight range.

We train on the dataset described in Section 4.1 with

OLMo’s standard hyperparameters

, which include a

sequence length of 2048 and a batch size of 2048.

Results. Figure 3 shows the results of the OLMo

models. As expected, we observe that 16-bit performs

best (see Figure 3a). The b1.58 variant is worse at ﬁt-

ting the data early on and consistently shows only a

small decrease in loss. However, in Figure 3b, we see

that b1.58 delays overﬁtting to the training dataset.

We attribute this to a regularization effect the quanti-

zation must introduce, making the b1.58 versions su-

perior on the validation set. We see that 1.58-bit with-

out and with dropout perform better and best, respec-

tively, on the validation set. These results indicate that

https://github.com/allenai/OLMo/blob/main/conﬁgs/

ofﬁcial/OLMo-1B.yaml

the coarseness of the ternary quantization also con-

tributes positively to model regularization (see Figure

3) and a good generalization performance.

5 DISCUSSION

We have shown that BitNet models can generally be

trained to yield commensurate accuracy with their

standard 16/32-bit counterparts in multi-layer per-

ceptrons, graph neural networks, encoder-only lan-

guage models, and decoder-only language models –

only T5-like encoder-decoder architectures pose ex-

tra challenges. Our results with decoder-only lan-

guage models further hint at a possible regularization

effect being introduced by quantization-aware train-

ing. Together, these results highlight that 1.58-bit

quantization-aware training methods could be applied

more widely and thereby greatly reduce memory re-

quirements at inference time for a wide range of mod-

els.

Our ﬁndings are particularly interesting in the

light of very recent considerations on scaling laws

in the context of quantization (Kumar et al., 2024;

Nielsen and Schneider-Kamp, 2024). Kumar et al.

(2024) propose scaling laws for precision, claim-

ing that to some extent bit-precision and parameter

count balance each other out and that the compute-

optimal bit-width lies around 7-8 bits. Nielsen and

Schneider-Kamp (2024) instead argue that the need to

increase parameters is sub-proportional to the reduc-

tion in memory size attained by 1.58-bit quantization-

When Are 1.58 Bits Enough? A Bottom-up Exploration of Quantization-Aware Training with Ternary Weights

1445

(a) Training Loss. [savitzky-golay, 512, 2] (b) Validation Loss. [savitzky-golay, 4, 2]

Figure 2: Scaling behavior of a nanoT5 encoder-decoder language model (T5v1.1-base), comparing 16 bit with 1.58-bit

quantization-aware training with quantization applied to throughout the entire T5 model. d_ff denotes the hidden size of the

feedforward components within each encoder and decoder stack.

aware training. Our current study contributes to these

discussion by showing that in several cases beyond

language models, the parameter count does not even

need to be increased, and most importantly, we have

observed a regularization effect for decoder-only lan-

guage models – a highly interesting phenomenon

of quantization-aware training if conﬁrmed in future

work.

In more detail, we have investigated how encoder-

only transformers scale with 1.58-bit quantization

aware-training. Analyzing the scaling behaivour of

16-bit and 1.58-bit models, we observed the need to

re-introduce capacity in some cases. This is inline

by the considerations of both Kumar et al. (2024)

and Nielsen and Schneider-Kamp (2024). Speciﬁ-

cally, we see the need to use a hidden size of 192

in 1.58-median to gain the same performance as 16-

bit with a hidden size of 96. This also holds for

hidden layer sizes of 384, 768 and 1536 for 1.58-

median paired with 192, 368 and 768 for 16-bit, re-

spectively. This conﬁrms that, there is a subpropor-

tional scaling law at play for quantization-aware train-

ing of encoder-only transformers – similar to previ-

ous observations on decoder-only language models by

Nielsen and Schneider-Kamp (2024),

In Figure 2a, we have observed ed “knees” form-

ing in multiple loss curves, where the training ex-

hibits a sudden drop in loss at a certain point of time,

e.g. in the teal, blue, red and pink graph (dashed

and solid). Both the 16-bit and 1.58-bit versions ex-

hibit this behavior, where the 16-bit versions dropping

around 2200-3000 step mark, where the 1.58-versions

are delayed and in general yield a less signiﬁcantly

and spread out drop. Similar phenomena have been

observed by Chen et al. (2024) on masked language

models, who was found that this is the point where

the models picks up the syntactic structure of the lan-

guage. We presume that the knees in the loss curve we

observe here also hint at syntax acquisition, which is

important to conﬁrm for quantization-aware training.

We have further shown that ﬁndings for the

encoder-decoder transformer architectures do not di-

rectly align with the ﬁndings for the separate encoder-

only and decoder-only architectures. Employing

1.58-bit throughout the model generally degrades per-

formance substantially, as observed both on the train-

ing and the validation loss – and this cannot be com-

pensated by scale as to the limits of our experiments.

Note that these results do not include a full epoch

worth of optimization steps. Therefore, one cannot

attribute this effect to the model seeing the same ex-

emplars multiple times. Notably, even an increased

hidden size, did not lead to the 1.58-bit models catch-

ing up with 16-bit models, as was the case in all other

settings studied in this paper. We hypothesize that this

may be caused by the speciﬁc setup of cross- atten-

ICAART 2025 - 17th International Conference on Agents and Artiﬁcial Intelligence

1446

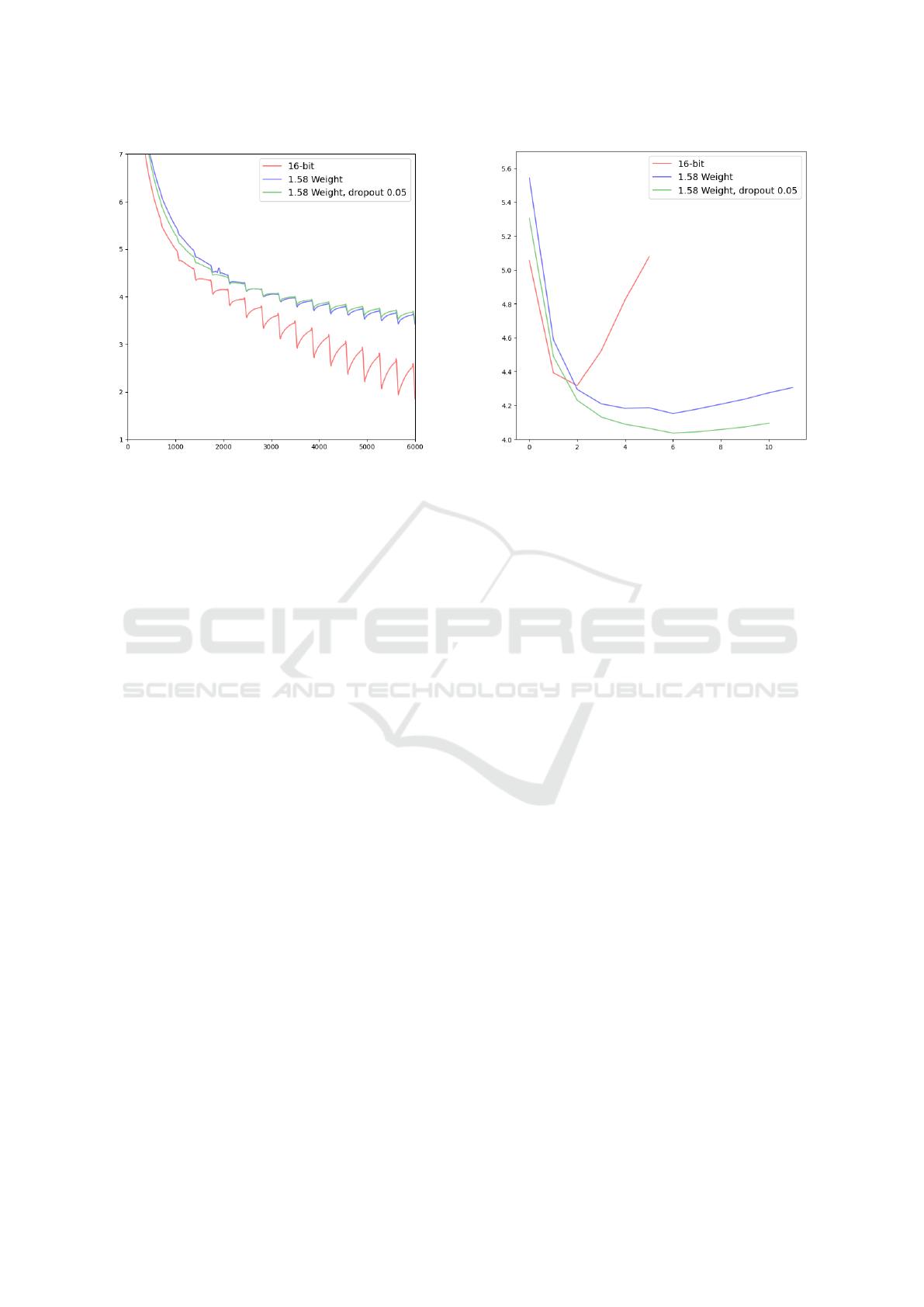

(a) Training Loss (b) Validation Loss

Figure 3: Regularization Effect of b1.58 (median), OLMo 1B model trained on the dataset described in Section 4.1. Smoothing

is applied using a Savitzky-Golay ﬁlter with a window size of 1000 and polynomial order 2.

tion in the encoder-decoder architectures and encour-

age future work to investigate this effect further.

Comparing the two weight quantization schemes

for BitNet: AbsMedian and AbsMean, we have ob-

served that AbsMedian is on par with AbsMean.

Prior work has shown that AbsMedian performs bet-

ter in some situations (Nielsen and Schneider-Kamp,

2024), conjecturing AbsMedian to be more resilient

to weight-updates, which allows for higher variance

without noticeable effect on the scaling factor. While

this may be a factor for models with millions of

parameters, the miniature models involved in solv-

ing the X-OR task seem to be extraordinarily sensi-

tive when the scaling factor is computed on a much

smaller sample. We conjecture that this is the source

of the instability observed in some conﬁgurations

(e.g, hidden size 8 and 16 with low learning rate),

which we have observed to be dampened when in-

creasing the hidden size or the learning rate. In prac-

tical tasks, AbsMean and AbsMedian quantization are

close to each other with a 0.6% drop in accuracy for

MLPs and within each other’s conﬁdence intervals for

GNNs.

We hypothesize that these previously described ef-

fects can be attributed to neural networks often not

utilizing all parameters effectively and contain redun-

dant parameters or even layers (e.g., see Ashkboos

et al., 2024; He et al., 2024). Therefore, these ex-

isting parameters can be considered as surplus capac-

ity when 1.58-bit quantization-aware training is em-

ployed, which would explain the smaller performance

gap when the model size increases.

To fully harvest the potential of 1.58-bit quanti-

zation regarding memory use, latency, and through-

put, there is a need for specialized kernels. Moreover,

quantization-aware training for b1.58 comes with a

slight increase in training resources due to having to

quantize and scale weights and activations. However,

in exchange, required resources at inference time are

greatly reduced. Thus, together with specialized ker-

nels, b1.58 models would contribute to more sustain-

able inference and serving of large models. Reduc-

ing the memory footprint also allows researchers and

practitioners to carry out more computation locally

and therefore may help alleviate privacy concerns.

Limitations. Due to to the high number of cov-

ered experimental settings, the experiments on lan-

guage models are limited to analyzing loss trajec-

tories: training loss for encoder-only models, and

training and validation loss for encoder-decoder as

well as for decoder-only models. We acknowledge

that this does limit the generalizability of our results.

Although the validation loss has been shown to be

highly correlated with downstream performance in

language models, there might be effects of quanti-

zation that could harm downstream performance of

1.58-bit models (Liu et al., 2023b).

6 CONCLUSION

We conducted a bottom-up investigation of 1.58-bit

quantization-aware training for a range of both non-

transformer and transformer models, demonstrating

When Are 1.58 Bits Enough? A Bottom-up Exploration of Quantization-Aware Training with Ternary Weights

1447

very competitive performance for multi-layer per-

ceptrons, graph neural networks, encoder-only, and

encoder-decoder architectures when compared to 16

and 32-bit. Speciﬁcally, we ﬁnd that b1.58-bit train-

ing works well beyond language models, demonstrat-

ing competitive performance in bag-of-words MLPs

for text classiﬁcation and graph neural networks for

node classiﬁcation. Median quantization seems on

par or better than mean in most real-world scenar-

ios. We further analyze the “BitNet Scaling Law” for

encoder-only models, showing that 1.58-bit models

match the training performance of standard precision

models when the hidden size is twice as large, align-

ing with similar observations for decoder-only mod-

els. For encoder-decoder models, we ﬁnd that no such

scaling law is applicable, as b1.58 consistently per-

forms worse than 16-bit. We encourage future work to

investigate the challenges of b1.58 quantization with

encoder-decoder architecture in more depth. Finally,

there seems to be a regularization effects of 1.58-bit

quantization-aware training that helps generalization.

Yet, more research is needed to further investigate this

regularization effect.

ACKNOWLEDGEMENTS

We are grateful to the Danish Foundational Models

(DFM) project for access to data for low-resource

language modelling, to SDU UCloud and EuroHPC

Leonard Booster for providing computational re-

sources.

REFERENCES

Ashkboos, S., Croci, M. L., do Nascimento, M. G., Hoeﬂer,

T., and Hensman, J. (2024). Slicegpt: Compress large

language models by deleting rows and columns.

Ba, J. L., Kiros, J. R., and Hinton, G. E. (2016). Layer

normalization. arXiv preprint arXiv:1607.06450.

Bal, M., Jiang, Y., and Sengupta, A. (2024). Exploring ex-

treme quantization in spiking language models. arXiv

preprint arXiv:2405.02543.

Bengio, Y., Léonard, N., and Courville, A. C. (2013). Es-

timating or propagating gradients through stochas-

tic neurons for conditional computation. CoRR,

abs/1308.3432.

Bommasani, R., Hudson, D. A., Adeli, E., Altman, R. B.,

Arora, S., von Arx, S., Bernstein, M. S., Bohg, J.,

Bosselut, A., Brunskill, E., Brynjolfsson, E., Buch,

S., Card, D., Castellon, R., Chatterji, N. S., Chen,

A. S., Creel, K., Davis, J. Q., Demszky, D., Don-

ahue, C., Doumbouya, M., Durmus, E., Ermon, S.,

Etchemendy, J., Ethayarajh, K., Fei-Fei, L., Finn, C.,

Gale, T., Gillespie, L. E., Goel, K., Goodman, N. D.,

Grossman, S., Guha, N., Hashimoto, T., Henderson,

P., Hewitt, J., Ho, D. E., Hong, J., Hsu, K., Huang,

J., Icard, T., Jain, S., Jurafsky, D., Kalluri, P., Karam-

cheti, S., Keeling, G., Khani, F., Khattab, O., Koh,

P. W., Krass, M. S., Krishna, R., Kuditipudi, R., and

et al. (2021). On the opportunities and risks of foun-

dation models. CoRR, abs/2108.07258.

Brown, T. B., Mann, B., Ryder, N., Subbiah, M., Kaplan, J.,

Dhariwal, P., Neelakantan, A., Shyam, P., Sastry, G.,

Askell, A., Agarwal, S., Herbert-Voss, A., Krueger,

G., Henighan, T., Child, R., Ramesh, A., Ziegler,

D. M., Wu, J., Winter, C., Hesse, C., Chen, M., Sigler,

E., Litwin, M., Gray, S., Chess, B., Clark, J., Berner,

C., McCandlish, S., Radford, A., Sutskever, I., and

Amodei, D. (2020). Language models are few-shot

learners. In Advances in Neural Information Process-

ing Systems 33.

Chen, A., Shwartz-Ziv, R., Cho, K., Leavitt, M. L., and

Saphra, N. (2024). Sudden drops in the loss: Syn-

tax acquisition, phase transitions, and simplicity bias

in MLMs. In The Twelfth International Conference on

Learning Representations.

Devlin, J., Chang, M., Lee, K., and Toutanova, K. (2019).

BERT: pre-training of deep bidirectional transform-

ers for language understanding. In Proceedings of

the 2019 Conference of the North American Chap-

ter of the Association for Computational Linguistics:

Human Language Technologies, NAACL-HLT 2019,

Minneapolis, MN, USA, June 2-7, 2019, Volume 1

(Long and Short Papers), pages 4171–4186. Associ-

ation for Computational Linguistics.

Frantar, E., Ashkboos, S., Hoeﬂer, T., and Alistarh, D.

(2023). Gptq: Accurate post-training quantization for

generative pre-trained transformers.

Galke, L. and Scherp, A. (2022). Bag-of-words vs. graph

vs. sequence in text classiﬁcation: Questioning the ne-

cessity of text-graphs and the surprising strength of a

wide MLP. In Muresan, S., Nakov, P., and Villavicen-

cio, A., editors, Proceedings of the 60th Annual Meet-

ing of the Association for Computational Linguistics

(Volume 1: Long Papers), pages 4038–4051, Dublin,

Ireland. Association for Computational Linguistics.

Geiping, J. and Goldstein, T. (2023). Cramming: Training

a language model on a single gpu in one day. In In-

ternational Conference on Machine Learning, pages

11117–11143. PMLR.

Groeneveld, D., Beltagy, I., Walsh, P., Bhagia, A., Kin-

ney, R., Tafjord, O., Jha, A., Ivison, H., Magnus-

son, I., Wang, Y., Arora, S., Atkinson, D., Authur, R.,

Chandu, K. R., Cohan, A., Dumas, J., Elazar, Y., Gu,

Y., Hessel, J., Khot, T., Merrill, W., Morrison, J. D.,

Muennighoff, N., Naik, A., Nam, C., Peters, M. E.,

Pyatkin, V., Ravichander, A., Schwenk, D., Shah, S.,

Smith, W., Strubell, E., Subramani, N., Wortsman, M.,

Dasigi, P., Lambert, N., Richardson, K., Zettlemoyer,

L., Dodge, J., Lo, K., Soldaini, L., Smith, N. A., and

Hajishirzi, H. (2024). Olmo: Accelerating the science

of language models. arXiv preprint.

He, S., Sun, G., Shen, Z., and Li, A. (2024). What matters

in transformers? not all attention is needed.

Kingma, D. P. and Ba, J. (2015). Adam: A method for

ICAART 2025 - 17th International Conference on Agents and Artiﬁcial Intelligence

1448

stochastic optimization. In Proceedings of the Inter-

national Conference on Learning Representations.

Kipf, T. N. and Welling, M. (2016). Semi-supervised clas-

siﬁcation with graph convolutional networks. arXiv

preprint arXiv:1609.02907.

Kudo, T. (2018). Sentencepiece: A simple and language in-

dependent subword tokenizer and detokenizer for neu-

ral text processing. arXiv preprint arXiv:1808.06226.

Kumar, T., Ankner, Z., Spector, B. F., Bordelon, B., Muen-

nighoff, N., Paul, M., Pehlevan, C., Ré, C., and

Raghunathan, A. (2024). Scaling laws for precision.

arXiv preprint arXiv:2411.04330.

Li, Z. and Gu, Q. (2023). I-vit: integer-only quantization for

efﬁcient vision transformer inference. In Proceedings

of the IEEE/CVF International Conference on Com-

puter Vision, pages 17065–17075.

Lin, J., Tang, J., Tang, H., Yang, S., Chen, W.-M., Wang,

W.-C., Xiao, G., Dang, X., Gan, C., and Han, S.

(2024). Awq: Activation-aware weight quantization

for llm compression and acceleration.

Liu, H., Xie, S. M., Li, Z., and Ma, T. (2023a). Same pre-

training loss, better downstream: Implicit bias mat-

ters for language models. In Krause, A., Brunskill, E.,

Cho, K., Engelhardt, B., Sabato, S., and Scarlett, J.,

editors, Proceedings of the 40th International Confer-

ence on Machine Learning, volume 202 of Proceed-

ings of Machine Learning Research, pages 22188–

22214. PMLR.

Liu, H., Xie, S. M., Li, Z., and Ma, T. (2023b). Same pre-

training loss, better downstream: Implicit bias matters

for language models. In ICML, volume 202, pages

22188–22214. PMLR.

Liu, Z., Oguz, B., Zhao, C., Chang, E., Stock, P., Mehdad,

Y., Shi, Y., Krishnamoorthi, R., and Chandra, V.

(2023c). Llm-qat: Data-free quantization aware train-

ing for large language models.

Loshchilov, I. (2017). Decoupled weight decay regulariza-

tion. arXiv preprint arXiv:1711.05101.

Ma, S., Wang, H., Ma, L., Wang, L., Wang, W., Huang,

S., Dong, L., Wang, R., Xue, J., and Wei, F. (2024).

The era of 1-bit llms: All large language models are

in 1.58 bits.

Nawrot, P. (2023). nanoT5: Fast & simple pre-training and

ﬁne-tuning of T5 models with limited resources. In

Proceedings of the 3rd Workshop for Natural Lan-

guage Processing Open Source Software (NLP-OSS

2023). Association for Computational Linguistics.

Nielsen, J. and Schneider-Kamp, P. (2024). Bitnet b1.

58 reloaded: State-of-the-art performance also on

smaller networks. In International Conference on

Deep Learning Theory and Applications, pages 301–

315. Springer.

Raffel, C., Shazeer, N., Roberts, A., Lee, K., Narang, S.,

Matena, M., Zhou, Y., Li, W., and Liu, P. J. (2020).

Exploring the limits of transfer learning with a uniﬁed

text-to-text transformer. Journal of machine learning

research, 21(140):1–67.

Schwartz, R., Dodge, J., Smith, N. A., and Etzioni, O.

(2020). Green AI. Commun. ACM, 63(12):54–63.

Sundaram, J. and Iyer, R. (2024). Llavaolmobitnet1b:

Ternary llm goes multimodal! arXiv preprint

arXiv:2408.13402.

Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones,

L., Gomez, A. N., Kaiser, L., and Polosukhin, I.

(2017). Attention is all you need. In Advances in Neu-

ral Information Processing Systems 30, pages 5998–

6008.

Wang, H., Ma, S., Dong, L., Huang, S., Wang, H., Ma, L.,

Yang, F., Wang, R., Wu, Y., and Wei, F. (2023). Bitnet:

Scaling 1-bit transformers for large language models.

Wei, J., Tay, Y., Bommasani, R., Raffel, C., Zoph, B.,

Borgeaud, S., Yogatama, D., Bosma, M., Zhou, D.,

Metzler, D., Chi, E. H., Hashimoto, T., Vinyals, O.,

Liang, P., Dean, J., and Fedus, W. (2022). Emer-

gent abilities of large language models. Trans. Mach.

Learn. Res., 2022.

Wu, F., Souza, A., Zhang, T., Fifty, C., Yu, T., and Wein-

berger, K. (2019). Simplifying graph convolutional

networks. In Chaudhuri, K. and Salakhutdinov, R.,

editors, Proceedings of the 36th International Con-

ference on Machine Learning, volume 97 of Pro-

ceedings of Machine Learning Research, pages 6861–

6871. PMLR.

Wu, Y., Schuster, M., Chen, Z., Le, Q. V., Norouzi,

M., Macherey, W., Krikun, M., Cao, Y., Gao, Q.,

Macherey, K., Klingner, J., Shah, A., Johnson, M.,

Liu, X., Łukasz Kaiser, Gouws, S., Kato, Y., Kudo,

T., Kazawa, H., Stevens, K., Kurian, G., Patil, N.,

Wang, W., Young, C., Smith, J., Riesa, J., Rudnick,

A., Vinyals, O., Corrado, G., Hughes, M., and Dean,

J. (2016). Google’s neural machine translation sys-

tem: Bridging the gap between human and machine

translation.

Xu, Y., Xie, L., Gu, X., Chen, X., Chang, H., Zhang, H.,

Chen, Z., Zhang, X., and Tian, Q. (2023). Qa-lora:

Quantization-aware low-rank adaptation of large lan-

guage models.

Yang, Z., Cohen, W., and Salakhudinov, R. (2016). Re-

visiting semi-supervised learning with graph embed-

dings. In Balcan, M. F. and Weinberger, K. Q., editors,

Proceedings of The 33rd International Conference on

Machine Learning, volume 48 of Proceedings of Ma-

chine Learning Research, pages 40–48, New York,

New York, USA. PMLR.

When Are 1.58 Bits Enough? A Bottom-up Exploration of Quantization-Aware Training with Ternary Weights

1449
