Intrusion Detection System Based on Quantum Generative Adversarial

Network

Franco Cirillo

and Christian Esposito

University of Salerno, Via Giovanni Paolo II 132, Fisciano, Italy

{fracirillo, esposito}@unisa.it

Keywords:

Quantum Machine Learning (QML), Quantum Generative Adversarial Network (QGAN), Intrusion Detection

System (IDS), Anomaly Detection.

Abstract:

Intrusion Detection Systems (IDS) are crucial for ensuring network security in increasingly complex digital en-

vironments. Among IDS techniques, anomaly detection is effective in identifying unknown threats. However,

classical machine learning methods face signiﬁcant limitations, such as struggles with high-dimensional data

and performance constraints in handling imbalanced datasets. Generative Adversarial Networks (GANs) offer

a promising alternative by enhancing data generation and feature extraction, but their classical implemen-

tations are computationally intensive and limited in exploring complex data distributions. Quantum GANs

(QGANs) overcome these challenges by leveraging quantum computing’s advantages. By utilizing a hybrid

QGAN architecture with a quantum generator and a classical discriminator, the model effectively learns the

distribution of real data, enabling it to generate samples that closely resemble genuine data patterns. This

capability enhances its performance in anomaly detection. The proposed QGAN use a variational quantum

circuit (VQC) for the generator and a neural network for the discriminator. Evaluated on NSL-KDD dataset,

the QGAN attains an accuracy of 0.937 and an F1-score of 0.9384, providing a robust, scalable solution for

next-generation IDS.

1 INTRODUCTION

Intrusion Detection Systems (IDS) play a critical role

in ensuring the security and integrity of digital infras-

tructures by identifying malicious activities, unautho-

rized access, or policy violations (Abdulganiyu et al.,

2023). In networked environments, the Network In-

trusion Detection System (NIDS) is particularly vi-

tal. Among the various detection techniques, anomaly

detection has proven to be an effective approach for

intrusion detection (Raﬁque et al., 2024). Unlike

signature-based systems that rely on predeﬁned at-

tack patterns, anomaly detection methods establish a

baseline of normal system or network behavior. Any

deviation from this baseline is ﬂagged as a potential

intrusion.

In recent years, machine learning (ML) has

emerged as a powerful tool for both intrusion and

anomaly detection. ML techniques excel at learning

complex patterns, enabling systems to automatically

classify network trafﬁc as normal or malicious. How-

https://orcid.org/0009-0006-9599-5996

https://orcid.org/0000-0002-0085-0748

ever, ML’s reliance on quality datasets and extensive

computational resources can limit its scalability and

applicability in dynamic environments (Muneer et al.,

2024).

One of the most promising advancements in ma-

chine learning for intrusion detection is the appli-

cation of Generative Adversarial Networks (GANs)

(Gui et al., 2021). GANs are a type of neural network

architecture consisting of two components: a gener-

ator, which creates synthetic data, and a discrimina-

tor, which distinguishes between real and generated

data. The adversarial training between these two com-

ponents allows GANs to stand out in generating re-

alistic data samples. In the context of intrusion de-

tection, GANs can generate synthetic network traf-

ﬁc to augment training datasets, address class imbal-

ance issues, and improve the detection of subtle or

rare anomalies. Additionally, GANs have been used

directly as anomaly detection mechanisms by lever-

aging their ability to model the underlying distribu-

tion of normal data. Despite these beneﬁts, ML tech-

niques, including GANs, have inherent limitations.

Classical ML models are constrained by the limita-

tions of classical computing, which may struggle with

830

Cirillo, F. and Esposito, C.

Intrusion Detection System Based on Quantum Generative Adversarial Network.

DOI: 10.5220/0013397800003890

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 17th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2025) - Volume 1, pages 830-838

ISBN: 978-989-758-737-5; ISSN: 2184-433X

the increasing complexity of data in high-dimensional

spaces (Yamasaki et al., 2023). To address these chal-

lenges, researchers have turned to Quantum Machine

Learning (QML) as a promising alternative (Cerezo

et al., 2022). By harnessing the unique capabili-

ties of quantum computers, QML has the potential

to overcome the scalability and performance limita-

tions of classical ML techniques. Within the domain

of QML, Quantum Generative Adversarial Networks

(QGANs) have emerged as a particularly innovative

approach (Ngo et al., 2023). QGANs extend the prin-

ciples of classical GANs into the quantum domain,

incorporating quantum generators and/or discrimina-

tors. These networks have shown promise in gen-

erating high-quality synthetic data and in improving

the efﬁciency of anomaly detection systems, as they

can achieve comparable or superior performance to

classical GANs with fewer trainable parameters (Herr

et al., 2021). Furthermore, their ability to operate ef-

fectively with limited data makes them highly suitable

for cybersecurity applications, where datasets are of-

ten sparse or imbalanced.

This work makes the following key contributions:

• Introduction of a novel QGAN-based model

speciﬁcally designed for intrusion detection, uti-

lizing a quantum generator and a classical dis-

criminator.

• Development of a mapping function to transform

the generator’s quantum outputs into meaningful

samples that align with the features of an intrusion

detection dataset.

• Extensive experimentation across various conﬁg-

urations, archiving an accuracy of 0.937 and F1

score of 0.9384, offering a signiﬁcant advance-

ment in the state-of-the-art for QGAN applica-

tions in intrusion detection using the NSL-KDD

dataset.

The paper is structured as follows: Section 2 intro-

duces QGANs and the dataset used. Section 3 reviews

the relevant related works. Section 4 details the data

preprocessing steps and the proposed QGAN model.

Section 5 analyzes the evaluation results. Lastly, Sec-

tion 6 summarizes the contributions and suggests fu-

ture research directions.

2 BACKGROUND

2.1 Quantum Generative Adversarial

Networks (QGANs)

QGANs are an extension of classical GANs, adapted

to leverage the principles of quantum computing (Zo-

ufal et al., 2019). They can be implemented in two

primary conﬁgurations: full quantum (Kalfon et al.,

2024) and hybrid. In a full quantum QGAN, both

the generator and discriminator are quantum sys-

tems, leveraging parameterized quantum circuits for

data generation and evaluation. In contrast, hybrid

QGANs combine quantum and classical elements

(Ngo et al., 2023). A typical hybrid QGAN consists

of two components:

• Quantum Generator (G): A parameterized quan-

tum circuit (PQC) that generates quantum states

representing data samples.

• Classical Discriminator (D): A classical neural

network that evaluates the similarity between gen-

erated samples and real data.

The discriminator’s objective is to maximize the

correct classiﬁcation of real samples as real and gen-

erated samples as false. Using binary cross-entropy

(BCE), the loss function for the discriminator, L

, is

deﬁned as:

= −E

x∼p

real

(x)

[logD(x)]+

−E

z∼p

(z)

[log(1 − D(G(z)))]

(1)

Where:

• D(x): Probability output by the discriminator that

x is real.

• D(G(z)): Probability output by the discriminator

that the generated sample G(z) is real.

This loss comprises two terms: the BCE loss for

real data: − log D(x), where the discriminator is pe-

nalized when it fails to classify real data as real, and

the BCE loss for generated data −log(1 − D(G(z))),

where the discriminator is penalized when it classiﬁes

generated data as real.

The generator’s objective is to ”fool” the discrim-

inator, such that it cannot distinguish between real

and generated samples. This is achieved by maxi-

mizing D(G(z)), which is equivalent to minimizing

−log(D(G(z))). The generator loss, L

, is therefore

deﬁned as:

= −E

z∼p

(z)

[logD(G(z))] (2)

In a QGAN, the generator G is implemented us-

ing a PQC. This involves encoding the latent vari-

ables z, which are typically sampled from a simple

prior distribution, such as a uniform or Gaussian dis-

tribution, into quantum states |ψ(z)⟩, applying a se-

ries of quantum gates parameterized by θ, and mea-

suring the quantum circuit to generate output sam-

ples.These latent variables act as a compressed repre-

sentation or ”seed” for generating data, and they cap-

ture the stochastic nature of the data generation pro-

cess. The discriminator remains classical, mapping

Intrusion Detection System Based on Quantum Generative Adversarial Network

831

the input data to a probability score using standard

neural network layers.

2.2 Dataset

NSL-KDD is the intrusion detection dataset used in

this work, which consists of a carefully selected sub-

set of records from the original KDD dataset. NSL-

KDD resolves many of the limitations present in

KDD-99, such as the presence of duplicate records,

while still maintaining a comprehensive representa-

tion of various attack types. NSL-KDD was intro-

duced by Tavallaee et al. (Tavallaee et al., 2009)

as a means to overcome the shortcomings of KDD-

99, particularly to enhance the reliability of network

intrusion detection system evaluations. The dataset

also features a more balanced record selection, where

the number of records from each difﬁculty level is

inversely proportional to their representation in the

original KDD dataset. Additionally, NSL-KDD is

smaller in size compared to KDD-99, consisting of

fewer but unique records, which reduces computa-

tional costs and enhances efﬁciency for training ma-

chine learning models. The NSL-KDD dataset is

split into two primary subsets: Training and Testing

datasets. The training set contains 125,972 records,

while the test set contains 22,542 records. Each

dataset is categorized by different attack types like

DoS (Denial of Service), Probe, R2L (Remote to Lo-

cal), U2R (User to Root).

3 RELATED WORK

Recent advancements in machine learning, particu-

larly GANs, have opened new avenues for enhancing

NIDS. GANs are widely used in unsupervised learn-

ing tasks and are capable of generating synthetic data

that closely resembles the original dataset. Their in-

tegration into intrusion detection has shown promise

in improving feature extraction, augmenting datasets,

and addressing limitations in both signature-based

and anomaly-based detection systems.

One of the primary applications of GANs in NIDS

is the generation of synthetic data to enhance train-

ing processes. The authors of (Shahriar et al., 2020)

introduced an ANN-based GAN to generate synthetic

samples for training an IDS on the NSL-KDD dataset.

Their results demonstrated that an IDS incorporat-

ing GAN-generated data signiﬁcantly outperformed

standalone systems in attack detection. Similarly,

in the work (Lee and Park, 2021), GANs are em-

ployed to mitigate the class imbalance problem in

NIDS datasets, ﬁnding GANs to be more effective

than traditional oversampling techniques.

GANs have also been directly applied as detec-

tion mechanisms. The authors of (Patil et al., 2022)

proposed a bidirectional GAN-based framework for

anomaly detection, evaluated using the KDDCUP-99

dataset (Tavallaee et al., 2009), and demonstrated its

superior performance compared to other deep learn-

ing models. Truong et al. (Truong-Huu et al., 2020)

advanced this approach by utilizing two GAN models

with custom neural network architectures for gener-

ators and discriminators. Their experiments on CIC-

IDS 2017 and UNSW-NB15 datasets (Moustafa and

Slay, 2015) showcased the efﬁcacy of GAN-based

systems against traditional unsupervised methods.

Building upon GAN advancements, Quantum

GANs (Lloyd and Weedbrook, 2018; Dallaire-

Demers and Killoran, 2018) have emerged as a

promising extension, particularly for image genera-

tion. Recent works illustrate their potential to outper-

form classical counterparts even with fewer trainable

parameters. The authors of (De Falco et al., 2024) ap-

plied QGANs to latent diffusion models, using classi-

cal diffusion processes for noise generation and quan-

tum denoising with three VQC. Their results showed

that the number of qubits, set to 10 in their study,

signiﬁcantly inﬂuenced performance. Similarly, in

(Chang et al., 2024) it is introduced a QGAN archi-

tecture where the generator is quantum, and the dis-

criminator operates classically in latent space, achiev-

ing superior image quality with fewer training epochs

or smaller datasets. Finally, the work (Vieloszynski

et al., 2024) proposed a hybrid model integrating an

autoencoder to map images into a lower-dimensional

latent space, allowing the quantum generator to efﬁ-

ciently process MNIST data with a lightweight archi-

tecture of seven layers and 140 parameters. Despite

the promising advances of QGANs in image genera-

tion, their application to anomaly detection remains

relatively underexplored, with only a few studies ad-

dressing this intersection.

In (Bermot et al., 2023) it is demonstrated the

use of QGANs for detecting speciﬁc physical par-

ticles. They tested their QGAN on up to eight

features, achieving 0.88 accuracy on noiseless sim-

ulators for seven features, outperforming classical

GANs. They also validated its feasibility on ac-

tual quantum hardware for three features. However,

the results were dataset-speciﬁc, limiting applicabil-

ity across domains. The authors of (Kalfon et al.,

2024) introduced a novel high-dimensional encod-

ing approach called Successive Data Injection (Su-

DaI), which expands encoded data size without in-

creasing qubits. They utilized a state-ﬁdelity QGAN

with both generator and discriminator implemented

QAIO 2025 - Workshop on Quantum Artiﬁcial Intelligence and Optimization 2025

832

as quantum circuits. The design incorporated the

SWAP test to compare generated and real data repre-

sentations. Using the Numenta Anomaly Benchmark

(NAB) database, they analyzed temporal anomaly de-

tection but did not report speciﬁc performance met-

rics, leaving its practical effectiveness unclear. The

work (Rahman et al., 2023) proposed a QGAN-based

IDS but highlighted challenges due to the quantum

generator producing discrete output values. For each

feature represented by n qubits, the results were lim-

ited to 2

discrete values, potentially reducing ﬁdelity

in real-world applications. Their work lacked spe-

ciﬁc implementation details, reproducibility, exten-

sive testing, and performance metrics such as accu-

racy. In this work (Herr et al., 2021) the authors pre-

sented a hybrid quantum–classical anomaly detection

model using Variational Quantum-Classical Wasser-

stein GANs (WGANs) with gradient penalty. Their

method extended the AnoGAN framework (Schlegl

et al., 2019) for anomaly detection, integrating recent

GAN advancements with hybrid quantum–classical

neural networks trained via variational algorithms.

Testing on a credit card fraud dataset, they evaluated

performance with an anomaly score combining gener-

ator and discriminator losses, achieving an F1 score of

0.85. While their results were promising, the dataset’s

simplicity limited the validity of the results in more

complex and diverse real-world scenarios.

This work is motivated by the need to thoroughly

evaluate QGANs in the intrusion detection domain,

focusing on their scalability, robustness, and perfor-

mance. Existing studies have been limited to simpli-

ﬁed datasets and narrow feature sets, leaving their ap-

plicability to real-world intrusion detection systems

underexplored. Additionally, challenges such as im-

proving the ﬁdelity of quantum generator outputs and

achieving high accuracy and reliability in this do-

main remain unresolved. This study aims to optimize

QGANs for intrusion detection by assessing their per-

formance on high-dimensional datasets and provid-

ing a comprehensive analysis of their effectiveness

through key metrics such as accuracy and F1-score.

4 METHODOLOGY

4.1 Data Preprocessing

The NSL-KDD dataset, a widely used benchmark in

intrusion detection, is loaded as a structured dataset.

The data comprises a mix of numerical and categori-

cal features, as well as target labels indicating whether

a given instance corresponds to a normal or anoma-

lous network activity.

G(θ

)

n qubits

Quantum

Generator

Random Input Noise

(Latent Variables)

|0⟩

Interpret

function

D(θ

)

Classical

Discriminator

Training

Real or

Fake

Real data

Figure 1: Proposed QGAN training process.

To standardize numerical features, scaling tech-

niques are applied to ensure uniformity and to miti-

gate the inﬂuence of outliers. Robust scaling, which

is resilient to the effects of extreme values, is used

to transform numerical columns. This scaling pro-

cess centers and scales the data based on interquartile

ranges, preserving the distribution’s core properties.

Categorical features, such as protocol types, services,

and ﬂags, are converted into numerical representa-

tions using one-hot encoding. Therefore, the QGAN

framework requires input data that are normalized and

compact. To achieve this, feature values are scaled to

a [0, 1] range using Min-Max scaling.

To further optimize the dataset for QGAN pro-

cessing, PCA is applied. PCA reduces the feature

space to a lower-dimensional latent representation, re-

taining only the components that capture the majority

of the data’s variance. Different numbers of princi-

pal components have been tested to assess their im-

pact on model performance, and the results of these

evaluations will be presented in the next section. The

explained variance ratio is analyzed to conﬁrm the ad-

equacy of the selected components.

4.2 QGAN Conﬁguration

The proposed QGAN model is an adaptation for the

intrusion detection problem, speciﬁcally a dedicated

interpret function and a selection for quantum circuits

has been done. The structure is depicted in Figure

1 and consists of two primary components: a quan-

tum generator implemented as a Variational Quantum

Circuit and a classical discriminator implemented as

a neural network. This hybrid design leverages quan-

tum mechanics’ inherent probabilistic nature for data

generation and the computational power of the classi-

cal neural network for discrimination tasks.

The process begins with a random noise vector

that serves as input to the generator. This noise in-

troduces variability to generate diverse samples. The

generator is a quantum circuit acting on n-qubits.

Starting from the initial state |0⟩, the circuit applies

parameterized quantum gates deﬁned by θ

weights.

Intrusion Detection System Based on Quantum Generative Adversarial Network

833

Figure 2: Quantum circuit for the generator.

This generates a quantum state:

G(θ

)|0⟩

⊗n

which represents the generated false data, encoded in

a Hilbert space of dimension 2

The quantum state produced by the generator can-

not be directly evaluated classically. Therefore, an

interpret function is applied to map the quantum state

to classical data.

The discriminator is a classical neural network

that receives input data, either from the generator or

real data. It evaluates the data and outputs a probabil-

ity score indicating whether the input is benign or an

attack.

The generator and discriminator are trained adver-

sarially. While the discriminator D(θ

) learns to dis-

tinguish between real data (from the training set) and

false data (from the generator), the generator G(θ

)

learns to fool the discriminator by improving the qual-

ity of its generated data, minimizing the difference be-

tween real and false samples. This iterative process

enables the generator to produce increasingly realis-

tic data. The QGAN training process is described in

Algorithm 1.

The generator is constructed as a variational quan-

tum circuit designed to produce synthetic data from a

noise vector. The Figure 2 depicts an instance of the

several tested conﬁgurations. Each qubit in the cir-

cuit represents a feature of the dataset. The number

of qubits, therefore, equals the number of features.

The circuit begins by applying Hadamard gates to all

qubits, bringing them into a superposition state. This

ensures that the circuit starts with a uniform distribu-

tion over the possible states. A feature map is applied

to enhance the expressiveness of the circuit by encod-

ing latent variables into the quantum state. In this cir-

cuit the ZZFeatureMap utilizes entanglement across

qubits, introducing interdependence among qubits.

The ansatz deﬁnes the trainable portion of the quan-

tum circuit. In the scheme of this speciﬁc conﬁgura-

tion, EfﬁcientSU2 architecture is used, characterized

by a combination of single-qubit rotation gates and

two-qubit entangling gates. By repeating these lay-

ers multiple times, the circuit gains expressive power,

allowing it to approximate intricate probability distri-

butions. The number of repetitions (hyperparameter)

controls the trade-off between circuit depth and the

capability to represent complex distributions.

The generator incorporates trainable parameters

associated with the rotation gates in the ansatz. Ad-

ditionally, noise is injected into the circuit via rota-

tion gates, parameterized by a vector representing the

noise input. The combination of noise input and train-

able weights enables the generator to sample from a

wide range of data distributions.

The circuit is converted into a Quantum Neural

Network (QNN) using a quantum sampler to evaluate

the circuit and compute gradients, which are then up-

dated leveraging Adam optimizer. This QNN frame-

work enables integration with classical optimization

techniques for training. The sampler evaluates the cir-

cuit multiple times (shots), ensuring robust estimates

of expectation values.

The interpret function transforms the generator’s

output, which corresponds to measurements of all

possible combinations of n qubits, into a lower-

dimensional representation of cardinality n. Each of

the 2

values produced by the generator represents

the probability of observing a speciﬁc combination of

qubit states. For each qubit i, the interpret function

extracts its marginal probability by summing over all

measurement outcomes where qubit i is in state 1. Let

P(x) represent the probability of observing a particu-

lar n-qubit state x = (x

, x

, . . . , x

), where x

∈ {0, 1}.

Then, the marginal probability p

for qubit i is com-

puted as:

∑

x :x

P(x),

where the summation runs over all 2

possible states

x such that the i-th qubit is 1. The resulting vec-

tor (p

, p

, . . . , p

), of dimension n, represents the

marginal probabilities of each qubit being in state 1.

Each component p

lies in the range [0, 1], making it

directly comparable to the features in the real dataset.

This dimensionality reduction captures relevant

probabilistic information about each qubit while dis-

carding higher-order correlations between multiple

qubits. The transformation simpliﬁes the discrimina-

tor’s input without sacriﬁcing the ability to distinguish

between real and generated data. The transformed n-

dimensional data is then fed into the discriminator.

The discriminator is a classical feedforward neu-

ral network designed for binary classiﬁcation, dis-

tinguishing between real and generated data. It

takes input vectors matching the dataset’s feature

size and processes them through dense hidden layers

with LeakyReLU activations, which introduce non-

linearity while mitigating vanishing gradients. The

output layer uses a sigmoid activation to produce a

probability score indicating whether the input is real.

QAIO 2025 - Workshop on Quantum Artiﬁcial Intelligence and Optimization 2025

834

Trained with Binary Cross-Entropy loss, the discrim-

inator iteratively improves through adversarial feed-

back with the generator. Evaluation metrics such as

loss values, accuracy, and the F1 score monitor per-

formance, while the quality of generated data is vali-

dated by comparing its statistical properties with real

data.

In the following section it will be discussed all the

tested conﬁgurations and the relative results. The ex-

periments are replicable, and the source code is avail-

able on (Franco Cirillo, 2024).

5 RESULTS AND DISCUSSION

To evaluate the proposed QGAN model, several hy-

perparameters have been taken in consideration. Ta-

ble 1 presents a comprehensive analysis of various

conﬁgurations implemented, highlighting the perfor-

mance of each setup in terms of accuracy and F1

score. These conﬁgurations are among the most sig-

niﬁcant experiments conducted in the study, provid-

ing insights into the impact of different architectural

and hyperparameter choices on the QGAN’s perfor-

mance. For all the experiments, the training pro-

cess was executed over 80 epochs to ensure sufﬁ-

cient convergence and reliable results, and a ZZFea-

tureMap has been applied for encoding noise allow-

ing the quantum generator to effectively learn com-

plex data distributions.

A clear trend can be observed where increasing

the number of generator repetitions (reps) generally

leads to slightly improved performance metrics. For

example, moving from 6 to 9 generator repetitions re-

sulted in one of the highest performance outcomes

(accuracy = 0.937, F1 score = 0.9384). However,

while the gains in performance are incremental, the

computational time required to train the model in-

creases substantially. This trade-off must be carefully

considered when deciding on the optimal number of

generator repetitions for real-world applications.

Results also show that conﬁgurations with at least

32 discriminator neurons tend to achieve more stable

performance. Using fewer neurons, such as 8 or 16,

often results in instability in the loss functions dur-

ing training, potentially leading to less reliable con-

vergence. For instance, conﬁgurations with 32 or 64

discriminator neurons consistently yield higher accu-

racy and F1 scores compared to those with 8 neurons.

Additionally, conﬁgurations with 64 or more discrim-

inator neurons slightly outperform those with 32, al-

though the improvements are not always substantial.

The learning rates for both the generator and dis-

criminator (denoted as lr g and lr d) play a crucial

Input : Number of qubits n, batch size b,

learning rates l

, l

, epochs N, real

data X.

Output: Trained generator G and

discriminator D.

Initialize: Create generator G using quantum

circuit and noise parameters z;

Deﬁne discriminator D, a classical

feedforward neural network;

Initialize Adam optimizers Adam

and

Adam

with learning rates l

, l

;

Deﬁne Binary Cross-Entropy Loss L

BCE

;

for epoch e ← 1 to N do

Step 1: Train Discriminator with Real

Data;

Sample a batch X

real

⊆ X of size b;

Compute real loss:

real

← L

BCE

(D(X

real

), 1);

Update discriminator: Adam

← ∇L

real

;

Step 2: Train Discriminator with

Generated Data;

Generate noise z ∼ N (0, 1);

Generate data: X

gen

← G(z);

Apply interpret function:

gen

← InterpretFunction(X

gen

);

Compute gen loss:

gen

← L

BCE

(D(X

gen

), 0);

Update discriminator: Adam

← ∇L

gen

;

Step 3: Train Generator;

Generate new data: X

gen

← G(z);

Apply interpret function:

gen

← InterpretFunction(X

gen

);

Compute generator loss:

← L

BCE

(D(X

gen

), 1);

Update generator: Adam

← ∇L

;

Step 4: Monitor Training Progress;

Generate samples X

gen

← G(z) and apply

interpret function;

Compare statistical properties and

distributions of X

gen

with X;

Record losses: L

real

, L

gen

, L

;

Evaluate metrics (accuracy, F1-score);

end

Algorithm 1: QGAN Training Algorithm with Quan-

tum Generator and Classical Discriminator.

role in determining the stability and convergence of

the QGAN. While most conﬁgurations use balanced

learning rates (e.g., 0.01 for both), experiments with

signiﬁcantly smaller or unbalanced learning rates

(e.g., 0.001/0.005 or 0.003/0.008) show mixed results.

These settings sometimes lead to minor performance

Intrusion Detection System Based on Quantum Generative Adversarial Network

835

Table 1: Performance of QGAN with different conﬁgurations.

Features Ansatz Generator

Reps

Discriminator

Layers

Learning Rates

(Gen/Disc)

Performance

(Accuracy / F1)

6 EfﬁcientSU2 3 16 0.01 / 0.01 0.914 / 0.9189

5 EfﬁcientSU2 3 16 0.01 / 0.01 0.909 / 0.916

6 EfﬁcientSU2 3 8 0.01 / 0.01 0.899 / 0.9001

6 EfﬁcientSU2 3 32 0.01 / 0.01 0.911 / 0.9178

6 EfﬁcientSU2 3 64 0.01 / 0.01 0.923 / 0.9241

6 RealAmplitudes 3 32 0.01 / 0.01 0.915 / 0.9202

6 EfﬁcientSU2 6 32 0.01 / 0.01 0.9210 / 0.9187

6 RealAmplitudes 3 32 0.001 / 0.001 0.904 / 0.9087

6 EfﬁcientSU2 6 64 0.01 / 0.01 0.9270 / 0.9215

6 EfﬁcientSU2 6 64 0.001 / 0.005 0.914 / 0.9007

6 EfﬁcientSU2 6 64 0.005 / 0.001 0.909 / 0.8991

6 EfﬁcientSU2 10 8 0.01 / 0.01 0.913 / 0.9012

6 EfﬁcientSU2 6 128 0.01 / 0.01 0.917 / 0.9015

5 EfﬁcientSU2 8 16 0.01 / 0.001 0.793 / 0.7812

6 EfﬁcientSU2 6 64 0.001 / 0.005 0.909 / 0.9161

6 EfﬁcientSU2 10 8 0.01 / 0.01 0.922 / 0.9275

6 EfﬁcientSU2 6 64 0.003 / 0.008 0.913 / 0.918

6 RealAmplitudes 3 32 0.007 / 0.007 0.914 / 0.9189

6 EfﬁcientSU2 9 128 0.01 / 0.01 0.937 / 0.9384

6 EfﬁcientSU2 6 64 0.006 / 0.01 0.917 / 0.9222

5 EfﬁcientSU2 8 64 0.01 / 0.001 0.899 / 0.9083

drops, highlighting the importance of carefully tuning

the learning rates.

Regarding the ansatz, EfﬁcientSU2 and RealAm-

plitudes are compared in the table. Overall, Efﬁ-

cientSU2 demonstrates slightly better performance

across most conﬁgurations, particularly when com-

bined with 6 principal components. Reducing the

number of features to 5 generally leads to a slight de-

crease in performance, indicating that retaining more

features provides the model with richer information

to generate better outputs, but it is not without limita-

tions.

The highest-performing conﬁguration combines 6

PCA features, the EfﬁcientSU2 ansatz, 9 generator

repetitions, and 128 discriminator neurons. This setup

achieves an accuracy of 0.937 and an F1 score of

0.9384.

The plot shown in Figure 3 represents the loss of

the generator and the discriminator (for both real and

generated data) over the course of training, focusing

on the conﬁguration with the best performance. The

generator’s loss starts relatively high at the beginning

of the training process, as it initially produces poorly

generated samples. As the epochs progress, the gen-

erator’s loss gradually decreases, indicating its im-

proved ability to produce data that closely resembles

the real dataset. By the end of the training process, the

generator achieves a relatively stable loss, suggesting

Figure 3: Generator and Discriminator loss during the train-

ing process.

that it has effectively learned the underlying data dis-

tribution.

The discriminator’s loss for real data starts lower

at the beginning, as the discriminator can easily dis-

tinguish between real and generated samples when

the generator is weak. However, as the generator im-

proves, the discriminator’s task becomes more chal-

lenging, leading to an increase in its loss for real data.

Toward the later epochs, the loss stabilizes, indicating

QAIO 2025 - Workshop on Quantum Artiﬁcial Intelligence and Optimization 2025

836

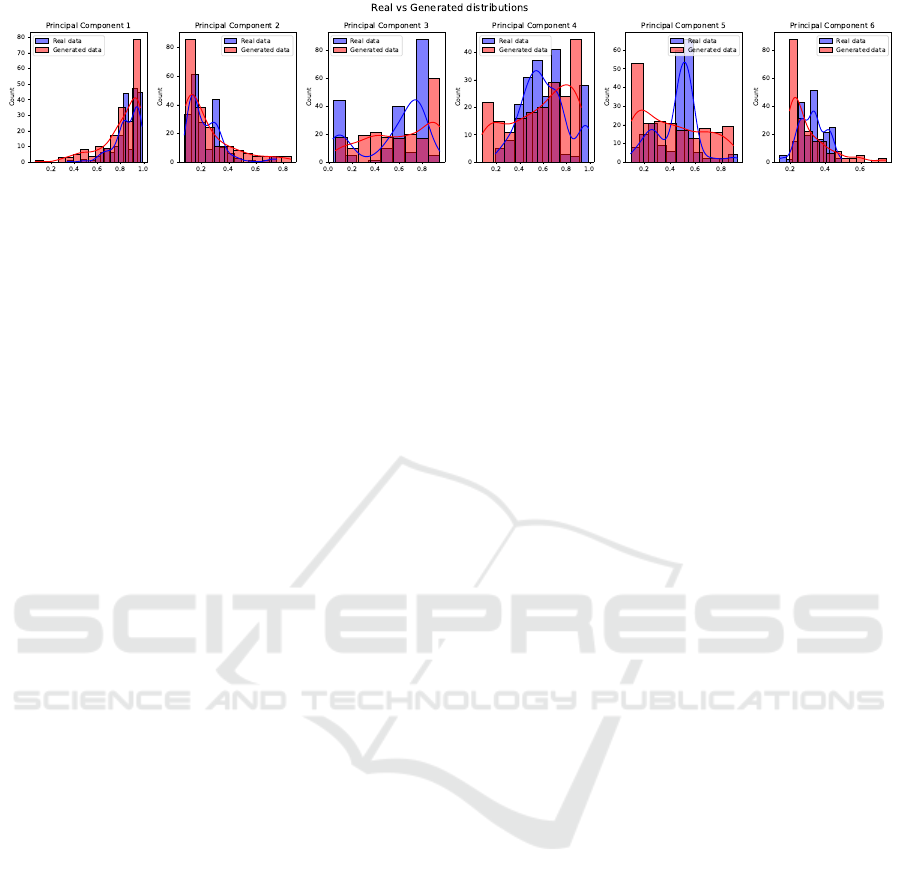

Figure 4: Distribution comparison of feature values with real and generated samples.

that the discriminator has adapted to the generator’s

improved outputs.

Instead, the loss for generated data follows a com-

plementary trend to the generator’s progress. Initially,

the discriminator easily identiﬁes fake data, resulting

in a low loss. As the generator’s outputs improve, the

discriminator’s loss for fake data increases, reﬂect-

ing its reduced conﬁdence in distinguishing fake data

from real data. By the end of training, this loss also

stabilizes, balancing the adversarial dynamics.

The overall stability in loss values across the

epochs demonstrates that the adversarial training be-

tween the generator and discriminator has reached

equilibrium.

The provided plots in Figure 4 compare the dis-

tributions of real data and generated data for each

of the six principal components (PCA features) ex-

tracted from the dataset for this best parameter con-

ﬁguration. These visualizations evaluate how closely

the generated data aligns with the real data in terms

of feature distribution, providing an important assess-

ment of the generator’s ability to replicate the under-

lying patterns of the original dataset.

The plots demonstrate a strong alignment between

the real and generated data distributions, indicating

that the generator successfully learns the essential sta-

tistical features of the dataset. In most cases, the gen-

erated data closely follows the shape, range, and den-

sity of the real data, particularly in high-density re-

gions where the majority of data points are concen-

trated. This suggests that the generator is effective at

capturing the primary structure of the dataset.

Minor deviations are observed in certain areas,

especially in lower-density regions or the extremes

of the distributions, where the generator occasion-

ally underestimates or overestimates speciﬁc ranges.

These variations reﬂect potential areas for improve-

ment, such as ﬁne-tuning hyperparameters or increas-

ing the training iterations to better capture the nuances

of the dataset.

The results validate the effectiveness of the

QGAN conﬁguration in generating synthetic data that

closely mirrors the real dataset. Loss trends conﬁrm

stable adversarial training, and distribution plots show

strong alignment between real and generated data,

with minor deviations in low-density regions. Over-

all, the model proves highly effective, balancing ac-

curacy and realism, though computational trade-offs

must be considered.

6 CONCLUSION AND FUTURE

WORK

This work presents an adaptation of the hybrid QGAN

framework for intrusion detection, showcasing its po-

tential to address key challenges in anomaly detection

systems. The quantum generator, implemented using

a VQC, effectively learns the data distribution and

generates realistic samples, while the classical dis-

criminator evaluates these samples to reﬁne the gener-

ator’s performance. This structure not only enhances

anomaly detection capabilities but also maintains

compatibility with standard evaluation frameworks.

The QGAN was tested on the NSL-KDD dataset, un-

der various conﬁgurations, including changes to the

number of qubits, circuit repetitions, ansatz struc-

tures, and feature maps, achieving an accuracy of

0.937 and an F1 score of 0.9384, demonstrating its

effectiveness and scalability.

Future research will extend these experiments to

explore a wider range of conﬁgurations and datasets,

focusing on optimizing performance across diverse

environments. Further, integrating advanced quantum

hardware and incorporating domain-speciﬁc feature

engineering could unlock even greater potential for

QGAN-based intrusion detection systems.

ACKNOWLEDGEMENTS

This work was partially supported by the Korea In-

stitute of Energy Technology Evaluation and Plan-

ning (KETEP) grant funded by the Korea govern-

ment (MOTIE) (RS-2023-00303559, Study on devel-

oping cyber-physical attack response system and se-

curity management system to maximize real-time dis-

tributed resource availability), and by project SER-

Intrusion Detection System Based on Quantum Generative Adversarial Network

837

ICS (PE00000014) under the NRRP MUR program

funded by the EU - NGEU. We acknowledge the use

of IBM Quantum services for this work. The views

expressed are those of the authors, and do not re-

ﬂect the ofﬁcial policy or position of IBM or the IBM

Quantum team.

REFERENCES

Abdulganiyu, O. H., Ait Tchakoucht, T., and Saheed, Y. K.

(2023). A systematic literature review for network in-

trusion detection system (ids). International journal

of information security, 22(5):1125–1162.

Bermot, E., Zoufal, C., Grossi, M., Schuhmacher, J.,

Tacchino, F., Vallecorsa, S., and Tavernelli, I.

(2023). Quantum Generative Adversarial Networks

For Anomaly Detection In High Energy Physics. In

2023 IEEE International Conference on Quantum

Computing and Engineering (QCE), volume 01, pages

331–341.

Cerezo, M., Verdon, G., Huang, H.-Y., Cincio, L., and

Coles, P. J. (2022). Challenges and opportunities in

quantum machine learning. Nature Computational

Science, 2(9):567–576.

Chang, S. Y., Thanasilp, S., Saux, B. L., Vallecorsa, S.,

and Grossi, M. (2024). Latent style-based quantum

gan for high-quality image generation. arXiv preprint

arXiv:2406.02668.

Dallaire-Demers, P.-L. and Killoran, N. (2018). Quantum

generative adversarial networks. Physical Review A,

98(1):012324.

De Falco, F., Ceschini, A., Sebastianelli, A., Le Saux, B.,

and Panella, M. (2024). Quantum latent diffusion

models. Quantum Machine Intelligence, 6(2):85.

Franco Cirillo (2024). Qgan code. https://github.com/

francocirill/qgan.

Gui, J., Sun, Z., Wen, Y., Tao, D., and Ye, J. (2021). A re-

view on generative adversarial networks: Algorithms,

theory, and applications. IEEE transactions on knowl-

edge and data engineering, 35(4):3313–3332.

Herr, D., Obert, B., and Rosenkranz, M. (2021). Anomaly

detection with variational quantum generative adver-

sarial networks. Quantum Science and Technology,

6(4):045004.

Kalfon, B., Cherkaoui, S., Laprade, J., Ahmad, O., and

Wang, S. (2024). Successive data injection in con-

ditional quantum GAN applied to time series anomaly

detection. IET Quantum Communication, 5(3):269–

281.

Lee, J. and Park, K. (2021). Gan-based imbalanced data

intrusion detection system. Personal and Ubiquitous

Computing, 25(1):121–128.

Lloyd, S. and Weedbrook, C. (2018). Quantum gener-

ative adversarial learning. Physical review letters,

121(4):040502.

Moustafa, N. and Slay, J. (2015). Unsw-nb15: a compre-

hensive data set for network intrusion detection sys-

tems (unsw-nb15 network data set). In 2015 military

communications and information systems conference

(MilCIS), pages 1–6. IEEE.

Muneer, S., Farooq, U., Athar, A., Ahsan Raza, M., Ghazal,

T. M., and Sakib, S. (2024). A critical review of artiﬁ-

cial intelligence based approaches in intrusion detec-

tion: A comprehensive analysis. Journal of Engineer-

ing, 2024(1):3909173.

Ngo, T. A., Nguyen, T., and Thang, T. C. (2023). A survey

of recent advances in quantum generative adversarial

networks. Electronics, 12(4):856.

Patil, R., Biradar, R., Ravi, V., Biradar, P., and Ghosh, U.

(2022). Network trafﬁc anomaly detection using pca

and bigan. Internet Technology Letters, 5(1):e235.

Raﬁque, S. H., Abdallah, A., Musa, N. S., and Murugan,

T. (2024). Machine learning and deep learning tech-

niques for internet of things network anomaly detec-

tion—current research trends. Sensors, 24(6):1968.

Rahman, M. A., Shahriar, H., Clincy, V., Hossain, M. F.,

and Rahman, M. (2023). A Quantum Generative Ad-

versarial Network-based Intrusion Detection System.

In 2023 IEEE 47th Annual Computers, Software, and

Applications Conference (COMPSAC), pages 1810–

1815, Torino, Italy. IEEE.

Schlegl, T., Seeb

ock, P., Waldstein, S. M., Langs, G., and

Schmidt-Erfurth, U. (2019). f-anogan: Fast unsuper-

vised anomaly detection with generative adversarial

networks. Medical image analysis, 54:30–44.

Shahriar, M. H., Haque, N. I., Rahman, M. A., and Alonso,

M. (2020). G-ids: Generative adversarial networks as-

sisted intrusion detection system. In 2020 IEEE 44th

Annual Computers, Software, and Applications Con-

ference (COMPSAC), pages 376–385.

Tavallaee, M., Bagheri, E., Lu, W., and Ghorbani, A. A.

(2009). A detailed analysis of the kdd cup 99 data

set. In 2009 IEEE symposium on computational intel-

ligence for security and defense applications, pages

1–6. Ieee.

Truong-Huu, T., Dheenadhayalan, N., Pratim Kundu,

P., Ramnath, V., Liao, J., Teo, S. G., and

Praveen Kadiyala, S. (2020). An empirical study on

unsupervised network anomaly detection using gener-

ative adversarial networks. In Proceedings of the 1st

ACM Workshop on Security and Privacy on Artiﬁcial

Intelligence, pages 20–29.

Vieloszynski, A., Cherkaoui, S., Laprade, J.-F., Nahman-

evesque, O., Aaraba, A., and Wang, S. (2024). La-

tentqgan: A hybrid qgan with classical convolutional

autoencoder. arXiv preprint arXiv:2409.14622.

Yamasaki, H., Isogai, N., and Murao, M. (2023). Advantage

of quantum machine learning from general computa-

tional advantages.

Zoufal, C., Lucchi, A., and Woerner, S. (2019). Quantum

generative adversarial networks for learning and load-

ing random distributions. npj Quantum Information,

5(1):103.

QAIO 2025 - Workshop on Quantum Artiﬁcial Intelligence and Optimization 2025

838
