Integrating Data Lakes with Self-Adaptive Serious Games

Michalis Pingos

, Spyros Loizou

and Andreas S. Andreou

Department of Computer Engineering and Informatics, Cyprus University of Technology, Limassol, Cyprus

Keywords: Big Data, Data Lakes, Serious Games, Self-Adaptation, Learning Optimization, Data Processing, Big Data

Analytics.

Abstract: Big Data challenges traditional data management tools due to their size, speed of generation, and variety of

formats. The application of Big Data has become essential in areas like serious games, where it enhances

functionality and effectiveness. Serious games benefit significantly from Big Data analytics, allowing for real-

time data collection, processing and analysis of a vast number of users/players and their interactions.

Traditional data management systems strive to handle the complexity of Big Data, particularly in

environments like serious games, where diverse data sources create heterogeneity. This paper presents an

approach that employs Data Lakes and semantic annotation as a solution for providing a scalable, flexible

storage system for raw and unstructured data, enabling real-time processing and efficient management of Big

Data produced by serious games. The effectiveness of the proposed approach is demonstrated through a

speech therapy game example developed for the purposes of this study. A qualitative evaluation and

comparison with two rival approaches is also performed using a set of criteria introduced in this work. The

proposed approach offers an effective solution for handling data in multi-user gaming environments thus

enhancing adaptability, personalization, and functional flexibility of serious games, and driving better user

engagement and outcomes.

1 INTRODUCTION

Big Data refers to extremely large and complex

datasets that cannot be easily managed, processed, or

analysed using traditional data management tools and

methods (Yaqoob et al., 2016). It is not just about the

size of the data, it also involves the speed at which it

is generated and the variety of formats it comes in,

which brings heterogeneity and complexity. Given

this complexity and scale, the application of Big Data

has become increasingly crucial in fields such as

serious games, where its integration enhances both

functionality and effectiveness (Nasrollahi et al.,

2023).

Serious games, designed for education, training,

healthcare, or simulations, increasingly rely on Big

Data to ensure they are effective and meaningful

(Pérez et al., 2023). Unlike traditional games focused

on entertainment, serious games aim to teach, train,

or solve real-world problems. The integration of Big

https://orcid.org/0000-0001-6293-6478

https://orcid.org/0009-0009-3433-3245

https://orcid.org/0000-0001-7104-2097

Data analytics in serious games allow for real-time

collection, processing, and analysis of vast and

complex datasets. This enhances the ability to

personalize experiences, track user progress, and

evaluate outcomes comprehensively (Zhao et al.,

2023). By leveraging Big Data, developers and

researchers can validate the effectiveness of serious

games, optimize learning experiences, and ensure the

games achieve their intended impact on real-world

problems (Kosmides et al., 2018).

As Big Data continues to evolve in terms of

volume, velocity, and variety, traditional data

management systems struggle to handle its scale and

complexity (Al-Mansour, 2023). This is especially

evident in fields like serious games, where diverse

and rapidly generated datasets from player

interactions, behavioural analytics, and multimedia

inputs create a highly heterogeneous environment

(Hooshyar et al., 2018). Data Lakes have emerged as

a solution to address these challenges by providing a

centralized repository that can store raw,

762

Pingos, M., Loizou, S. and Andreou, A. S.

Integrating Data Lakes with Self-Adaptive Serious Games.

DOI: 10.5220/0013467700003928

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 20th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2025), pages 762-772

ISBN: 978-989-758-742-9; ISSN: 2184-4895

unstructured, and semi-structured data in its native

format. Unlike traditional databases that require

predefined schemas, Data Lakes offer the flexibility

and scalability necessary to accommodate the

multidimensional nature of Big Data, thereby

enabling real-time processing and deeper insights

(Hai et al., 2023) critical to the development and

enhancement of serious games.

This paper proposes a novel approach that utilizes

Data Lakes as an effective approach to managing Big

Data in serious games enhancing user experience.

The effectiveness of this approach is demonstrated

using a speech therapy game example presenting how

it may improve serious games functionality,

adaptability, and personalization by extracting

actionable insights that lead to more engaging and

effective gaming environments.

The rest of the paper is structured as follows:

Section 2 outlines the technical background and

related work in the area of Big Data, serious games

and Data Lakes. Section 3 presents the proposed

approach and associated methodology, along with a

speech therapy game scenario example. Preliminary

validation conducted to assess the effectiveness of

this approach is showcased in Section 4.

Experimentation conducted to assess performance is

provided in Section 5. Finally, Section 6 summarizes

the paper's findings and proposes directions for future

research exploration.

2 LITERATURE AND

TECHNICAL OVERVIEW

As mentioned in the previous section, integrating

heterogeneous Big Data sources while maintaining

consistency and accuracy is a complicated task. The

increased volume, velocity, and complexity of data

introduce performance and scalability issues,

necessitating robust computational resources and

efficient storage architectures.

Data Lakes, a term coined by Pentaho’s CTO

James Dixon in 2010 (Nolte & Wieder, 2022), offer a

scalable solution to the challenge of storing vast

amounts of raw, unprocessed data in its native format.

By providing a centralized repository that can

accommodate data in various formats from disparate

and heterogeneous sources, Data Lakes enable

efficient storage, processing, and real-time analysis.

This ensures that performance and scalability

demands are met without compromising data

integrity or accessibility (Gorelik, 2019).

Fang et al. (2015) discuss the growing trend of

Data Lakes as a method for organizing and utilizing

large datasets. They explore the concept of Data

Lakes, their benefits in addressing Big Data

challenges, and their relationship with existing

enterprise data warehouses. The authors also address

common concerns about Data Lakes and offer

practical guidance on developing a Data Lake

strategy and integrating it into a company's data

management architecture. Furthermore, their paper

leverages low-cost technologies like Apache Hadoop

to improve the capture, refinement, archival, and

exploration of raw data within an enterprise.

Olawoyin et al. (2021) present an innovative Data

Lake architecture tailored for managing and

processing large-scale Arctic datasets. The approach

introduced in that paper emphasizes open access,

scalability, and compatibility with machine learning

tools, enabling researchers to analyse diverse data

types like satellite imagery and climate records.

Data Lakes need to be supported by a strong

metadata mechanism to offer a scalable solution,

which must involve tagging and mapping of the

content of data sources. This ensures that data

remains organized and meaningful, preventing the

lake from turning into a swamp (Cherradi & El

Haddadi, 2021). Specifically, the metadata

mechanism should provide sources’ information, data

characteristics, and access and governance details.

Sawadogo and Darmont (2021) provide a

comprehensive overview of Data Lake concepts,

architectures, and metadata management techniques.

Their work addresses the challenges of managing

large volumes of heterogeneous data, focusing on

architectural considerations and the crucial role of

metadata in preventing data swamps. The authors also

review existing Data Lake definitions, explore

various architectures and technologies for

implementation, and analyze metadata management

strategies.

As an example, Beheshti et al. (2018) introduce a

system for managing knowledge graphs within a Data

Lake environment. CoreKG offers services for

knowledge graph storage, retrieval, and

manipulation, enabling efficient querying and

analysis of interconnected data. The system aims to

bridge the gap between Data Lakes and knowledge

graphs, facilitating knowledge discovery and

informed decision-making by leveraging the rich

semantic information contained within knowledge

graphs.

The authors in Pingos and Andreou (2022)

propose a novel framework for enhancing data

discovery and understanding within Data Lakes by

Integrating Data Lakes with Self-Adaptive Serious Games

763

leveraging metadata semantics. The authors introduce

the concept of blueprints, which capture semantic

relationships between metadata elements, enabling

more effective querying and analysis of data. By

exploiting this semantic enrichment of the Data Lake,

that framework aims to improve data management

and facilitate knowledge extraction from complex

datasets within Data Lake environments. The concept

of the Semantic Data Blueprints introduced in that

work is also utilized in the present paper to enrich the

Data Lake part for supporting serious games.

The global serious games market is projected to grow

significantly, with an estimated market size of USD

14.06 billion in 2024, expected to reach USD 43.65

billion by 2029. This represents a compound annual

growth rate (CAGR) of 25.43% during the forecast

period from 2024 to 2029 (Mordor Intelligence,

2024). According to SkyQuest Technology (2021),

serious games revolutionize learning and training by

combining gameplay with real-world applications

across various field such as healthcare, defence and

education, making training engaging and practical.

Big Data and advanced technologies, such as virtual

reality (VR), augmented reality (AR), and artificial

intelligence (AI) are enhancing their impact and

reshaping the future of skill development.

While the combination of serious games and Big

Data offers exciting possibilities, several challenges

need to be addressed. Serious games, especially those

with complex simulations or multiplayer interactions,

can generate massive datasets from various sources,

such as player inputs, sensor data, and external

databases (Pérez et al., 2023). Traditional data storage

and processing methods struggle to handle the

volume and velocity of this data (Marz & Warren,

2015). Efficient and scalable solutions are needed to

manage this massive amount of information.

According to Caggianese et al. (2018), Big Data

analysis requires significant computational resources,

which can be costly and complex to manage. To

address this issue, the authors present a tele-

rehabilitation system leveraging serious games and

cloud-based data analytics. Designed for post-stroke

patients, the system collects real-time motor data and

provides a decision support service for analysis. This

data, along with reports and recommendations, is

made available on the cloud, enabling clinicians to

remotely assess rehabilitation progress and

personalize therapies. The study also includes a pilot

study and qualitative analysis of the system's clinical

impact and acceptance.

The exploration of how learning analytics can

enhance serious games is investigated in Alonso-

Fernández et al., (2018). The authors analyse Big

Data gathered from a serious game designed to teach

computer programming, focusing on player

behaviour and learning outcomes. By examining the

relationship between in-game actions and learning

gains, they identify key insights for improving game

design and personalization. The study provides

valuable insights for developers and data scientists,

enabling the creation of more effective games through

the personalization of gamification in serious games.

Taking into account the current literature and the

challenges that have emerged in this field, a new

approach utilising Data Lakes is proposed in this

paper as an effective solution for managing Big Data

to enhance serious game experience. The concept of

the approach and its applicability are demonstrated

through a speech therapy example showcasing how

this Big Data architecture can enhance the serious

gaming experiences and provide meaningful insights.

3 PROPOSED APPROACH

As outlined earlier, the proposed approach integrates

Data Lakes enriched with a Semantic Data Blueprint

(SDB) to address the challenges of Big Data in

serious gaming environments, enabling enhanced

functionality, adaptability, and personalization. The

approach is designed to process diverse data inputs

from multiple sources (users, environments) in

serious games and transform them into actionable

insights that improve user experience.

Diverse gaming data sources are fed into the Data

Lake. These sources include structured data (e.g.,

SQL tables), semi-structured data (e.g., JSON or

XML), and unstructured data (e.g., text, voice

recordings, or images). The diversity of these inputs

reflects the heterogeneous data produced from serious

gaming environments. The data management

architecture of the proposed approach is a Data Lake,

which serves as a scalable and flexible storage system

for managing raw, unstructured, semi-structured, and

structured data as presented in Figure 1.

The data generated within the serious game,

including user interactions, progress metrics,

feedback, real-time assessments etc., is pushed

directly into the Data Lake in its raw format. This

ensures that diverse and heterogeneous data is

ingested without requiring prior transformation or

structuring, allowing for real-time integration and

future processing. The corresponding data is stored in

the Data Lake which is structured using the pond and

puddle architecture introduced in Pingos and

Andreou (2022). Each pond includes data for each

user,

while each puddle refers and points to the

ENASE 2025 - 20th International Conference on Evaluation of Novel Approaches to Software Engineering

764

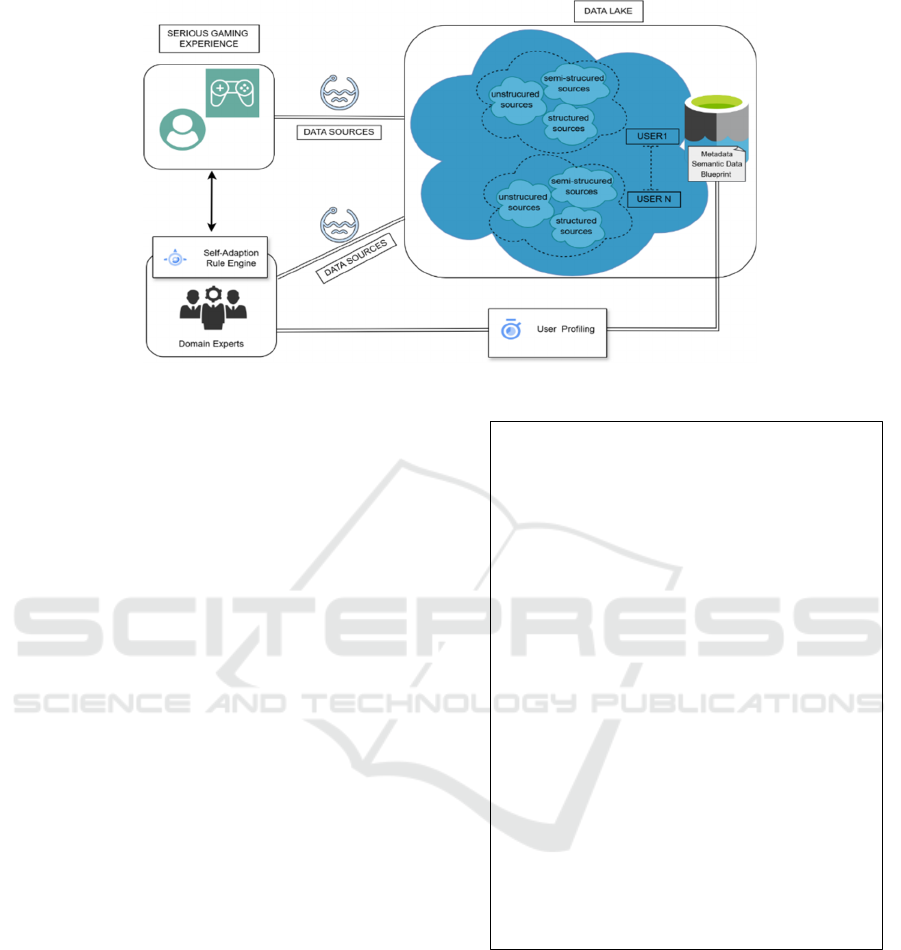

Figure 1. Data Lake Integration for Adaptive and Personalized Serious Gaming Experience.

unstructured, semi-structured and structured data

produced from a particular user during the game. On

the other hand, a dedicated SDB complements the

Data Lake (right part of Figure 1), which enriches the

stored data by adding layers of metadata and semantic

organization. The SDB ensures that the data within

the Data Lake is not only stored efficiently, but it is

also contextualized and made accessible for advanced

analysis. This semantic mechanism allows the system

to perform complex queries, identify patterns, and

extract meaningful insights from raw data, facilitating

the creation of personalized gaming experiences. By

leveraging the SDB, this approach provides the

ability to create detailed user profiles that capture

preferences, progress, and challenges. These profiles

could feed back into the serious gaming environment,

allowing for real-time adjustments, personalized

content delivery, and enhanced engagement.

The demonstration example utilized in this work

comes from the speech therapy domain (see Section

5), and generates a wide variety of data through user

interaction with therapy tools, such as speech

recognition applications or therapist-guided

activities. These inputs include: (i) unstructured data,

like audio recordings of pronunciation exercises,

where users practice specific phonemes or words; (ii)

semi-structured data, such as therapist notes and

feedback captured in formats like JSON or XML;

and, (iii) structured data, including assessment scores

and progress metrics that quantify the user's

improvement over time. This diversity reflects the

complexity of speech therapy data, providing a rich

foundation for deeper analysis and personalized

therapy enhancements (Riad et al., 2022).

Figure 2. A Semantic Data Blueprint example in XML.

A serious game called “Phoneme Quest” was

developed in this work as a demo example. This

educational activity was designed to help practice

phoneme isolation by identifying initial, medial, and

final sounds in words. In this game, players match

picture cards based on shared phonemes, fostering

phonemic awareness and supporting language

development (Vihman, 2017). According to the

proposed approach, each user has their own dedicated

Data Lake Pond, designed to store and organize their

</Example>

<Tag>/progress/advanced</Tag>

<Tag>/phoneme/medial</Tag>

</SemanticTagging>

</StructuredData>

</PhonemeSelection>

<DifLevel>Intermediate</DifLevel>

</Example>

<Tag>/phoneme</Tag>

<Tag>/difficulty/intermediate</Tag>

</SemanticTagging>

</SemiStructuredData>

</Example>

</Metadata>

<Tag>/phoneme/initial</Tag>

</SemanticTagging>

</UnstructuredData>

</UserInteractionData>

Integrating Data Lakes with Self-Adaptive Serious Games

765

data. Within each pond, data is further divided into

smaller parts called puddles for more granular

organization: One puddle organizes structured data

like accuracy scores, level completions, and

performance metrics; another puddle is used for semi-

structured data, such as therapist-configured settings

(e.g., phoneme selection, difficulty levels stored in

formats like JSON or XML); and, a third puddle

address unstructured data, including audio recordings

of speech attempts and visual feedback from

gameplay. This pond-and-puddle approach provides

a clear, scalable approach for organizing and

analysing user data at multiple levels of granularity,

enabling tailored insights and targeted therapy

improvements for each individual leveraging Big

Data (Pingos & Andreou, 2022).

The SDB plays a vital role for the Data Lake while

introducing metadata, semantic tagging, and data

linking to transform raw data into actionable insights

for serious gaming environments. An example of an

SDB in XML format is provided in Figure 2

describing user interaction data of User123. Each

interaction added to the SDB of the Data Lake

provides semantic tagging with attribute values for

the structured, unstructured and semi-structured data

generated by the user in every interaction.

Note that every time the specific or other user

interacts with the game, the data produced is pushed

as is to the corresponding data pond and puddle, while

the associated information is added to the metadata of

the SDB as presented earlier in Figure 1. Another

reason for dividing user data into distinct puddles

based on the data type is to streamline and standardize

processing methods when needed. This approach

ensures that similar types of data can be processed

uniformly, increasing efficiency and reducing

complexity, while the SDB provides the ability to

handle efficiently heterogeneous data sources, a

defining characteristic of Big Data.

The self-adaptation rule engine is a core

component of the proposed approach (see Figure 1)

that facilitates the dynamic adjustment of gameplay

to meet user needs. The engine leverages input

provided by domain experts, data collected from

users during game sessions, and analytical models to

perform adaptation of game complexity, difficulty,

and scenarios based on user performance and learning

goals. Domain experts play a vital role in designing

and guiding the adaptation process through a set of

rules that essentially describe when and where

adaptation should be performed in real-time. Their

input ensures that the game’s structure, goals, and

scenarios align with the educational needs of the

users. Based on these rules, the engine can

temporarily adjust specific game elements, such as

reducing or increasing the number of challenges or

simplifying tasks, to align with player capabilities.

For example, experts may define specific visual or

auditory elements to be displayed on screen suitable

for players with unique conditions (e.g., Down

syndrome), such as calming images for stress

reduction or tailored challenges according to the

learning goals (e.g. thickening lines or removing

colours). Additionally, domain experts may set rules

describing that when a user fails to identify the correct

answer from a list of options presented, then the

engine modifies gameplay by offering hints. The

rules are documented using a standardized approach,

such as XML or JSON files, and the self-adaption

engine parses these files to make decisions.

The SDB supports both the self-adaptation rule

engine and the domain experts by organizing and

structuring game-related data. This metadata-driven

approach ensures that player interactions,

performance metrics, and game scenarios are stored

efficiently in the Data Lake. Domain experts utilize

this semantically rich data to validate and redefine

game goals, while the rule engine uses it to adapt

gameplay in real time. This collaboration between the

SDB, domain experts, and the rule engine ensures that

the game remains aligned with its intended

objectives, while providing an engaging and adaptive

environment for the user.

The architecture of the Data Lake introduced here

allows for real-time ingestion of data from numerous

users simultaneously, ensuring that user interactions,

gameplay metrics, and other inputs are stored as is

without latency. For example, when multiple players

participate in the "Phoneme Quest" serious game, their

performance data is immediately sent to the structured

puddles of their respective ponds and is stored in the

Data Lake in its native format, including the

enrichment of the metadata semantic blueprint. The

same approach applies, for example, to audio

recordings and therapists’ feedback, which are stored

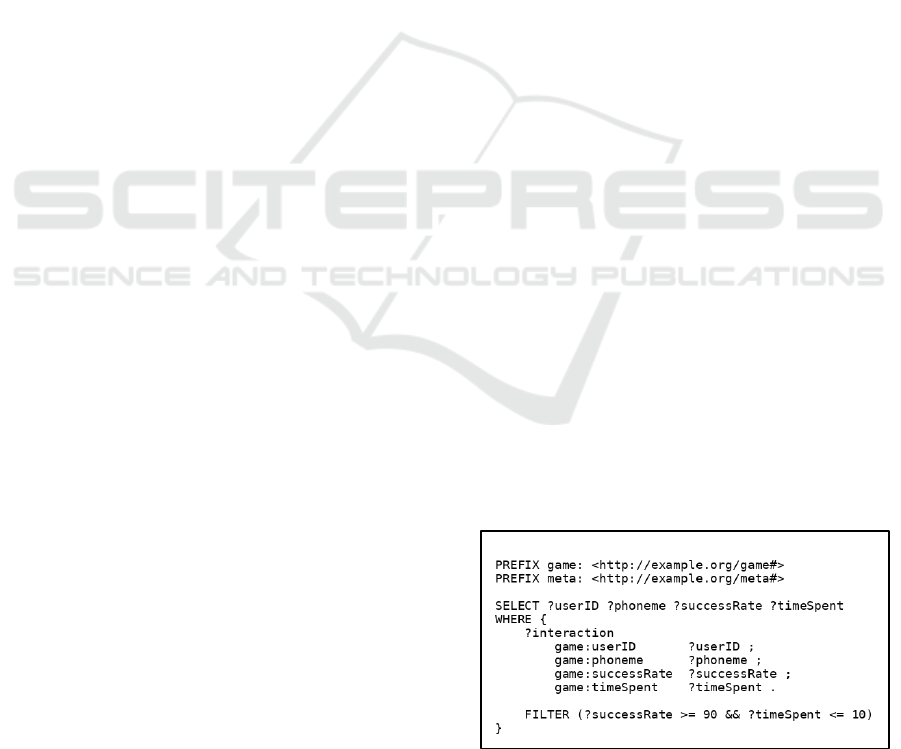

Figure 3. SPARQL query to extract user performance with

a success rate of 90 percent or higher and time spent of 10

minutes or less

ENASE 2025 - 20th International Conference on Evaluation of Novel Approaches to Software Engineering

766

in unstructured and semi-structured formats

respectively, along with updates to the SDB. This core

concept of the Data Lake helps serious games systems

to handle large amounts of diverse data efficiently,

providing the means for self-adaptation through

efficient retrieval (querying) and processing of this

data that supports dynamic adjustments in gameplay,

real-time analytics, and personalized experiences.

Querying the SDB is more effective and efficient

than querying raw data because it provides enriched

context, semantic relationships, and integration of

heterogeneous data types. The SDB actually organizes

raw, structured, semi-structured, and unstructured data

with metadata and semantic tagging, enabling the

construction and execution of complex queries that

directly link user interactions, gameplay metrics, and

session information. For example, querying the SDB

using SPARQL allows quick and direct extraction of

actionable insights, such as identifying users who

struggled with a specific phoneme while correlating

this difficulty with session timestamps and therapists’

feedback. In contrast, querying raw data requires

significant preprocessing, including parsing the raw

data, something which increases complexity and

delays insights.

The SDB provides an essential layer of semantic

metadata, which makes the raw data actionable.

Specifically, the SDB can link user data points

together, such as a phoneme practiced, the

corresponding success rate, and the time spent on the

exercise. This metadata enriches the data stored in the

puddles, allowing queries that combine

heterogeneous data types. For example, as presented

in Figure 3, a SPARQL query can be designed to

extract information about users who achieved a 90%

success rate on a specific phoneme, while spending

less than 10 minutes on the corresponding exercises.

The integration of Data Lakes and the SDB within

the proposed approach provides a robust solution for

managing the complexity and scale of data generated

in serious gaming environments. By organizing user

data into ponds and puddles, the approach achieves

granular storage and streamlined processing, ensuring

scalability and efficiency. Simultaneously, the SDB

enhances the data’s utility by adding semantic layers

and metadata, transforming raw data into actionable

insights. This combination not only addresses the

challenge of handling heterogeneous data, but also

facilitates advanced analytics and personalized

experiences. The effectiveness of this approach is

further demonstrated in the upcoming

experimentation sections, which details its practical

application and evaluates its impact on real-world use

cases.

4 PRELIMINARY EVALUATION

First, a qualitative evaluation of the proposed

approach for managing Big Data in serious gaming

environments is conducted. To this end, it is essential

to compare it with existing works that address similar

challenges. Two notable studies in this domain are

Learning Mechanics − Game Mechanics (LM-GM),

and SGA.

LM-GM is a conceptual model designed to

integrate learning objectives seamlessly into the

gameplay of serious games by aligning educational

activities with game features. This alignment ensures

that gameplay actively promotes educational

outcomes, fostering engagement while achieving

learning goals. For example, problem-solving, as a

learning mechanic, can be mapped to puzzle-solving

as a game mechanic to teach critical thinking skills

(Arnab et al., 2015).

On the other hand, SGA is a data-driven approach

designed to collect, analyse, and interpret the data

generated by serious games to evaluate and enhance

their effectiveness. It focuses on leveraging player

interaction data, such as gameplay behaviours,

decision-making patterns, and performance metrics,

to assess learning outcomes, engagement, and skill

development. By utilizing techniques from learning

analytics and educational data mining, SGA provides

insights into player progress, identifies areas of

difficulty, and informs the design of personalized

learning experiences. While highly effective for post-

hoc analysis, SGA is less focused on real-time

processing or integrating diverse data types, making

it best suited for structured analysis of gameplay data

(Shute et al., 2013).

The present paper defined the following five

criteria to facilitate a qualitative evaluation of LM-

GM and SGA and a comparison with the proposed

approach: Data Handling Capabilities, Semantic

Enrichment, Personalization, Scalability, and

Integration Flexibility. Furthermore, ratings such as

Low, Medium, and High for each criterion were set to

streamline the qualitive comparison and to simplify

the evaluation process.

Data Handling Capabilities refers to the ability to

manage and process the diverse types of data

generated in serious games, such as structured data,

semi-structured data and unstructured. A Low rating

indicates lack of the ability to handle such diverse data

types, whium value suggests that the model can

manage some data types, typically structured data, but

may face challenges with semi-structured or

unstructured data, often relying on additional tools to

bridge these gaps. A High rating, on the other hand,

Integrating Data Lakes with Self-Adaptive Serious Games

767

signifies a comprehensive ability to efficiently process

all types of data with mechanisms for seamless and

scalable management, making it suitable for modern,

data-intensive serious gaming environments.

Semantic Enrichment assesses the capacity to

enhance raw data by adding context and meaning

through semantic layers, metadata tagging, and

organized contextual frameworks. A Low rating

indicates lack of any semantic enrichment features or

contextual organization abilities, making it difficult to

derive advanced insights from raw data. A Medium

value suggests that the model provides basic metadata

tagging or limited semantic organization, but it does

not include advanced functionality like semantic

querying or data linking. High signifies robust

semantic abilities, including support for ontologies

and/or knowledge graphs, advanced metadata

systems, and the ability to perform complex semantic

queries, enabling deeper insights and enhanced

contextual understanding of the data.

Personalization Support evaluates the capacity to

deliver tailored user experiences based on interaction

data, preferences and progress information. A Low

rating indicates that the approach lacks mechanisms

for personalization and does not analyse user-specific

data to customize the gaming experience, while a

Medium rating means that it offers limited support,

such as enabling post-hoc personalization where

analytics are used to design tailored content after

gameplay. A High value reflects advanced

capabilities, where the model is able to leverage data

insights so as to dynamically adjust game elements

through the self-adaption rule engine, like content,

difficulty levels, or pacing to match the user’s needs,

creating a more engaging and individualized

experience.

Scalability assesses the capacity to manage

increasing demands as data volume, user numbers, or

game complexity grow, without compromising

performance. A Low rating indicates that the approach

is not equipped to handle large-scale data or multiple

users effectively, resulting in performance bottlenecks

under high demand. A Medium value suggests

moderate Scalability, where the model can

accommodate some growth, but may face challenges

with very large datasets, complex data structures, or

simultaneous user interactions. A High rating,

however, represents robust Scalability, where the

approach seamlessly manages massive datasets,

diverse data types, and large user bases across varying

gaming environments, maintaining optimal

performance.

Finally, Integration Flexibility assesses the ability

to work seamlessly with various external tools,

platforms, and data sources, which is critical in

complex and diverse serious game environments. A

Low rating indicates a rigid model with limited or no

capability to integrate with external systems,

restricting adaptability and scalability. A Medium

value signifies moderate integration capabilities,

where the model can connect with some tools or data

sources, but may require extensive customization or

additional effort. A High rating, on the other hand,

reflects a highly flexible approach designed for

seamless interoperability, allowing it to accommodate

diverse technologies and environments efficiently.

The aforementioned evaluation criteria are

considered fundamental for approaches handling Big

Data, as they collectively ensure the organization,

analysis, and application of diverse datasets. These

elements enable models to adapt to growing demands,

integrate seamlessly with various tools, and deliver

meaningful insights. Together, they can form the

backbone of effective, scalable, and adaptable

systems in heterogeneous data-intensive

environments. Therefore, this set of criteria serve as a

strong qualitative evaluation basis for the comparison

of the three approaches, the proposed one and two

similar or close rivals.

The approach introduced in this paper achieves a

High rating in Data Handling Capabilities due to its

ability to manage structured, semi-structured, and

unstructured data efficiently using a Data Lake

architecture and the semantic data blueprint. In

contrast, LM-GM is rated Low as it focuses on

conceptual mapping of learning and game mechanics,

lacking functionality for handling or processing data.

SGA receives a Medium rating because it effectively

manages structured data, such as player scores or

performance metrics, but struggles with semi-

structured or unstructured data, which are

increasingly prevalent in modern serious gaming

environments.

LM-GM may be rated with a Low value for

Semantic Enrichment because it does not incorporate

features for adding context or meaning to raw data,

focusing on aligning learning and game mechanics

conceptually instead. Similarly, SGA is also rated

Low, as it emphasizes data analytics, but lacks

capabilities for semantic enrichment, such as

advanced metadata tagging or ontology support. In

contrast, the proposed approach is rated High due to

its robust SDB, which integrates advanced metadata

tagging, ontology support, and semantic querying

capabilities. This enables the model to add context

and meaning to raw data in the Data Lake, facilitating

deeper analysis and actionable insights.

ENASE 2025 - 20th International Conference on Evaluation of Novel Approaches to Software Engineering

768

Table 1. Evaluation and comparison of the approaches.

Criteria

Proposed

Approach

LM-

SGA

Data Handling

abilities

High Low Medium

Semantic

Enrichment

High Low Low

Personalization

Support

High Low Medium

Scalability High Low Medium

Integration

Flexibilit

High Low Medium

In addition, the proposed approach could be

characterized with High Personalization. Creating

user profiles in the Data Lake enables the dynamic

adaptation of the game content, difficulty levels, or

other elements to enhance individual engagement and

learning outcomes. LM-GM is rated Low as it lacks

mechanisms for Personalization and focuses mainly

on game design principles. SGA is rated Medium

because it provides preliminary insights into player

performance, which can be used to inform

personalization strategies.

On the other hand, LM-GM may be rated with

Low Scalability as it is not designed to handle large

datasets, multiple users, or complex data

environments. Similarly, SGA is rated with Medium

Scalability as it performs sufficiently with structured

data but faces challenges when dealing with very

large datasets, users, or highly complex data

scenarios. In contrast, the proposed approach

achieves a High rating due to its robust design and

Data Lake support, which efficiently handle large-

scale, heterogeneous data, making it highly suitable

for the growing data demands of serious games.

Finally, the approach presented in this work may

be characterized with High Integration Flexibility, as

it supports seamless interoperability with various data

sources, tools, and platforms (for example the

Hadoop ecosystem). This ensures that is may easily

adapt to different technological ecosystems and

gaming environments. On the other hand, LM-GM

may be rated with Low for this criterion since it is

purely a theoretical framework and does not support

integration with external systems. SGA can be rated

as Medium due to the fact that although it integrates

well with specific tools, it has limited flexibility and

requires customization to work with diverse data

sources or platforms.

Table 1 summarizes the comparison between the

three serious gaming approaches discussed in this

section. The analysis highlights that the proposed

approach significantly outperforms the two others

based on the selected criteria.

5 EXPERIMENTAL

EVALUATION

5.1 Design of Experiments

The experiments conducted serve two primary

objectives. First, they aimed to evaluate the ability of

the proposed method to integrate Data Lakes with

Self-Adaptive Serious Games, leveraging Semantic

Data Blueprints. Second, the experiments focused on

assessing the performance and effectiveness of the

approach in terms of data volume. This section

outlines the rationale behind the design and execution

of a set of experiments to meet the above objectives.

Although this experimentation is limited it can offer

some preliminary useful insights.

The “Phoneme Quest” serious game was utilized

for generating the experimental data. Initially, a Data

Lake metadata mechanism was constructed for this

game, which was also uploaded on GitHub

(https://github.com/mfpingos/DL-Self-Adaptive-

Serious-Games). The DL metadata semantic data

blueprint is described using an XML file, which

captures user interactions stored in the Data Lake as

presented earlier in Figure 1. Initially, a basis data set

was constructed having one user interacting with the

game. Next, Python scripts were utilized to enlarge

the number of users/interactions thus creating a

synthetic dataset able to assess performance and

efficiency as the volume of data increases.

Every time a user interacts with the game a set of

metadata is produced in XML format as shown earlier

in Figure 2. This metadata includes structured, semi-

structured and structured information, something

very common in serious games interaction. In the

example of Figure 2 the data captures a detailed

interaction between a user and the game focusing on

phonetic learning or a speech-related task. More

specifically, the structured data provides numerical

information and metrics, such as a unique User ID

(“U123”), an Accuracy Score of 92, and a Game

Level of 3, all linked to the date and time of

interaction. This format allows for clear tracking of

user progress and performance in the system, which

is essential for monitoring user engagement or

measuring success in a task-oriented environment.

The semantic tags, such as “/progress/advanced” and

“/phoneme/medial”, categorize the user's activities,

offering insights into their focus areas, like phonemes

Integrating Data Lakes with Self-Adaptive Serious Games

769

related to vowels and their progress level within the

system.

The semi-structured data offers more flexible

information, such as the specific phonemes the user

engaged with (“/p/” and “/b/”), as well as a Difficulty

Level of “Advanced”. This type of data allows for a

clearer understanding of the user's interaction,

indicating that the user is working on advanced-level

tasks involving phonetic sounds.

The unstructured data includes an audio file

(“U123lvl.wav”), which contains speech content tied

to the user's learning process. The metadata attached

to this file includes the duration of 3.2 seconds and

the audio format (WAV), along with the tagging of

“/phoneme/advanced”, highlighting the content's

focus on advanced phonetic tasks. Together, these

data types provide a comprehensive view of user

interactions, from performance scores and task

difficulty to the specific phonetic elements being

exercised and the media used to engage the user.

The experimentation consists of two parts, each

executing a SPARQL query:

(i) The execution of a query on the Data Lake

metadata resulting in information about users’

interactions with game level (difficulty) equal or

greater than 2 (medium):

PREFIX ns: <http://example.org/ns#>

SELECT ?userID ?gameLevel

WHERE {

?interaction ns:userID ?userID .

?interaction ns:gameLevel

?gameLevel .

FILTER(?gameLevel >= 2)

}

(ii) The execution of a query gathering information

for a specific user and its accuracy score for each

interaction:

PREFIX ns: <http://example.org/ns#>

SELECT ?accuracy Score ?date

WHERE {

? interaction ns:userID

"specific_user" .

? interaction ns:accuracyScore

?accuracyScore .

?interaction ns:date ?date .

}

The increase in the number of users and

interactions directly impacts the size of the respective

XML file, a crucial element parsed to extract users

that match a query. In the first experiment the XML

file describing 1 user resulted in a size of 0.002MB,

10 users of 0.01MB and 100 users of 0.078MB. Each

of the files contains one interaction of each user. For

the second experimentation, the metadata describing

two interactions with the serious game of 1 user

resulted in a size of 0.002MB, 10 users of 0.02MB

and 100 users of 0.216MB.

The experimental setup utilized a server

configured with three Virtual Machines (VMs). Each

VM was provisioned with 4 CPU cores, while the

host server itself contained a total of 48 cores.

Memory allocation per VM was 8192MB, and each

had an 80GB hard disk capacity. The software stack

comprised Hadoop 3.3.6 for distributed computing,

Python 2.7.5 for scripting tasks, and synthetic

datasets generated from the “Phoneme Quest” serious

game. Apache Jena was integrated into the system for

handling SPARQL queries.

5.2 Experimental Results

The two benchmark SPARQL queries were executed

100 times for each synthetic metadata to facilitate a

comprehensive comparative analysis. As mentioned

in the previous section and presented in Tables 2 and

3, the metadata size and the number of users differ for

each run.

Table 2 shows the time required for querying the

metadata mechanism using SPARQL(i) requesting

information among all users and the number of results

returned (i.e., the number of user interactions). This

table also summarizes the average execution time,

metadata size, and the number of results returned

when executing SPARQL(i) queries across varying

numbers of users. For a single user with a metadata

size of 0.002 MB, the average execution time is

0.0005 seconds, returning results for 1 user. With 10

users and a metadata size of 0.01 MB, the average

execution time increases to 0.001 seconds, returning

results for 10 users. For 100 users, the metadata size

rises significantly to 0.078 MB, with an average

execution time of 0.02 seconds, returning results for

90 users.

As can be observed, when the number of

users increases, both the metadata size and execution

time show also a noticeable increase. This increase is

more profound at the beginning (10 users) for the

average execution time, but it then stabilizes at a

lower level. Additionally, the results in Table 2

illustrate the computational overhead caused by

increasing users and metadata size. While the

execution time grows moderately with additional

users, the increase in metadata size is more

substantial, reflecting the resource intensiveness of

managing larger datasets. The results underline the

scalability challenges in handling larger user bases

and metadata volumes while maintaining acceptable

query performance.

ENASE 2025 - 20th International Conference on Evaluation of Novel Approaches to Software Engineering

770

Table 2. Average execution time (after 100 executions)

requesting information for different number of users with

different sizes of metadata running the SPARQL(i) query.

Number

of users

Metadata

Size

Average

running

time

Number of

user

interactions

returned

1 Use

0,002 MB 0,0005s 1 use

10 Users 0,01 MB 0,0010s 10 users

100 Users 0,078 MB 0,0020s 90 users

Table 3. Average execution time (after 100 executions)

requesting information for one user among many users’

interactions with different sizes of metadata running the

SPARQL(ii) query.

Number

of users

and interactions

Metadata

Size

Average

execution

time

1 User

(2 interactions)

0.002 MB 0,0011s

10 Users

(

20 interactions

)

0.02 MB 0,0075s

100 Users

(

200 interactions

)

0.216 MB 0,0100s

The second experiment is presented in Table 3,

and shows the time required for querying the

metadata mechanism using SPARQL(ii) query,

which requests information for one particular user.

Table 3 summarizes the average execution time,

metadata size, and the number of results returned

when executing SPARQL(ii) queries across varying

numbers of users and serious game interactions when

requesting information for a specific user. For a single

user with 2 interactions and metadata size of 0.002

MB, the average execution time is 0.0011 seconds.

For 10 users with 200 interactions the metadata

reaches a size of 0.01 MB and the average execution

time increases to 0.0075 seconds. Finally, for 100

users with 200 interactions, the metadata size rises

proportionally to 0.078 MB, with an average

execution time of 0.01 seconds. Furthermore, Table 3

presents the computational overhead caused by

increasing users and interactions within the metadata

mechanism. While the execution time shows a

gradual increase with the addition of new users and

their interactions, the growth in metadata size is

significantly more pronounced.

The tables in each benchmark illustrates the

computational efficiency of querying metadata using

the SPARQL mechanism compared to querying the

actual data. While execution time grows moderately

with an increase in users, and interactions and

metadata size increase substantially, the overhead

introduced remains manageable. A direct comparison

with querying the actual data would not be feasible

unless a dedicated query is constructed and executed

depending of the type of the data (RDBMS, images

etc). Therefore, such a comparison would not be

directly performed, at least on the same comparison

level. This demonstrates that querying metadata is

significantly more efficient and scalable than directly

querying the actual data, which would involve much

larger datasets and higher number of queries, and,

therefore, would result in substantially longer

execution times. The results emphasize the advantage

of the proposed approach and the ability to provide

self-adaptive serious games experience with multiple

users and large volumes of data via the integration of

Data Lakes.

6 CONCLUSIONS & FUTURE

WORK

This paper presented a new approach for managing

Big Data in serious game environments based on Data

Lakes and Semantic Data Blueprints. The target was

to offer a data storage architecture able to host data

produced at high speeds and volumes in its raw

format and then retrieve it effectively to process it so

as to provide improvements in game experience,

customization, and adaptability.

The approach offers efficient game data

management and real-time processing, which address

the challenge of heterogeneous data sources in serious

games. Integration of various data types, such as

structured, semi-structured and unstructured, into

Data Lakes and description or tagging of this data

with semantic layers provided the means for utilizing

historical data to yield deeper performance insights

and personalized gaming experience through the self-

adaption rule engine. The approach introduced was

demonstrated using an example of a speech therapy

game and was evaluated and compared against two

close rivals using a set of five quality features that

suggested its superiority. Experimentation was also

conducted through two benchmark datasets to assess

performance and effectiveness of the proposed

approach as data volume increased with very

satisfactory results.

Future work will focus on the following: (i)

Expand the application of the proposed approach in

more application areas targeting at supporting

education and training and performing further testing

and evaluation with real-world experimentation. (ii)

Investigate the extent to which real-time data

processing and adaptation impact system latency and

Integrating Data Lakes with Self-Adaptive Serious Games

771

computational resource requirements. (iii) Explore

how optimization strategies for parallel execution in

a multi-VM environment could enhance scalability

and resource utilization and provide further

experimentation. (iv) Employ advanced analytics and

recommender systems to provide more standardized

user profiling and extend the self-adaptive

capabilities of serious games by dynamically

adjusting content, scenarios and gameplay based on

user behaviour and experiences.

REFERENCES

Yaqoob, I., Hashem, I. A. T., Gani, A., Mokhtar, S.,

Ahmed, E., Anuar, N. B., & Vasilakos, A. V. (2016).

Big data: From beginning to future. International

Journal of Information Management, 36(6), 1231-1247.

Nasrollahi, H., Lampropoulos, I., Werning, S., Belinskiy,

A., Fijnheer, J. D., Veltkamp, R. C., & van Sark, W.

(2023). Review of Serious Energy Games: Objectives,

Approaches, Applications, Data Integration, and

Performance Assessment. Energies, 16(19), 6948.

Pérez, J., Castro, M., & López, G. (2023). Serious games

and ai: Challenges and opportunities for computational

social science. IEEE Access, 11, 62051-62061.

assessment, and improvement, 101-134.

Zhao, Y., Gao, W., & Ku, S. (2023). Optimization of the

game improvement and data analysis model for the

early childhood education major via deep learning.

Scientific reports, 13(1), 20273.

Kosmides, P., Demestichas, K., Adamopoulou, E.,

Koutsouris, N., Oikonomidis, Y., & De Luca, V. (2018,

August). Inlife: Combining real life with serious games

using iot. In 2018 IEEE Conference on Computational

Intelligence and Games (CIG) (pp. 1-7). IEEE.

Al-Mansour, F. (2023). IoT Data Management: Challenges

and Solutions in Handling Vast Amounts of

Information. Innovative Computer Sciences Journal,

9(1).

Hooshyar, D., Yousefi, M., & Lim, H. (2018). Data-driven

approaches to game player modelling: a systematic

literature review. ACM Computing Surveys (CSUR),

50(6), 1-19.

Nolte, H., & Wieder, P. (2022). Realising data-centric

scientific workflows with provenance-capturing on data

lakes. Data Intelligence, 4(2), 426-438.

Hai, R., Koutras, C., Quix, C., & Jarke, M. (2023). Data

lakes: A survey of functions and systems. IEEE

Transactions on Knowledge and Data Engineering,

35(12), 12571-12590.

Gorelik, A. (2019). The enterprise big data lake: Delivering

the promise of big data and data science. O'Reilly

Media.

Fang, H. (2015, June). Managing data lakes in big data era:

What's a data lake and why has it became popular in

data management ecosystem. In 2015 IEEE

International Conference on Cyber Technology in

Automation, Control, and Intelligent Systems (CYBER)

(pp. 820-824). IEEE.

Olawoyin, A. M., Leung, C. K., & Cuzzocrea, A. (2021,

December). Open data lake to support machine learning

on Arctic big data. In 2021 IEEE International

Conference on Big Data (Big Data) (pp. 5215-5224).

IEEE.

Cherradi, M., & EL Haddadi, A. (2021, November). Data

lakes: A survey paper. In The Proceedings of the

International Conference on Smart City Applications

(pp. 823-835). Cham: Springer International

Publishing.

Sawadogo, P., & Darmont, J. (2021). On data lake

architectures and metadata management. Journal of

Intelligent Information Systems, 56(1), 97-120.

Beheshti, Amin, Boualem Benatallah, Reza Nouri, and

Alireza Tabebordbar. "CoreKG: a knowledge lake

service." Proceedings of the VLDB Endowment 11, no.

12 (2018): 1942-1945.

Pingos, M., & Andreou, A. S. (2022, April). Exploiting

Metadata Semantics in Data Lakes Using Blueprints. In

International Conference on Evaluation of Novel

Approaches to Software Engineering (pp. 220-242).

Cham: Springer Nature Switzerland.

SkyQuest Technology. (2021). Global serious games

market size, share, growth analysis by gaming platform

and application – Industry forecast 2023-2030.

SkyQuest. https://www.skyquestt.com/report/serious-

games-market

Warren, J., & Marz, N. (2015). Big Data: Principles and

best practices of scalable realtime data systems. Simon

and Schuster.

Caggianese, G., Cuomo, S., Esposito, M., Franceschini, M.,

Gallo, L., Infarinato, F., ... & Romano, P. (2018).

Serious games and in-cloud data analytics for the

virtualization and personalization of rehabilitation

treatments. IEEE Transactions on Industrial

Informatics, 15(1), 517-526.

Alonso-Fernández, C., Perez-Colado, I., Freire, M.,

Martínez-Ortiz, I., & Fernández-Manjón, B. (2018).

Improving serious games analyzing learning analytics

data: Lessons learned. Games and Learning Alliance

Conference, 287-296. Cham: Springer.

Riad, R., Ali, Y., Tits, N., Humbert, S., & Dutoit, T. (2022).

KSoF: A Dataset of Fluency and Stuttering Annotations

of German Speech. arXiv.

https://arxiv.org/abs/2203.05383

Vihman, M. M. (2017). Learning words and learning

sounds: Advances in language development. British

Journal of Psychology, 108(1), 1-27.

Arnab, S., Lim, T., Carvalho, M. B., Bellotti, F., Freitas, S.

de, Louchart, S., … De Gloria, A. (2015). Mapping

learning and game mechanics for serious games

analysis. British Journal of Educational Technology,

46(2), 391–411. https://doi.org/10.1111/bjet.12113

Shute, V. J., Ventura, M., Bauer, M., & Zapata-Rivera, D.

(2013). Measuring and Supporting Learning in Games:

Stealth Assessment. The MIT Press.

ENASE 2025 - 20th International Conference on Evaluation of Novel Approaches to Software Engineering

772
