From Push Buttons to Notes: A Hardware/Software Ecosystem for

Inclusive Music Education

Luca Andrea Ludovico

1 a

, Vanessa Faschi

1 b

, Federico Avanzini

1 c

, Emanuele Parravicini

and Manuele Maestri

Laboratory of Music Informatics (LIM), Dept. of Computer Science, University of Milan, via G. Celoria 18, Milan, Italy

Audio Modeling, Via Bernardino Luini 65, Meda, Italy

Musica Senza Conﬁni, Italy

Keywords:

Accessible Music Education, Push-Button Interfaces, Human-Computer Interaction (HCI), Inclusive Music

Learning, Assistive Technology.

Abstract:

This paper explores several ways to drive a music-oriented computer system by push-button controls, with a

particular focus on music education for young children and individuals with disabilities. The research investi-

gates a range of interaction paradigms where heterogeneous push-button actions can be mapped onto musical

functions, such as triggering Note-On/Note-Off events, dynamically controlling other musical parameters, or

playing and stopping pre-recorded sequences. The ultimate goal is to propose a hardware/software ecosys-

tem that utilizes button-based human-computer interfaces that are not specialized for music (e.g., joypads or

colored computer keyboards). These paradigms are designed to lower the barrier to entry for engaging with

music, making it accessible even to those with limited motor skills or no prior musical training. To this end, we

propose an implementation where multiple push-button devices can be connected to a hub that communicates

with a computer, and the role of the latter is to associate a customizable musical meaning to button events in

the framework of inclusive music education.

1 INTRODUCTION

In this paper, we propose a computer-based approach

to address the educational needs of pre-school-age

children and people with different types of disabili-

ties, both cognitive and physical. In particular, we

focus on the potential of button-based interfaces, an-

alyzing the range of actions that a user can perform

and a system can consequently detect. After associ-

ating a musical meaning to such actions, we propose

an accessible and inclusive HW/SW platform capable

of combining different peripheral devices to control a

music production system, e.g. a synthesizer.

Analyzing the potential of a button interface is

valuable for several reasons. First and foremost, but-

tons are ubiquitous in everyday life, playing a crucial

role in numerous contexts, such as calling an elevator

or activating a pedestrian trafﬁc light. This familiarity

https://orcid.org/0000-0002-8251-2231

https://orcid.org/0000-0002-9815-1127

https://orcid.org/0000-0002-1257-5878

makes them immediately recognizable and eliminates

the need for extensive explanation or instruction.

Secondly, their intuitive design is particularly ad-

vantageous in accessibility contexts. Buttons require

minimal cognitive effort to understand and operate,

making them suitable for individuals with cognitive

disabilities. Sufﬁce it to say that a speciﬁc type of but-

ton interface, known as “mushroom push button”, is

commonly used as an emergency stop or panic switch.

Furthermore, simplicity and ease of use make buttons

accessible to many people with physical impairments,

including those with limited dexterity or strength.

Moreover, narrowing the ﬁeld to music educa-

tion, button interfaces are particularly relevant be-

cause they align with “traditional” musical controls.

Examples include keys on keyboard and wind in-

struments, effect pedals, and drawknob stops for or-

gan registers. Buttons are also typically available on

the user interfaces of media players and synthesizers.

These familiar controls not only simplify the transi-

tion to digital or adaptive musical tools but also make

the learning process more intuitive by building on ex-

650

Ludovico, L. A., Faschi, V., Avanzini, F., Parravicini, E. and Maestri, M.

From Push Buttons to Notes: A Hardware/Software Ecosystem for Inclusive Music Education.

DOI: 10.5220/0013489300003932

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 17th International Conference on Computer Supported Education (CSEDU 2025) - Volume 1, pages 650-660

ISBN: 978-989-758-746-7; ISSN: 2184-5026

isting knowledge. This connection to established mu-

sical practices highlights the versatility and accessi-

bility of button-based designs, making them an excel-

lent choice for fostering engagement and inclusion in

music education settings.

Lastly, buttons are widely available and relatively

inexpensive, which contributes to their practicality

and feasibility in various applications. Their cost-

effectiveness makes them an ideal choice for projects

aiming to create inclusive and affordable solutions,

ensuring broader access and usability.

Push-button interfaces have been widely dis-

cussed in the scientiﬁc literature, exploring this con-

trol device’s historical, anthropological, and techno-

logical implications. To mention but a few works,

Plotnick traced the origins of today’s push-button so-

ciety by examining how buttons have been made, dis-

tributed, used, rejected, and refashioned throughout

history, speciﬁcally focusing on the period between

1880 and 1925 (Plotnick, 2018). Gaspar et al. an-

alyzed the design requirements of buttons and their

relations with ergonomics (Gaspar et al., 2019). The

relevance of this type of interface is also witnessed

by research trying to reconstruct or simulate push ac-

tions in alternative ways, such as ad-hoc haptic inter-

faces (Allotta et al., 1999; Chen et al., 2022; Mori-

moto et al., 2007) or touchless interactions with pub-

lic displays (Gentile et al., 2016). Of particular inter-

est to our study, due to its proximity to sound-related

aspects, is a research work that investigates the rela-

tionship between the signal properties and the percep-

tual attributes of everyday push-button sounds (Altin-

soy, 2020).

The rest of the paper is structured as follows: Sec-

tion 2 presents a range of possibilities offered by but-

ton interfaces, Section 3 applies such a paradigm to

music performance, Section 4 showcases state of the

art, Section 5 describes an example of hardware and

software ecosystem, Section 6 exempliﬁes some ed-

ucational use cases, and, ﬁnally, Section 7 draws the

conclusions.

2 ACTIONS AND EVENTS USING

A PHYSICAL BUTTON

The interaction with a single physical button through

a computer system involves various types of actions

and events, each with its unique characteristics, ap-

plications, and implementation details. These actions

can be categorized into basic, advanced, and derived

actions, reﬂecting their complexity and potential use

cases. Table 1 provides a synoptic overview of the

button actions described in this section.

2.1 Basic Actions

Basic actions represent the fundamental interactions

with a button. The most straightforward action is the

button down event, which occurs when the button is

pressed down, initiating contact. Implementation re-

quires detecting the state change from “up” to “down”

as soon as it happens, ensuring low latency and accu-

racy.

Conversely, the button up event occurs when the

button is released after being pressed. This event of-

ten signals the end of an action started by a button

down event. It is essential to detect this transition

promptly to avoid inconsistencies in the user experi-

ence.

A combination of these two events forms the but-

ton click, a quick press and release. This is widely

used for discrete actions such as selecting items in

a menu or triggering a one-time function. The im-

plementation must ensure that both the press and re-

lease occur within a predeﬁned time interval, avoid-

ing confusion with other actions like holding or multi-

clicking.

The button hold action occurs when the button

is pressed and held for a sustained duration. It is

typically employed for continuous actions or mode

switching, such as dimming a light or activating a spe-

cial feature. Implementation requires measuring the

duration of the press and triggering the appropriate

response only when the hold time exceeds a certain

threshold.

2.2 Advanced Actions

Advanced actions extend the capabilities of button

interaction by introducing more complex patterns or

timing-based logic.

A double click, for instance, involves two quick

successive presses and releases. This action is com-

monly mapped to alternate functions, such as open-

ing a ﬁle instead of selecting it. Detecting a double

click requires timing logic to ensure that the interval

between clicks falls within a predeﬁned range.

A related but more complex action is the multi-

click, where three or more quick successive presses

are detected. This can unlock advanced features, such

as resetting a device or triggering speciﬁc modes. The

implementation challenge lies in accurately detecting

the intended number of clicks without interference

from noise or user input variations.

The hold and release action combines a sustained

press with a release event. This allows for time-

dependent actions, such as activating a special func-

tion if the button is held for more than n seconds. Ac-

From Push Buttons to Notes: A Hardware/Software Ecosystem for Inclusive Music Education

651

curate timing measurements and threshold checks are

essential for this implementation.

In the previous case, the value of n is usually low,

in the order of a few seconds. The long hold action

is a speciﬁc variation where the button is held for an

extended duration, often exceeding 5 seconds. This

action is reserved for critical functions such as per-

forming a factory reset or enabling a secure mode.

Differentiating between a short and long hold requires

careful calibration of timing thresholds to prevent ac-

cidental activations.

Finally, press with modiﬁers involves combining a

button press with other inputs, such as simultaneous

presses of additional buttons. This enables complex

interactions, such as keyboard shortcuts. Implemen-

tation requires monitoring the states of multiple inputs

and coordinating their timing.

2.3 Derived Actions

Derived actions leverage additional hardware capa-

bilities or sophisticated input patterns to provide en-

hanced functionality. One example is press and ro-

tate, which occurs when a button integrated with a

rotary encoder is pressed while being turned. This ac-

tion is ideal for precise adjustments, such as navigat-

ing menus or ﬁne-tuning settings. Synchronizing the

signals from the button press and the rotary encoder

is crucial for effective implementation.

Another derived action is pressure-sensitive inter-

action, where varying levels of pressure applied to

the button are detected. This is particularly useful in

contexts requiring dynamic control. However, imple-

menting this action requires specialized hardware ca-

pable of detecting pressure levels.

The sequential presses action involves a deﬁned

sequence of presses, such as press-release-press. This

is often used for unlocking speciﬁc actions, such as

entering a password or toggling modes. Accurate

tracking of the input sequence and timing is neces-

sary to differentiate valid patterns from unintended

presses.

2.4 Implementation Considerations

Across all these actions, certain considerations are

universal. First, debouncing is critical to mitigate

false detections caused by electrical noise or mechan-

ical imperfections in the button. This activity can

be performed by either hardware or software compo-

nents in order to ﬁlter out unintended state changes,

thus ensuring reliable input recognition.

Second, focusing on user experience, the balance

between simplicity and complexity is vital. While ba-

sic actions are intuitive and straightforward to imple-

ment, understand, and perform, advanced and derived

actions provide greater versatility at the cost of addi-

tional implementation complexity, user learning, and

concentration.

The actions we have described so far focus on the

use of a single button. The availability of multiple

buttons would enable a wide range of applications.

An example is provided by the already-mentioned ac-

tion called press with modiﬁer. Even the interfaces of

traditional musical instruments, such as keyboard in-

struments, can be seen as combinations of buttons: in

the case of a piano, the keys are sensitive to activa-

tion (with variations in pressure) and release, and the

pedals can be considered switch controllers.

Finally, the application context greatly inﬂu-

ences the design of these interactions. For instance,

accessibility-focused systems beneﬁt from simple and

easily distinguishable actions, while musical perfor-

mance systems require precise timing and responsive-

ness. By tailoring the implementation to the speciﬁc

use case, physical button interactions can be opti-

mized for both functionality and usability. The adap-

tation of the button paradigm to inclusive music edu-

cation will be addressed in the following section.

3 BUTTON INTERFACES FOR

INCLUSIVE MUSIC

EDUCATION

The button actions described in Section 2, forming

the core of user interaction in music production envi-

ronments, can be employed in educational settings to

support music learning. These actions offer a wide

range of functionalities that can be adapted to suit

the needs of learners. Understanding how these but-

ton actions can be used, along with considerations for

accessibility and inclusivity, is crucial for ensuring

that all users can engage with music technology effec-

tively. In the remainder of this section, we will begin

by examining single-button actions and then explore

the possibilities enabled by the simultaneous use of

multiple buttons.

3.1 Single Button

When considering music production, button down can

trigger musical events, such as playing a note on a

traditional instrument or a MIDI keyboard. When a

student presses a key, they may hear a corresponding

sound, which allows them to experiment with pitch,

timbre, and harmony. This basic interaction is an

CSME 2025 - 6th International Special Session on Computer Supported Music Education

652

Table 1: Actions and Events Using a Physical Button. The Categories (from Top to Bottom) Refer to Basic Actions, Advanced

Actions, and Derived Actions, Respectively.

Action Description

Button Down (Press) The button is pressed down, initiating contact.

Button Up (Release) The button is released after being pressed.

Button Click A quick press and release of the button.

Button Hold The button is pressed and held for a sustained period.

Action Description

Double Click Two quick successive presses and releases of the button.

Multi-Click Three or more successive quick presses and releases.

Hold and Release The button is held down for a set duration before release.

Long Hold The button is held for an extended duration (e.g., more than 5 s).

Press with Modiﬁers Combining a button press with other inputs (e.g., simultaneous button

presses).

Action Description

Press and Rotate (with Encoders) Pressing a button integrated with a rotary encoder while turning it.

Pressure-Sensitive Actions Detecting varying levels of pressure applied to a button.

Sequential Presses A deﬁned sequence of presses (e.g., press-release-press).

intuitive way for beginners to get started with creat-

ing music and experimenting with sounds. In music

education, button down actions can also be used to

trigger pre-recorded sequences or exercises in music

software. For example, pressing a button could start a

metronome or initiate an exercise designed to practice

rhythm or note recognition. For students with phys-

ical disabilities, particularly those with limited dex-

terity, the button press should be designed to require

minimal effort, possibly utilizing larger or softer but-

tons with customizable sensitivity. This ensures that

learners with motor impairments can still engage with

the content without feeling overwhelmed by the phys-

ical demands of the interaction. Such a consideration

can be extended to all button actions described below.

The button up action is usually associated with the

end or completion of an action, such as releasing a

key on a keyboard controller. When applied to sound

production, this action is essential for deﬁning the du-

ration of notes (even if a delay effect or controls such

as the sustain pedal can prevent the sudden release of

sound). In this sense, button release can be used to

teach concepts like note length and rhythm. Consid-

ering button up as the counterpart of an action started

by a button down event, such an action could also stop

the reproduction of an audio ﬁle or the synthesis of a

note sequence previously started. Concerning acces-

sibility, software or hardware could offer adjustable

settings for note release time to assist students with

motor impairments, helping users to adhere to a pre-

deﬁned time grid or release the button in a controlled

manner.

The button click action is used extensively in user

interfaces, and, consequently, also in music produc-

tion and education software, often performed through

a mouse button or a keystroke. In this sense, use

cases are endless: for example, in a digital audio

workstation (DAW), clicking a button might trigger

a play/pause event or allow the user to select an in-

strument or change a sound preset; in educational

applications, such an action could trigger interactive

lessons, quizzes, or feedback on musical tasks, such

as identifying scales or intervals. But the scenarios

described so far do not refer to the musical meaning

of the click action, rather they showcase educational

environments that can be controlled, like almost any

software, by keyboard and mouse. Rather, focusing

on the musical meaning of a button click, this action

could be associated with the production of impulsive

sounds and rhythmical patterns or the response to a

stimulus through a prompt reaction. A sequence of

button clicks can also be employed as an alternative

to button down/button up or button hold: for exam-

ple, instead of triggering a note attack via button down

and releasing the sound via button up, the user could

perform two distinct button clicks. In terms of acces-

sibility, buttons should be clearly labeled, with visual

or auditory cues to conﬁrm the action, so that students

with visual impairments or learning difﬁculties can

easily navigate the interface. The use of button clicks

as an alternative to button down/button up could be

helpful when a hold action is too demanding.

The button hold action involves pressing and hold-

ing a button for a longer period. In music production,

this can be used, e.g., to sustain a note, much like

a sustain pedal on a traditional keyboard, allowing

for expressive control over musical performance. In

music education, a button hold could be employed to

teach students about the concept of sustained notes or

to control the duration of a note in an exercise. This

From Push Buttons to Notes: A Hardware/Software Ecosystem for Inclusive Music Education

653

action is particularly beneﬁcial in the context of lim-

ited ﬁne motor control, as it may be easier to sustain

a button press rather than perform quick taps.

In general terms, the family of advanced actions

(see Section 2) can be invoked in a more advanced

training phase. Some actions, such as double click,

long hold and press with modiﬁers, can be physi-

cally or cognitively demanding. On the other hand,

one of the advantages of adopting simple interfaces

such as buttons lies in the possibility to tailor ac-

tivities based on the student’s current abilities and

the expected skills; in this sense, advanced actions,

if properly calibrated, can represent engaging chal-

lenges. Moreover, for users with physical disabilities,

there are customization options allowing for slower or

alternative input methods such as voice commands.

The hold and release action is an advanced type

of interaction that can be used to control continuous

parameters, such as modulation depth or volume. For

instance, holding a button might gradually increase

the volume of an audio track until the button is re-

leased, returning the volume to its original state. In

music education, this kind of interaction could be

used to teach students about dynamic changes in mu-

sic, such as crescendo and decrescendo. Accessibility

features should include adjustable duration thresholds

for holding the button, ensuring that users with motor

impairments can control the action effectively.

As mentioned in Section 2, derived actions are

more specialized interactions that combine multiple

input types. Even if potentially powerful in control-

ling multiple dimensions simultaneously, these ac-

tions can be perceived as challenging to perform from

a motor perspective (consider scenarios involving pre-

cise control of pressure or rotation) and complex to

learn and associate from a cognitive perspective. One

example is press and rotate, where a button is pressed

while being rotated. This is commonly used to ad-

just parameters like volume or ﬁlter cutoff in music

production. In educational contexts, press-and-rotate

controls can help students engage with interactive ex-

ercises that involve adjusting multiple parameters si-

multaneously, such as tuning a virtual instrument or

adjusting sound properties in real time.

Pressure-sensitive buttons are another example of

derived actions, where the pressure applied to a button

affects the outcome. In music production, pressure-

sensitive pads are commonly used to control the ve-

locity of notes played on a MIDI controller, allowing

for dynamic control over the intensity of sound. This

provides musicians with the ability to add expression

to their performance. In music education, pressure-

sensitive buttons could be used to help students under-

stand concepts like dynamics (soft and loud) and ar-

ticulation. To ensure accessibility, pressure-sensitive

buttons should allow for customization in terms of

sensitivity, making it easier for students with different

levels of motor control to interact with the system.

In general, sensory limitations can play a role.

Users with reduced tactile sensitivity might struggle

to distinguish between buttons or conﬁrm if they have

been pressed correctly, while those with visual im-

pairments may face difﬁculties if the buttons or their

states are not clearly visible.

3.2 Multiple Buttons

In an accessibility context, requiring the use of mul-

tiple buttons for performing actions can present vari-

ous challenges for users with disabilities. Motor co-

ordination can be a signiﬁcant issue, as some users

may lack the ﬁne motor skills needed to press mul-

tiple buttons simultaneously or in quick succession.

Those with limited mobility, such as individuals with

conditions like cerebral palsy or paralysis, may ﬁnd

it particularly difﬁcult to operate multiple buttons at

once. Additionally, reduced ﬁnger strength or dexter-

ity can make pressing or holding buttons challenging.

From a cognitive perspective, the complexity of

remembering sequences or combinations of button

presses can be overwhelming for users with memory

impairments or cognitive disabilities. This increased

complexity also raises the likelihood of errors, which

may lead to frustration or even task abandonment. En-

vironmental factors can exacerbate these difﬁculties.

For instance, buttons requiring simultaneous use may

be physically out of reach for some users or may de-

mand excessive or uneven force to operate, adding

to the challenge. Usability concerns, such as the po-

tential for fatigue from repetitive or prolonged multi-

button actions, are also signiﬁcant. Precision require-

ments for pressing multiple buttons correctly can fur-

ther diminish accessibility and lead to frustration.

The challenges described here, if appropriately

adapted under the guidance of an expert, can be trans-

formed into opportunities for learning, rehabilitation,

and inclusive music-making. It is essential that the

goals are tailored to the individual’s abilities and that

the tasks do not lead to frustration.

Some advanced actions mentioned above fall un-

der the umbrella of multiple-button availability. For

example, we can trace back press with modiﬁers to the

combined use of independent buttons. In a traditional

setting, playing a chord on a piano can be seen as a

press (the root note) with modiﬁers (the other notes

in the chord) action; still, the mentioned elements are

independent keys whose role (either the main button

or a modiﬁer) can change during the performance. In

CSME 2025 - 6th International Special Session on Computer Supported Music Education

654

music education, this approach can be used, e.g., to

learn the principles of harmony, but, similarly to other

advanced actions, it requires dexterity and can be cog-

nitively challenging.

Sequential presses involve pressing multiple but-

tons in a speciﬁc order to trigger an event. In mu-

sic production, this could be used to activate a series

of effects or sequences, such as arpeggios or drum

patterns. In music education, sequential presses can

be used in exercises that teach students about musi-

cal structure and sequence, such as arranging notes

or completing rhythm patterns. Accessibility consid-

erations include allowing for ﬂexible timing between

presses and providing feedback to indicate whether

the sequence was completed correctly.

Finally, let us mention the scenario where multi-

ple buttons are used by independent players to per-

form basic, advanced, or even derived actions. This

approach can mitigate the usability issues discussed

above. Furthermore, collaborative performances

foster inclusivity by encouraging social interaction,

teamwork, and mutual understanding among partic-

ipants of diverse abilities and backgrounds. They em-

power individuals to express themselves, contribute

meaningfully, and feel valued within a group.

4 STATE OF THE ART

As mentioned above, the interfaces of many “tradi-

tional” musical instruments and sound equipment im-

plement forms of interaction that may recall button

actions. But, in this section, we want to address

computer-based approaches that explicitly rely on the

button paradigm. Due to their interface, such tools

fall under the wider umbrella of tangible user inter-

faces (TUIs), which provide innovative ways for users

to interact with digital systems through physical ob-

jects (Ishii, 2007). In the context of music production

and learning, music TUIs enable more intuitive and

creative musical experiences (Barat

e and Ludovico,

2024). By bridging the gap between tactile interac-

tion and digital sound processing, music TUIs foster

a deeper connection between the performer and the

music, often with signiﬁcant beneﬁts for accessibility

and education.

One example of a music-focused TUI is the Kibo

by Kodaly,

a MIDI Bluetooth instrument crafted

from solid maple wood (Amico and Ludovico, 2020).

The system includes a modular keyboard composed

of eight distinct magnetic shapes, each representing a

different musical note or control parameter (see Fig-

https://www.kodaly.app/

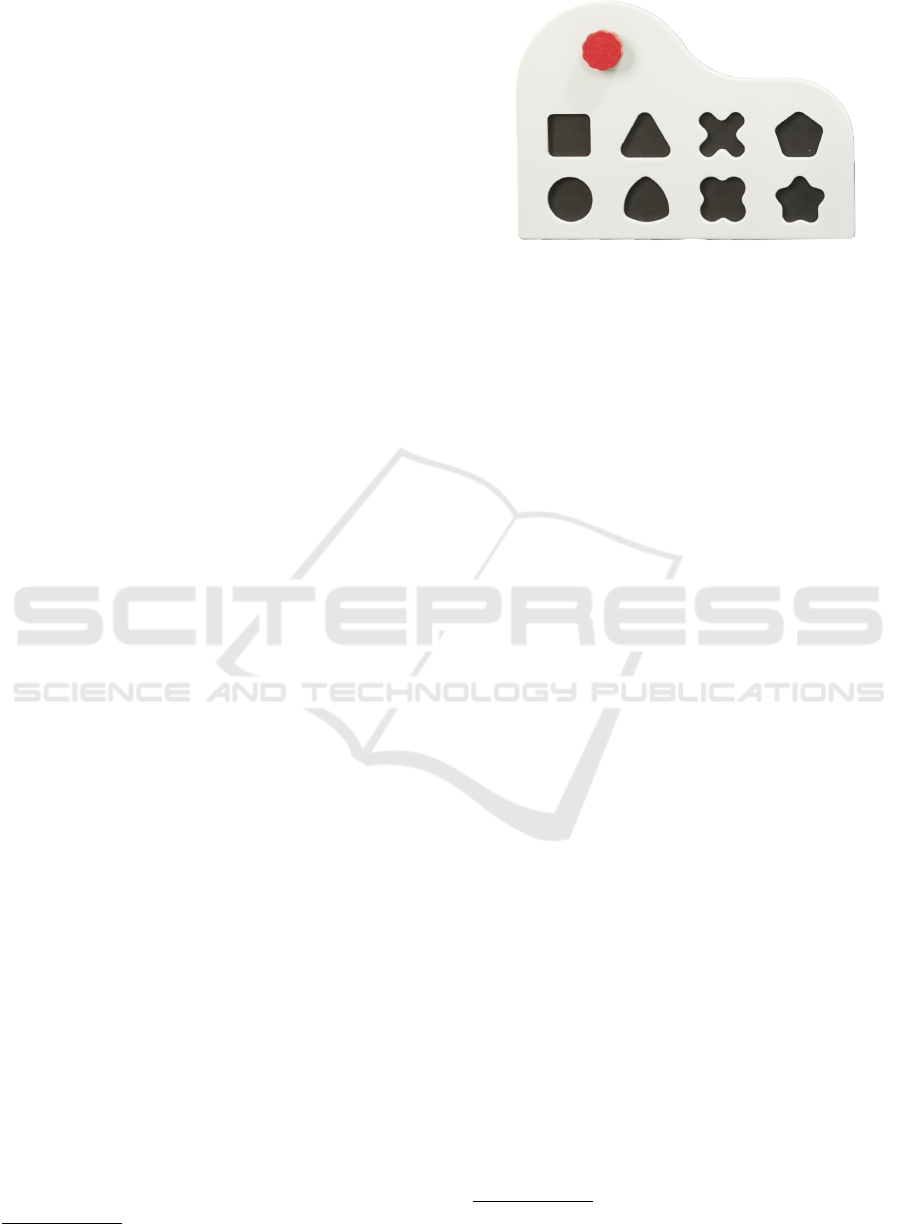

Figure 1: The Kibo by Kodaly.

ure 1). Users can rearrange these shapes to create cus-

tom musical phrases. Through its dedicated app, the

Kibo translates these physical interactions into musi-

cal output, not only triggering notes but also offer-

ing features such as tone adjustments, scale selection,

and octave control. This integration of tangible and

digital elements makes the Kibo particularly effec-

tive in music education, especially for young children

and individuals with disabilities (Barat

e et al., 2023).

The Kibo implements several button actions: its eight

tangibles are pressure-sensitive, thus supporting but-

ton down, button up, button click, button hold, and

pressure-sensitive interaction. Moreover, the board

has a knob control to perform press and rotate action.

All these controls produce standard messages via the

MIDI protocol and can be associated with different

musical parameters.

The Skoog by Playable Technology is a tactile,

cube-shaped musical interface designed for accessi-

bility (see Figure 2). Users can press, squeeze, or tap

the Skoog to produce sound, which is mapped to var-

ious instruments or MIDI controls. The device con-

nects to apps that allow users to select scales, keys,

and instruments, making it a versatile tool for inclu-

sive music education (Rinta, 2019). The Skoog can

also be used as a simple 5-button communicator when

paired with an iPad. Its soft, responsive surface makes

it particularly suitable for children, individuals with

motor impairments, and those new to music-making.

The Skoog implements button down, button up, but-

ton click, and button hold actions. Unfortunately, this

project has recently been discontinued.

AudioCubes by Percussa

are wireless cubes that

use light sensors to control sound and music. When

cubes are moved, rotated, or placed near each other,

they send MIDI or OSC signals to music software, en-

abling dynamic and visually engaging performances.

All the faces are equipped with proximity sensors ca-

pable of detecting other objects, hands included; in

https://www.playable.tech/

https://www.percussa.com/what-are-audiocubes/

From Push Buttons to Notes: A Hardware/Software Ecosystem for Inclusive Music Education

655

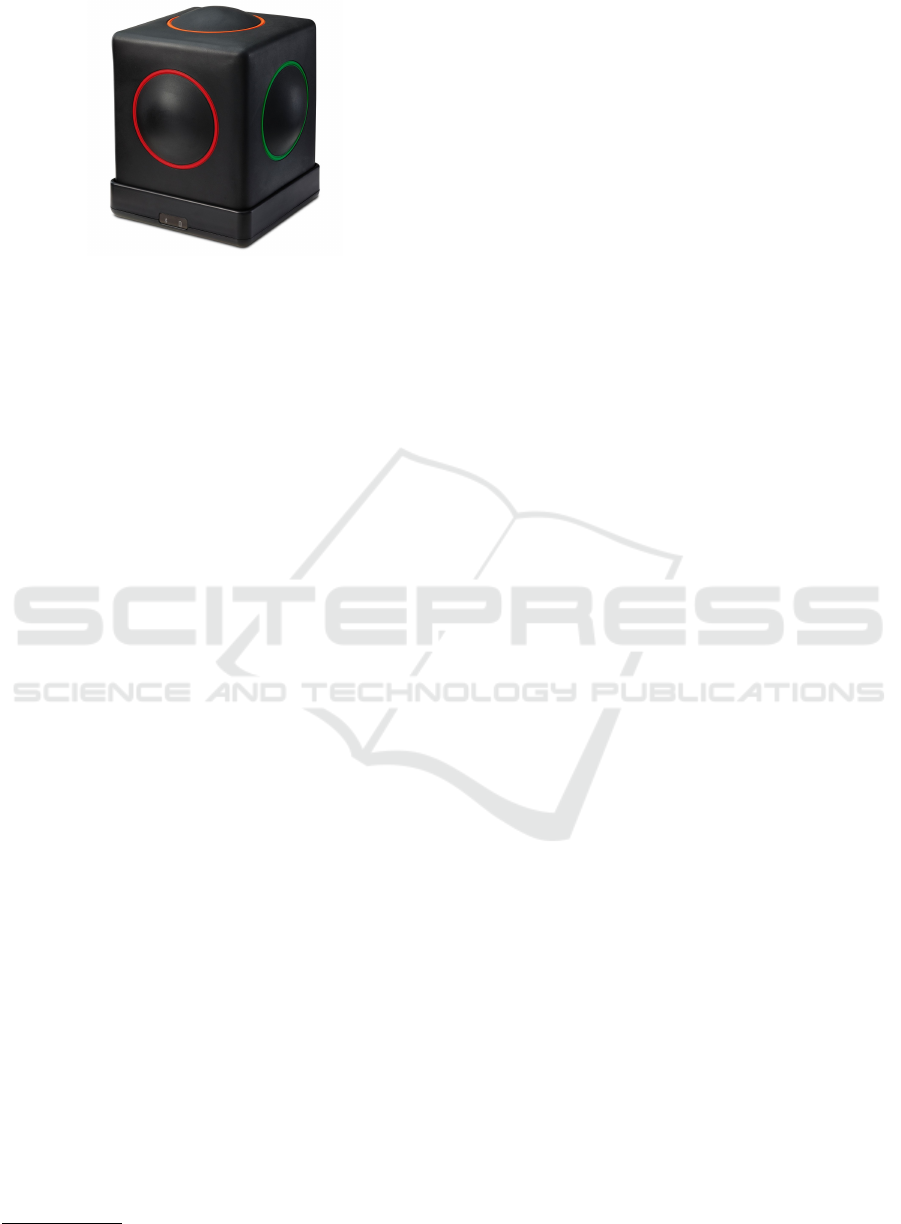

Figure 2: The Skoog.

this way, each AudioCube can turn into a multiple-

button interface, also sensitive to pressure. This mod-

ular system provides an open-ended platform for ex-

ploring composition and live performance, encourag-

ing experimentation through tactile interaction.

The Soundplane Model A by Madrona Labs

is a

tactile music interface that combines the expressive-

ness of a stringed instrument with the capabilities of a

MIDI controller. It can detect a wide range of touches

on its playing surface, from a light tickle to a very

ﬁrm press. While it is not a traditional button-based

interface, it has been chosen to exemplify the tactile

qualities that deﬁne TUIs in music.

The music-focused TUIs mentioned above

demonstrate the potential of tangible interaction to

enhance creativity, accessibility, and engagement in

music-making. These systems encourage exploration

and learning by offering immediate feedback and

a hands-on approach to sound manipulation. TUIs

break down barriers to music education, making

it accessible to people of all ages and abilities.

Furthermore, these devices can form an ensemble,

operating with other identical or similar tools,

electronic equipment, or traditional instruments.

Music-making’s social and connective functions are

fundamental to fostering interaction, integration, and

cooperation among learners (Barat

e et al., 2021; Frid,

2019; Samuels and Schroeder, 2019).

5 A PROPOSAL FOR A HW/SW

ECOSYSTEM

In the previous sections, we highlighted the various

actions that can be performed and detected, as well

as the importance of push-button devices as inter-

faces for music creation and learning. We now pro-

pose a hardware and software ecosystem designed

to implement the control of musical parameters us-

https://www.madronalabs.com/soundplane

ing this approach and leveraging readily available de-

vices, such as simpliﬁed keyboards and gamepads.

Clearly, the platform could also include custom-made

devices, provided they can communicate in a standard

manner, for instance, via USB ports.

Figure 3 depicts the ecosystem designed for in-

clusive music education. Its most relevant component

is on the right: a central hub that connects various

push-button interfaces (or similar devices). These in-

terfaces are easily accessible and controllable, making

them suitable for individuals with physical or cog-

nitive impairments. Moreover, it is highly probable

that such interfaces, e.g. joypads, are already avail-

able to users and commonly adopted in everyday life;

this implies that their functions and interfaces are al-

ready known. If not available, these devices can be

purchased at a low cost. The communication between

peripheral devices and the hub can occur via USB,

MIDI, or other commonly-accepted protocols.

In our proposal, a variety of devices can play the

role of the hub. An example is provided by the Mi-

crosoft Xbox Adaptive Controller, an innovative gam-

ing device designed to make gaming accessible for

individuals with disabilities. Released in 2018, it fea-

tures a ﬂat rectangular design with numerous ports for

connecting external devices (see Figure 4). This mod-

ular system allows users to customize their experience

by attaching a wide range of compatible switches,

buttons, joysticks, and other assistive devices. The

controller supports connectivity with Xbox consoles

and Windows PCs via USB-C or Bluetooth, enabling

seamless integration into various setups.

The computer system that receives messages from

the hub runs software capable of giving them a cus-

tomizable musical meaning and routing them to a

DAW, a synthesizer, or another sound system using

standard protocols like MIDI or OSC (Wright, 2005).

The gray section on the left represents optional de-

vices for additional inclusivity, such as eye trackers

and wireless motion detectors. However, the primary

focus of the current work remains on the push-button

interfaces.

Please note that such an ecosystem has already

been implemented, released under the name Inclu-

sive MIDI Controller, and tested in an observational

study presented in (Faschi et al., 2024). In that work,

the focus was on the accessibility of the central part

of the diagram, namely the software interface gather-

ing messages from peripheral devices, rather than the

adoption of push buttons to foster inclusivity. More-

over, the aim was to enable participation in creative

processes and musical performance, while here we

are mainly addressing music education.

CSME 2025 - 6th International Special Session on Computer Supported Music Education

656

Eye tracker

Computer keyboard Mouse

Hub

Set of buttons Gamepad

Digital Audio Workstation

MIDI or OSC protocol

Wireless motion detector

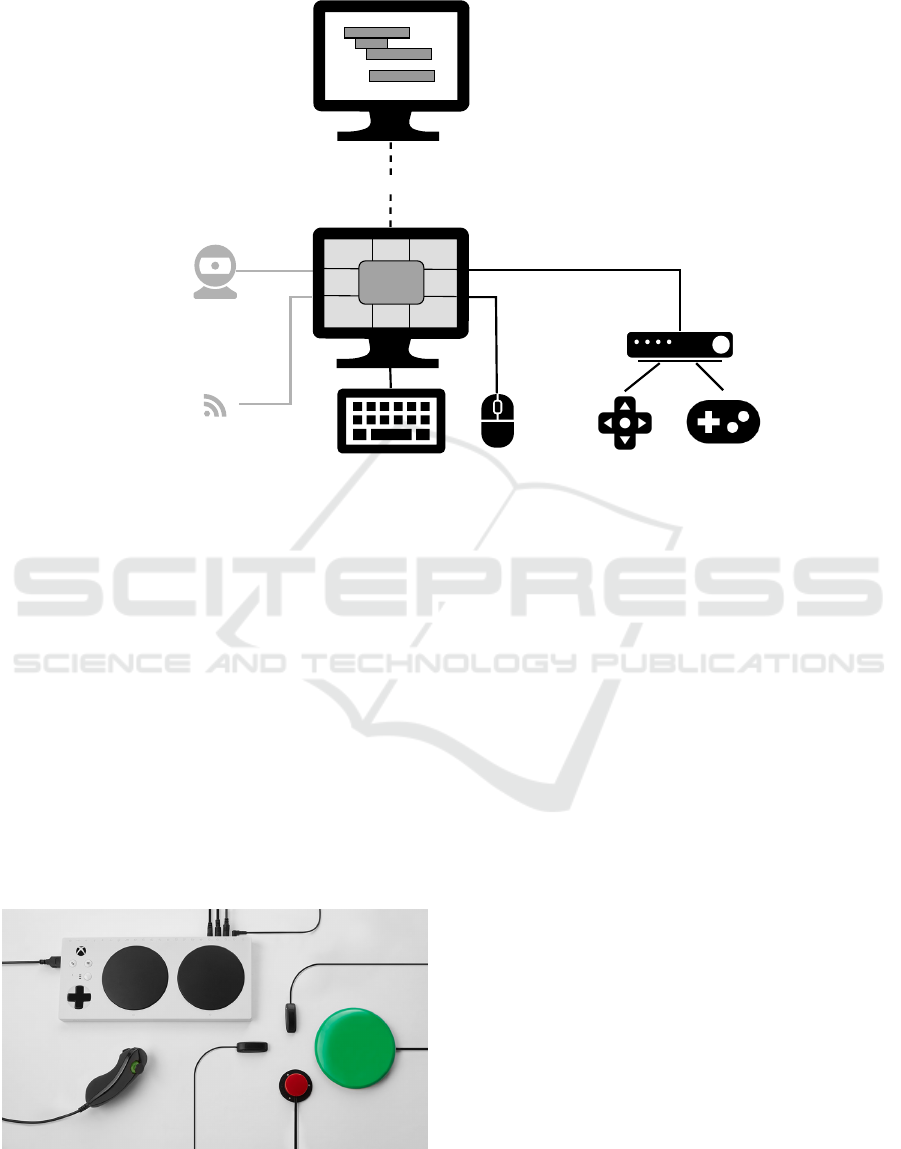

Figure 3: Schema of the HW/SW ecosystem.

6 USE CASES

In this section, we will propose some educational

activities aimed at different types of disabilities and

fully relying on button interfaces. By choice, we

will not present specially designed hardware, in or-

der to make these experiences as replicable as pos-

sible in educational contexts and at relatively low

costs. Clearly, the ability to use custom interfaces

would expand the possibilities: consider, for example,

3D-printed buttons featuring Braille coding of func-

tions, designed for Blind and Visually Impaired (BVI)

users. Rather, we will refer to simpliﬁed button inter-

faces connected to the hub in Figure 3.

Figure 4: The Microsoft Xbox Adaptive Controller.

6.1 Triggering Simple Events

In this use case, the type of detected events is button

click, eventually prolonged. As mentioned above, it is

the simplest form of interaction; due to its widespread

use in everyday life, we can expect that all users know

this action, even if they may experience difﬁculties

in reproducing it or understanding what its musical

meaning is.

Button clicks can be detected by gamepads, col-

ored keyboards, or other accessible devices. An old

joystick had two buttons, while a modern gamepad

contains at least 4 buttons plus navigation controls. To

mention a more advanced device, the Microsoft Xbox

360 Controller features:

• Directional Pad, or D-Pad – a four-directional pad

to control movement via Up, Down, Left, and

Right buttons;

• Action buttons – 4 buttons, named A, B, X, and Y,

positioned on the upper side of the controller;

• Shoulder and Trigger Buttons – Left Bumper (LB)

and Right Bumper (RB), located on the top left

and top right of the controller, plus Left Trigger

(LT) and Right Trigger (RT), located below;

• System and Menu Buttons – Start, Back, and Xbox

Guide buttons.

From Push Buttons to Notes: A Hardware/Software Ecosystem for Inclusive Music Education

657

By connecting a gaming peripheral to the hub, you

have access to a minimum of 2 and easily 12 or more

buttons. Please note that having a more complex con-

troller expands the possibilities but, from an inclusive

perspective, complicates the task of performing a spe-

ciﬁc action. In the case of motor impairment, it might

be challenging to reach a certain button or avoid acci-

dentally pressing another (Kwan et al., 2011). In the

case of cognitive impairment, it might be difﬁcult to

memorize or recall an excessive number of actions.

Now, let us analyze the musical functions that can

be linked to such actions. First of all, it would theo-

retically be possible to differentiate the musical pa-

rameters controlled by different buttons, or sets of

buttons. For example, the four action buttons could

play different pitches, while the four shoulder buttons

could change the current instrument. However, this

approach might be cognitively demanding and its fea-

sibility should be evaluated by a therapist or caregiver

to challenge the user without causing a sense of frus-

tration.

Since the range of disabilities is wide and user-

tailored approaches are often required, in our proposal

the musical parameters linked to each button can be

customized via software (see the central part in Fig-

ure 3. In this way, a user capable of clicking a single

button could, e.g., trigger an impulsive drum sound,

like a triangle or a snare drum; a user capable of using

two buttons could play two unpitched instruments to

reproduce a more complex rhythmic pattern or alter-

nate between two pitches, e.g., the tonic and the dom-

inant in a musical scale; a user capable of triggering

eight buttons could play a sort of toy piano or xylo-

phone, as well as produce a range of different sound

effects; and so on.

Educational applications range from the aware-

ness of musical parameters, such as melody, rhythm,

harmony, and timbre, to the development of skills in

playing together and being involved in a collaborative

performance.

To the aims of music education, we give key im-

portance to the possibility of translating user actions

into customizable musical parameters under the con-

trol of the therapists or the users themselves. The pro-

duction of MIDI or OSC messages operated by the

software guarantees generalizability and compatibil-

ity with external sound and music systems.

6.2 Triggering Sequences of Events

Considering once again simple actions such as button

clicks, it is possible not only to control simple events,

such as ”play an impulsive sound,” ”trigger the attack

of a note,” and ”change the current instrument,” but

also to initiate more complex, pre-deﬁned sequences,

in the form of music or sound events.

An example involving musical sequences consists

of assigning different melodic-rhythmic patterns to

the pressing of different buttons. Educational expe-

riences can be imagined where these sequences must

be reproduced in a given order (for example, after

the ﬁrst one ends, the second one must begin, and

so on), or giving the user the freedom to explore the

sequences in any order, either mutually exclusive or

not. The adoption of colored buttons, together with

the production of sound, can be a reinforcement tech-

nique both to explain and to memorize actions.

Furthermore, in relation to the execution state of

the sequences, it is possible to assign different func-

tions to the clicks: a complete button click could start

the sequence without allowing it to be stopped, or a

second button click could act as a stop button, or but-

ton down and button up could perform the functions

of play and pause, respectively. The sequence could

be rewound or paused after a stop action.

Now, let us consider a similar approach in a mul-

titrack context involving an external DAW controlled

by the software. Ad hoc buttons could start, stop, and

rewind the overall playback. A group of specialized

buttons could be associated with a set of tracks, per-

forming a selective muting/unmuting action. The ver-

tical directional arrows could control the volume. The

horizontal directional arrows could change the con-

text, for example by loading the previous or the next

song within the library.

Also in this scenario, the software’s function is

to allow customization of all associations between

events and actions within the DAW, thus supporting

a highly customized educational experience. To men-

tion but a few options, a therapist can arrange an ad

hoc song library in the DAW, prepare the number

of independent tracks depending on the user’s skills,

choose the most suitable input device to be connected

to the hub, conﬁgure the number and position of the

buttons to be activated, set the user’s actions that trig-

ger sound events, and so on.

7 CONCLUSION

This paper presented a hardware/software ecosystem

designed to make music education more accessible

and inclusive through the use of push-button inter-

faces. The proposed system aims to bridge the gap

between physical interaction and musical expression

by leveraging affordable, widely available hardware

and customizable software. By focusing on simplic-

ity and adaptability, the system is particularly well-

CSME 2025 - 6th International Special Session on Computer Supported Music Education

658

suited for young children and individuals with cogni-

tive or physical disabilities, enabling meaningful en-

gagement with music.

The research highlights the versatility of push-

button actions, ranging from basic interactions like

clicks and holds to more advanced patterns such as

sequential presses and pressure-sensitive input. These

actions are mapped to diverse musical functions, en-

suring that users with varying motor skills and cogni-

tive abilities can actively participate in music-making

activities. The ecosystem’s ﬂexibility is further

demonstrated through its compatibility with standard

protocols like MIDI and OSC, facilitating seamless

integration with external sound systems and DAWs.

The observational study conducted with the In-

clusive MIDI Controller implementation underscores

the potential of this approach to foster creativity and

collaboration. Educational use cases, such as trig-

gering simple events, playing predeﬁned sequences,

and controlling complex musical parameters, show-

case the system’s ability to adapt to individual needs.

This adaptability not only lowers the barriers to mu-

sic education but also empowers users to develop a

deeper appreciation and understanding of music.

While the results are promising, further research

and development are necessary to expand the system’s

capabilities. Future work will include integrating ad-

vanced sensing technologies, exploring new interac-

tion paradigms, and planning extensive user studies

to reﬁne the platform’s design. Furthermore, we need

to conduct experiments on the ﬁeld with users char-

acterized by different types of impairments. In this

sense, we want to adopt standard assessment tools,

such as the System Usability Scale (SUS) (Brooke

et al., 1996), the Accessible Usability Scale (AUS),

and the Quebec User Evaluation of Satisfaction with

Assistive Technology (QUEST) (Demers et al., 1996).

By addressing both educational and accessibil-

ity challenges, this ecosystem represents a signiﬁcant

step toward democratizing music education. Its abil-

ity to cater to diverse user needs highlights the trans-

formative potential of inclusive design in fostering

engagement, creativity, and collaboration in music-

making.

REFERENCES

Allotta, B., Colla, V., Bioli, G., and Conticelli, F. (1999).

Haptic interface for simulating push-buttons. In 1999

IEEE/ASME International Conference on Advanced

Intelligent Mechatronics (Cat. No. 99TH8399), pages

878–883. IEEE.

https://makeitfable.com/accessible-usability-scale/

Altinsoy, M. E. (2020). Perceptual features of every-

day push button sounds and audiotactile interaction.

Acoustical Science and Technology, 41(1):173–181.

Amico, M. D. and Ludovico, L. A. (2020). Kibo: A midi

controller with a tangible user interface for music ed-

ucation. In Lane, H., Uhomoibhi, J., and Zvacek, S.,

editors, Proceedings of the 12th International Con-

ference on Computer Supported Education (CSEDU

2020) - Volume 1, CSEDU, pages 613–619, Set

ubal.

SCITEPRESS - Science and Technology Publications,

Lda.

Barat

e, A., Korsten, H., Ludovico, L. A., and Oriolo, E.

(2023). Music tangible user interfaces and vulnera-

ble users: State of the art and experimentation. In

Constantine, L., Holzinger, A., Silva, H. P., and Van-

derdonckt, J., editors, Computer-Human Interaction

Research and Applications. 5th International Con-

ference, CHIRA 2021, Virtual Event, October 28–

29, 2021, and 6th International Conference, CHIRA

2022, Valletta, Malta, October 27–28, 2022, Revised

Selected Papers, volume 1882 of Communications

in Computer and Information Science, pages 1–25.

Springer Science and Business Media Deutschland

GmbH.

Barat

e, A. and Ludovico, L. A. (2024). A multidimensional

taxonomy model for music tangible user interfaces. In

MultiMedia Modeling. 30th International Conference,

MMM 2024, Amsterdam, The Netherlands, January

29 – February 2, 2024, Proceedings, Part III, volume

14556 of Lecture Notes in Computer Science, pages

517–531. Springer.

Barat

e, A., Ludovico, L. A., and Oriolo, E. (2021). An

ensemble of tangible user interfaces to foster music

awareness and interaction in vulnerable learners. In

Constantine, L., Holzinger, A., and Silva, H. P., edi-

tors, Proceedings of the 5th International Conference

on Computer-Human Interaction Research and Appli-

cations (CHIRA 2021), pages 48–57. SCITEPRESS -

Science and Technology Publications, Lda.

Brooke, J. et al. (1996). Sus-a quick and dirty usability

scale. Usability evaluation in industry, 189(194):4–7.

Chen, Y., Liang, X., Chen, S., Chen, Y., Lin, H., Zhang, H.,

Jiang, C., Tian, F., Zhang, Y., Yao, S., et al. (2022).

Haptag: a compact actuator for rendering push-button

tactility on soft surfaces. In Proceedings of the 35th

Annual ACM Symposium on User Interface Software

and Technology, pages 1–11.

Demers, L., Weiss-Lambrou, R., and Ska, B. (1996). Devel-

opment of the quebec user evaluation of satisfaction

with assistive technology (quest). Assistive technol-

ogy, 8(1):3–13.

Faschi, V., Ludovico, L. A., and Avanzini, F. (2024). An

accessible software interface for collaborative music

performance. In Proceedings of the 21st Sound and

Music Computing Conference, pages 150–157. SMC.

Frid, E. (2019). Accessible digital musical instruments—a

review of musical interfaces in inclusive music prac-

tice. Multimodal Technologies and Interaction,

3(3):57.

Gaspar, J., Fontul, M., Henriques, E., and Silva, A. (2019).

Push button design requirements and relations to but-

From Push Buttons to Notes: A Hardware/Software Ecosystem for Inclusive Music Education

659

ton architecture elements. International Journal of In-

dustrial Ergonomics, 70:92–106.

Gentile, V., Sorce, S., Malizia, A., Pirrello, D., and Gen-

tile, A. (2016). Touchless interfaces for public dis-

plays: can we deliver interface designers from intro-

ducing artiﬁcial push button gestures? In Proceedings

of the International Working Conference on Advanced

Visual Interfaces, pages 40–43.

Ishii, H. (2007). Tangible user interfaces. In The human-

computer interaction handbook, pages 495–514. CRC

Press.

Kwan, C., Paquette, I., Magee, J. J., Lee, P. Y., and Betke,

M. (2011). Click control: improving mouse interac-

tion for people with motor impairments. In The Pro-

ceedings of the 13th International ACM SIGACCESS

Conference on Computers and Accessibility, ASSETS

’11, page 231–232, New York, NY, USA. Association

for Computing Machinery.

Morimoto, K., Miyajima, C., Itou, K., and Takeda, K.

(2007). A virtual button interface using ﬁngertip

movements. In 2007 International Conference on

Machine Learning and Cybernetics, volume 4, pages

2089–2093. IEEE.

Plotnick, R. (2018). Power button: A history of pleasure,

panic, and the politics of pushing. MIT Press.

Rinta, T. (2019). A casestudy on the use of an innova-

tive, technical, musical instrument, skoog, in a special

needs education setting with a child with autism and

its effects on social skills. Journal of Music, Technol-

ogy & Education, 12(2):179–200.

Samuels, K. and Schroeder, F. (2019). Performance with-

out barriers: Improvising with inclusive and accessi-

ble digital musical instruments. Contemporary Music

Review, 38(5):476–489.

Wright, M. (2005). Open Sound Control: an enabling tech-

nology for musical networking. Organised Sound,

10(3):193–200.

CSME 2025 - 6th International Special Session on Computer Supported Music Education

660
